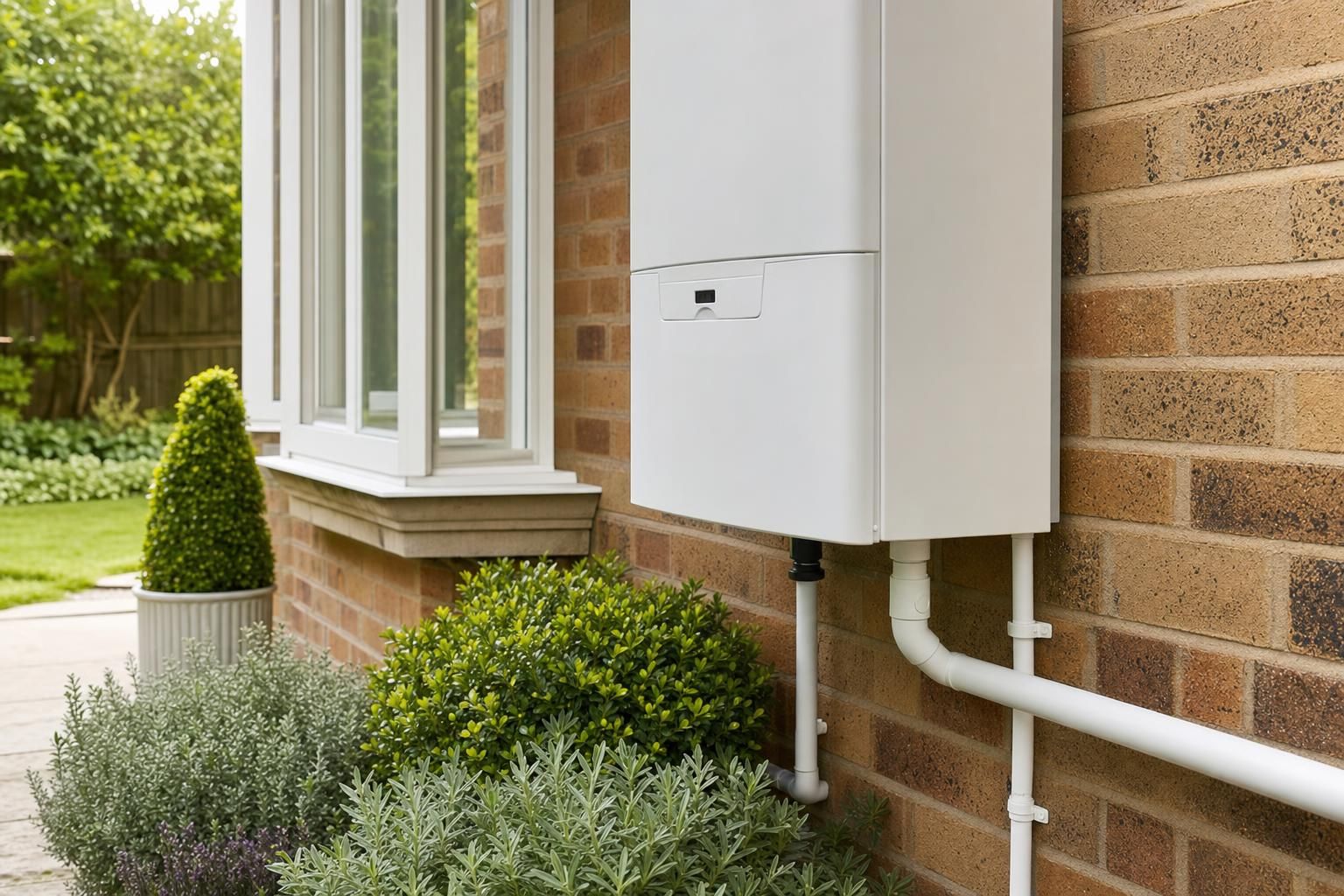

Boiler Condensate Pipes Explained Freezing Risks Routing Rules and Fixes for Homeowners

Boiler condensate pipes are a small part of your heating system that cause a disproportionate number of winter callouts. Across the UK, temperatures regularly drop below zero overnight during cold snaps, and even a few consecutive nights at minus 2 to minus 5 degrees can be enough to freeze poorly installed pipework. Many heating engineers report that up to half of winter emergency breakdowns relate to condensate issues. With typical emergency callout fees ranging from £80 to £150 before any repair work begins, this is a problem that hits both comfort and your wallet fast.

If you have a modern condensing boiler, you have a condensate discharge pipe that carries mildly acidic waste water away from the appliance. When this pipe freezes, your boiler will often lock out, leaving you without heating or hot water at the worst possible time.

This guide explains how condensate pipes work, why they freeze, what the current UK best practice says about routing, and how to fix and prevent problems. The aim is to give you practical knowledge so you can spot issues early, take sensible action, and know when a qualified Gas Safe engineer is needed.

What Is a Boiler Condensate Pipe and Why It Matters

All modern gas boilers are condensing appliances. They extract extra heat from exhaust gases which creates condensation. That liquid collects inside the boiler and must be discharged safely. The condensate pipe takes this liquid to a suitable drain point such as an internal waste pipe, a soil stack, or an external gully.

The liquid itself is slightly acidic, typically around pH 3 to 4, similar to fruit juice. This is not dangerous in the volumes produced by a domestic boiler, but it does mean the pipe material and routing matter. Plastic pipework is normally used, most often 21.5 mm overflow pipe or 32 mm waste pipe.

If the pipe is installed poorly, runs externally for too long, or lacks insulation, it can freeze in cold weather. When that happens, condensate backs up into the boiler. Most modern boilers detect this and shut down to protect internal components. You might see an error code, hear gurgling, or notice the boiler trying to fire and then stopping.

Why Condensate Pipes Freeze in UK Winters

Freezing is nearly always about exposure and size. A long run of narrow pipe outside the property is vulnerable. Even in relatively mild parts of the UK such as the South East, wind chill and shaded areas can freeze water in pipework. In northern regions, Scotland, and rural exposed areas, the risk is significantly higher.

Common factors that lead to freezing include:

• External runs longer than 3 metres
• Use of 21.5 mm pipe outside rather than 32 mm
• Poor fall, or no continuous fall back to the drain
• Lack of insulation on exposed sections
• Termination into a small external gully that can ice over

Installers now aim to keep as much of the condensate route inside the building as possible. Older installations, especially those fitted before updated guidance from manufacturers and Gas Safe bodies, are far more likely to suffer problems.

Correct Routing Rules and Best Practice in the UK

There is no single regulation document that covers every detail, but best practice is well established through boiler manufacturers’ instructions, Gas Safe guidance, British Standards, and building regulations. You can also refer to the Health and Safety Executive guidance on condensate discharge for an overview.

In practice, Gas Safe registered engineers are expected to follow manufacturer installation instructions as a minimum legal requirement. These instructions often contain detailed condensate routing diagrams, including maximum external lengths and minimum pipe sizes.

Relevant standards and guidance include:

• Gas Safe Register technical bulletins on condensate discharge
• Boiler manufacturer manuals such as Vaillant, Worcester Bosch, and Ideal
• BS 6798, which covers installation of gas fired boilers
• UK Building Regulations Part H for drainage and waste

Key routing principles used by experienced installers include:

• Run the pipe internally wherever possible, connecting to an internal soil stack or waste pipe
• If an external run is unavoidable, keep it as short as possible, ideally less than 3 metres
• Increase pipe diameter to at least 32 mm for external sections, sometimes 40 mm in exposed situations
• Maintain a continuous fall of at least 45 mm per metre so water cannot sit in the pipe
• Insulate external pipework with waterproof insulation of suitable thickness, typically 19 mm or more
• Terminate into a suitable drain point, not just dripping onto the ground

Real world scenarios often highlight where things go wrong. For example, in a typical semi detached house, installers may choose a quick external route to a gully at ground level. If that pipe runs 4 or 5 metres along a shaded wall, it is highly likely to freeze unless upgraded properly.

Where routing into an internal waste pipe, a suitable trap or air break must be included to prevent foul smells entering the boiler. Most boilers have a built in trap as well, which must be filled during installation and servicing. Failure to do so can cause noise, smells, or even incorrect operation.

Building Regulations Part H covers drainage and waste disposal. While it does not specifically reference boiler condensate in detail, the principles of correct fall, suitable materials, and proper termination apply. You can review the official guidance here: Approved Document H.

For further manufacturer specific advice, Worcester Bosch also provide detailed guidance on condensate pipe installation: https://www.worcester-bosch.co.uk/support/boiler-faults/condensate-pipe

Internal vs External Routing Comparison

In UK homes, internal routing is typically chosen in newer builds, flats, and properties where the boiler is located near a kitchen, utility room, or bathroom waste system. External routing is more common in older homes where retrofitting an internal route would involve lifting floors or major alterations.

Routing Option	Pros	Cons	Typical Cost Impact
Internal to soil stack	Very low freezing risk, neat installation	May require boxing in or floor access	£50 to £150 extra labour in many cases
Internal to kitchen or utility waste	Simple in many homes, short pipe runs	Needs correct trap and connection point	£30 to £120
External short run to gully	Quick installation	Freezing risk if poorly insulated	Often cheapest option, £0 to £50 extra
External long run	Sometimes only option in older homes	Highest freezing risk, needs upgrades	£100 to £300 if upgraded properly

Signs Your Condensate Pipe Has Frozen

Homeowners often assume the boiler itself has failed. In winter, about half of emergency boiler callouts relate to condensate freezing.

Typical symptoms include:

• Boiler displaying a fault code or lockout
• No heating or hot water
• A gurgling or bubbling noise from the boiler
• Visible ice on the external pipe

Use this quick diagnostic checklist before calling an engineer:

• Check outdoor temperatures have been near or below freezing overnight
• Look for exposed external condensate pipework along walls
• Feel the pipe carefully for very cold or solid sections
• Inspect the pipe end near the drain for ice build up
• Reset the boiler once and see if it immediately locks out again
• Check the manual for fault codes relating to condensate or drainage

If this happens during cold weather, check the condensate pipe first before assuming the worst. You can learn more general troubleshooting in What to Do if Your Boiler Stops Working.

Boiler Error Codes Linked to Frozen Condensate Pipes

Many modern boilers display specific fault codes when condensate cannot drain properly. These vary by brand, but they often point towards blocked or frozen pipework.

• Worcester Bosch, EA or D5 fault codes, often linked to flue or condensate issues
• Vaillant, F28 or F29, sometimes triggered by lockout due to blocked condensate during ignition attempts
• Ideal Boilers, L2 or F2, commonly associated with ignition faults that can relate to condensate freezing

These codes do not always confirm a frozen pipe, but during freezing weather they are a strong clue. Engineers will usually check condensate flow as part of initial diagnostics before investigating more complex faults.

How to Safely Thaw a Frozen Condensate Pipe

This is one of the few boiler related tasks that a homeowner can often handle safely, provided you follow basic precautions.

Step by step approach:

• Turn off the boiler and allow it to cool
• Locate the external condensate pipe
• Pour warm, not boiling, water along the frozen section
• Use a hot water bottle or cloth to apply gentle heat
• Once thawed, reset the boiler as per the manual

DIY vs professional boundary is clear here. You can safely thaw accessible external pipework. However, any work that involves removing boiler panels, altering pipe connections, or modifying the route should be carried out by a Gas Safe registered engineer. This is both a legal requirement and a safety measure.

Do not use kettles of boiling water directly on plastic pipe, as this can cause cracking or joint failure. Avoid open flames or heat guns, which are unsafe near gas appliances.

If you are unsure, or if the pipe is not easily accessible, it is best to call a professional. The article When to Call a Professional Plumber vs. DIY explains where the line should be drawn.

Permanent Fixes to Prevent Freezing and Improve Boiler Condensate Pipe Routing

Short term thawing gets you back up and running, but the problem will likely return unless the installation is improved. Proper boiler condensate pipe routing is the long term solution.

Common long term fixes include:

• Rerouting the pipe internally to a soil stack or waste pipe
• Upsizing external pipe diameter to 32 mm or larger
• Adding high quality outdoor grade insulation
• Improving the gradient to ensure proper flow
• Installing a trace heating cable in extreme cases

In real homes, solutions vary. A modern flat might only need a short internal connection under a sink, while a detached rural property may require rerouting several metres of pipe and adding insulation plus trace heating.

Property Type	Best Solution	Effectiveness	Typical Cost
Flat or apartment	Internal routing to kitchen waste	Very high	£100 to £250
Semi detached house	Shortened external run plus insulation	High if done properly	£150 to £300
Detached house	Full internal reroute if possible	Very high	£250 to £600
Older property	Combination of reroute and pipe upgrade	Medium to high	£300 to £800
Exposed rural location	Trace heating plus insulation and upsizing	High	£300 to £700

Trace heating is rarely needed for typical suburban homes, but in exposed areas such as coastal or elevated locations it can prevent repeated failures.

Typical Costs for Repairs and Upgrades

Costs vary based on access and the extent of changes needed. Labour is usually the main factor, especially if floors, walls, or kitchen units must be accessed.

• Simple thawing visit, £60 to £120, usually 30 to 60 minutes
• Adding insulation to existing pipe, £80 to £180, around 1 hour
• Replacing external pipe with 32 mm pipe, £120 to £250, 1 to 2 hours
• Rerouting internally to a nearby waste pipe, £150 to £400, 2 to 4 hours
• Complex rerouting through floors or walls, £300 to £800, half day to full day

Typical labour rates in the UK range from £50 to £90 per hour depending on region. London and the South East tend to sit at the higher end. Many engineers also charge a fixed callout fee of £70 to £120, which may include the first hour of work.

Material costs for pipework, fittings, and insulation are usually modest, often between £20 and £80. More specialist items like trace heating kits can cost £100 to £250 depending on length and controls.

If the boiler itself has suffered damage due to repeated freezing, costs can escalate. Frozen condensate can crack internal components or damage the heat exchanger, although this is less common on modern units.

How Condensate Pipes Link to Boiler Pressure Issues

A blocked or frozen condensate pipe can indirectly affect your boiler pressure readings. If you notice unusual pressure drops or spikes alongside lockouts, it is worth checking both systems.

For a practical walkthrough on restoring pressure safely, see How to Repressurise a Boiler in a UK Home Safely and Restore Heating and Hot Water.

Winter Preparation Checklist

A bit of preparation before cold weather can save a lot of hassle.

• Inspect any external condensate pipe for insulation and damage
• Check that the pipe has a visible downward slope
• Ensure the discharge point is clear of debris and not prone to flooding
• Look for previous temporary fixes that need a proper solution
• Book a boiler service with a Gas Safe engineer before winter

Modern boilers often include frost protection features, but these do not protect external pipework. For a wider view of cold weather protection, see Boiler Frost Protection Explained Pipes Settings and Winter Failure Prevention.

Common Mistakes to Avoid

Condensate pipe issues are usually the result of poor installation or quick fixes that ignore best practice.

• Running long lengths of 21.5 mm pipe externally, this restricts flow and freezes quickly
• Skipping insulation or using indoor foam that absorbs water and becomes ineffective
• Allowing the pipe to sag, which creates low points where water collects and freezes
• Discharging onto a path or driveway, leading to dangerous ice formation and potential liability
• Connecting incorrectly to a waste pipe without a trap, allowing foul gases into the boiler

Another common mistake is incorrect gradient. If the fall is too shallow or inconsistent, condensate will sit in sections of pipe. In freezing conditions, these pockets of water turn to ice, blocking the pipe completely and forcing water back into the boiler.

Some DIY fixes also introduce risk. Poorly sealed joints can leak acidic condensate inside the property, potentially damaging floors or cabinets over time.

Another common mistake is assuming any plumber can modify the condensate pipe without understanding the boiler requirements. Work on or near a gas appliance should be carried out by a Gas Safe registered engineer where it affects safe operation.

When You Must Call a Professional

While thawing a pipe is straightforward, there are situations where professional input is essential.

• The pipe freezes repeatedly despite basic fixes
• The routing needs altering through walls or floors
• You see leaks from the boiler casing
• There are error codes you cannot clear
• The installation does not match manufacturer guidance

In practical terms, if the fix involves anything beyond external access and simple thawing, it should be handled by a Gas Safe registered engineer. The Gas Safe Register requires that anyone working on gas appliances or associated systems that affect safety must be properly qualified.

An experienced engineer will assess more than just the visible pipe. They will check internal traps, confirm correct flow, and ensure the installation complies with manufacturer instructions and standards like BS 6798.

Timeframes vary. A simple inspection and minor adjustment might take under an hour. A full reroute could take half a day or more depending on access and complexity.

FAQ

Why does my boiler stop working every time it freezes?

This is a classic sign of a frozen condensate pipe. As the water backs up, the boiler detects a fault and shuts down to prevent damage. Until the pipe is thawed and the route improved, the problem will keep returning in cold weather.

Can I pour hot water on the pipe to fix it?

You can use warm water safely, but boiling water should be avoided. Very hot water can crack plastic pipes or weaken joints. Gradual warming is the safest approach.

Is it legal to run a condensate pipe outside?

Yes, but it must follow best practice guidance. That includes short runs, larger pipe diameter, proper insulation, and correct termination. Poorly installed external runs are the main reason for freezing problems.

How long does it take to reroute a condensate pipe indoors?

In straightforward cases, a reroute can be completed in one to three hours. More complex jobs involving floors, boxing in, or multiple connections can take a full day.

Will insulating the pipe completely solve freezing?

Insulation helps but is not always enough on its own. If the pipe is too narrow, too long, or poorly sloped, it may still freeze. The best solution is a combination of correct routing, sizing, and insulation.

Who is responsible for condensate pipe repairs in rented properties?

In most cases, the landlord is responsible for maintaining the boiler and its associated pipework under UK housing regulations. This includes condensate pipes. Tenants should report issues promptly, especially during winter. However, tenants may be expected to take simple preventative steps such as keeping external areas clear or reporting early signs before damage occurs.

Final Thoughts

Condensate pipes are often overlooked until they fail, yet they are a critical part of a modern heating system. Most problems come down to poor routing decisions or shortcuts during installation. Once corrected properly, ongoing issues are rare.

If your boiler has frozen more than once, treat it as a sign that the pipework needs attention rather than relying on temporary fixes. A relatively small upgrade can prevent repeated breakdowns and emergency callouts.
