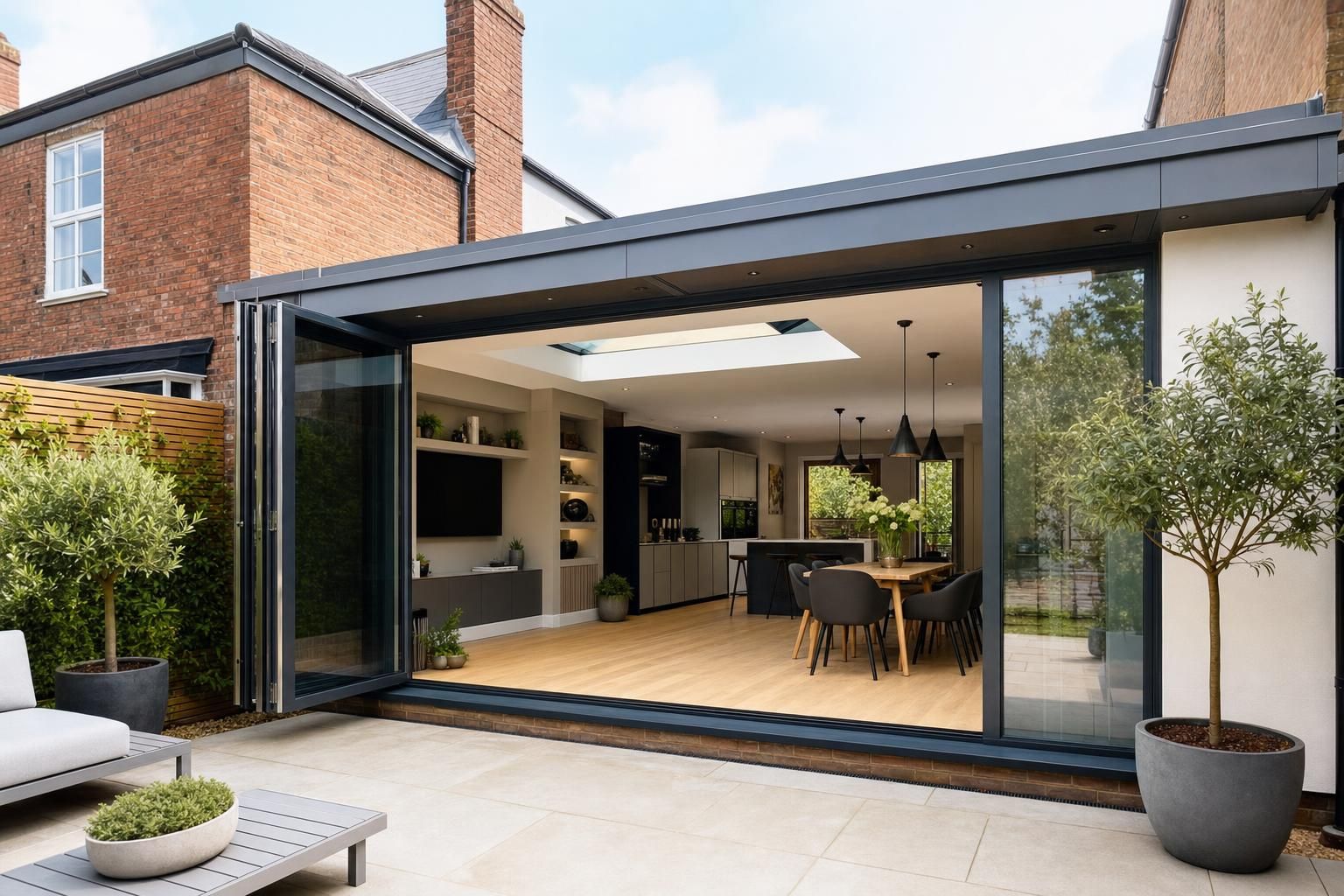

Building Control Drawings Explained for Home Renovations and Extensions

Building control drawings can be the difference between a smooth build and a costly setback. It is not unusual for poorly detailed drawings to lead to failed inspections, three to six week delays, or rework bills running into thousands, especially where structural elements or insulation have been installed incorrectly. These drawings are far more than simple plans. They are the technical documents that prove your project complies with Building Regulations and provide your builder with clear instructions on how to construct the work safely and correctly.

If you are planning an extension, loft conversion, or structural alteration, understanding building control drawings can save you time, money, and stress. Poor or incomplete drawings are one of the biggest causes of delays, failed inspections, and unexpected costs on site.

This guide breaks down what building control drawings are, what they include, how much they cost, and how they fit into the wider approval process. It is written from a practical, industry perspective, based on how projects actually run on site.

What Are Building Control Drawings?

Building control drawings are detailed technical plans that demonstrate how your proposed work will comply with the UK Building Regulations. These drawings are submitted to your local authority or an approved inspector for approval before work begins, unless you are using the Building Notice route.

Unlike planning drawings, which focus on appearance and layout, building control drawings focus on construction detail. They show how walls are built, how insulation is installed, how drainage runs, and how structural elements are supported.

They are typically prepared by an architectural technician, architect, or structural designer, often working alongside a structural engineer.

For a deeper understanding of the regulations these drawings must comply with, see Understanding UK Building Regulations for Extensions.

What Do Building Control Drawings Include?

A proper set of building control drawings should leave very little open to interpretation. Builders rely on them to price accurately and construct correctly. Building control officers use them to check compliance.

You can expect the following elements in a typical set.

• Existing and proposed floor plans at scale
• Section drawings showing construction build ups
• Elevations with key construction notes
• Foundation design and depth guidance
• Insulation specifications and U values
• Drainage layout and connection details
• Structural notes referencing engineer calculations
• Fire safety provisions such as escape routes and fire doors
• Ventilation strategy including trickle vents and extract systems
• Roof structure details including timber sizes and spans

Structural Details

Structural information is where many drawings either succeed or fail. A good set will clearly show beam sizes, padstone requirements, connection details, and load paths. For example, if you are removing a load bearing wall for an open plan kitchen, the drawings should specify the exact RSJ size, bearing lengths, and whether posts are required at each end.

In a typical rear extension, foundations are often specified at 900mm to 1,200mm deep, depending on soil type and nearby trees. Clay soil areas, common across parts of the South East, may require deeper foundations due to shrink and swell risk.

These details must align with structural engineer calculations, prepared in line with Eurocodes and guidance from the Institution of Civil Engineers.

Insulation and Energy Compliance

Part L compliance is a frequent sticking point on site. Drawings should clearly state insulation types, thicknesses, and target U values. For example, a typical cavity wall might include 100mm full fill insulation or 125mm partial fill with a residual cavity.

Roof insulation in loft conversions often requires 120mm to 150mm rigid insulation between and under rafters to meet thermal targets. If this is not shown clearly, installers may guess, which risks failing inspection.

Drainage and Waste Systems

Drainage is often overlooked until it becomes a problem. Good drawings will show pipe runs, gradients, inspection chambers, and how new connections tie into existing systems.

A common requirement is a minimum fall of 1 in 40 for 110mm waste pipes. If this is not achieved on site, waste can sit in the pipe, leading to blockages and potential rejection by building control.

Fire Safety and Access

For loft conversions, drawings must show protected escape routes, fire doors, and interconnected smoke alarms. These must comply with Part B and often follow guidance consistent with Approved Document B and, for new build elements, NHBC standards.

If a loft staircase opens into a living room instead of a hallway, additional fire protection measures may be required, and this must be addressed in the drawings.

If your project involves structural changes, such as removing a load bearing wall, structural calculations will be required alongside the drawings. These are typically produced by a chartered structural engineer and must comply with Eurocodes and relevant British Standards.

Why Building Control Drawings Matter on Site

In theory, you could attempt a project with minimal drawings. In reality, that route nearly always leads to problems.

Clear drawings reduce guesswork. Without them, builders make assumptions, and those assumptions can lead to disputes or rework.

They also protect you legally. If something goes wrong, having approved drawings demonstrates that you followed the correct process.

Most importantly, they help your project pass inspections. Building control officers will check key stages of the build, and if the work does not match the approved drawings or regulations, you may be told to open up finished work or rebuild elements entirely.

If you want to understand how inspections tie into your drawings, read How to Plan Building Control Inspections for a Home Extension Without Delays.

Full Plans vs Building Notice

There are two main routes for building control approval in England and Wales. Your choice affects how detailed your drawings need to be.

Aspect	Full Plans Application	Building Notice
Drawings required	Detailed technical drawings and specifications	Minimal or no drawings required at submission
Approval before work starts	Yes, formally approved	No formal approval upfront
Risk level	Lower risk of issues on site	Higher risk of changes during build
Best for	Extensions, loft conversions, complex works	Small, straightforward projects

In practice, most experienced builders prefer working from full plans. It reduces uncertainty and helps avoid costly changes.

Real World Scenario Comparison

For a simple internal knock through, such as removing a non load bearing kitchen wall, a building notice can work if the builder and engineer are aligned. However, if that wall turns out to carry loads, decisions will need to be made quickly on site, often at higher cost.

For a rear extension, choosing a building notice is risky. If drainage runs clash with existing pipes or foundation depths need revising due to ground conditions, changes mid build can add several thousand pounds and delay the project.

Choosing the wrong route often leads to reactive decisions, higher labour costs, and potential non compliance.

For a detailed breakdown, see Building Notice vs Full Plans Which Building Control Route Is Right for Your Renovation.

Typical Costs for Building Control Drawings in the UK

Costs vary depending on property size, complexity, and location. London and the South East typically sit at the top end of the range.

Here is a realistic cost breakdown.

• Basic rear extension drawings, £800 to £1,800
• Full technical package for extension, £1,500 to £3,500
• Loft conversion drawings, £1,500 to £3,000
• Structural engineer calculations, £400 to £1,200
• Drainage design if required, £150 to £500

Cost Element	Low Range	Average	High End
Design drawings	£800	£2,000	£3,500+
Structural engineering	£400	£800	£1,500+
Building control fees	£300	£600	£900+
Revisions and amendments	£100	£300	£800+

In London, drawing packages for a standard extension often fall between £2,500 and £4,500. In the North of England, the same work might range from £1,200 to £2,500.

A typical single storey extension costing £40,000 to £80,000 might allocate around 3 percent to 6 percent of the budget to drawings and engineering. More complex projects, such as double storey extensions or loft conversions with dormers, may push that closer to 8 percent.

Cheap drawings often lack detail. That can cost far more later in variations and delays.

Building control fees themselves are separate, usually ranging from £300 to £900 depending on the project size and whether you use the local authority or a private inspector.

You can check official guidance on building control processes via the UK government here, https://www.gov.uk/building-regulations-approval.

How Building Control Drawings Are Prepared for Approval

The process usually follows a structured path.

First, a measured survey of your property is carried out. This forms the basis of accurate drawings. Survey errors at this stage can cause major issues later, especially with structural alignment.

Next, planning drawings are produced if planning permission is required. These are then developed into detailed building control drawings.

Design Development and Coordination

The designer refines layouts and begins adding construction detail. This includes wall build ups, floor structures, and roof specifications. Coordination with structural engineers happens here, particularly for beams, padstones, and foundations.

Good designers will also consider Construction Design and Management regulations, guided by the HSE, ensuring risks are reduced at design stage.

Technical Detailing

Every junction is detailed. For example, how a new extension roof meets the existing wall, how damp proof courses align, and how insulation continues without gaps. These details prevent cold bridging and moisture problems.

Submission and Review

The completed package is submitted for approval under the full plans route, or used to guide the build if using a building notice.

Approval typically takes two to five weeks, depending on the council. Queries or revisions can extend that, especially if structural or thermal performance issues are identified.

Key Regulations Your Drawings Must Address

Building control drawings must demonstrate compliance with multiple parts of the Building Regulations.

• Part A, Structure, covering load bearing elements
• Part B, Fire Safety, including escape routes and fire resistance
• Part C, Site preparation and resistance to contaminants
• Part L, Conservation of fuel and power, covering insulation and efficiency
• Part F, Ventilation
• Part P, Electrical safety, usually certified by an NICEIC electrician
• Part G and H, Plumbing and drainage

Structure and Load Paths

Drawings must clearly show how loads transfer to the ground. This includes beam sizing, foundation widths, and load bearing walls. NHBC standards are often used as a benchmark for acceptable construction quality.

Energy Efficiency and Insulation

Part L compliance is strictly enforced. U values must be calculated and shown. Poor detailing can result in failed inspections and remedial work such as adding internal insulation, which reduces room size.

Drainage Compliance

Incorrect pipe gradients or poorly located inspection chambers are a common reason for rejection. Drawings must show accurate layouts and access points.

Health and Safety Considerations

Design choices should align with HSE guidance, reducing risks during construction and long term use. For example, safe access for roof maintenance or properly designed staircases.

Electrical work must be carried out by a competent person scheme member such as https://www.niceic.com, or be inspected and tested through building control.

Common Mistakes to Avoid

Even well intentioned projects can run into trouble due to poor drawings or misunderstandings.

• Using planning drawings for construction. These lack critical detail
• Insufficient structural information. Missing beam sizes or padstone details cause delays
• Ignoring drainage early. Retrofitting drainage solutions can be expensive
• Incorrect insulation specs leading to failed inspections under Part L
• No coordination between designer and builder, resulting in impractical designs
• Starting work before approval under full plans
• Assuming building control will design solutions on site, which they will not do

Real World Examples and Costs

An underspecified steel beam is a common issue. If a smaller RSJ is installed and later deemed insufficient, replacing it can cost £2,000 to £5,000 once labour and making good are included.

Incorrect insulation thickness is another frequent problem. If a roof fails Part L, adding internal insulation may cost £1,000 to £3,000 and reduce ceiling height.

Drainage errors, such as incorrect falls, can require floors to be dug up and relaid, often costing £1,500 to £4,000.

These problems are almost always preventable with accurate drawings.

Good Quality Drawings	Poor Quality Drawings
Detailed sections and specifications	Basic layouts with little detail
High approval success rate	Frequent revisions required
Clear guidance for builders	On site confusion and assumptions
Fewer delays and variations	Higher risk of rework and added costs

How Drawings Affect Your Completion Certificate

Your building control drawings play a direct role in obtaining a completion certificate. This document confirms the work complies with regulations.

If the finished build does not match the approved drawings or fails inspection, the certificate can be delayed or refused.

This can cause serious issues during property sales. Buyers and solicitors will request proof of compliance. Missing certificates can delay sales or reduce property value.

Mortgage lenders may also require evidence of compliance. Without it, financing can be refused. In some cases, indemnity insurance is offered, but it does not guarantee the work is safe or compliant.

You can read more here, Building Control Completion Certificates Explained for Homeowners and Why They Matter.

How to Choose a Qualified Professional

Choosing the right person to prepare your building control drawings is critical.

Look for professionals with recognised credentials. Architects should be registered with the ARB or RIBA. Structural engineers may be chartered with the ICE or IStructE.

Typical deliverables should include detailed plans, sections, specifications, and coordination with engineers.

Warning signs include vague drawings, lack of structural coordination, or unwillingness to revise plans following feedback.

Before Hiring a Designer for Building Control Drawings

• Ask to see previous building control drawing sets
• Confirm they include structural coordination
• Check qualifications and professional memberships
• Ask how many revisions are included in the fee
• Confirm turnaround times
• Request a clear scope of work
• Ensure they understand local authority requirements

Practical Checklist Before You Start

Before submitting your drawings or starting work, run through this checklist.

• Have you appointed a qualified designer or technician
• Are structural calculations included where required
• Do drawings show insulation types and thicknesses clearly
• Is drainage fully detailed including connections
• Are ventilation and fire safety provisions shown
• Have you chosen full plans or building notice
• Have you allowed time for approval before your build date
• Has your builder reviewed the drawings and confirmed they are workable

This simple step can prevent most early stage issues.

Timeframes You Should Expect

Understanding realistic timelines helps avoid frustration.

• Measured survey, 1 to 2 weeks
• Draft drawings, 1 to 3 weeks
• Structural calculations, 1 to 2 weeks
• Building control approval, 2 to 5 weeks

Delays are common and often linked to planning overlaps, structural revisions, or council backlogs. For example, if a structural engineer needs to redesign foundations due to unexpected soil conditions, this can add one to two weeks.

Busy periods, particularly spring and summer, often extend local authority response times. To manage this, allow contingency in your schedule and avoid booking builders before approvals are in place.

FAQ

Do I legally need building control drawings?

For most structural work, extensions, and loft conversions, yes. While a building notice technically allows you to proceed without full drawings, you still need enough detail to demonstrate compliance during inspections. In practice, proper drawings are strongly recommended to avoid costly issues, especially where structural steel or insulation is involved.

Can my builder create building control drawings?

Some experienced builders can produce basic drawings, but for anything beyond minor work, a qualified designer or architect is the safer choice. Structural elements must be supported by an engineer’s calculations. Relying solely on a builder often leads to missing details that cause issues later.

What happens if my drawings are rejected?

You will receive feedback from building control outlining what needs to change. Your designer will revise the drawings and resubmit them. This can delay your project by several weeks, particularly if structural redesign or thermal upgrades are required.

Are building control drawings the same as planning drawings?

No. Planning drawings focus on how the project looks and its impact on the surroundings. Building control drawings focus on how it is built and whether it meets safety and performance standards.

Can I change things once work has started?

Yes, but changes should be agreed with your designer and approved by building control where necessary. For example, moving a drainage run or changing insulation type may require updated drawings. Unapproved changes can lead to failed inspections.

Do I need both planning permission and building regulations approval?

In many cases, yes. Planning permission controls how your project looks and its impact on neighbours, while building regulations ensure it is constructed safely. For example, a rear extension may fall within permitted development and not need planning permission, but it will still require building regulations approval and detailed drawings.

Final Thoughts

Building control drawings are one of the most valuable investments you can make in your project. They provide clarity, ensure compliance, and give your builder a solid roadmap to follow. Cutting corners here often leads to bigger costs later.
