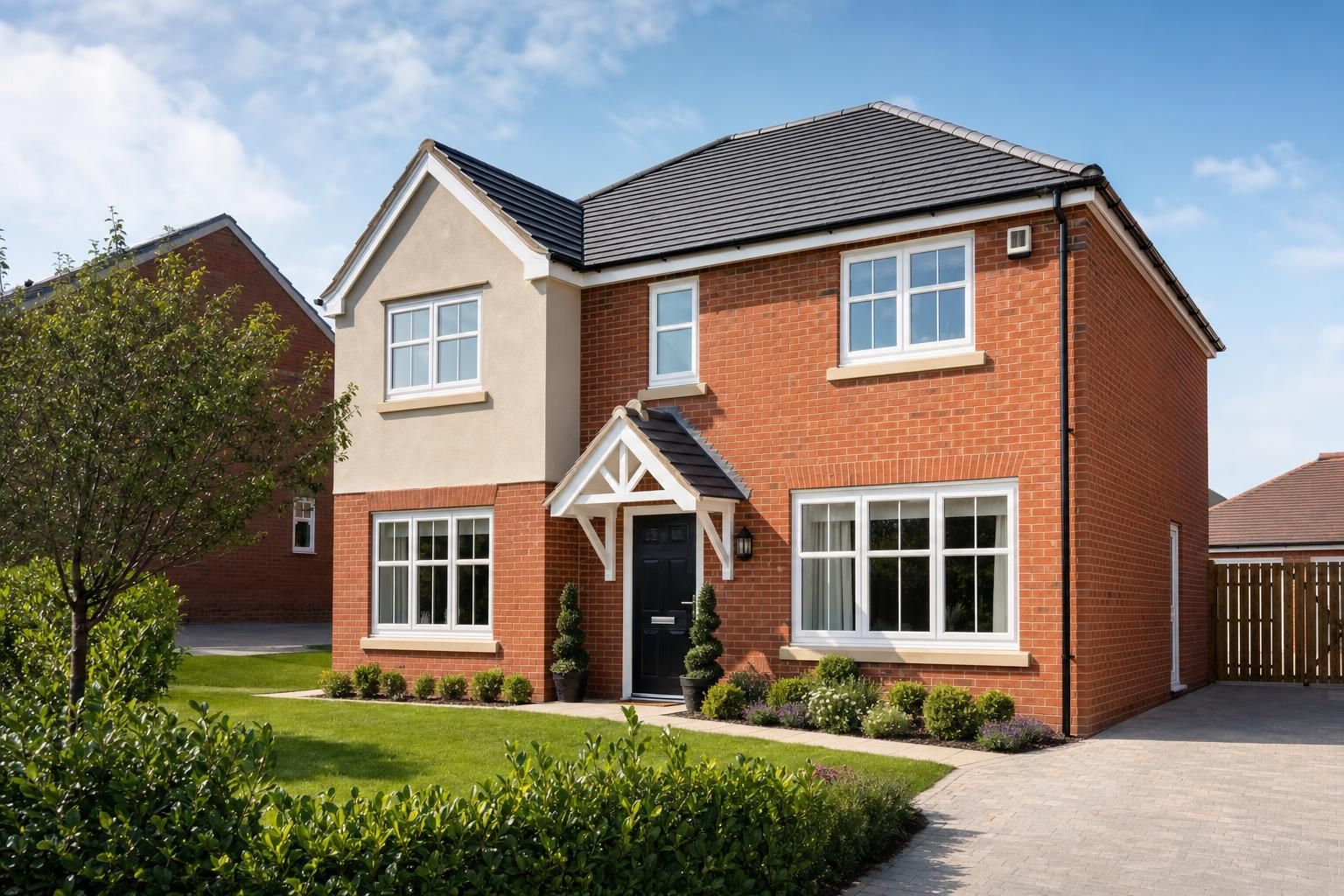

Brick Cavity Construction Explained How Walls Handle Damp Insulation and Structural Stability

Damp patches appearing on internal walls, rising heating bills that do not make sense, or insulation that has been installed but has not improved comfort are all common problems in UK homes. In many cases, the root cause lies within the wall itself. Brick cavity construction sits at the heart of most UK homes built after the 1920s, and understanding how it works can help you diagnose faults early, avoid costly mistakes, and make better decisions when upgrading or repairing your property.

This guide breaks down cavity wall construction in plain terms, backed by real site experience, current UK standards and realistic costs. Whether you are renovating, extending or diagnosing a problem, this will help you make informed decisions.

What Is Brick Cavity Construction

A cavity wall consists of two separate vertical layers, known as leaves, with a gap between them. The outer leaf is usually facing brick or blockwork designed to resist weather. The inner leaf is often blockwork, forming the structural layer and the internal face of the wall.

The gap between them, typically 50mm to 100mm in older properties and up to 150mm in newer builds, is the cavity. Its primary job is to prevent rainwater from passing through to the inside.

Wall ties connect both leaves together structurally while still allowing a break across the cavity. Insulation is either built into the cavity during construction or retrofitted later.

This design became standard practice in the UK because solid walls struggled with damp penetration. The cavity acts as a barrier and drainage zone, stopping moisture from bridging through.

How Brick Cavity Construction Handles Damp

Water management is the core function of brick cavity construction. Rain will penetrate the outer leaf to some extent. That is normal and expected. The key is controlling and directing that moisture before it reaches the inner leaf.

Drainage and Ventilation

Any water entering the cavity runs down the inside face of the outer leaf. At the base, weepholes allow it to escape. These are small gaps in the mortar joints, usually placed above damp proof courses and openings.

On site, blocked cavities are more common than many homeowners realise. Mortar droppings can build up at the base of the wall during construction. Over time, this debris forms a bridge between the outer and inner leaf. During surveys, builders often remove a brick and find the cavity partially filled with hardened mortar. Clearing this involves carefully opening sections of the wall, removing debris by hand or vacuum, and reinstating brickwork.

A clear cavity is vital. Mortar droppings, debris or poorly installed insulation can bridge across the gap and allow moisture transfer.

Damp Proof Courses and Cavity Trays

A horizontal damp proof course, or DPC, sits near ground level to stop rising damp. Above openings such as windows and doors, cavity trays collect water and direct it out through weepholes.

To understand how these systems are installed and where they are essential, see Cavity Tray Systems Explained for Homeowners Where They Are Needed and How They Prevent Damp.

Incorrectly installed trays or missing weepholes are a frequent cause of damp patches above windows. In practice, fixing this often involves removing several courses of brickwork above the opening, installing a new tray with proper end stops, and reinstating the wall.

Wind Driven Rain and Exposure Zones

In exposed locations, especially coastal areas of the UK, wind driven rain can push moisture across the cavity if it is too narrow or obstructed. Building Regulations Part C divides the country into exposure zones. Properties in higher exposure zones require wider cavities or additional protection such as full fill insulation systems with proven resistance to moisture.

You can review official guidance here from the UK government, Approved Document C.

The BRE also provides detailed research on moisture penetration in masonry, which is widely followed in the industry, BRE guidance.

How Surveys Diagnose Damp in Cavities

Before any remedial work, a proper survey is essential. This typically includes:

• Borescope inspection through drilled holes to visually check cavity condition
• Moisture readings on internal walls
• Checking external defects such as cracked pointing or blocked weepholes
• Assessing insulation type and condition

A borescope often reveals issues that are not visible externally, such as insulation slumping, saturated material, or debris bridging.

The Role of Insulation in Cavity Walls

Modern cavity wall design is as much about thermal performance as it is about damp control. Insulation reduces heat loss, improves comfort and cuts energy bills.

There are two main approaches, partial fill and full fill, along with retrofit options for existing properties.

Partial Fill Insulation

Partial fill systems leave a residual air gap, usually around 25mm to 50mm, between the insulation and the outer leaf. This gap acts as a secondary defence against moisture.

This method is still preferred in higher exposure zones where the risk of wind driven rain is greater.

Full Fill Insulation

Full fill systems use materials designed to resist moisture, such as bonded bead or treated mineral wool. These fill the entire cavity.

They provide better thermal performance but require precise installation. Any gaps or contamination can compromise performance.

Retrofit Insulation

Retrofitting involves injecting insulation into an existing cavity, typically using bead, foam or fibre. While cost effective, it carries higher risk if the cavity condition is poor.

If you are considering retrofitting insulation or upgrading existing materials, read Cavity Wall Insulation in UK Homes Explained Types, U Value Performance, Damp Risks and How to Choose a Reputable Installer.

Common Insulation Materials

• Mineral wool, breathable and widely used, but can hold moisture if exposed
• PIR boards, high performance rigid boards used in partial fill systems
• Polystyrene beads, commonly used in retrofits, moisture resistant when installed correctly

Insulation Comparison Table

Type	Pros	Cons	Typical Cost	Best Use
Partial fill	Lower damp risk, good durability	Slightly lower thermal performance	£130 to £160 per m2 new build	Exposed locations
Full fill	Excellent thermal performance	Higher risk if poorly installed	£140 to £180 per m2 new build	Modern builds with wide cavities
Retrofit	Low cost, quick installation	Risk of damp if cavity unsuitable	£800 to £2,500 per property	Older homes after survey

Typical U Values

For new builds, UK Building Regulations Part L currently expects wall U values around 0.18 W per square metre kelvin or better. Older uninsulated cavity walls can be as poor as 1.5 W per square metre kelvin.

Retrofitting insulation can reduce heat loss significantly, but incorrect installation is one of the leading causes of damp complaints in older homes.

Structural Stability and Wall Ties

The two leaves of a cavity wall need to act as one structural unit. This is the job of wall ties. Typically made from stainless steel in modern construction, they are spaced evenly across the wall according to design loads and wind exposure.

NHBC standards specify typical spacing at 900mm horizontally and 450mm vertically, reduced around openings and edges. This ensures adequate load distribution and resistance to lateral forces such as wind.

In older properties, mild steel ties were used. These can corrode over time, expand and cause cracking or bulging of brickwork.

To understand how to spot issues and repair them, see Wall Ties Explained for Homeowners Types Signs of Failure and Repair Options.

Signs of Wall Tie Failure

• Horizontal cracking in mortar joints
• Bulging or bowing of external brickwork
• Rust staining on the wall surface

Repair Methods

Modern repairs involve installing new stainless steel remedial ties and isolating old ones. This is done by drilling into mortar joints and fixing ties with resin or mechanical anchors.

In severe cases, sections of brickwork may need to be rebuilt.

Remedial wall tie replacement typically costs between £1,500 and £3,500 for a standard semi detached house, depending on access and severity.

Health and safety is critical during this work. The HSE requires safe drilling practices, dust control, and secure scaffolding where working at height is involved.

Critical Details That Make or Break a Cavity Wall

From site experience, issues rarely stem from the concept of cavity construction itself. Problems almost always come down to detailing and workmanship.

Cavity Closers Around Openings

Windows and doors are weak points in the wall. Cavity closers seal the gap, improve insulation and prevent cold bridging.

Retrofitting or replacing them during renovations helps reduce drafts and condensation. Learn more in Cavity Closers Explained for Home Renovations Where They Are Needed and How They Improve Insulation.

Weepholes and Ventilation

Blocked or missing weepholes trap water inside the wall. This is a common fault in older extensions or poorly executed brickwork.

Mortar and Workmanship

Mortar droppings left in the cavity during construction can create bridges for moisture. Professional bricklayers use cavity boards and regular cleaning to prevent this. On inspection jobs, it is not unusual to find entire cavity bottoms filled with debris due to rushed work.

Typical Costs for Cavity Wall Work in the UK

Costs vary by region, access and property size, but the table below gives realistic ranges based on current market conditions.

Type of Work	Typical Cost Range	Timeframe
Cavity wall insulation retrofit	£800 to £2,500	1 to 2 days
Wall tie replacement	£1,500 to £3,500	2 to 4 days
Installing cavity trays above openings	£900 to £2,500 per elevation	2 to 5 days
Repairing blocked cavities or damp issues	£500 to £3,000 depending on extent	1 day to 1 week
New cavity wall construction	£120 to £180 per square metre	Project dependent

Cost Breakdown

Typical costs can be split into:

• Labour, usually 50 to 70 percent of total cost
• Materials such as insulation or ties
• Access costs including scaffolding, often £600 to £1,500

Regional Variations

Prices in London and the South East are often 20 to 30 percent higher than in the North or Midlands. Access constraints in urban areas can also increase costs.

Always allow a contingency of around 10 to 15 percent for hidden issues.

Building Regulations and Compliance

Cavity wall construction must comply with several parts of the Building Regulations.

• Part C covers resistance to moisture
• Part L deals with conservation of fuel and power
• Part A addresses structural stability

Part C Requirements and Exposure Zones

Part C sets guidance on cavity width based on exposure. In higher exposure zones, wider cavities or additional protection are required to prevent moisture penetration. NHBC standards often require minimum cavity widths of 50mm but recommend wider cavities for more severe conditions.

Part L Energy Targets

Part L requires walls to meet strict U value targets. Achieving 0.18 W per square metre kelvin may involve:

• Using full fill insulation in wider cavities
• Adding insulated plasterboard internally during renovations
• Upgrading older walls with retrofit systems where appropriate

Part A Structural Considerations

Part A covers structural safety. This includes correct wall tie spacing, maintaining cavity integrity, and ensuring loads are properly transferred.

Any removal of wall sections or installation of new openings must be properly supported with lintels and checked for loading.

Compliance Process on Site

Typical steps include:

• Building control inspections at key stages
• Verification of insulation installation
• Checking cavity trays and damp proof courses

Work must also meet HSE standards, especially where scaffolding, drilling, or structural alterations are involved.

Common Mistakes and What Can Go Wrong

Even a well designed cavity wall can fail if execution is poor. These are the issues most often seen on site.

Insulation Bridging the Cavity

Full fill insulation installed incorrectly can allow moisture to transfer across to the inner leaf. This often shows as damp patches during heavy rain.

Blocked Weepholes

Paint, debris or poor repointing can block weepholes. Water then builds up inside the cavity and may overflow internally.

Incorrect Wall Tie Installation

Ties should slope slightly towards the outer leaf to direct water outward. Incorrect angles can send moisture inward. Missing ties or poor spacing can also reduce structural stability.

Poor Detailing Around Openings

Missing cavity trays or closers often result in damp appearing above windows and doors. This is one of the most common faults seen in extensions.

Retrofit Work Without Survey

Installing insulation or drilling into walls without checking cavity condition can make existing issues worse. A proper inspection, sometimes including borescope cameras, is worth the cost.

Real World Example

A common scenario involves a 1930s semi with retrofit insulation installed without survey. Within a year, internal walls show damp. Inspection reveals rubble in the cavity bridging moisture. The fix involves removing bricks at intervals, clearing debris, extracting insulation, and reinstalling a suitable system.

Checklist for Diagnosing Damp in Cavity Walls

• Damp patches that worsen after heavy rain
• Staining above windows or doors
• Cold spots on internal walls
• Visible cracks or bulging brickwork
• Blocked or missing weepholes externally
• History of insulation retrofit without survey

If two or more of these signs are present, a professional survey is recommended.

How to Choose a Qualified Installer

Choosing the right contractor can prevent most common problems.

• Check for recognised certifications such as TrustMark or relevant trade bodies
• Ask for evidence of previous similar work
• Ensure public liability insurance is in place
• Request written guarantees, especially for insulation
• Confirm surveys are carried out before work begins

Reputable installers will always inspect before quoting and explain risks clearly.

Practical Checklist Before Starting Work

• Confirm cavity width and condition with a professional survey
• Check for existing damp issues before adding insulation
• Ensure installers are qualified and insured
• Verify compliance with Building Regulations
• Get at least three detailed written quotes
• Ask about guarantees, especially for insulation and wall tie work

FAQ

How do I know if my home has cavity walls

Most UK homes built after the 1920s have cavity walls. You can check by measuring wall thickness at a window or door. A cavity wall is typically over 260mm thick. The brick bond pattern can also indicate cavity construction. A surveyor can confirm using a borescope.

Can cavity wall insulation cause damp

Yes, if installed badly or in unsuitable conditions. Properties exposed to heavy wind driven rain or with narrow cavities are at higher risk. Warning signs include damp patches after rain and musty smells. Remedial work can cost £1,000 to £3,000 depending on severity.

Do I need planning permission for cavity wall work

Most repairs and insulation upgrades do not require planning permission. However, work on listed buildings or in conservation areas may need approval. Always check with your local authority.

How long do cavity walls last

With proper maintenance, cavity walls can last well over 100 years. Issues tend to arise from individual components such as wall ties or poor alterations rather than the wall system itself.

Is cavity wall insulation worth it

In many cases yes. It can reduce heating bills by £150 to £300 per year depending on property size. The key is ensuring the wall is suitable and the installation is carried out correctly.

How much does a cavity wall survey cost

A professional cavity wall survey typically costs between £150 and £400. More detailed inspections involving multiple borescope checks or thermal imaging may cost more but provide better insight.

Can you repair a damaged cavity without rebuilding the wall

In many cases yes. Localised repairs such as clearing debris, replacing insulation, or installing new wall ties can be carried out by removing small sections of brickwork. Full rebuilds are only needed in severe structural cases.

Final Thoughts

Brick cavity construction remains one of the most reliable wall systems in UK housing, but it depends heavily on correct detailing, good materials and proper maintenance. Whether you are upgrading insulation, fixing damp or planning an extension, understanding how each element works helps you avoid costly mistakes.
