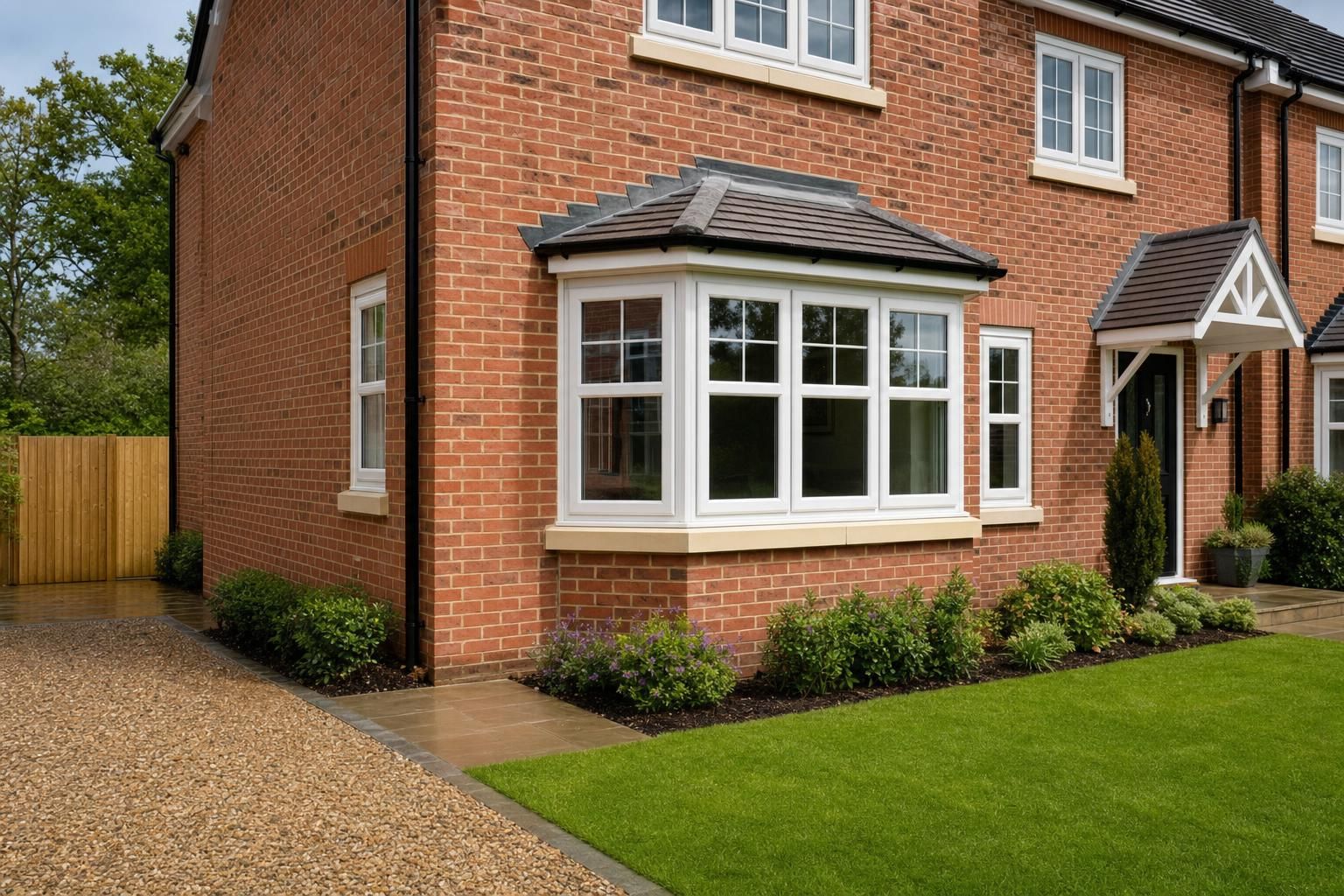

Cavity Wall Rain Penetration Explained Causes Warning Signs and Repair Options

Cavity wall rain penetration is one of the most common and misunderstood causes of damp in UK homes. It often appears as patches of moisture on internal walls after prolonged rainfall, usually in exposed elevations. Unlike rising damp, which starts at low level, rain penetration can occur at any height and is closely tied to defects in the outer leaf or failures within the cavity itself.

A typical scenario I see is a homeowner in a 1930s semi spending £2,000 on internal replastering, only for stains to reappear within months because the real issue was failed pointing and blocked cavities. In more severe cases, prolonged ingress can damage plaster, insulation, electrical fittings and even timber joist ends, leading to internal repair costs well beyond £5,000.

Having worked on Victorian terraces, post war semis, coastal homes in Cornwall and modern estates with partial-fill insulation, I see the same pattern time and again. The cavity is designed to prevent driven rain from reaching the inner leaf, but once that barrier is compromised, water will find a path through. The fix is rarely a single quick remedy. It requires identifying how water is getting in, and just as crucially, how it is crossing the cavity.

This article breaks down real world causes, what to look for, how to confirm a diagnosis, and what repairs actually work. It also covers typical UK costs and the standards that should guide the work.

What Is Cavity Wall Rain Penetration

A standard cavity wall has two leaves of masonry separated by a gap, typically 50mm to 100mm in older properties and sometimes wider in newer builds. The outer leaf takes the weather. The cavity acts as a drainage and separation zone. Water that enters the outer leaf should run down and exit via weep holes, not cross to the inner leaf.

Rain penetration happens when that system is defeated. Water either bypasses the cavity, bridges across it, or overwhelms localised defences such as cavity trays. Once moisture reaches the inner leaf, it shows internally as damp patches, peeling paint, or mould if conditions persist.

In high exposure areas such as western Scotland, Wales, and coastal regions, wind driven rain is significantly more aggressive. The Met Office provides detailed exposure mapping which helps explain why properties in these zones are at higher risk: https://www.metoffice.gov.uk/weather/guides/coast-and-sea/wind-and-waves.

If you need a refresher on how cavities are meant to work and where they typically fail, this article is a solid reference: Cavity Wall Construction Explained for Homeowners How It Works and Common Defects.

Main Causes of Cavity Wall Rain Penetration

1. Defective or Porous Brickwork

Facing bricks are designed to resist water, but over time frost damage, poor quality materials, or aggressive cleaning can leave them porous. Once the outer leaf starts absorbing water rather than shedding it, moisture levels in the wall increase significantly.

This is particularly common in Victorian terraces where softer handmade bricks were used. In coastal towns, salt crystallisation can break down brick faces, making them far more absorbent. In high rise buildings, upper storeys often suffer more due to increased wind exposure.

You will often see spalling, crumbling faces, or powdery surfaces. In severe cases, entire sections of brickwork may need replacing rather than treating.

2. Failed Mortar Joints

Mortar is the first line of defence. When joints crack, recede or crumble, rain is driven straight into the wall. Older lime mortar can erode if repointing has been neglected for decades. Cement mortar can crack if it has been applied incorrectly or is too strong for the brick.

Open joints on windward elevations are a very common entry point for water. On 1930s semis, I often see patch repairs carried out with mismatched mortar that fails within a few years, leaving the wall vulnerable again.

3. Cavity Bridging

This is one of the most frequent underlying issues. Even a well built outer leaf can let water cross the cavity if there is something bridging the gap.

• Mortar droppings during construction
• Debris at wall base level
• Insulation that has slumped or was poorly installed
• Wall ties covered in mortar
• Retrofitted insulation in narrow cavities

Bridging effectively creates a pathway for water to travel from the outer leaf to the inner leaf. This is especially problematic in retrofitted properties where cavity insulation was added decades after construction without proper checks.

For a deeper look at insulation related risks, including how installation quality affects damp, see Cavity Wall Insulation in UK Homes Explained Types, U Value Performance, Damp Risks and How to Choose a Reputable Installer.

4. Failed Cavity Wall Ties

Wall ties connect the two leaves structurally, but older ties, especially pre 1980 galvanised steel, can corrode. As they expand, they crack surrounding mortar and create routes for water to track across.

Advanced corrosion can lead to horizontal cracking in bed joints, usually spaced regularly in line with tie courses. In severe cases, structural stability can also be affected.

5. Missing or Faulty Cavity Trays

Cavity trays are critical above openings such as windows and doors, and at roof junctions. They collect water and direct it back out.

If trays are missing, poorly installed, or blocked, water can drop onto the inner leaf at these vulnerable points. This is frequently seen in extensions where detailing has been rushed.

This is often seen as damp patches above window heads or beneath rooflines. For a focused explanation, see How Cavity Wall Trays Prevent Damp Around Windows Doors and Roof Junctions.

6. Cracks in Render or External Finishes

Rendered properties rely on the render coat as a protective layer. Even hairline cracks can allow water behind the surface. Once trapped, moisture finds its way through any weakness.

On newer developments, thin coat render systems can fail due to poor installation or movement. On older homes, cement render applied over soft brick often cracks due to thermal movement.

7. Blocked or Missing Weep Holes

Weep holes allow water to escape from the cavity. If they are blocked by debris, paint, or repointing, water builds up inside the wall and eventually breaches the inner leaf.

Warning Signs of Cavity Wall Rain Penetration Homeowners Should Not Ignore

Spotting rain penetration early makes repairs simpler and cheaper. The signs are not always obvious, especially if they only appear during driving rain.

• Damp patches on internal walls that worsen after heavy rain
• Tide marks or staining at any height, not just at skirting level
• Peeling paint or bubbling plaster
• Musty smells in specific rooms or on external facing walls
• Mould forming on otherwise well ventilated walls
• External cracks, eroded mortar, or defective brick faces

If mould is already present, you may find helpful context in Expert Advice on Dealing with Damp and Mould, which explains how different moisture sources behave inside the home.

Diagnosing the Cause Properly

A proper diagnosis is the difference between a lasting repair and wasted money. Too often, homeowners are sold treatments such as waterproof coatings without addressing the root problem.

A competent survey should include:

• Visual inspection of external elevations, focusing on exposure and prevailing wind direction
• Assessment of brick and mortar condition
• Inspection of openings, lintels and cavity tray positions
• Check for structural cracking or tie failure signs
• Borescope inspection of the cavity where appropriate
• Moisture profiling internally to distinguish between condensation and penetration
• Review of property type, such as Victorian solid wall retrofits or insulated cavity builds

How a Borescope Inspection Works

A borescope inspection is one of the most effective ways to confirm what is happening inside the cavity without major disruption.

Small holes are drilled into the mortar joints externally, usually 10mm to 12mm in diameter. A flexible camera is inserted into the cavity, allowing the surveyor to inspect internal conditions in real time.

Typical findings include:

• Loose mortar droppings bridging the cavity
• Insulation that has slumped, become saturated, or is unevenly distributed
• Corroded wall ties with visible expansion and cracking
• Debris accumulation at the base of the wall
• Clear cavities, which help rule out bridging as the main issue

Holes are then filled and colour matched. This process is quick and usually completed within a few hours for a standard house.

Case example: A homeowner in Manchester reported damp on an internal gable wall. Initial assumption was failed pointing. A borescope inspection revealed heavily saturated cavity insulation forming a bridge. The fix involved removing insulation along the affected elevation at a cost of £1,800 and repointing at £2,200. The wall dried out over three months and no further damp was recorded.

In more complex cases, especially where insurance is involved, a chartered building surveyor or structural engineer may be required. The Royal Institution of Chartered Surveyors provides guidance on finding qualified professionals at https://www.rics.org.

Repair Options and Typical Costs in the UK

Costs vary by region, access requirements and property type, but the ranges below reflect typical pricing as of 2026.

Repair Type	Description	Typical Cost Range
Repointing	Renewing external mortar joints	£40 to £70 per m²
Brick Replacement	Replacing damaged or porous bricks	£25 to £50 per brick
Cavity Clearance	Removing debris or bridging material	£500 to £1,500 depending on access
Wall Tie Replacement	Installing new stainless steel ties	£1,500 to £3,500 for a typical semi
Render Repair or Recoat	Fixing cracks or applying new render	£60 to £120 per m²
Cavity Tray Installation	Retrofitting trays above openings	£800 to £2,500 per section
Water Repellent Treatment	Breathable brick sealant application	£5 to £15 per m²

Repointing is appropriate where mortar joints are visibly open or degraded. Labour makes up around 70 percent of the cost due to the time required, especially on older properties needing lime mortar.

Brick replacement is typically used in isolated areas. Material costs are relatively low, but labour dominates due to the care required to avoid damaging surrounding bricks.

Cavity clearance is essential where bridging is identified. Costs increase significantly if scaffolding is required, particularly on three storey or high rise properties.

Wall tie replacement involves specialist drilling and resin fixing. Around 60 percent of the cost is labour. Access plays a major role, with scaffolding often required.

Render repairs vary widely depending on the system. Full re renders are labour intensive, and access costs can add 20 to 30 percent to the total.

Cavity tray installation is more invasive. Sections of brickwork are removed and reinstated. Labour accounts for the majority of the cost.

Water repellent treatments are relatively low cost but should only be used after defects are repaired. They are often applied using spray equipment.

Symptom vs Likely Cause vs Recommended Fix

Symptom	Likely Cause	Recommended Fix
Damp patch above window	Failed or missing cavity tray	Install or repair cavity tray
Random damp patches on exposed wall	Porous brickwork or failed pointing	Repointing or brick replacement
Damp after insulation install	Cavity bridging from insulation	Cavity clearance or insulation removal
Horizontal cracks in mortar	Corroded wall ties	Wall tie replacement
Persistent damp despite external repairs	Hidden cavity debris	Borescope inspection and clearance

Timeframes for Repairs

Most external repair work is relatively quick once access is in place.

• Repointing a single elevation, 2 to 5 days
• Wall tie replacement, 2 to 4 days for a semi detached house
• Cavity tray installation, 1 to 3 days per area
• Render repairs, 3 to 7 days depending on curing

Drying times are often underestimated. After repairs, walls may take several weeks to dry out, particularly in winter or on north facing elevations. In severe cases, drying can take two to three months.

Internal redecoration should usually be delayed until moisture readings stabilise. As a rough guide, wait at least four to six weeks after repairs, longer if the wall was heavily saturated. Using breathable paints can help avoid trapping residual moisture.

Relevant UK Standards and Regulations

While many of these repairs fall under maintenance rather than regulated building work, certain elements still need to meet standards.

• Approved Document C requires buildings to resist moisture from the ground and external sources, in practical terms this means walls must prevent rain from reaching internal surfaces
• BS EN 1996, Eurocode 6, provides design guidance for masonry including durability and exposure considerations
• NHBC standards set out best practice for new build cavity construction, including tray placement and cavity widths
• Wall tie replacement should follow guidance in BS EN 845
• Work at height must comply with Health and Safety Executive requirements, see https://www.hse.gov.uk/work-at-height/

The UK is divided into exposure zones based on wind driven rain. Properties in severe exposure zones require more robust detailing, including wider cavities and enhanced protection measures.

If significant structural changes are involved, such as rebuilding sections of wall, Building Control approval may be required.

Practical Checklist for Homeowners

If you suspect cavity wall rain penetration, run through this checklist before calling in a contractor:

• Check if damp appears after rain rather than constantly
• Inspect external walls for cracks, damaged bricks or eroded mortar
• Look above windows and doors for staining or failed lintels
• Confirm whether cavity wall insulation has been installed
• Check for blocked or painted over weep holes
• Take photos during and after rainfall to show patterns

What Can Go Wrong

There are a few recurring mistakes that cost homeowners time and money.

Misdiagnosing Condensation as Penetration

Condensation is far more common than rain penetration. Treating it incorrectly with external repairs will not solve the problem and wastes money.

Applying Waterproof Coatings Too Early

Sealants trap moisture if underlying issues are not fixed. This can worsen internal damp and damage masonry over time.

Ignoring Cavity Issues

External repairs alone will not solve problems where bridging exists inside the cavity. This is especially common after poor insulation installs.

Using the Wrong Mortar

Hard cement mortar on soft brick can lead to long term damage. Matching the original material, often lime based in older properties, is essential.

Poor Access and Incomplete Work

Trying to save money by limiting scaffolding often results in missed defects. Proper access allows a thorough job.

Overlooking Roof and Gutter Defects

Leaking gutters, blocked downpipes or defective flashing can mimic cavity wall rain penetration. Water can track into walls from above, especially around parapets and chimney stacks. These should always be checked as part of a full inspection.

Incorrectly Installed Cavity Insulation Retrofits

Retrofit insulation installed without checking exposure levels or cavity condition can create more problems than it solves. This is a frequent issue in 1980s and 1990s installations where standards were less strict.

When to Call a Professional

If damp is persistent, visible externally, or affecting structural elements, bring in a professional early. General builders with experience in masonry repairs, damp specialists with a diagnostic approach, or chartered surveyors for complex cases are all appropriate depending on severity.

Typical survey costs range from £150 to £400 for a basic inspection, rising to £500 to £900 for a detailed report by a RICS surveyor. Damp specialists who are members of the Property Care Association often provide mid range surveys with moisture profiling and borescope checks.

Look for:

• RICS accredited surveyors for independent diagnosis
• PCA registered damp specialists
• Proven experience with similar property types, such as Victorian terraces or cavity wall semis

Avoid companies pushing a single product as the solution. Good tradespeople will explain multiple possible causes and justify their recommendation.

FAQ

Can cavity wall insulation cause rain penetration?

Yes, if it is poorly installed or unsuitable for the property. Insulation can hold moisture or create bridging across the cavity. Properties in very exposed locations or with narrow cavities are more at risk. A borescope inspection is often used by professionals to confirm this, and removal can cost between £1,500 and £3,000 depending on access.

How can I tell if damp is from rain or condensation?

Rain penetration usually worsens after bad weather and appears on external walls. Condensation tends to form on colder surfaces, often in corners or behind furniture, and is linked to internal humidity. Professionals confirm this using moisture meters and hygrometer readings alongside visual inspection.

Is repointing enough to stop water getting in?

Repointing can be very effective if open joints are the main issue. However, if there are deeper problems like cavity bridging or failed trays, repointing alone will not resolve the damp.

Do I need planning permission for these repairs?

Most repairs such as repointing or brick replacement do not require planning permission. Listed buildings and properties in conservation areas may have restrictions, especially if materials or appearance are altered. Always check with your local authority if unsure.

How long should a proper repair last?

Well executed repairs using the correct materials should last decades. Repointing can last 25 to 50 years depending on exposure and material choice. Wall tie replacements are typically designed to last the lifetime of the wall.

Final Thoughts

Cavity wall rain penetration is rarely about one obvious fault. It is usually a combination of exposure, ageing materials and hidden defects within the wall. The key is accurate diagnosis followed by targeted repairs. Done properly, the issue can be resolved for the long term without repeated expense.

If you are dealing with unexplained damp or want a second opinion, your next step is to speak to experienced local professionals. You can post a job on BookaBuilderUK and get free quotes from vetted tradespeople who understand UK construction standards and know how to fix the problem properly.
