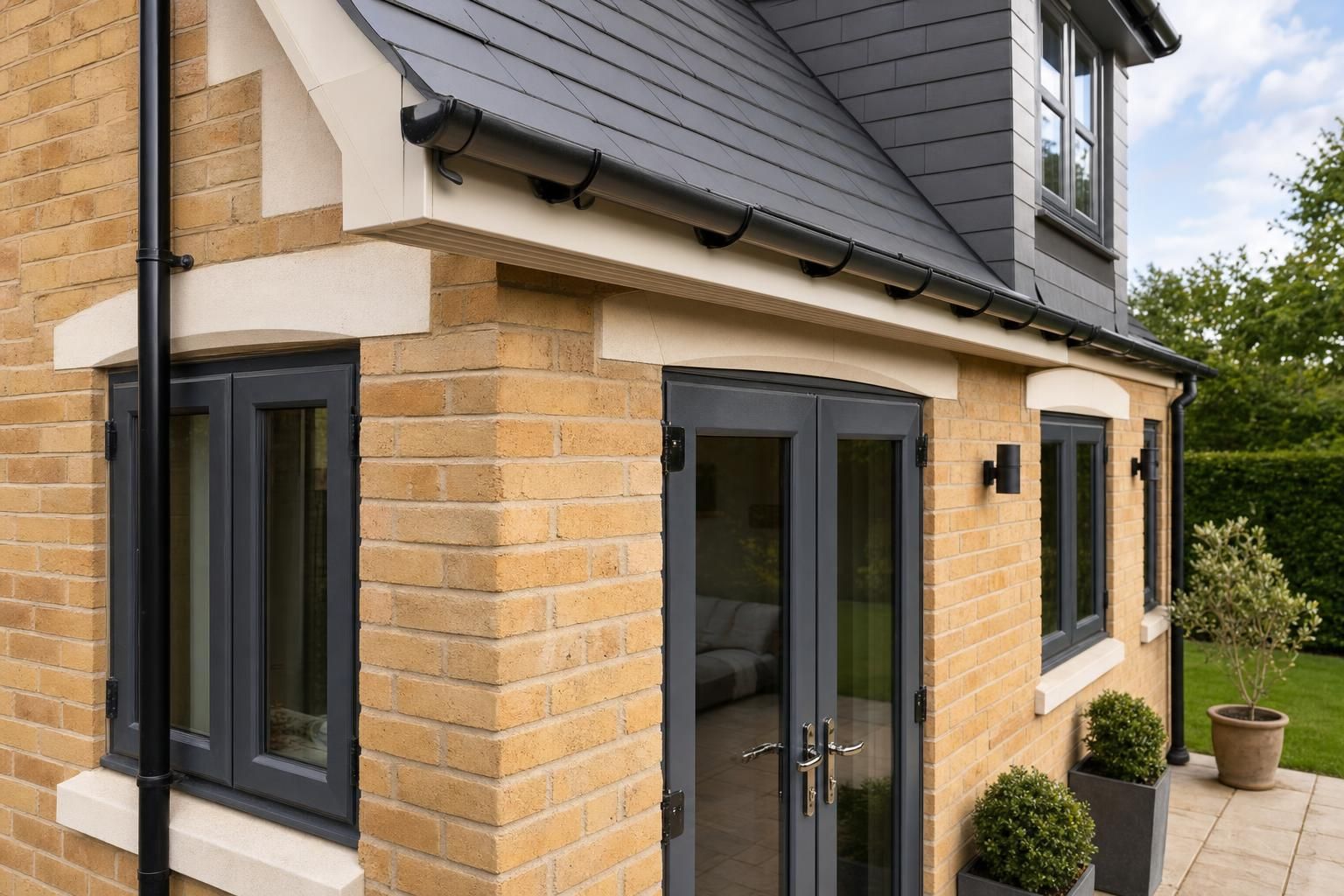

How Cavity Wall Trays Prevent Damp Around Windows Doors and Roof Junctions
It often starts with a faint stain above a window or a patch of peeling paint that keeps coming back no matter how many times you redecorate. Many UK homeowners spend hundreds, sometimes thousands, chasing what seems like a minor damp issue, only to discover the root cause sits hidden within the wall. Cavity wall trays prevent damp by managing water inside the structure before it ever reaches your internal finishes, yet they are frequently missing or poorly installed. Fixing the damage they prevent can easily cost far more than installing them correctly in the first place.
Cavity wall trays are one of the most overlooked defences against damp in UK homes, yet they are critical around openings and junctions. Cavity wall trays prevent damp by intercepting water that penetrates the outer leaf of masonry and directing it safely back outside before it reaches internal finishes. If you have ever seen staining above a window, bubbling plaster at a door head, or damp patches near a roof abutment, there is a strong chance that a tray is missing, incorrectly specified, or poorly installed.
This article explains how cavity trays actually work on site, where they should be installed, how they integrate with other elements like flashing and insulation, and what happens when they fail. You will also find realistic UK costs, common installation mistakes, and a practical checklist you can use whether you are building from scratch or fixing an existing issue.
What a Cavity Wall Tray Does and Why It Matters
Modern UK homes rely on a cavity wall construction where two leaves of masonry are separated by a gap, typically 50 mm to 100 mm in older properties and up to 150 mm or more in newer builds to accommodate insulation. The outer leaf takes the weather. The inner leaf keeps the internal space dry and insulated. Wind driven rain will always penetrate the outer leaf to some extent, especially in exposed parts of the UK such as coastal areas or higher elevations.
The problem arises when water crosses the cavity and reaches the inner leaf. This is where cavity trays come in. A tray is typically formed from high impact polypropylene, stainless steel, or flexible damp proof membrane, installed within the cavity and sloping towards the outside. It acts like a hidden gutter, positioned exactly where water is most likely to accumulate.
Water captured by the tray is directed to the external face through weep holes, small openings in the mortar joint. Without this route, moisture can track across wall ties, debris in the cavity, or poorly installed insulation and end up inside. Over time, this leads to persistent damp that is often misdiagnosed as condensation or rising damp.
If you want a broader understanding of how these systems function across different parts of a building, see Cavity Tray Systems Explained for Homeowners Where They Are Needed and How They Prevent Damp.
How Cavity Trays Differ from Damp Proof Courses
This is a common point of confusion. A damp proof course, or DPC, is typically installed horizontally at the base of walls to prevent moisture rising from the ground. You will usually find it about 150 mm above external ground level.
A cavity tray, by contrast, is installed higher up in the wall and is designed to deal with penetrating water rather than rising moisture. It collects water within the cavity and discharges it externally through weep holes. In many cases, cavity trays link into vertical damp proof membranes and horizontal DPC layers to form a continuous moisture barrier system.
Both elements work together, but they solve different problems. Confusing the two often leads to incorrect repairs.
Where Cavity Trays Are Required Under UK Building Regulations
Cavity trays are not optional details. They are required under Approved Document C, which covers site preparation and resistance to contaminants and moisture. Section 5 of Approved Document C specifically addresses resistance to precipitation, stating that water which penetrates the outer leaf must not reach the inner leaf.
Clause 5.7 highlights the need for cavity trays at interruptions such as lintels, while Clause 5.9 refers to the use of DPCs and trays at junctions including roofs and abutments. The guidance makes clear that all openings and junctions vulnerable to water ingress must include appropriate damp proofing and a means of drainage, typically via weep holes.
You can review the official guidance via the UK Government here: https://www.gov.uk/government/publications/site-preparation-and-resistance-to-contaminants-and-moisture-approved-document-c.
In practical terms, trays are expected in the following locations.
- Above all window and door openings, including those with steel or concrete lintels
- At roof abutments where roofs meet masonry walls
- Over structural lintels unless they are specifically designed with integral damp protection
- At cavity interruptions such as stepped foundations or changes in wall height
- Around chimney penetrations and parapet walls
NHBC Chapter 6.1 provides further guidance for masonry construction in new build homes, including correct installation of cavity trays, minimum upstand heights, and the requirement for stop ends and weep vents. Structural guidance from BS 5628 and Eurocode 6 also supports correct detailing around openings to prevent moisture bridging and lintel corrosion.
For further technical guidance, NHBC standards can be reviewed here: https://www.nhbc.co.uk/builder/nhbc-standards.
Many cavity tray products used in the UK are BBA certified, which confirms they have been independently assessed for durability and performance. Installers are expected to follow manufacturer specific installation instructions, including lap lengths and fixing methods.
Cavity Wall Trays Prevent Damp at Windows and Door Heads
How Water Gets In Above Openings
Window and door heads are one of the most vulnerable spots in a wall. Rain hits the outer leaf, runs down, and collects above the opening. In exposed conditions, water can be driven through mortar joints or porous brickwork into the cavity.
Without a tray, water can sit on top of the lintel or track across the cavity to the inner leaf. Steel lintels without proper coating can begin to corrode. In older timber framed openings, prolonged moisture can lead to decay and structural issues.
How the Tray Is Installed
A cavity tray is built into the bed joint above the lintel. It should extend across the full width of the opening and at least 150 mm beyond each side. Stop ends are formed or added at either end. These stop ends are essential because they prevent water escaping sideways into the surrounding masonry.
Weep holes are installed at regular centres, typically every 450 mm for shorter spans and up to 900 mm for longer runs depending on specification. These are often formed using plastic weep vents to maintain a clear outlet.
The tray must lap correctly with the damp proof course and any vertical membranes. A typical lap would be 100 mm minimum. Incorrect laps are a common cause of failure in both new build and retrofit work.
Typical UK Costs for Retrofitting Around Openings
Retrofitting trays above existing windows and doors is labour intensive because brickwork needs to be carefully removed and reinstated without damaging the structure.
| Work Item | Typical Cost Range |
|---|---|
| Retrofit cavity tray above single window | £350 to £700 |
| Retrofit above large window or patio doors | £600 to £1,200 |
| Lintel replacement if required | £400 to £1,000 |
| Scaffolding if required | £300 to £800 |
Costs vary based on brick type, access, whether matching bricks are available, and whether internal repairs are needed afterwards.
Cavity Wall Trays at Roof Junctions and Abutments
Why Roof to Wall Junctions Often Fail
Roof abutments are one of the most frequent sources of penetrating damp in UK housing. This is especially common with extensions where new roofs tie into existing walls. Lead flashing is designed to deflect water away, but it is exposed to movement, weathering, and poor installation.
If flashing lifts, cracks, or is chased too shallow into the mortar joint, water can get behind it. Once inside the masonry, gravity takes over. Water runs down within the cavity until it finds a weak point, often appearing internally several courses below the roof line.
This is where cavity trays act as a backup defence. Without them, even minor flashing defects can lead to significant internal damp.
If you suspect issues here, it is worth understanding how flashing failures contribute to damp by reading Lead Flashing Repair Explained for Homeowners Common Failures Best Fixes and When Replacement Is Needed.
Stepped Trays and Flashing Integration
At a pitched roof abutment, trays are installed in a stepped pattern to match the slope. Each tray section overlaps the one below by at least 100 mm, creating a continuous path for water to exit.
The lead flashing is installed in coordination with the trays. The top edge of the flashing is chased into the mortar joint, typically 25 mm deep, and secured with lead wedges and sealant. The lower edge is dressed over tiles or slates.
If trays are too low, or flashing is installed above the tray line, water will bypass the system. Correct sequencing on site is essential and requires coordination between bricklayers and roofers.
Typical Repair Costs at Roof Junctions
Repairing a failed system at a roof abutment often involves both tray installation and flashing work, especially in older properties where trays were never installed.
| Cost Element | Typical Range |
|---|---|
| Inspection and diagnosis | £100 to £300 |
| Minor flashing repair | £250 to £600 |
| Full flashing replacement | £600 to £1,500 |
| Stepped cavity tray installation | £800 to £2,500 |
| Scaffolding and access | £600 to £1,500 |
| Making good internal finishes | £200 to £700 |
Scaffolding is usually required for safety and proper access under HSE guidance. You can review working at height safety expectations here: https://www.hse.gov.uk/work-at-height/.
Interaction with Cavity Wall Insulation
Cavity wall insulation significantly changes moisture movement within a wall. Different insulation types behave differently and directly affect how well cavity trays perform.
Mineral wool insulation is breathable and allows some moisture movement through its fibres. If it becomes saturated due to poor tray installation or blocked weep holes, it can slump and create cold spots. This is commonly seen in 1990s housing where partial fill batts were poorly fitted.
PIR boards, often used in modern new builds, are rigid and water resistant. However, they rely on precise installation. Gaps between boards or poorly sealed joints can allow water to track behind them and reach the inner leaf. If a cavity tray is missing above an opening, water can bypass the insulation entirely.
Bead insulation, typically used in retrofit cavity wall insulation, can hold moisture if the cavity itself is exposed to persistent water ingress. This can lead to widespread damp patches rather than isolated areas, making diagnosis more difficult.
Typical failure scenarios include:
- Insulation bridging across a cavity tray due to poor trimming around openings
- Mortar droppings sitting on top of insulation and redirecting water inward
- Retrofit insulation injected into cavities that already have debris or missing trays
There is a known link between insulation defects and damp issues, especially in older housing stock. For a deeper look at insulation types and risks, see Cavity Wall Insulation in UK Homes Explained Types, U Value Performance, Damp Risks and How to Choose a Reputable Installer.
Signs Your Cavity Trays Are Missing or Failing
Damp related to cavity tray issues tends to show in very specific ways.
- Staining or damp patches just above windows or doors
- Peeling paint or blown plaster at opening heads
- Damp appearing after heavy rainfall rather than constantly
- Moisture near ceiling lines where roofs meet walls
- White salt deposits on internal walls
These symptoms overlap with other forms of damp. Accurate diagnosis is key. A good starting point for understanding wider causes is Expert Advice on Dealing with Damp and Mould.
Diagnostic Checklist for Cavity Tray Related Damp
- Does the damp patch worsen after wind driven rain from a specific direction
- Is the issue localised above an opening or near a roof junction
- Are there visible weep holes, and are they clear
- Has cavity wall insulation been installed or altered
- Is there any visible defect in flashing or pointing externally
- Does the problem reduce during dry periods
If most of these apply, a cavity tray issue is likely rather than condensation or rising damp.
Practical Checklist for Homeowners
If you suspect a problem or are planning building work, use this checklist to avoid costly mistakes.
- Confirm trays are specified on drawings for all openings and roof junctions
- Check that stop ends are included, not just flat tray sections
- Ensure weep holes are installed at correct spacing and not blocked by mortar
- Verify trays are correctly lapped with damp proof courses
- Inspect cavity cleanliness before closing up the wall
- Confirm compatibility with insulation type and thickness
- Use experienced bricklayers familiar with current Building Regulations
- Photograph installations before they are covered for future reference
Common Mistakes to Avoid
Missing Stop Ends
Without stop ends, water runs off the end of the tray into the wall. A typical example is damp appearing at one corner of a bedroom window despite the centre remaining dry. This often leads to repeated internal repairs before the actual issue is identified.
Blocked Weep Holes
Mortar droppings and debris can block weep holes. On site, this often happens when bricklayers do not insert vents during construction. The result is water pooling within the tray and eventually spilling inward.
Poor Integration with Flashing
At roof junctions, trays and flashing must work together. A common scenario is a homeowner replacing flashing without addressing missing trays, only for damp to return within months.
Incorrect Tray Positioning
Trays must sit at the correct level and angle. A flat tray installed during rushed work will hold water instead of draining it, leading to saturation and eventual leakage through the inner leaf.
Bridging the Cavity
Debris, insulation, or mortar snots can create a path for water to bypass the tray entirely. This is frequently seen in older properties where renovation work has pushed debris into the cavity.
How Long Does Installation Take
During new construction, cavity tray installation is straightforward and integrated into normal bricklaying progress. It typically adds minimal time if planned correctly.
For retrofit projects, timeframes vary depending on access and complexity.
- Single window tray installation, half a day to one day
- Multiple openings on a property, two to four days
- Roof abutment tray installation, one to three days
- Full elevation remedial work, up to one to two weeks
Delays are common due to weather, especially in winter. Rain can halt brickwork, and mortar needs adequate curing time before loading. Access constraints such as conservatories or limited scaffolding space can also extend timelines.
Retrofit vs New Build Installation
| Factor | New Build Installation | Retrofit Installation |
|---|---|---|
| Typical cost per opening | £50 to £150 | £350 to £1,200 |
| Disruption level | Low | Moderate to high |
| Time required | Integrated into build | Hours to days per area |
| Risk of defects | Low if supervised | Higher due to existing structure |
| Need for scaffolding | Rare | Often required |
Do You Need Planning Permission
In most cases, installing or repairing cavity trays falls under maintenance and does not require planning permission.
However, if work affects the external appearance of a listed building or is in a conservation area, approval may be required. Always check with your local planning authority if in doubt.
Choosing the Right Tradesperson
This type of work sits between bricklaying, roofing, and damp proofing. Choosing the wrong contractor often leads to repeat issues.
Look for tradespeople with:
- NVQ Level 2 or 3 in bricklaying or equivalent site experience
- Knowledge of Approved Document C and NHBC standards
- Experience with cavity tray installation and lintel damp proofing
- Familiarity with BBA certified cavity tray systems
- Public liability insurance and clear written quotations
Many reputable installers will offer a workmanship guarantee of 5 to 10 years. Manufacturer backed systems may also include product warranties if installed to specification.
Red flags include vague diagnoses, reliance on sealants alone, or refusal to open up the wall to inspect properly. Damp problems linked to roof abutment damp or failed trays cannot be solved with surface treatments.
If you are unsure where to start, you can post a job and get multiple quotes from vetted local tradespeople.
FAQs
Do all houses in the UK have cavity wall trays?
No. Many older properties either do not have them or have installations that do not meet modern standards. Even in newer homes, poor workmanship can mean trays are ineffective. If your home was built before the 1980s, there is a higher chance trays are missing or inconsistent.
Can you install cavity trays after a house is built?
Yes, but it involves removing sections of brickwork to insert the tray. This is known as retrofitting. It is more expensive and disruptive than installing during construction, but it is often the only reliable way to fix persistent damp above openings or at roof junctions.
Are cavity trays better than relying on sealants or external fixes?
Yes. Sealants and external coatings are temporary measures. Cavity trays deal with the root cause by controlling water within the wall structure. External fixes may reduce symptoms but rarely solve the problem long term.
How do I know if I need a cavity tray or just flashing repair?
A proper inspection is needed. If water is entering behind flashing and reaching the cavity, both elements may need attention. If flashing alone is defective and the cavity is not affected, a repair may be sufficient. Misdiagnosis is common, so a survey by an experienced professional is worth the cost.
Will installing cavity trays stop all damp problems?
No. Damp has multiple causes including condensation, rising damp, and plumbing leaks. Cavity trays specifically address penetrating damp at structural junctions. A full assessment is often required to identify all contributing factors.
Final Thoughts
Cavity wall trays are a hidden but essential detail that protect your home from long term moisture damage. Whether at a window head, door opening, or roof junction, they provide a controlled path for water to escape before it enters the living space. Faulty or missing trays are a common cause of recurring damp that homeowners end up treating repeatedly without success.
Getting the detail right the first time is far cheaper than repairing damage later. If you suspect an issue or want to ensure your project is built properly, it is worth bringing in an experienced professional who understands both the theory and the practical side of installation.
