Cavity Wall Weep Vents Explained What They Do and Why They Matter

Cavity wall weep vents are small, often overlooked components that play a critical role in keeping UK homes dry and structurally sound. If you have noticed small plastic grilles in the mortar joints of your brickwork, usually above windows or near ground level, you are looking at weep vents. They may seem insignificant, but they form part of a carefully designed moisture management system within cavity walls.

A common scenario seen during home surveys is damp staining above a living room window in an otherwise modern property. The cause is often not a failed window but missing or blocked weep vents above the lintel. Repairing the resulting damp can easily run into £1,500 to £4,000 once plaster, decoration, and potential timber repairs are included. That is a high price for what should have been a simple, low cost installation detail during construction.

As someone who has worked on everything from Victorian terrace refurbishments to modern new builds built to NHBC standards, I can tell you that when weep vents are missing, blocked, or incorrect, problems follow. Damp patches, mould growth, staining on brickwork, and even internal rot can often be traced back to poor cavity drainage.

This guide explains what cavity wall weep vents do, where they should be installed, how much they cost, and what can go wrong if they are neglected.

What Are Cavity Wall Weep Vents

Weep vents are small openings installed in the outer leaf of a cavity wall. Their job is to allow any water that collects inside the cavity to escape safely to the outside. They are usually installed in line with cavity trays, which catch and direct water towards these openings.

The typical weep vent is made from plastic or terracotta and is designed to prevent debris and insects from entering while still allowing water to drain and air to circulate.

In UK construction, they are most commonly found:

• Above window and door openings
• At roof abutments and stepped flashing details
• At the base of cavity walls near the damp proof course
• Within parapet walls and retaining structures

They are required to be spaced at regular intervals, usually every 450mm, although this can vary slightly depending on design and manufacturer guidance.

Why Cavity Wall Weep Vents Matter

Water penetration in masonry is normal. Brick and mortar are not fully waterproof. Wind driven rain will pass through the outer leaf, especially in exposed parts of the UK such as coastal Cornwall, west Wales, or higher exposure zones in Scotland and the Pennines.

The cavity is designed to deal with that moisture. It allows water to run down the inside face of the outer leaf without reaching the internal structure. However, that water needs somewhere to go.

Without weep vents, moisture becomes trapped. Over time, this leads to:

• Damp patches internally, often above windows or doors
• Mould growth due to persistent moisture
• Thermal performance issues if insulation becomes damp
• Decay in timber cavity trays or lintels in older properties
• Salt staining or efflorescence on brickwork

In practice, damp can begin to show within a few weeks of persistent rainfall if drainage is blocked, particularly on exposed elevations. In less severe cases it may take several months to become visible, which is why the issue is often missed during initial snagging.

Part C of the Building Regulations, which covers resistance to moisture, clearly sets out that buildings must be constructed to prevent harmful condensation and water ingress. You can read more at Approved Document C.

The Relationship Between Weep Vents and Cavity Trays

Weep vents do not work in isolation. They are part of a system that includes cavity trays, damp proof courses, and proper detailing around openings.

Cavity trays are installed above openings and at junctions where water might cross from the outer leaf to the inner leaf. They catch water and direct it towards the outer wall. Weep vents then provide the exit route.

If you want a deeper understanding of how trays function, see Cavity Tray Systems Explained for Homeowners Where They Are Needed and How They Prevent Damp.

Similarly, problem areas like windows and doors depend heavily on correct tray and vent placement. This is covered in detail in How Cavity Wall Trays Prevent Damp Around Windows Doors and Roof Junctions.

Where Should Weep Vents Be Installed

Placement is not random. It follows construction detailing and regulatory guidance.

Above Windows and Doors

One of the most common and critical locations. A cavity tray sits above the lintel and collects moisture. Weep vents are installed directly above the opening to drain it away.

Spacing is usually every 450mm, meaning most standard windows will require at least two or three vents. Larger bi fold openings often require five or more, particularly on exposed elevations.

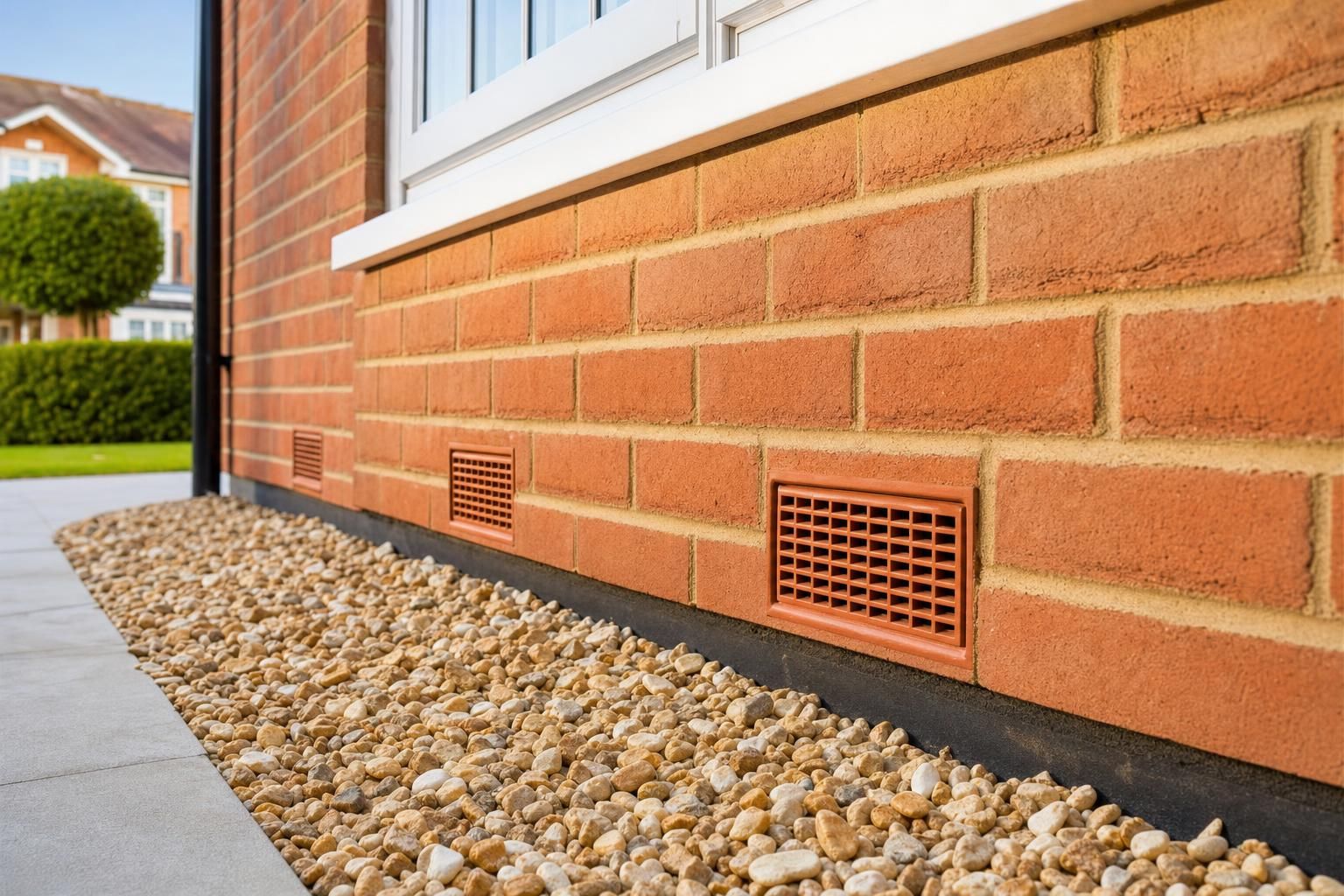

At the Base of the Wall

Weep vents can also be installed just above the damp proof course at the base of the wall. These allow any water accumulating in the cavity to escape before it reaches internal structures.

At Roof Junctions and Abutments

Where a roof meets a wall, such as in extensions or dormers, cavity trays and weep vents prevent water ingress from flashing lines. These areas are especially vulnerable during driving rain.

Parapet Walls and Retaining Structures

These areas are particularly prone to water build up. Without proper drainage, damage can be severe and costly. Parapet walls in older London terraces are a frequent example where missing vents lead to internal damp along party walls.

Guidance from the NHBC emphasises correct detailing in these areas. See NHBC Standards for more detail.

Types of Weep Vents Used in UK Construction

Different types are used depending on aesthetics, function, and exposure.

Type	Description	Typical Use	Cost per unit
Plastic open weep vents	Simple rectangular inserts	Modern builds and extensions	£0.50 to £1.50
Terracotta vents	More traditional appearance	Period properties	£2 to £5
Integrated grille vents	Include insect mesh	Areas prone to pests	£1.50 to £3
Discreet perpend weeps	Hidden within mortar joint	High end finishes	£1 to £2

Performance and Suitability Comparison

Type	Drainage Performance	Lifespan	Maintenance	Best For
Plastic open vents	High if kept clear	20 plus years	Low	Standard housing and estates
Terracotta	Moderate	30 plus years	Low	Heritage and conservation areas
Grille vents	High with pest protection	15 to 25 years	Occasional cleaning	Rural or pest prone areas
Perpend weeps	Depends on workmanship	Matches brickwork life	Higher inspection needed	Architectural finishes

Material choice does not significantly affect performance if installed correctly, but it does impact appearance and longevity.

Installation Costs and Timeframes

Installing weep vents is low cost if done at build stage, but retrofitting can be more involved. The difference often comes down to access, labour time, and whether remedial damp work is already required.

Typical Cost Breakdown

Item	New Build Cost	Retrofit Cost
Materials	£1 to £3 per vent	£2 to £5 per vent
Labour	Included in bricklaying rate	£25 to £60 per vent
Scaffolding	Usually included in main build	£300 to £800 depending on height
Inspection or survey	Included in building control fees	£100 to £300 for damp assessment
Total typical cost	Minimal additional cost	£400 to £1,500 total project

New Build or Extension

• Additional cost per vent, around £1 to £3 supplied and installed
• Labour is typically included within bricklaying rates
• No additional time impact if planned properly

Retrofitting Weep Vents

• Cost per vent installed, £30 to £80 depending on access and wall type
• Scaffolding may add £300 to £800 if required
• Timeframe, one day for a small house, up to three days if access is difficult or walls are thick stone or Victorian brickwork

Retrofitting involves removing mortar joints and inserting vents without damaging surrounding brickwork. It requires care, particularly on older properties where mortar is softer and bricks may be irregular.

Inspecting and Maintaining Weep Vents

Maintenance is straightforward but often overlooked. Homeowners should visually check vents at least once a year and after major storms.

• Ensure openings are not blocked by dirt, algae, or mortar
• Check for signs of insect nests or debris build up
• Look for water discharge during heavy rain, which indicates proper function
• Use a small plastic probe or compressed air to clear minor blockages

If access requires ladders or working at height, follow HSE guidance or use a professional. See HSE work at height guidance.

Building Regulations and Compliance

While weep vents themselves are not always individually named, their role is embedded within the requirements of Approved Document C. Section 5 requires walls to resist the passage of moisture, and specifically references the need for cavity trays with suitable drainage.

Clauses around openings and junctions state that moisture penetrating the outer leaf must be intercepted and directed outwards. This is where cavity wall weep vents become essential. Without them, the system does not function as intended.

Building control inspections are typically triggered at key stages:

• After cavity trays are installed and before closing the cavity
• At pre plaster stage to check damp prevention measures
• During final inspection for compliance sign off

Local Authority Building Control, known as LABC, often checks that trays and ventilation paths are present and correctly positioned. Their guidance reinforces the need for clear drainage paths. See LABC for further technical advice.

Warranty providers such as NHBC and LABC Warranty also inspect these details. Missing or poorly installed weep vents are a common cause of failed inspections or snagging lists on new builds.

Non compliance can lead to:

• Failed building control inspections
• Delays in project completion or sign off
• Costly remedial work, often involving scaffold and brickwork removal
• Voided warranties in severe cases

Relevant British Standards such as BS EN 1996 for masonry design and BS 5628 guidance on moisture penetration also support the need for proper cavity drainage detailing.

Weep Vents and Cavity Wall Insulation

Insulated cavities behave differently. While insulation improves thermal efficiency, it can also alter how moisture moves through the wall.

There are two main systems used in UK construction:

• Partial fill insulation, where a residual cavity remains clear for drainage
• Full fill insulation, where the cavity is fully filled with mineral wool or foam

Partial fill systems are generally more forgiving, as they maintain a drainage void. Full fill systems rely heavily on correct installation and exposure conditions.

Poor installation of insulation can block cavity trays or bridge the gap, preventing water from reaching weep vents. This is a common cause of damp in properties that have had retrofitted insulation.

Typical warning signs of insulation related damp include:

• Damp patches appearing after retrofit insulation work
• Cold spots on walls where insulation has slumped
• Debris or fibres visible at weep vents
• Increased mould around openings

In exposed coastal areas such as Liverpool or Aberdeen, full fill insulation combined with high wind driven rain can increase the risk of moisture tracking across the cavity if drainage is compromised.

For a full breakdown of insulation types and risks, see Cavity Wall Insulation in UK Homes Explained Types U Value Performance Damp Risks and How to Choose a Reputable Installer.

Typical Repair Costs for Damp Caused by Poor Cavity Drainage

Failing to install or maintain weep vents can lead to far higher costs later.

• Internal damp repairs and replastering, £500 to £2,500
• Timber lintel or structural repairs in older homes, £1,000 to £4,000
• External brickwork remedial work with scaffold, £1,500 to £5,000
• Full cavity clearing and insulation correction, £2,000 to £6,000

These figures are typical for UK properties and vary based on access and severity. Compared to the cost of installing proper cavity wall weep vents during construction, the difference is significant.

Common Mistakes to Avoid

Even experienced trades can get this wrong, especially on rushed jobs or where detailing is unclear.

• Missing weep vents entirely above openings, often due to poor coordination between bricklayers and site managers. This can lead to damp within months and usually requires cutting out brickwork later.
• Incorrect spacing, leading to poor drainage. Too few vents means water backs up along the cavity tray and can enter internally.
• Blocked vents due to mortar droppings during construction. This happens when cavities are not kept clean. Fixing it may involve removing bricks to clear the obstruction.
• Insulation blocking cavity trays, particularly with retrofit foam or poorly fitted batts. This prevents water reaching the vents and often requires partial removal of insulation.
• Installing vents too low or too high relative to the tray. If not aligned, water simply bypasses the opening.
• Using decorative vents that do not actually drain water. These are sometimes chosen for appearance but offer no real function.

One of the most common issues I see on site is blocked weep vents. Mortar falls into the cavity during bricklaying and blocks the exit points. This stops water from escaping, even though the vents appear to be in place. Fixing this typically costs several hundred pounds due to labour and access requirements.

Signs Your Weep Vents Are Not Working

If you suspect a problem, there are some clear warning signs.

• Damp patches above windows or doors
• Water staining on internal plaster
• Mould growth in corners near openings
• Green staining or algae on brickwork externally
• No visible drainage during heavy rain

If you are experiencing any of these issues, broader damp investigation may be required. You can also read Expert Advice on Dealing with Damp and Mould for practical next steps.

Practical Checklist for Homeowners

If you are planning building work or investigating damp, use this checklist.

• Check for visible weep vents above all windows and doors
• Ensure vents are spaced correctly and not blocked
• Ask your builder to confirm cavity tray installation
• Verify insulation has not bridged the cavity
• Inspect after heavy rain for signs of water discharge
• Include weep vents in snagging inspections on new builds

This simple inspection can prevent significant repair costs later.

Can You Add or Replace Weep Vents Yourself

Technically, yes. Practically, it depends.

Inserting a weep vent involves removing mortar from a vertical joint and ensuring the cavity behind is clear. If done incorrectly, you can damage brickwork or fail to address the underlying issue.

For modern brickwork with standard mortar joints, a competent DIYer might manage a simple replacement. However, for anything involving damp issues, retrofitting multiple vents, or working at height, a professional is strongly recommended.

Bricklayers or damp specialists typically handle this work.

FAQ

Do all houses need weep vents

Most cavity wall constructions do. Particularly those built after the mid twentieth century that include cavity trays. Solid wall properties, such as many Victorian terraces, do not rely on weep vents in the same way because they lack a cavity system. However, retrofit cavities or extensions to these properties will.

How many weep vents should I have above a window

Typically one vent every 450mm. A standard 1.2 metre window would usually have at least two or three vents. Wider openings such as patio doors may require four or more. The spacing ensures water collected in the cavity tray can escape evenly rather than pooling in one location.

Should water come out of weep vents

Yes, occasionally. During heavy rain, you may see water dripping or dampness around them. This indicates they are working correctly by allowing moisture to escape from the cavity rather than building up internally.

Can blocked weep vents cause damp inside

Yes. Blocked vents trap water within the cavity, which can then track across to the inner leaf. This often leads to damp patches internally, usually appearing within weeks to months depending on exposure and rainfall levels.

Do weep vents let in cold air or pests

They are designed to minimise this risk. Many include internal baffles or mesh to prevent insects entering. The impact on heat loss is negligible compared to the benefit of proper moisture control.

Are weep vents checked during building inspections

Yes. Building control officers and warranty inspectors often check that cavity trays and associated drainage points are present before closing up walls. Missing vents can result in failed inspections and delays. This is particularly common on new build housing developments where NHBC or LABC warranty standards apply.

Final Thoughts

Weep vents might be small, but they are essential to the long term health of your home. They form part of a wider system that manages moisture within your walls, protecting your structure, insulation, and internal finishes.

If you are planning an extension, dealing with damp, or reviewing the quality of recent building work, do not overlook them. Getting this detail right is straightforward, but correcting it later can be costly.

If you need help diagnosing damp issues or installing proper cavity drainage, the easiest way to get started is to post a job on BookaBuilderUK and receive free quotes from trusted local tradespeople.
