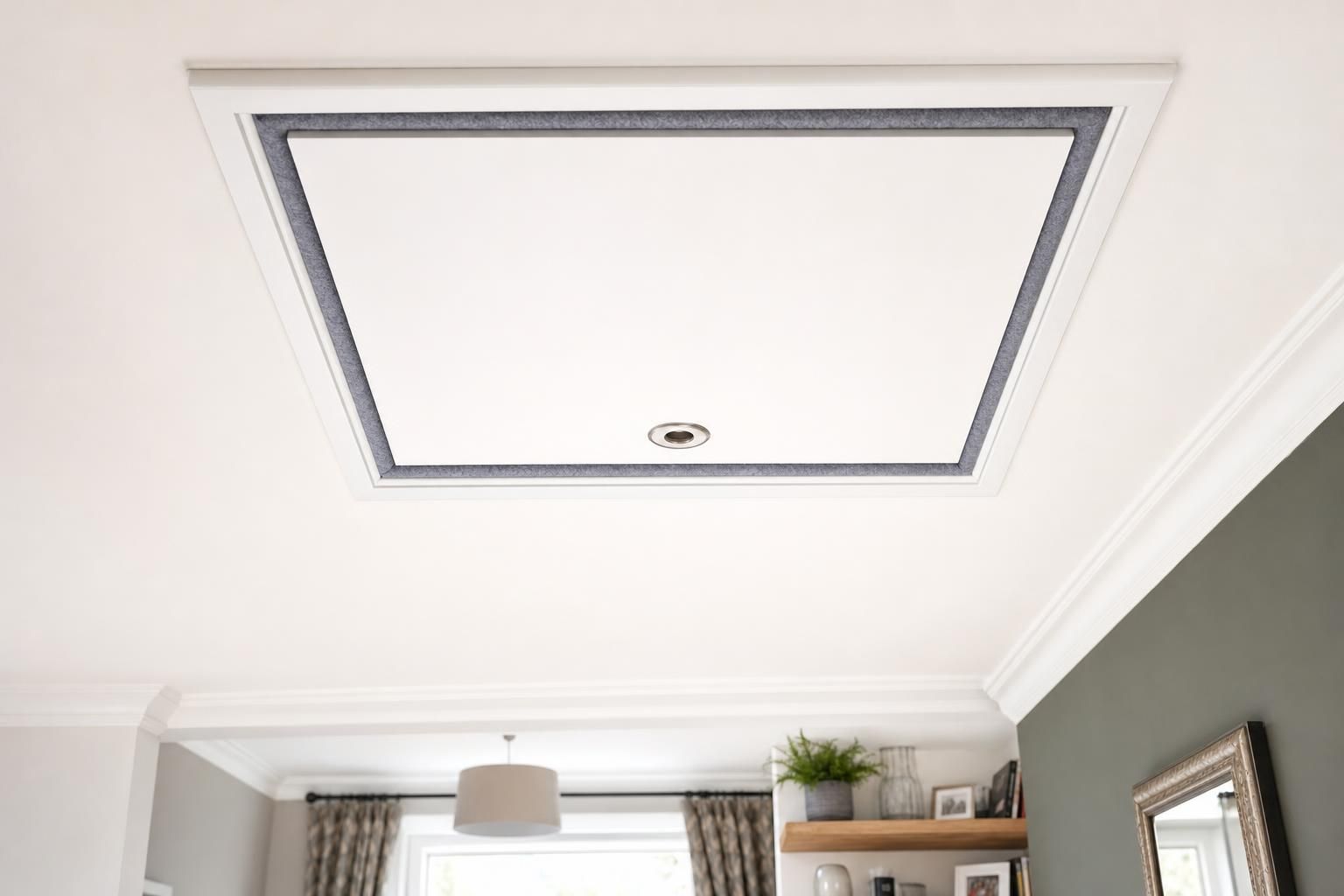

How to Fit a Draft Excluder to a Loft Hatch and Cut Heat Loss at Home

Fitting a draft excluder to a loft hatch is one of the quickest and most cost effective ways to reduce heat loss in a UK home. Loft hatches are often overlooked, yet they can leak a surprising amount of warm air. In many properties I visit, up to 5 to 10 percent of total heat loss at ceiling level can be traced back to unsealed gaps around the hatch. In real terms, that can mean £30 to £80 a year disappearing straight into the loft, even when the rest of the insulation is up to standard.

In practice, I see plenty of homes with decent loft insulation but a poorly sealed hatch acting like an open window. Warm air rises, finds the easiest escape route, and disappears straight into the loft space. A well fitted draught seal solves that cheaply and quickly.

This guide walks through the process properly, including tools, materials, realistic costs, and the small details that separate a neat job from a bodged one.

Why Loft Hatches Are a Common Source of Heat Loss

Warm air naturally rises, so the ceiling is one of the biggest areas of heat loss in any house. UK Building Regulations Part L focuses heavily on improving thermal performance, including loft insulation, but air leakage through gaps is just as critical.

Most loft hatches are simple timber panels sitting in a frame. Unless they have a compression seal or factory fitted gasket, there will almost always be small gaps around the edges. These gaps allow warm air to escape and cold air to drop back into the room.

Even a 2 to 3 mm gap around a hatch can create noticeable draughts. In winter, this contributes to higher heating bills and uneven room temperatures. In older homes, especially Victorian terraces, gaps can be even larger due to timber movement and years of repainting.

If you have already improved insulation levels, for example by following advice such as How to Install a Loft Insulation Roll in a UK Home Safely Cut Around Downlights, Keep Ventilation and Avoid Condensation, sealing the hatch is the next logical step.

Choosing the Right Draft Excluder Loft Hatch Solution

Not all draught seals are equal. Choosing the right one depends on your hatch type, how big the gaps are, and how flat the frame is.

Type	Best Use	Typical Cost	Pros	Cons
Self adhesive foam strip	Small to moderate gaps	£5 to £15	Easy to fit, widely available	Can compress and wear over time
Rubber or EPDM seal	Long term durability	£10 to £25	More durable, better seal	Slightly harder to install neatly
Brush strip	Irregular surfaces	£10 to £20	Tolerates uneven gaps	Less airtight
Insulated loft hatch cover	Poorly insulated hatches	£20 to £50	Improves thermal performance	Needs loft access to fit

Getting the thickness right is key:

• 1 to 3 mm gaps, use thin foam strip, typically 3 mm thick
• 3 to 5 mm gaps, go for 5 mm foam or rubber seals
• 5 to 8 mm gaps, use thicker EPDM or double layer foam
• Irregular or fluctuating gaps, use brush strip or combine foam with hinge adjustments

For UK housing types:

• Victorian or Edwardian terraces often need thicker or flexible seals due to uneven timber frames
• 1930s semi detached homes usually suit mid range foam seals around 4 to 6 mm
• New builds tend to have tighter tolerances and benefit from slim compression seals or EPDM strips
• Flats may have metal or plastic hatches which require specialist adhesive or rubber seals

For most homes, a decent quality self adhesive foam strip is sufficient. If the hatch is uneven or warped, a thicker rubber seal works better.

Tools and Materials You Will Need

• Draught excluder strip
• Tape measure
• Scissors or a sharp utility knife
• Cleaning cloth and mild detergent
• Sandpaper if the frame is rough
• Step ladder or loft ladder
• Optional, adhesive primer for difficult surfaces

If your hatch is very basic or poorly fitted, you may need to upgrade it entirely. In that case, it is worth reviewing How to Fit a Loft Hatch and Ladder in a UK Home Measurements Safety Tips and Building Regs to Check before proceeding. You may also want to explore broader draught proofing improvements such as how to draught proof your home effectively to maximise results.

Quick Checklist Before You Start

• Check the hatch opens and closes squarely without catching
• Measure gaps on all four sides, do not assume uniform size
• Clean all surfaces thoroughly to remove dust and grease
• Choose seal thickness based on the largest gap, not the smallest
• Ensure safe access with a stable ladder
• Confirm loft ventilation paths are clear before sealing

Step by Step Guide to Fitting a Draft Excluder to a Loft Hatch

1. Inspect the Existing Loft Hatch

Start by checking how your hatch sits in the frame. Look for visible gaps, warped panels, or hinges that are out of line. If the hatch rocks or sits unevenly, sealing alone will not fix the issue. Adjust hinges or plane the edge of the hatch if needed.

On older timber frames, slight warping is common. In these cases, plan to use a combination of thicker seals and selective positioning to maintain even compression.

2. Clean the Frame Thoroughly

Adhesive strips will only stick properly to clean surfaces. Wipe down the frame with a mild detergent and allow it to dry completely. Dust and loft insulation fibres can easily affect adhesion.

If the surface is painted and glossy, lightly sand it to improve grip. On bare timber, remove any splinters that could prevent a smooth seal.

3. Measure the Perimeter

Measure each side individually. Many openings are slightly out of square, especially in older homes. Note the largest gap so you select the right seal thickness.

4. Cut the Draught Strip

Cut each length cleanly with square ends. Do not overlap corners. Instead, butt the ends together neatly. Overlaps create pressure points and gaps elsewhere.

5. Position the Seal Correctly

The seal must compress when the hatch closes. Position it so the hatch presses directly onto it, usually on the inner face of the frame.

Do a dry run before sticking anything down. Close the hatch gently to check contact points.

6. Apply Even Pressure

Peel and stick gradually. Press firmly along the full length without stretching the material. Stretching leads to shrinkage later, which creates gaps.

If the frame is uneven, apply slightly thicker sections where needed rather than forcing one uniform strip to do the job.

7. Test Compression Properly

Close the hatch on a strip of paper placed between the seal and the hatch. If the paper slides out easily, you need more compression. Repeat around all edges.

Alternatively, use a smoke pen or incense stick to spot air movement. Any drifting smoke indicates a leak.

8. Adjust or Double Layer if Needed

If gaps remain, apply a second layer in problem areas. This is common on warped frames. Double layering works better than overtightening hinges, which can damage the hatch.

For very uneven frames, combine foam with a flexible rubber seal to balance compression.

Typical Costs in the UK

This is one of the cheapest efficiency upgrades you can make, but costs vary depending on materials and whether you upgrade the hatch.

Item	Typical Cost	Notes
Draught seal materials	£5 to £25	Foam is cheapest, EPDM costs slightly more
Insulated loft hatch cover	£20 to £60	Improves thermal performance significantly
PIR insulation board	£15 to £40	Depends on thickness and size
Professional labour	£60 to £150	Higher in London and South East
Full hatch replacement	£150 to £400	Includes insulated hatch and fitting

Regional variation matters. Labour in northern England and Wales tends to be at the lower end, while London and surrounding areas can push costs higher.

In terms of savings, sealing a loft hatch can reduce overall heat loss by around 2 to 5 percent in a typical home. For a property with an EPC rating of D, this can translate to £25 to £70 per year. Higher savings are possible where gaps are large or insulation is already good elsewhere.

You can check broader energy efficiency advice from the Energy Saving Trust at https://energysavingtrust.org.uk/, which highlights how reducing air leakage complements insulation.

Building Regulations and Best Practice

While fitting a draught excluder does not usually require approval, it sits within the wider scope of Building Regulations Part L, which covers conservation of fuel and power.

Part L sets expectations for airtightness and thermal performance. Although it focuses on whole building performance, small improvements like sealing a loft hatch contribute to better SAP scores and can improve EPC ratings over time.

Best practice includes:

• Maintaining airtightness at ceiling level without blocking ventilation pathways
• Ensuring loft insulation meets recommended depths, typically 270 mm mineral wool
• Preventing thermal bridging around the hatch

NHBC guidance for new builds emphasises proper sealing of loft access points, often using factory fitted compression seals. Retrofitting similar principles in older homes brings them closer to modern standards.

Safety matters as well. Accessing a loft involves working at height. Follow HSE guidance for ladder use, ensure stable footing, and avoid overreaching.

Further guidance is available from the UK Government at https://www.gov.uk/government/publications/conservation-of-fuel-and-power-approved-document-l.

Common Mistakes to Avoid

Most problems come down to rushed installation or poor material choice.

• Using seals that are too thin, which leaves air gaps and reduces effectiveness
• Using seals that are too thick, which prevents proper closing and can strain hinges
• Applying seals to dusty surfaces, leading to failure within weeks
• Ignoring warped frames, resulting in uneven sealing and continued draughts
• Over sealing without ventilation, causing trapped moisture

Moisture build up is a serious issue. Warm air leaking into a cold loft can condense, leading to damp insulation, mould growth, and eventually timber decay in roof structures. If you notice condensation or musty smells, check ventilation at eaves level and ensure vents are clear.

Correcting mistakes often involves removing old seals, cleaning thoroughly, and starting again with the correct thickness and positioning.

Should You Add Extra Insulation Above the Hatch

Yes, and it often delivers noticeable improvements.

Options include:

• PIR board insulation, typically 25 to 75 mm thick, cut to size and fixed above the hatch
• Insulated quilt boxes placed over the opening
• Purpose made insulated loft hatch covers

A standard uninsulated hatch may have a U value of around 2.5 W per m²K. Adding PIR insulation can reduce this to below 0.5 W per m²K, bringing it closer to insulated ceiling standards.

Ensure any added insulation can be lifted easily for access and does not compress surrounding loft insulation, as this reduces effectiveness.

DIY vs Professional Installation

Factor	DIY	Professional
Cost	£5 to £25	£60 to £150
Time	30 to 90 minutes	30 to 60 minutes
Quality	Depends on care and skill	Consistent and precise
Best for	Simple, well fitted hatches	Warped frames or upgrades

If your hatch is uneven, poorly aligned, or you want to upgrade insulation at the same time, hiring a tradesperson is usually worth it.

Suitability for Different Property Types

This upgrade suits almost all property types, but there are a few considerations:

• Flats, check access restrictions and fire safety requirements before modifying communal structures
• Bungalows, easier access but often larger hatch openings that need careful sealing
• Older homes, more likely to have uneven frames requiring flexible seals
• New builds, usually straightforward but may already have seals that need upgrading rather than replacing

Always ensure safe access. Use a stable ladder and avoid carrying tools while climbing. If access is awkward or unsafe, bring in a professional.

How Loft Hatch Draught Proofing Compares to Other Areas

Sealing a loft hatch is part of a bigger picture. Homes lose heat through multiple weak points.

• Internal doors can leak air between rooms. See How to Fit a Draught Excluder to an Internal Door for a Quieter Warmer Home
• Windows and external doors are major culprits. See How to Seal Around Windows and Doors for a Draught Free Finish in a UK Home

Addressing all of these areas together delivers the best results.

Timeframes and Difficulty Level

This is a straightforward job, but a few factors can extend the time:

• DIY time, typically 30 to 60 minutes
• Allow up to 90 minutes if adjustments or double layering are needed
• Warped frames, may require sanding or hinge adjustment
• Poor access, can slow the process and require extra safety precautions

Skill level is beginner, but attention to detail is what determines success.

FAQ

Do I need planning permission to fit a draught excluder to a loft hatch

No. This type of work is classed as minor maintenance and does not require planning permission. It also does not need Building Control approval unless part of a larger alteration.

How do I know if my loft hatch is the problem

If you feel cold air around the hatch or notice temperature differences near the ceiling, it is likely contributing to heat loss. Thermal imaging surveys often highlight loft hatches as clear weak points.

Can I use any type of foam strip

Not all foam strips are suitable. Choose a product designed for draught proofing with the correct thickness for your gap. Cheap strips often flatten quickly and lose effectiveness.

Will sealing the hatch cause condensation in the loft

Not if your loft is properly ventilated. Issues arise when airflow at the eaves or roof vents is blocked. Always maintain ventilation paths.

Is it worth replacing the entire loft hatch instead

If the hatch is warped, poorly insulated, or awkward to use, replacement is often the better long term option. Modern insulated hatches with seals provide a much tighter fit and improved thermal performance.

How long do draught seals typically last

Foam seals usually last 2 to 5 years depending on use and compression. Rubber and EPDM seals can last 5 to 10 years. Regularly check for flattening or gaps and replace as needed.

How much can I realistically save

Most households see annual savings between £20 and £70. The exact figure depends on your EPC rating, insulation levels, and how poor the original seal was.

Final Thoughts

Sealing a loft hatch is a small job that delivers real gains. It reduces heat loss, improves comfort, and supports the performance of your existing insulation. The key is careful fitting and choosing the right material for your setup.

If your hatch is uneven, poorly insulated, or you want a professional finish, it makes sense to bring in a tradesperson. You can post a job on BookaBuilderUK to get free quotes from vetted local tradespeople.
