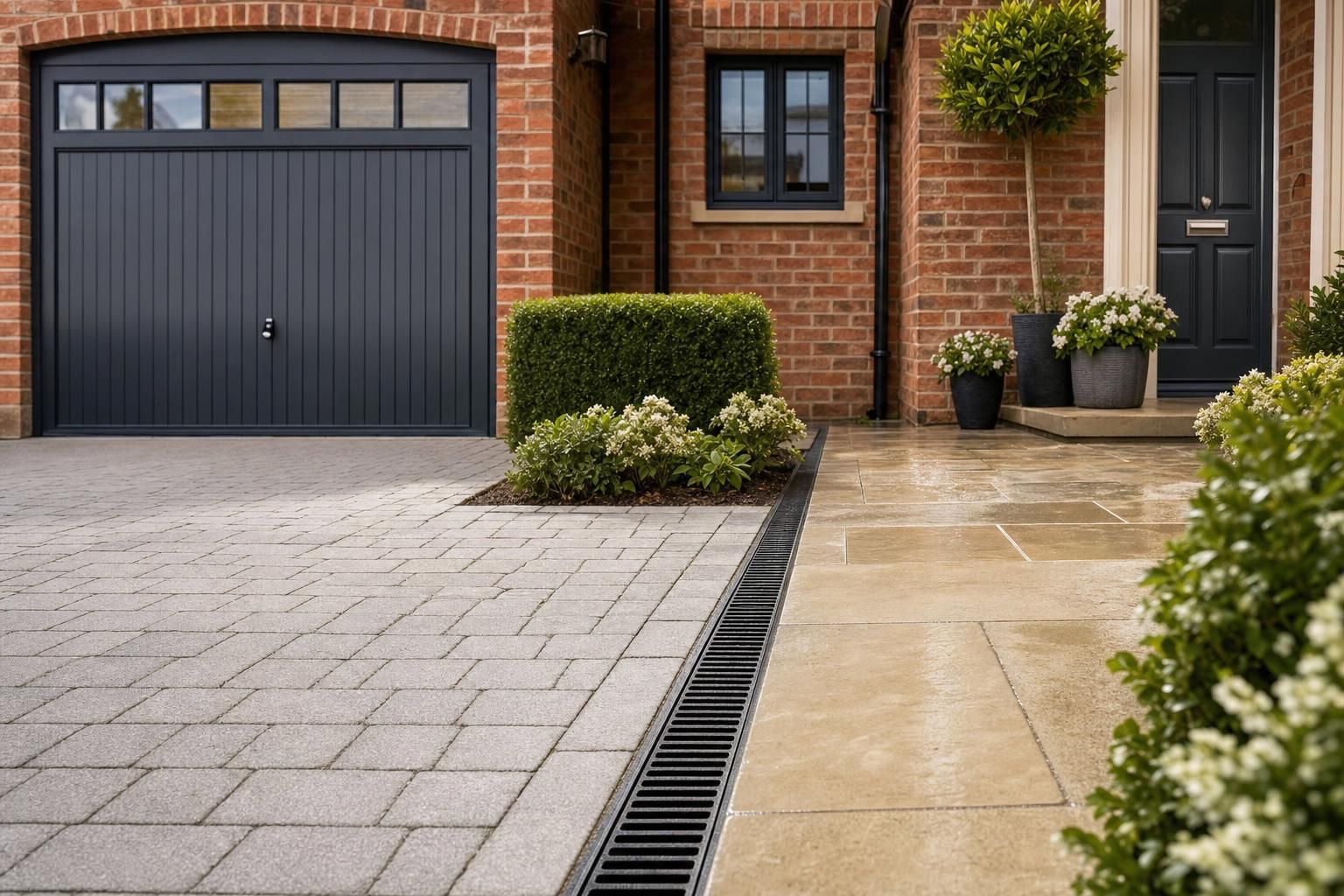

Drainage Channels and ACO Drains Explained for Driveways Patios and Problem Water Runoff

Drainage channels and ACO drains are one of the most effective ways to control surface water on UK driveways and patios. Picture a typical scenario after a night of heavy rain. Water starts pooling against your garage door or patio threshold, creeping towards brickwork and eventually finding its way into the structure. Over time this leads to damp patches, frost damage to paving, and even internal mould issues. Getting drainage right early prevents costly remedial work and keeps your property compliant with UK regulations.

This guide breaks down how channel drainage works, where it should be used, how much it costs to install in the UK, and what tends to go wrong. The aim is simple. Help you make informed decisions before you start digging up your drive.

What Are Drainage Channels and ACO Drains

Drainage channels, often referred to as ACO drains after one of the leading manufacturers, are linear surface water drainage systems. They are typically installed at ground level across driveways, patios, or garage thresholds to intercept water and direct it away.

They consist of three main components:

• A channel body, usually made from polymer concrete or plastic
• A removable grate on top, often steel, galvanised metal, or plastic
• An outlet that connects to a drainage system such as a soakaway or underground pipe

Unlike point drainage such as gullies, channel drains collect water along a continuous line. This makes them ideal for managing sheet runoff across hard surfaces.

If you want a broader understanding of how these fit into a property’s overall drainage setup, see Drainage Systems for UK Homes Explained Soil Pipes Gullies Soakaways and Common Faults.

Why Channel Drainage Is Essential for Driveways and Patios

Surface water is one of the biggest causes of external property issues in the UK. Heavy rainfall, clay soils, and poorly designed hard landscaping all contribute.

Without proper drainage, you can encounter:

• Standing water that damages paving and sub bases
• Water ingress towards walls causing damp internally
• Icy surfaces in winter creating safety hazards
• Localised flooding around thresholds and garages

A correctly installed channel drain acts as a barrier, intercepting this flow before it reaches vulnerable areas. On a block paved driveway, for example, poor drainage often leads to jointing sand washout and eventual sinking. On resin bound surfaces, trapped water can weaken the surface bond over time.

Where You Should Install ACO Drains

From a practical site perspective, there are a few key locations where channel drainage makes a noticeable difference.

Across Driveway Entrances

Installed across the width of a drive, especially where it slopes towards the house or garage. This prevents runoff reaching the building line.

In Front of Garage Doors

Garages are particularly vulnerable. Even a small downhill gradient can direct large volumes of water straight inside. A channel drain is standard practice here.

At Patio Thresholds

Where patios meet bi fold or sliding doors, especially with low thresholds, linear drainage is often essential to meet modern building standards such as NHBC guidance for new builds.

At the Base of Slopes

Any hard landscaping that slopes down should have a drainage intercept before water pools or spills onto adjacent areas.

Drainage Channels and ACO Drains Installation Basics

On paper, installation looks straightforward. In practice, this is where most failures occur. The performance of a channel drain depends more on the groundwork than the product itself.

Typical installation steps:

• Excavate a trench wider and deeper than the channel unit
• Lay a concrete bed, usually around 100 millimetres thick
• Set the channel to the correct height and fall
• Haunch the sides with concrete to secure it
• Connect to an appropriate outfall such as a soakaway
• Install grates and test water flow

For a reliable installation, the sub base preparation is critical. Most professional groundworkers in the UK will excavate to allow for at least 100 to 150 millimetres of MOT Type 1 sub base beneath the concrete. This is compacted in layers using a plate compactor to create a stable base, particularly important for driveways carrying vehicle loads.

The concrete bed itself is typically a C20 mix. A common site mix ratio is 1 part cement, 2 parts sharp sand, and 4 parts 20 millimetre aggregate. In colder weather, curing times increase and protection may be needed to prevent frost damage. Channels should not be loaded until the concrete has achieved sufficient strength, usually after 48 hours for light foot traffic and longer for vehicles.

Setting accurate falls is one of the most overlooked aspects. Groundworkers use string lines, spirit levels, or increasingly laser levels to ensure a consistent gradient, often between 1 in 60 and 1 in 100. Even slight deviations can lead to standing water. For example, on a resin driveway installation in Manchester, a 3 metre run installed just 5 millimetres too high at one end resulted in persistent pooling until it was relaid.

Professional standards also include ensuring the top of the channel sits 2 to 3 millimetres below the finished surface level. This encourages water to enter the channel rather than overshooting it.

HSE guidance should also be followed for excavation work, particularly where trenches are deeper or near structures, see HSE excavation safety guidance.

Where Does the Water Go

A drainage channel is only as good as its discharge point. You cannot simply collect water. You must legally and safely dispose of it.

Common options in the UK:

• Soakaway, typically the preferred solution for surface water
• Connection to an existing surface water drain
• Rain garden or permeable area on your land

Soakaways are widely used but must suit the soil type. In sandy or free draining soils, they work well and allow water to disperse naturally. In heavy clay soils, common across parts of the Midlands and South East, soakaways can fail because water cannot dissipate quickly enough. In these cases, larger soakaways or attenuation crates may be required.

Attenuation crates are modular plastic systems wrapped in geotextile membrane. They store water temporarily and release it slowly into the ground. These are often used on new build sites following CIRIA SuDS guidance, especially where runoff volumes are higher.

Direct connection to surface water drains is another option, but only where permitted. This often requires confirmation from your local authority or water company. Older properties may have combined systems, so checks are essential.

For example, a driveway project in Leeds with heavy clay soil required a large crate soakaway 5 metres from the house. A smaller traditional soakaway would have led to overflow during prolonged rain.

The UK Government provides clear guidance on sustainable drainage systems and runoff management, see Sustainable drainage systems.

SuDS Principles and How Channel Drains Fit In

Sustainable Drainage Systems aim to manage rainfall close to where it falls, rather than sending it directly into sewers. Channel drains play a role by directing water into compliant features such as soakaways, permeable sub bases, or rain gardens.

A typical SuDS setup for a driveway might include a permeable block paving system combined with a channel drain that directs overflow into an attenuation crate. This approach reduces flood risk and aligns with planning requirements.

CIRIA guidance promotes slowing, storing, and filtering water. Channel drainage acts as the first stage in that process by controlling surface flow.

Building Regulations and Planning Rules

Drainage work often falls under Building Regulations Part H, which governs drainage and waste disposal. While you may not always need formal approval for a simple channel, the principles still apply.

Key points:

• Surface water must not discharge onto public highways
• Runoff should not be directed onto neighbouring properties
• New driveways over 5 square metres must comply with permitted development rules, requiring permeable surfaces or controlled drainage

Planning rules for driveways are covered here, see Planning Portal paving guidance.

Listed buildings and conservation areas may have stricter controls. Alterations affecting appearance or drainage patterns may require consent even for minor works.

For many projects, combining channel drainage with permeable surfaces provides the most compliant setup. More on that in Permeable Paving Explained for Homeowners Drainage Rules Materials and Best Uses.

Cost of Installing Drainage Channels in the UK

Costs vary depending on ground conditions, accessibility, and what you are connecting into. Below is a realistic pricing breakdown based on recent UK projects.

Item	Typical Cost Range
Channel drain supply per metre	£15 to £60 depending on quality and load rating
Installation per metre	£50 to £120 including excavation and concrete
Soakaway installation	£800 to £2,500 depending on size and ground conditions
Full driveway drainage project	£1,500 to £4,000+

Labour typically accounts for 60 to 70 percent of the total cost, especially where excavation is manual due to restricted access. Materials make up the remaining 30 to 40 percent.

Regional variation is significant. In London and the South East, labour rates can be 20 to 30 percent higher than in the North of England or Wales. A job priced at £2,000 in Sheffield may be closer to £2,800 in Greater London.

Hidden costs often include:

• Waste removal and skip hire, typically £150 to £400
• Reinstatement of block paving, resin, or tarmac edges
• Breaking out existing concrete or old drainage systems
• Access issues requiring smaller machinery or hand digging

For example, a narrow terraced property in Bristol required all spoil to be moved through the house, adding significant labour time.

For a wider look at groundwork and drainage pricing, see How Much Does It Cost to Install Garden Drainage in 2026? Soakaways, French Drains and Groundworks Explained.

Choosing the Right Channel Drain

Not all channel drains are equal. Picking the wrong type is a common mistake.

Factors to consider:

• Load rating, domestic driveways usually require at least A15 or B125
• Material, polymer concrete is stronger and longer lasting than plastic
• Grate type, galvanised steel is common but stainless steel is better for longevity
• Depth and capacity, deeper channels handle more water

Material	Lifespan	Cost	Load Rating	Typical Use
Plastic	5 to 15 years	Low	A15 to B125	Patios and light duty areas
Polymer concrete	20 to 30 years	Medium	B125 to C250	Driveways and domestic parking
Concrete	30 years plus	Higher	C250 and above	Heavy duty or commercial areas

Cheap kits from DIY stores often fail prematurely under vehicle loads. Trades typically specify known brands with proven performance.

Common Mistakes to Avoid with Drainage Channels and ACO Drains

This is where real site experience matters. These are the issues seen time and again.

• Poor falls. Water sits in the channel and eventually overflows during heavy rain.
• Incorrect discharge. Water has nowhere to go and backs up towards the property.
• Insufficient concrete support leading to movement or cracking. This often results in rocking grates or collapsed edges.
• Using low grade plastic channels on driveways. These can deform under vehicle weight.
• Blocked outlets due to lack of maintenance access. Leads to hidden failures.
• Connecting to foul drainage against regulations. This can result in enforcement action.

Many of these problems only show after heavy rain, at which point fixing them is far more disruptive and expensive.

Pre Project Checklist for Drainage Work

• Check drainage maps or utility drawings to avoid hitting services
• Confirm legal discharge points with local authority if needed
• Carry out a simple soil permeability test by filling a trial hole with water
• Measure and mark finished levels using string lines or laser levels
• Assess access for machinery and material delivery
• Plan waste removal and storage of excavated material
• Ensure compliance with Building Regulations and SuDS guidance

Maintenance and Longevity

A well installed system will last decades, but only if maintained.

Task	Frequency
Remove grates and clear debris	Twice per year
Check outlet flow	After heavy rain
Inspect surrounding paving	Annually
Professional inspection	Every 3 to 5 years

Leaves, silt and moss build up quickly, especially in shaded gardens. Neglecting this is one of the most common causes of failure.

When You Need a Professional

Some homeowners take this on as a DIY job, but there are clear situations where professional input is worth it.

• Large driveways or complex gradients
• Persistent water issues that have not been resolved previously
• Unknown existing drainage layout or shared systems
• Connection to soakaways or underground drainage
• Work near property foundations or retaining walls

Warning signs that DIY may not be suitable include recurring flooding, subsiding paving, or water entering internal spaces. Poor installation can lead to structural damage, drainage disputes with neighbours, and non compliance with regulations.

Groundworkers and drainage specialists will also carry out percolation tests where soakaways are involved, ensuring the system actually works in your soil conditions.

FAQ

Do I need planning permission to install ACO drains on my driveway

Usually not, but it depends on how water is managed. If you are altering a driveway over 5 square metres, you must ensure water drains to a permeable surface or a compliant drainage system within your property. In conservation areas or listed buildings, additional permissions may be required if changes affect appearance or historic fabric.

Can I connect a channel drain to a sewer

In most cases, no. Surface water should discharge into a soakaway or surface water system. Connection to public sewers requires approval from the water authority and is often refused unless no alternative exists.

How deep should a drainage channel be installed

The channel itself may be 100 to 150 millimetres deep, but total excavation is often 200 to 300 millimetres to allow for sub base and concrete support.

Why is my channel drain overflowing

This is usually due to a blockage, undersized soakaway, or poor falls. In clay soils, soakaways may fill faster than they can drain, causing backup. Incorrect installation levels can also prevent water from entering the channel efficiently.

Are plastic channel drains suitable for driveways

Only if they meet the correct load rating. Many cheaper systems are not designed for vehicles and can fail prematurely.

How often should drainage channels be cleaned

At minimum twice a year, and more frequently if your property is surrounded by trees. DIY cleaning is usually straightforward, but professional servicing is advisable every few years to check pipework, soakaways, and hidden blockages.

Final Thoughts

Drainage channels and ACO drains are a simple concept, but their success depends entirely on correct design and installation. Getting the falls right, choosing the right product, and ensuring proper discharge are the difference between a system that works silently for decades and one that fails in the first heavy downpour.

If you are planning a new driveway or fixing persistent water issues, it is worth getting expert input early. You can post a job on BookaBuilderUK to receive quotes from vetted local tradespeople who understand UK drainage standards and site conditions.
