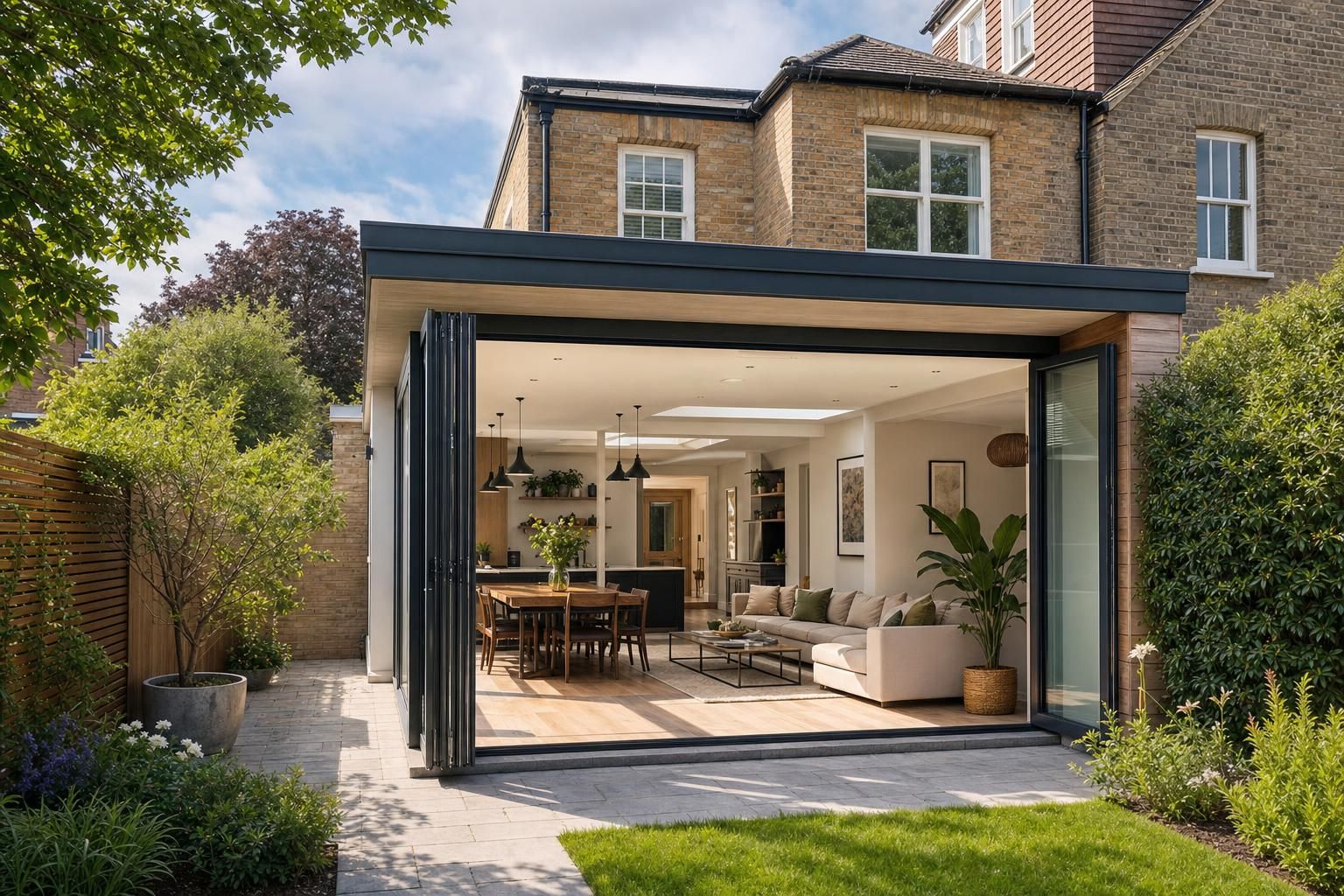

Extension Drawings Needed

If you have decided to add space to your home, one of the first things you will hear from an architect, planning officer or builder is that extension drawings are needed before any real work can begin. These drawings are the technical language of your project. They translate a rough idea into something a local authority can assess, a builder can price accurately and a building control officer can approve. Without them, your project stalls before the first brick is laid.

Having worked on hundreds of residential extensions across the UK, I can tell you that the quality of your drawings often determines whether a build runs smoothly or descends into disputes, delays and cost overruns. This article explains exactly which drawings you need, what they cost, who produces them and how to avoid the mistakes that catch homeowners out.

Why Extension Drawings Are Needed at All

Drawings serve several separate purposes, and confusion between them is common. A single set of plans rarely satisfies every requirement.

First, there are drawings for planning permission. These show the size, position, appearance and impact of your extension on the property and neighbours. They are about whether you are allowed to build.

Second, there are building control drawings. These are far more technical and show how the extension will be constructed to meet the Building Regulations. They cover structure, insulation, drainage, fire safety and ventilation.

Third, there are drawings your builder uses on site. These may include the building control set plus additional detail such as electrical layouts, kitchen positions and setting out dimensions.

Understanding these categories early saves money. Paying for a beautiful planning drawing that a builder cannot construct from is a waste. So is submitting overly detailed construction drawings to a planning department that only wants to see the exterior.

There is a fourth purpose that homeowners rarely consider until it is too late, and that is the value your drawings hold as a record. A properly documented set of approved plans, building control certificates and structural calculations forms part of your property's paperwork. When you come to sell, a solicitor acting for the buyer will ask for evidence that the extension was built lawfully and signed off. Missing paperwork can delay a sale, reduce your offer or force you to buy indemnity insurance. Treating your drawings as a lasting asset rather than a one off expense changes how seriously you approach them.

The Main Types of Extension Drawings

Location and Block Plans

A location plan shows your property in its wider setting, usually at a scale of 1:1250 or 1:2500. It identifies the site with a red line boundary. A block plan is more zoomed in, typically 1:500 or 1:200, and shows the building footprint, boundaries and the position of the proposed extension.

These are mandatory for almost every planning application. You can buy an official copy through the Planning Portal for around 20 to 40 pounds.

Existing and Proposed Elevations

Elevations show the external faces of the building, front, rear and sides. Planners require both existing and proposed versions so they can compare the change. These drawings reveal the height, materials and window positions, all of which influence whether permission is granted.

Existing and Proposed Floor Plans

Floor plans show the layout looking down from above. They map room sizes, door and window openings, wall positions and how the new space connects to the existing house. Accurate dimensions matter here because a small error can ripple through the whole build.

Section Drawings

A section is a vertical cut through the building. It shows floor levels, ceiling heights, foundation depths, roof pitch and insulation build ups. Sections become critical for building control because they demonstrate compliance with thermal and structural standards.

Construction and Detail Drawings

These are the working drawings your builder relies on. They specify foundation types, damp proof courses, lintels, wall ties, insulation thicknesses and junction details. This is where the Building Regulations are truly satisfied.

For a deeper look at this technical set, read our guide to Building Control Drawings Explained for Home Renovations and Extensions.

What a Measured Survey Actually Includes

Every reliable set of drawings begins with a measured survey of your existing house. This is the single stage homeowners most often try to skip, and it is the one that causes the most trouble when they do. A survey captures the reality of your property rather than what the original builder intended forty years ago, and old houses are rarely square, level or true.

A surveyor will attend site and record the existing building in detail. On a typical residential extension survey you can expect the following to be measured and drawn up.

• External and internal wall dimensions, room by room, including wall thicknesses.
• Floor to ceiling heights on each storey, along with any changes in level such as steps down into a kitchen.
• Window and door positions, sizes and cill heights.
• The pitch and shape of the existing roof, including ridge and eaves heights.
• Positions of soil and vent pipes, external gullies, manholes and rainwater goods.
• Boundary positions relative to the house, which matter for both planning and the Party Wall Act.
• Ground levels and any slope across the site, since a fall of even half a metre affects foundation design and drainage.

On more detailed jobs the surveyor may also record the position of drains by lifting inspection chamber covers, and note the location of any electricity meters, gas supplies and boiler flues. The output is a set of accurate existing drawings, drawn to scale, on which your designer bases the proposed scheme.

Modern surveyors often use laser measuring tools and, on larger properties, point cloud scanning that produces a three dimensional model. For a standard house the traditional tape and laser distance meter approach is perfectly adequate. Expect a survey to take a few hours on site for an average semi, longer for a large or awkward property.

The cost, typically 300 to 700 pounds, is money well spent. Drawings based on guessed or assumed dimensions lead to steel beams ordered to the wrong length, extensions that do not line up with existing floor levels and windows that end up off centre. Correcting those errors on site costs far more than the survey ever would.

Who Produces Extension Drawings

You have several options, each with different costs and levels of design input.

Architectural technologists and technicians are often the most cost effective choice for straightforward extensions. They are strong on technical detail and building regulation compliance.

Chartered architects registered with the Architects Registration Board bring design flair and are worth their fee on complex or high value projects. Expect to pay more.

Architectural designers operate without formal registration but many are highly experienced. Quality varies, so check a portfolio and references.

Structural engineers do not usually produce the full drawing set but they calculate beams, foundations and load paths. You will almost always need one where walls are being removed or large openings created.

When Structural Calculations Are Required

Structural calculations are one of the most misunderstood parts of the process. Homeowners often assume they only apply to grand projects, when in truth even a modest single storey extension usually needs them. The rule of thumb is simple. If you are altering how loads travel through the building, a structural engineer must confirm the design is safe.

The most common triggers for structural calculations on an extension are set out below.

• Removing a load bearing wall. Opening up the rear of the house into an open plan kitchen almost always means taking out a structural wall and inserting a steel beam. The engineer sizes that beam and specifies its bearings and padstones.
• Creating large openings. Wide bifold or sliding doors across the back of an extension need a lintel or beam capable of carrying the wall and roof above. The bigger the opening, the heavier the steel.
• Forming new foundations. Foundation type and depth depend on the ground conditions, the proximity of trees and the loads from the new structure. On clay soils near trees, foundations can need to go well beyond a metre deep.
• Adding a storey. A first floor extension over an existing single storey element, or over a garage, requires the engineer to check whether the existing foundations and walls can carry the extra weight.
• Supporting a new roof. Flat roofs, vaulted ceilings and rooflights all change how the roof loads are carried and often need calculating.

The engineer produces a set of calculations and, usually, structural detail drawings showing beam sizes, connection details and foundation designs. Building control will not sign off the work without these. On a straightforward rear extension you can expect to pay 400 to 1,000 pounds, with fees rising for complex schemes involving multiple steels or difficult ground.

It pays to involve the engineer early rather than as an afterthought. If the architect designs a scheme that the engineer later finds needs an enormous downstand beam, you may have to revisit ceiling heights and the whole look of the room. Coordinating the two disciplines from the start avoids that headache.

Extension Drawings Cost Breakdown

Costs vary by region, project size and the level of service. London and the South East sit at the higher end. The figures below reflect typical UK pricing in 2026 for a standard single or double storey rear extension.

Drawing or service	Typical UK cost range	What it covers
Measured survey of existing house	£300 to £700	Accurate site measurements to base drawings on
Planning drawings (existing and proposed)	£800 to £2,000	Plans and elevations for the planning application
Building regulations drawings	£800 to £2,500	Technical construction detail for building control
Structural engineer calculations	£400 to £1,000	Beam, lintel and foundation calculations
Location and block plans	£20 to £40	Official site plans for the application
Full architect service (design to completion)	7% to 15% of build cost	Design, drawings, applications and site oversight

For a typical single storey rear extension, budget roughly 1,800 to 4,500 pounds for a full drawing package including planning and building regulations, plus structural calculations. Larger or more complex schemes cost more.

It is worth understanding what sits behind these ranges. A designer charging at the lower end may provide only the drawings needed to get past planning and building control, with little site support. One charging at the higher end may include a measured survey, several design revisions, the planning application submission on your behalf, the building regulations set and answers to any queries from the council. Cheaper is not always better value, and the scope of what you are buying matters as much as the headline figure.

There are also statutory fees to budget for on top of drawing costs. A householder planning application in England currently costs 258 pounds. Building control charges vary by authority and by the value of the work, but for a typical extension you should allow somewhere between 500 and 1,000 pounds across the plan check and inspection stages. A build over agreement from your water authority, if required, usually adds a few hundred pounds.

Do You Always Need Planning Permission?

Not always. Many extensions fall under Permitted Development Rights, which allow certain works without a full planning application. A single storey rear extension can extend up to 4 metres for a detached house or 3 metres for a semi or terrace, with larger sizes possible under the prior approval process.

These rights are restricted in conservation areas, on listed buildings and where previous extensions have used up the allowance. Even under Permitted Development, you should apply for a Lawful Development Certificate to prove the works are legal, which protects you when selling.

The official rules are set out in the government's planning permission guidance, which is the authoritative source for England and Wales. For a plain English explanation, see our article on Planning Permissions Explained: What You Need to Know.

Drawings for Building Regulations Approval

Even where planning permission is not required, building regulations approval almost always is. This is a separate legal process that ensures the extension is safe, warm, structurally sound and properly drained.

Your building control drawings must demonstrate compliance across several areas. Part A covers structure. Part B covers fire safety. Part C addresses damp and contaminants. Part L governs energy efficiency and insulation. Part M relates to access. Part P covers electrical safety.

You can use either your local authority building control or an approved inspector. Both check the same standards. To understand what officers assess and how the inspection stages work, read Understanding UK Building Regulations for Extensions.

The full technical standards are published by the government as the Approved Documents, which your designer should reference throughout the drawings.

Full Plans Versus Building Notice

There are two routes to building regulations approval, and your choice affects how detailed your drawings need to be.

Feature	Full Plans	Building Notice
Detailed drawings required	Yes, submitted and checked upfront	No formal drawings required
Approval before work starts	Yes	No, checked as you build
Best suited to	Extensions, structural work	Small, simple jobs
Risk of costly rework	Lower	Higher
Suitable for mortgaged or sold properties	Strongly recommended	Less reassuring to buyers

For any extension I strongly recommend the Full Plans route. Approving drawings before work starts means problems are caught on paper, where they cost pounds to fix rather than thousands on site.

The Drawing and Approval Timeline

Homeowners often underestimate how long the paperwork takes. Here is a realistic sequence for a typical extension.

• Measured survey and initial design. One to three weeks.
• Producing planning drawings. Two to four weeks.
• Planning determination period. Eight weeks for a standard householder application, sometimes longer.
• Building regulations drawings and structural calculations. Two to four weeks, often run in parallel with planning.
• Building control plan check. Around five weeks for Full Plans.

From first sketch to being ready to build, three to five months is realistic. Rushing any stage tends to create problems later.

A few factors can stretch this timeline further. If a neighbour objects to your planning application, the case may go to a planning committee rather than being decided by an officer, adding several weeks. If you are in a conservation area or dealing with a listed building, additional consents and consultations apply. And if the council asks for amended drawings partway through, you effectively restart part of the clock. Building in a contingency of a few extra weeks is sensible, particularly if you are trying to coordinate the build around a fixed date such as a new baby or a house move.

A Practical Checklist Before You Commission Drawings

Preparation saves money and reduces revisions. Work through this list before appointing a designer.

• Decide your budget and rough size ambitions.
• Check whether you are in a conservation area or have a listed building.
• Establish whether previous owners used Permitted Development rights.
• Locate the position of drains, sewers and any public sewer that might need a build over agreement.
• Check for boundary issues that may trigger the Party Wall etc. Act 1996.
• Gather any existing deeds, title plans or old drawings.
• Note the position of trees, especially protected ones, which affect foundations.
• Think about how you will use the space, including power, lighting and heating.

Our full House Extension Planning Checklist expands on each of these points and is worth reading alongside this article.

Common Mistakes to Avoid With Extension Drawings

These are the errors I see repeatedly, and they cost homeowners real money.

Skipping the measured survey. Drawings based on guessed dimensions lead to walls that do not line up and steels ordered to the wrong length. Always pay for an accurate survey.

Confusing planning approval with building regulations approval. Getting planning permission does not mean you can start building safely. Both are separate and both matter.

Under specifying the drawings for the builder. Planning drawings alone rarely contain enough detail. Builders forced to make assumptions will either price high to cover risk or hit you with variations later.

Forgetting the structural engineer. Removing a rear wall to create open plan space needs proper beam calculations. Building control will not sign off without them.

Ignoring drainage. Extending over or within three metres of a public sewer requires a build over agreement from your water authority. Discover this after the foundations are dug and you face expensive delays.

Overlooking the Party Wall Act. If you build near or on a shared boundary, you must serve notice on neighbours. Failing to do so can lead to injunctions that halt the entire project.

Choosing the cheapest designer without checking competence. Poor drawings get rejected by planning or building control, adding weeks of delay. A slightly higher fee for a competent professional usually saves money overall.

What to Give Your Builder When Requesting Quotes

The quality of the information you hand to a builder directly shapes the quality of the quote you get back. Vague requests produce vague, cautious pricing. A well prepared package produces sharp, comparable figures. When you invite builders to price your extension, give each of them the same complete pack so they are all quoting on identical terms.

A good quotation package should include the following.

• The full set of drawings. Planning drawings, building regulations drawings and structural details, so the builder can see exactly what is being built and how.
• Structural engineer's calculations. These tell the builder what steels and foundations to price and remove the guesswork on the most expensive structural elements.
• A written specification or schedule of works. A room by room description of finishes, fittings and materials. This is where you state the kitchen budget, the type of flooring, the heating arrangement and the level of finish you expect.
• Details of who supplies what. Make clear whether you are supplying items such as the kitchen, sanitaryware, tiles or flooring, or whether the builder should include them.
• Access and site information. Note parking restrictions, skip permit needs, where materials can be stored and any limits on working hours.
• Your programme expectations. When you hope to start and any dates that matter to you.

Ask every builder to break their quote down into stages or elements rather than giving a single lump sum. A breakdown lets you compare like for like and spot where one builder has allowed more for, say, groundworks or electrics. It also makes stage payments easier to agree and gives you a clear reference point if a variation arises later.

Be wary of a quote that comes back dramatically cheaper than the others. It usually means the builder has either missed something in the drawings or intends to recover the difference through variations once work starts. A quote that matches the drawings closely and questions any gaps is a sign of a professional who has actually read the pack.

How Drawings Help You Get Accurate Quotes

One of the strongest reasons to invest in good drawings is pricing accuracy. When several builders quote from the same detailed set, you get comparable figures. Vague plans produce wildly different quotes, because each builder makes different assumptions about specification.

Detailed drawings also reduce the scope for variations. A variation is any change to the agreed work, and variations are where budgets quietly balloon. If the drawings answer the questions in advance, the builder has fewer reasons to charge extra mid build.

In my experience, a homeowner who spends 3,000 pounds on thorough drawings often saves far more than that in avoided disputes and change orders on a 60,000 pound build.

What Standards and Bodies to Be Aware Of

Several organisations and standards touch on extension work, and your drawings should reflect them.

Electrical work must comply with Part P and be carried out or certified by a registered electrician, ideally NICEIC or NAPIT registered. Any gas work must be completed by a Gas Safe registered engineer. Structural elements follow the relevant British Standards and Eurocodes, which your engineer will apply.

If you use a builder offering a structural warranty, the NHBC or a similar warranty provider may have their own technical standards that the drawings must satisfy. On larger projects, the Health and Safety Executive expects compliance with the Construction Design and Management Regulations 2015, which place duties on clients as well as contractors.

Frequently Asked Questions
