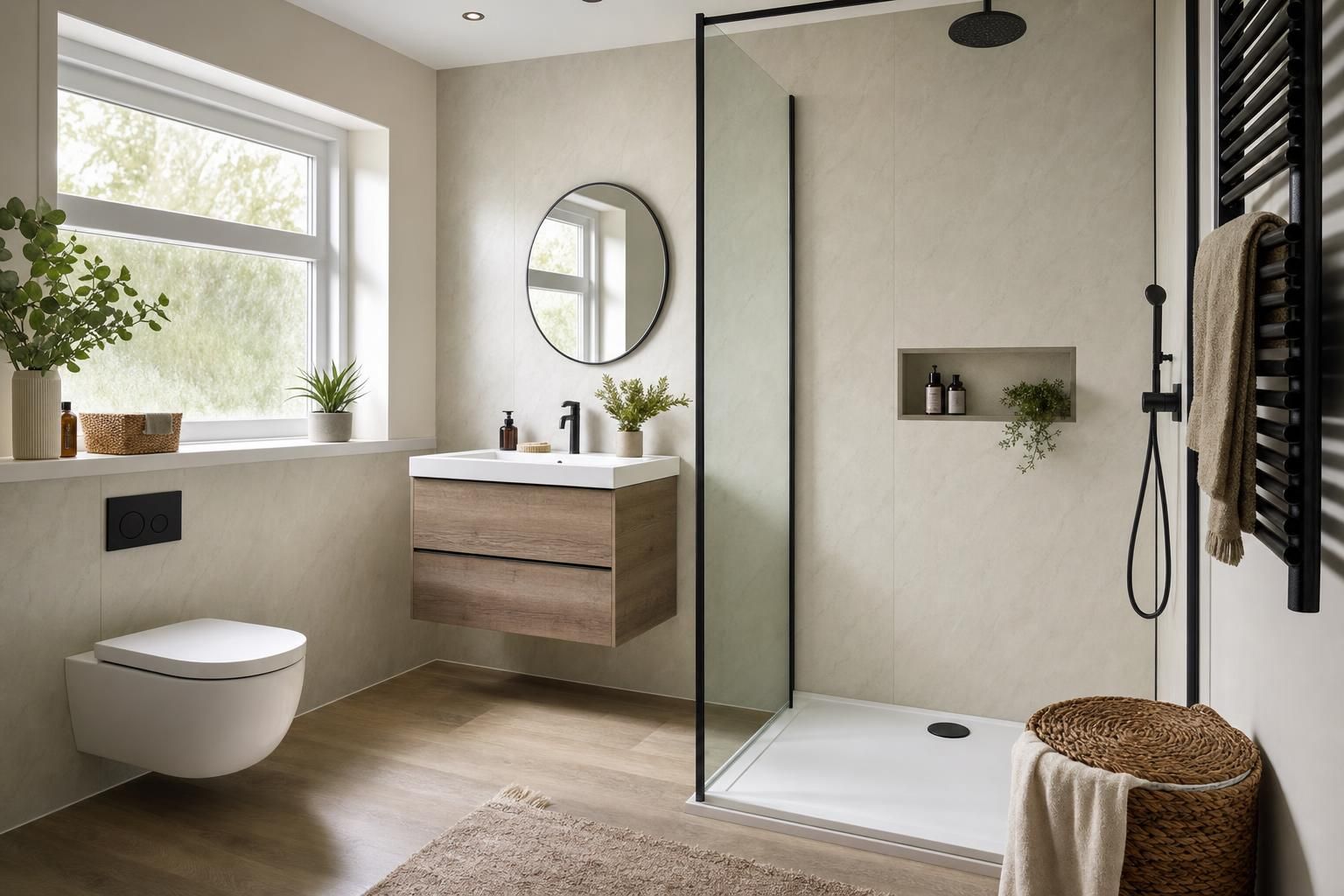

How to Fit Bathroom Wall Panels in a UK Home Measure Cut and Seal for a Waterproof Finish
If you want to avoid spending thousands fixing water damage or redoing a failed bathroom installation, learning how to fit bathroom wall panels properly from the start can save serious time and money. Done well, a full installation can be completed in a weekend with professional level results. Done badly, it can fail within a year. The difference comes down to preparation, accurate fitting, and careful sealing.
Fitting bathroom wall panels correctly is one of the most effective ways to achieve a clean, waterproof and low maintenance finish in a UK home. Whether you are refurbishing a tired bathroom or replacing tiles in a shower enclosure, knowing how to measure, cut and seal panels properly makes the difference between a professional result and one that fails within months.
Wall panels have become a popular alternative to tiles because they are quicker to install, reduce grout lines, and offer strong resistance to moisture. However, they are only as good as the preparation and sealing behind them. Poor technique leads to water ingress, mould, and expensive remedial work.
This guide draws directly from on site experience. It explains how to fit panels step by step, highlights realistic UK costs, and points out the common problems that catch people out. It also refers to relevant standards and best practice used by tradespeople every day.
Why Choose Bathroom Wall Panels Over Tiles
The main appeal is speed and simplicity. A small bathroom can often be panelled in one to two days, whereas tiling may take three to five days including drying time. Panels also eliminate grout maintenance, which is one of the biggest long term complaints with tiled bathrooms.
In the UK market, you will typically find:
- PVC panels, lightweight and budget friendly
- Acrylic panels, glossy finish with higher durability
- Composite panels, including MDF core with waterproof laminate
Material costs vary significantly. Expect supply only prices of around £20 to £60 per square metre for PVC, £60 to £120 for mid range composite boards, and £120 to £250 per square metre for premium acrylic systems.
Panels are particularly effective in shower enclosures, but they still require proper waterproofing in wet zones. If you are unsure about substrate protection, refer to Tanking for UK Bathrooms Explained Wet Zones Waterproofing Systems and Common Failure Points.
| Feature | Wall Panels | Tiles |
|---|---|---|
| Average cost | £600 to £2,000+ | £800 to £3,000+ |
| Installation time | 1 to 3 days | 3 to 5 days |
| Maintenance | Low, no grout | High, grout cleaning needed |
| Lifespan | 10 to 20 years | 20 plus years if maintained |
| Waterproof reliability | High if sealed correctly | Dependent on grout and substrate |
Tools and Materials You Will Need
Professionals rely on consistency, not guesswork. The right tools make the job quicker and reduce installation errors.
- Tape measure and spirit level
- Fine tooth saw or circular saw with fine blade
- Jigsaw for cut outs
- Silicone gun
- High grab adhesive suitable for wet areas
- Bathroom grade silicone, typically mould resistant
- Trims, internal corners, end caps and joining profiles
- Masking tape and cleaning cloths
Do not economise on adhesive or silicone. Cheap products are one of the most common points of failure.
Always follow HSE guidance for safe use of cutting tools and power tools. See HSE power tool safety guidance.
Preparing the Walls Before You Fit Panels
Assessing Substrate Types
Preparation determines longevity. Panels can go onto tiles, plasterboard or masonry, but the surface must be sound, dry and flat.
Tiles must be firmly bonded with no hollow spots. Plasterboard must not be soft or water damaged. Masonry walls should be sealed and dust free. Adhesive will only bond properly to a stable surface.
Dealing with Uneven Walls
Check walls with a straight edge or long spirit level. Variations beyond 3 to 5 mm will cause panels to rock or leave voids behind them.
Common solutions include:
- Bonding coat or patch plaster for minor dips
- Overboarding with tile backer boards
- Battening severely uneven walls
A typical shortcut seen on site is using extra adhesive to fill gaps. This often leads to panels flexing and joints opening within a year.
Moisture Protection خطوات
In wet zones, always treat the wall behind as if water will get through. Because eventually it will.
If you are going onto bare plasterboard in a shower area, consider upgrading to a moisture resistant board or a tile backer board. These boards handle moisture far better and reduce the risk of substrate deterioration. For a deeper explanation, see Choosing the Right Tile Backer Board for Bathrooms and Wet Rooms Explained.
Professional installers often apply tanking systems across shower areas, corners, and joints. This follows NHBC guidance and significantly reduces long term risk.
How to Measure Bathroom Wall Panels Accurately
How to Fit Bathroom Wall Panels with Accurate Measuring and Layout
Accurate measuring prevents waste and awkward joints. Panels are usually supplied in fixed widths, commonly 250 mm, 600 mm or 1000 mm depending on the system.
Measure each wall separately. Do not assume opposite walls are identical. Older UK properties rarely have perfectly square rooms.
Key points:
- Measure height in at least three places, use the shortest dimension
- Allow 2 to 3 mm expansion gap at edges
- Account for trims and corner profiles in your measurements
- Plan joint positions to avoid thin slivers at the end of a run
A common real world mistake is measuring only floor to ceiling in one spot. Ceilings are rarely level. This leads to panels that do not fit and require trimming on site.
Cutting Bathroom Wall Panels Cleanly
Cutting technique depends on the panel type. PVC panels are forgiving, while acrylic and composite boards require more care.
Use a fine tooth blade to prevent chipping. Always cut face up for circular saws and face down for jigsaws, depending on blade direction.
Support the full length of the panel when cutting. Unsupported panels will flex, which leads to inaccurate cuts.
For pipework and fittings:
- Mark centres carefully
- Drill pilot holes
- Use a hole saw or jigsaw
Avoid oversizing holes. Tight cuts reduce the risk of water tracking behind the panel.
Fixing Wall Panels to the Wall
Adhesive Application Methods
Most bathroom wall panels are fixed with adhesive rather than mechanical fixings. This provides an even bond and avoids penetrations that could allow water through.
Apply adhesive in vertical beads or a zigzag pattern. Spacing should be consistent, typically every 100 to 150 mm. Do not apply adhesive too close to the panel edges, as it will squeeze out and interfere with sealing.
Press the panel firmly onto the wall and work from one side to the other to remove trapped air. Use a level immediately.
Professionals often temporarily brace panels using props or wedges, especially on ceilings or large sheets.
Working Around Fixtures
Cutting around taps, shower valves, and sockets requires precision. In bathrooms, electrical work falls under Part P of Building Regulations. Any alteration near electrical fittings should comply with regulations and, where required, be carried out by a qualified electrician registered with NICEIC.
Always isolate power before cutting near sockets. Mark accurately and test fit before final fixing.
Trims should be installed in sequence. Internal corners first, followed by panels, then end caps or finishing trims.
Sealing for a Waterproof Finish
Where to Apply Silicone
Sealing is where many installations fail. Even well fitted panels will leak if poorly sealed.
Apply sanitary grade silicone to all edges, corners, and joints. This includes:
- Bottom edges where panels meet trays or baths
- Vertical internal corners
- Around cut outs and fittings
- Inside trims before inserting panels where required
Use masking tape for clean lines. Smooth the silicone with a profiling tool or wetted finger.
Common Sealing Mistakes
Common failures seen after one to two years include:
- Applying silicone to dirty or wet surfaces
- Using too much silicone which traps moisture
- Failing to seal behind trims before fixing panels
- Not allowing proper cure time before using the shower
For a detailed walkthrough on achieving watertight joints, see How to Seal a Shower and Bath Properly with Silicone for a Watertight Finish in UK Bathrooms.
Step by Step Installation Checklist
- Inspect and prepare walls, ensure surfaces are dry, flat, and stable
- Upgrade substrate if required using tile backer boards
- Apply tanking system in wet zones
- Measure each wall and plan panel layout
- Cut panels to size including openings for fixtures
- Dry fit panels and trims
- Apply adhesive evenly across panel backs
- Fix panels starting from a corner and check levels
- Install trims and joint profiles as you go
- Apply silicone to all joints, edges, and penetrations
- Allow sealant to cure fully before exposing to water
Typical Costs for Bathroom Wall Panel Installation in the UK
Costs vary based on panel type, room size, and labour rates. Below is a realistic breakdown for a standard UK bathroom.
| Item | Typical Cost Range |
|---|---|
| Wall panels supply | £200 to £1,200 |
| Adhesives and trims | £50 to £200 |
| Labour | £200 to £400 per day |
| Total project cost | £600 to £2,000+ |
| Category | London | Rest of UK |
|---|---|---|
| Labour per day | £300 to £450 | £180 to £300 |
| PVC panels | £20 to £60 per m² | £20 to £50 per m² |
| Acrylic panels | £120 to £250 per m² | £100 to £220 per m² |
| Tile removal | £150 to £400 | £100 to £300 |
| Waste disposal | £80 to £200 | £60 to £150 |
| Preparation work | £100 to £500 | £80 to £400 |
Best Types of Bathroom Wall Panels for Different Applications
Choosing the right panel matters just as much as installation.
- Shower enclosures, use acrylic or high pressure laminate composite boards for maximum water resistance
- Full bathrooms, composite panels offer a balance of durability and cost
- Cloakrooms, PVC panels are often sufficient due to lower moisture exposure
Professionals avoid using thin PVC panels in high pressure shower areas. They can flex and lead to seal failure.
Ventilation and Moisture Control
Even perfectly fitted panels will struggle if the room suffers from poor ventilation. Moisture build up leads to condensation behind panels, especially on external walls.
UK Building Regulations Part F covers ventilation requirements. You can review the official guidance here: Approved Document F Ventilation.
Extractor fans should achieve at least 15 litres per second for bathrooms. Larger rooms or those without windows may need more powerful units.
Best practice includes:
- Using rigid ducting instead of flexible where possible
- Keeping duct runs short and direct
- Installing backdraft shutters to prevent cold air ingress
Solid wall properties in the UK are particularly prone to condensation buildup. Without proper airflow, moisture can sit behind panels and cause hidden mould.
For a detailed explanation, see Ventilation in UK Bathrooms and Kitchens Explained Extractor Fan Sizing Ducting Rules and Condensation Control.
What Can Go Wrong
Bathroom wall panels are marketed as simple, but mistakes are common and often expensive to fix.
- Incorrect measuring leading to gaps and poor joints, repair costs £150 to £500
- Inadequate sealing at trays and corners causing leaks, repair costs £300 to £1,500
- Fixing onto uneven or damp walls leading to panel movement, repair costs £400 to £2,000
- Using low quality adhesive or silicone resulting in detachment, repair costs £200 to £800
- Ignoring expansion gaps causing panels to buckle, repair costs £150 to £600
The most serious failures involve water ingress behind shower panels. This often goes unnoticed until floors become soft or mould appears. At that stage, full strip out is usually required.
Professionals avoid callbacks by over preparing surfaces, using proven materials, and never rushing sealing stages.
Maintenance and Aftercare
To keep panels performing well:
- Inspect silicone joints annually and reseal every 3 to 5 years
- Avoid abrasive cleaners which scratch surfaces
- Use non solvent cleaners suitable for plastics and laminates
- Keep ventilation running after showers to reduce condensation
Most failures are not due to panels themselves, but neglected seals.
Professional Tips from the Trade
Experienced installers follow a few consistent principles.
- Dry fit panels before applying adhesive
- Start from a visible corner and work outwards
- Use one manufacturer system where possible to avoid compatibility issues
- Keep silicone joints neat and minimal, not thick and messy
- Always check walls for plumb before starting
Attention to detail separates a job that lasts five years from one that lasts fifteen.
FAQ
Can I install bathroom wall panels over tiles?
Yes, provided the tiles are firmly bonded and the surface is level. Clean and degrease thoroughly before applying adhesive. Any loose tiles should be removed and the surface made good. Large grout lines may telegraph through thinner panels, so thicker composite boards are usually better in this situation. Professionals will often skim over heavily textured tiles before installing.
Do I need to tank behind bathroom wall panels?
In high risk wet areas such as showers, tanking is strongly recommended. Panels are water resistant, but joints are vulnerable. A tanked substrate provides a secondary layer of protection and aligns with best practice in UK construction. It is especially valuable in timber frame properties where moisture damage can spread quickly.
How long do bathroom wall panels last?
Quality installations typically last 10 to 20 years. Longevity depends on material choice, correct installation, and ongoing maintenance such as resealing joints when required. Acrylic systems tend to last longer than budget PVC due to higher rigidity and impact resistance.
Are bathroom wall panels cheaper than tiles?
They can be. While some premium panels are more expensive than budget tiles, overall installation costs are often lower due to reduced labour time and fewer materials like adhesive and grout. For landlords and quick refurbishments, panels are often the more economical option.
Can I fit wall panels myself or should I hire a professional?
Confident DIYers can handle simple installations. However, awkward layouts, plumbing penetrations, and wet room environments are better left to experienced tradespeople. Errors in these areas often lead to water damage that far outweighs the cost of professional labour. If electrical adjustments are needed, ensure compliance with Part P and use a NICEIC registered electrician.
Final Thoughts
Bathroom wall panels offer a practical and attractive alternative to tiles, but success comes down to careful measuring, precise cutting, and meticulous sealing. Cutting corners leads directly to leaks and long term damage. Treat preparation and waterproofing as seriously as the visible finish.
If you want a reliable result without the stress, use experienced tradespeople who install panel systems regularly. You can post a job on BookaBuilderUK to receive free quotes from vetted local professionals.
