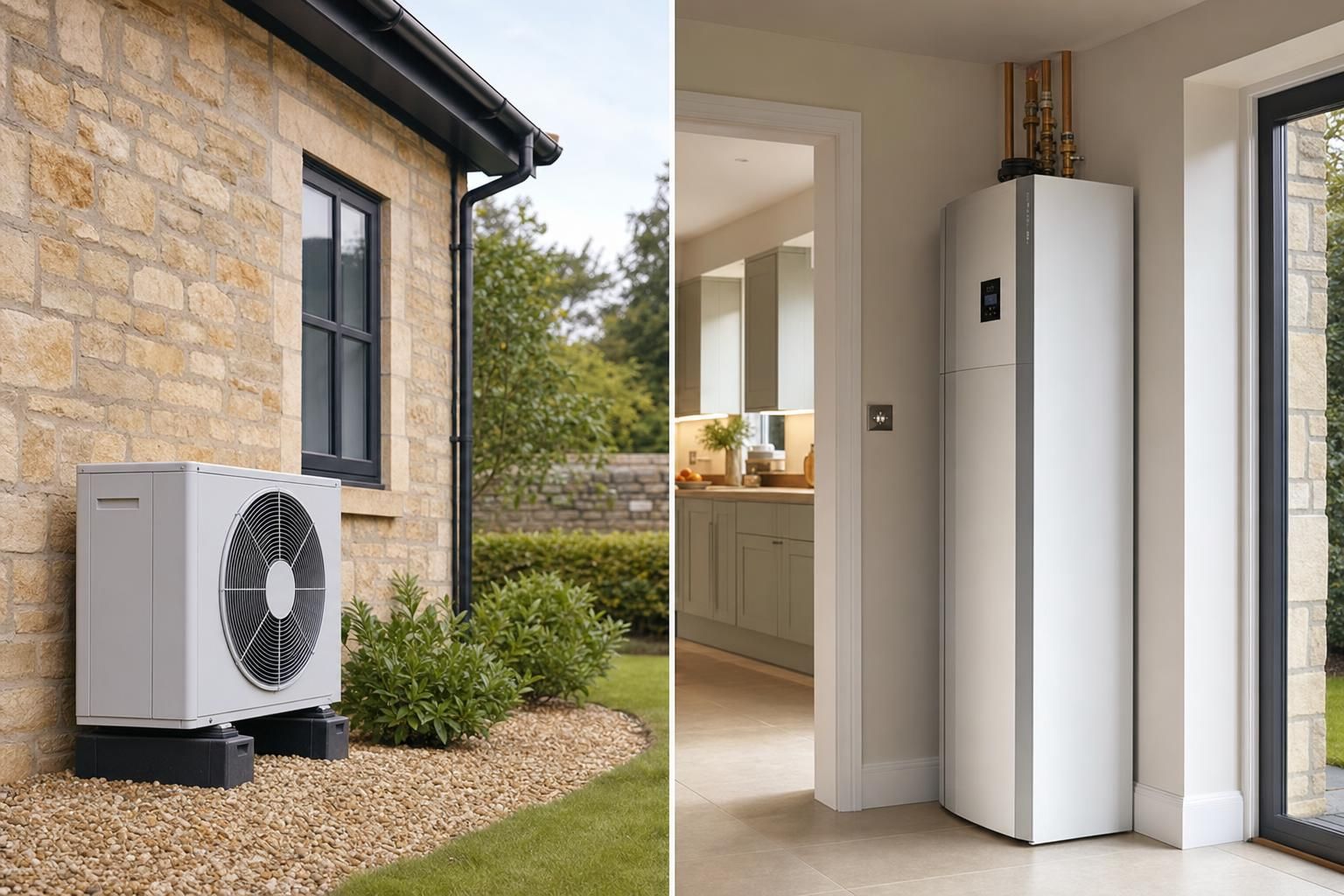

GSHP vs ASHP Explained for Homeowners Efficiency Running Costs and Best Use Cases
GSHP vs ASHP is one of the most common comparisons UK homeowners face when considering low carbon heating. In practical terms, most UK homes end up choosing air source because the upfront cost is often £10,000 to £20,000 lower, while the payback on ground source can take 15 to 25 years unless the property is large and well insulated. Both systems fall under the heat pump category, but they differ significantly in installation method, efficiency, upfront cost and suitability for different property types. Making the right choice is not just about technology. It depends on your home, your land, your budget and how you actually use heating day to day.
This guide sets out the real world differences between ground source and air source heat pumps based on practical installation experience across UK homes. You will find clear advice on costs, efficiency, disruption, and the kinds of properties each system suits best.
What is a Heat Pump and How Do They Work
A heat pump works by extracting low grade heat from the environment and upgrading it to a usable temperature for your home. Instead of generating heat like a boiler, it moves it. That is why heat pumps can achieve efficiencies well above 100 percent when measured as Coefficient of Performance, or COP.
In the UK, most installations use electricity to run the compressor and circulation pumps. This means the running cost depends heavily on electricity tariffs and system design efficiency.
If you are completely new to heating systems, it is worth reading Choosing the Right Heating System for Your Home for a broader overview before comparing technologies.
What is an Air Source Heat Pump
An air source heat pump takes heat from the outside air, even in cold weather, and transfers it into your heating system. The unit sits outside, similar in appearance to an air conditioning condenser.
There are two main types in UK homes. Air to water systems feed radiators or underfloor heating. Air to air systems provide warm air directly, but are less common in whole house applications.
Typical installation involves mounting the outdoor unit on a solid base, running pipework through the wall, and installing a cylinder inside for hot water storage.
Most ASHP installations take between two and five days depending on the complexity of pipework upgrades and emitter changes.
What is a Ground Source Heat Pump
A ground source heat pump extracts heat from the ground through buried pipe loops. The ground maintains a more stable temperature than air, which leads to higher efficiency.
There are two main loop types. Horizontal loops require trenches across a garden. Vertical boreholes are drilled deep into the ground, typically between 50 and 150 metres.
GSHP systems are more intrusive to install and require specialist drilling or excavation equipment. Installation can take one to three weeks depending on ground conditions and access.
GSHP vs ASHP Efficiency Comparison
Efficiency is where ground source systems have a clear technical advantage. Because the ground temperature is more stable, GSHP systems tend to operate at higher COP values throughout the year.
Air source systems are affected by external air temperature. Their efficiency drops during colder spells, though modern systems still perform well in typical UK winters.
| Factor | Air Source Heat Pump | Ground Source Heat Pump |
|---|---|---|
| Typical COP | 2.5 to 4 | 3.5 to 5 |
| Seasonal efficiency stability | Moderate variation with temperature | Very stable |
| Winter performance | Reduced efficiency in freezing conditions | Consistent performance |
| Best emitter pairing | Underfloor heating or large radiators | Underfloor heating ideal |
In practice, system design often matters more than headline efficiency. Poorly sized emitters or incorrect flow temperatures can reduce performance significantly, regardless of the heat source.
If you are considering low temperature systems, see Complete Guide to Underfloor Heating for how it integrates with heat pumps.
Installation Costs in the UK
Upfront cost is one of the biggest differences between GSHP and ASHP systems. Many homeowners initially consider ground source for efficiency, but shift towards air source because of installation budget and disruption. Costs also vary depending on whether you are retrofitting into an existing home or installing as part of a new build.
| Cost Element | Air Source Heat Pump | Ground Source Heat Pump |
|---|---|---|
| Heat pump unit and materials | £4,000 to £8,000 | £8,000 to £15,000 |
| Labour and installation | £2,000 to £5,000 | £4,000 to £10,000 |
| Groundworks or drilling | Minimal or none | £5,000 to £30,000 depending on loops or boreholes |
| Hot water cylinder and controls | £1,000 to £2,500 | £1,000 to £3,000 |
| Radiator or emitter upgrades | £2,000 to £5,000 | £2,000 to £5,000 |
| Electrical upgrades | £500 to £2,000 | £500 to £2,000 |
| Optional extras such as buffer tanks | £500 to £1,500 | £500 to £2,000 |
For a typical three bedroom home:
- Total ASHP project cost, £10,000 to £18,000
- Total GSHP project cost, £20,000 to £40,000 or more
Costs increase sharply for difficult access, listed buildings, or properties requiring major heating system redesign. For example, borehole drilling in hard rock or restricted access sites can push GSHP costs well beyond £40,000.
For a detailed breakdown including grant support, see How Much Does It Cost to Install a Heat Pump in the UK in 2026? Air Source vs Ground Source Prices, Grants and Running Costs.
Running Costs and Real World Performance
Running costs depend on system efficiency, insulation levels, and electricity pricing. In general:
- ASHP annual running costs, £800 to £1,500 for typical homes
- GSHP annual running costs, £700 to £1,300
However, real world performance varies significantly depending on the property.
Impact of Insulation and EPC Rating
- EPC A to B homes, very efficient. Running costs can fall below £700 per year with either system
- EPC C homes, typical UK average. Expect mid range costs around £900 to £1,300
- EPC D or lower, poor insulation. Costs can exceed £1,500 and systems may struggle to maintain comfort
A poorly insulated Victorian terrace with solid walls may require higher flow temperatures, which reduces efficiency and increases electricity use.
Electricity Tariffs and Usage Patterns
Electricity price makes a major difference. On a standard tariff at around 27 to 32 pence per kWh, running costs are higher than homes on time of use tariffs.
- Standard tariff users pay the highest running costs
- Time of use tariffs such as Octopus Agile can reduce costs if the system is set up to run during cheaper periods
- Homes with solar panels can offset daytime usage, improving overall value
Storage and buffer tanks can help shift heat generation to cheaper periods, but this needs to be designed in from the start.
Well Insulated vs Poorly Insulated Example
A modern three bedroom home with EPC B using an ASHP may spend around £900 per year on heating and hot water. The same system in a draughty EPC D property could exceed £1,600 and still feel less comfortable.
Lifetime Cost Comparison
| System | Upfront Cost | 20 Year Running Cost | Total Lifetime Cost |
|---|---|---|---|
| Air Source Heat Pump | £12,000 | £20,000 to £30,000 | £32,000 to £42,000 |
| Ground Source Heat Pump | £30,000 | £18,000 to £26,000 | £48,000 to £56,000 |
These figures highlight why GSHP often has a longer payback period despite lower running costs.
The Boiler Upgrade Scheme currently offers grants of up to £7,500 for both ASHP and GSHP installations. Details can be found via the UK government at https://www.gov.uk/guidance/check-if-you-may-be-eligible-for-the-boiler-upgrade-scheme-from-april-2022.
Space and Property Requirements
This is often the deciding factor.
Air Source Heat Pump Requirements
- External space for a unit roughly the size of a large suitcase
- Clear airflow around the unit
- Reasonable proximity to the house for pipework runs
ASHP systems suit most suburban and urban homes, including terraces and semis, provided there is outside access.
Ground Source Heat Pump Requirements
- Large garden for horizontal loops, typically 1.5 to 3 times the floor area of the home
- Or suitable access for drilling rigs for boreholes
- Clear underground space free from services and obstructions
GSHP systems are usually more viable in rural or larger plot properties.
Planning Permission and Regulations
Most air source heat pump installations fall under permitted development in England, provided they meet noise and location limits. Requirements are set out in planning guidance from the government, available at https://www.planningportal.co.uk/permission/common-projects/heat-pumps/planning-permission.
Key constraints include:
- Unit must be at least one metre from the property boundary
- Noise limits must meet MCS standards
- Only one unit permitted under allowed development
For Building Regulations:
- Part L covers energy efficiency and requires systems to meet minimum performance standards
- Part P covers electrical safety, requiring qualified installers such as those registered with NICEIC, see https://www.niceic.com
MCS certification is required for grant eligibility and ensures the system has been designed and installed to recognised standards. Without this, you cannot access government funding.
Ground source systems involving drilling must follow health and safety guidance from the HSE, especially regarding borehole stability and underground hazards. See https://www.hse.gov.uk for relevant guidance.
Listed buildings and conservation areas often require planning permission for both ASHP and GSHP installations. External units, visible alterations, or significant ground disturbance may be restricted.
Compatibility with Existing Heating Systems
Heat pumps typically operate at lower flow temperatures than traditional boilers. This means your existing heating system may need upgrades.
Typical flow temperatures:
- Heat pumps, 35 to 55 degrees Celsius
- Gas boilers, 70 degrees Celsius or higher
This lower temperature means radiators must be larger to deliver the same heat output.
For example, a standard single panel radiator that works with a boiler may need to be replaced with a double panel convector radiator or increased in size by 30 to 50 percent for heat pump use.
In some homes, particularly older properties, a full system redesign is required. This can include new pipework, upgraded pumps, zoning controls, and underfloor heating installation.
Homes with microbore pipework may struggle with flow rates and may require partial repiping.
If you need upgrades, you may also need qualified trades such as a local electrician to handle control systems and electrical connections safely.
If you are comparing against traditional boilers, see Boiler Types Explained Combi System and Conventional Options for Homeowners for context.
Maintenance Requirements and Servicing Costs
Heat pumps are generally low maintenance compared to boilers, but they still require regular servicing.
- Annual service cost, £150 to £300 for both ASHP and GSHP
- Filter cleaning and system checks are required to maintain efficiency
- Ground loops in GSHP systems typically last over 50 years with minimal intervention
Air source systems may require occasional fan or coil cleaning, particularly in areas with debris or coastal salt exposure.
Installation Timeline and Disruption
Air source systems are relatively quick to install and cause limited disruption. Most work is external with some internal upgrades such as cylinder installation and radiator changes.
A typical ASHP installation:
- Day 1, base preparation and unit placement
- Day 2 to 3, pipework and cylinder installation
- Day 4 to 5, commissioning and testing
Ground source systems involve significant groundwork.
Horizontal loop installation can mean digging large trenches across a garden, often leaving the ground unusable for several weeks until reinstatement is complete. Borehole drilling requires heavy machinery, access routes, and can create noise and vibration during the drilling phase.
In tight access properties, drilling rigs may not fit, making GSHP impractical.
Homes with finished landscaping, patios, or outbuildings often face higher reinstatement costs after GSHP installation.
Quick Decision Table GSHP vs ASHP
| Factor | ASHP | GSHP |
|---|---|---|
| Upfront cost | Lower | High |
| Space required | Low | High |
| Efficiency | Good | Very high |
| Disruption | Low | High |
| Best for | Most UK homes | Large or rural properties |
Real World Example ASHP vs GSHP Installation
A three bedroom semi detached house in the Midlands installs an ASHP.
Costs total £13,500 after radiator upgrades and a new cylinder. Installation takes four days with minimal garden disruption. Running costs settle at around £1,000 per year. Comfort improves, but some radiators are larger than before.
A rural detached property with land installs a GSHP using horizontal loops.
Total cost reaches £32,000. Installation takes three weeks including groundwork and reinstatement. Running costs fall to around £900 per year due to higher efficiency. The system performs very consistently, especially in winter.
In this comparison, the GSHP saves around £100 per year but required significantly higher upfront investment and disruption.
Best Use Cases for Air Source Heat Pumps
Air source systems are often the most practical choice in the UK market.
- Urban and suburban homes with limited outdoor space
- Retrofit projects where major groundwork is not viable
- Homes upgrading from gas or oil boilers
- Properties with moderate insulation levels
They offer a good balance between cost, disruption and efficiency.
Best Use Cases for Ground Source Heat Pumps
Ground source systems make sense in more specific scenarios.
- New build properties where groundwork is already planned
- Large rural homes with sufficient land
- Homes aiming for very low long term running costs
- Projects where higher upfront investment is acceptable
They are particularly effective in well insulated homes with underfloor heating throughout.
Common Mistakes to Avoid
Heat pump issues are usually caused by poor design rather than the technology itself.
- Undersized radiators. This forces the system to run at higher temperatures, reducing COP and increasing electricity bills significantly
- Skipping insulation upgrades. Heat escapes faster than the system can replace it, leading to constant running and high costs
- Incorrect system sizing. Oversized systems cycle on and off, causing wear and inefficiency. Undersized systems struggle to heat the home
- Poor installation quality. Incorrect pipe sizing or bad commissioning leads to performance issues and possible system faults
- Ignoring noise placement. Air source units installed too close to neighbours can lead to complaints or planning issues
- Running too high flow temperatures. This is a common mistake that cancels out efficiency gains
Another common mistake is assuming switching to a heat pump will always reduce bills. Without proper system design and insulation, running costs can increase compared to gas.
Practical Checklist Before Choosing GSHP or ASHP
- Check insulation levels including loft and cavity walls
- Assess available outdoor space
- Review current radiator sizes and pipework
- Confirm eligibility for grants
- Get a detailed heat loss calculation from a qualified installer
- Verify installer accreditation such as MCS and NICEIC
This groundwork helps avoid expensive redesign later.
FAQs
Is a ground source heat pump worth the extra cost?
For most standard homes, the higher upfront cost is difficult to justify purely on savings. The efficiency gains are real, but the payback period can stretch beyond 15 to 25 years. It becomes more attractive in new builds or properties with very high heating demand and available land.
Do heat pumps work in cold UK winters?
Yes, both ASHP and GSHP systems are designed for UK conditions. Air source units lose some efficiency in freezing temperatures, but modern systems still operate effectively. Ground source systems maintain more stable performance throughout winter.
Will I need to replace all my radiators?
Not always, but many homes require upgrades. Heat pumps run at lower temperatures, so radiators need more surface area. A proper heat loss survey will confirm what changes are needed.
How noisy are air source heat pumps?
Modern units are relatively quiet, typically between 40 and 60 decibels at close range. Poor placement near windows or boundaries can still cause issues. Installers must meet MCS noise calculations to comply with planning rules.
Can I install a heat pump in an old property?
Yes, but insulation becomes critical. Older properties often need significant upgrades to perform well with heat pumps. Without this, efficiency and comfort can suffer.
Final Thoughts
Choosing between GSHP and ASHP comes down to a few key factors. Space availability, upfront budget, insulation level and tolerance for disruption all play a role. Air source systems suit the majority of UK homes because they are more affordable and easier to install. Ground source systems offer excellent performance, but only where the property and budget support them.
A well designed system, installed by experienced professionals, will always outperform a poorly planned one regardless of type. Take the time to assess your home properly before committing.
