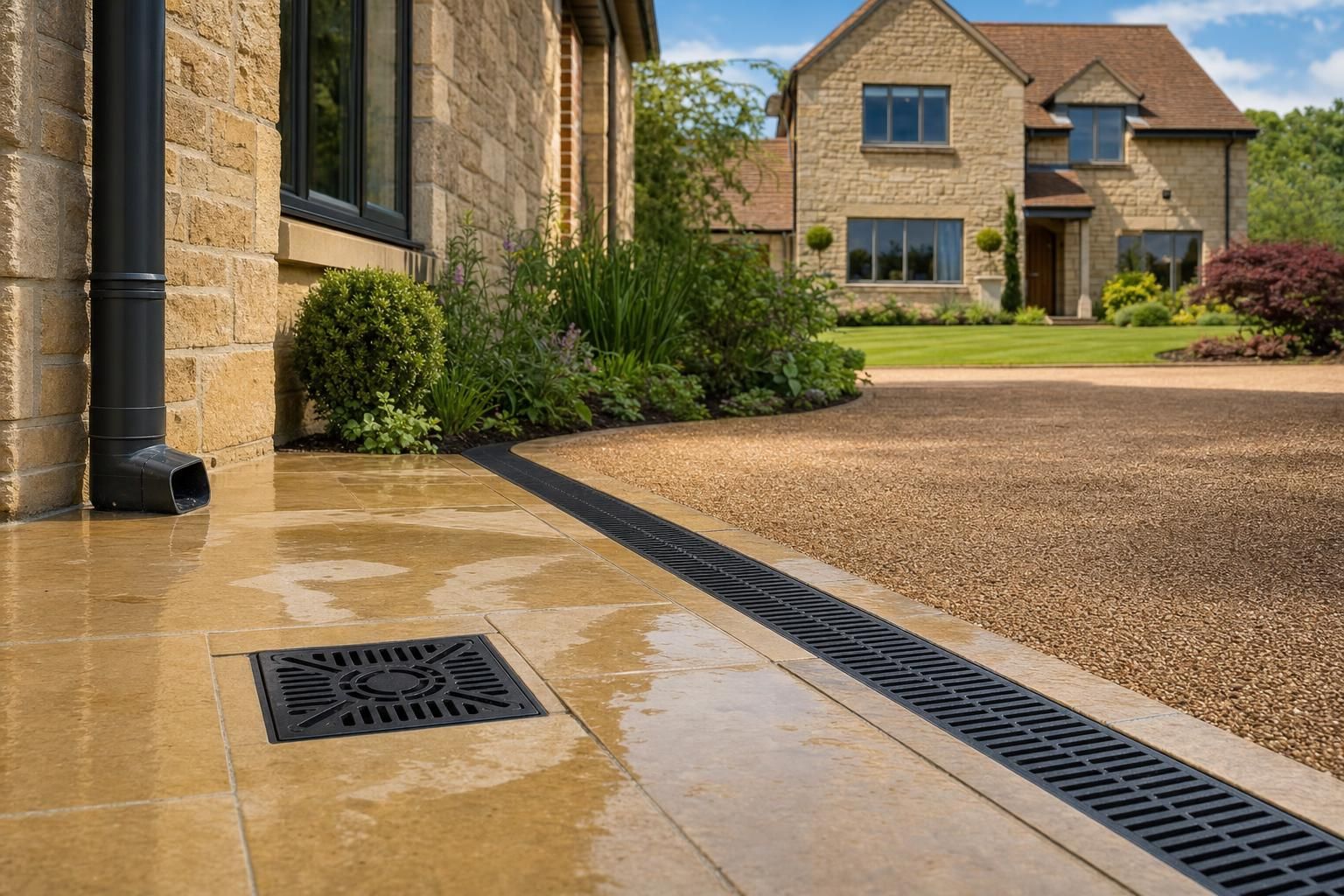

Gully and Drain Channel Systems Explained for Homeowners Common Uses Key Differences and Installation Basics
After a heavy spell of rain, many UK homeowners notice the same problems. Water pooling across a patio that never fully dries, a driveway sending runoff straight towards the garage, or worse, water creeping under doors and into internal spaces. These situations are not rare, especially with more intense rainfall patterns. This is where well designed gully and drain channel systems make a real difference, quietly managing surface water before it causes damage.
Gully and drain channel systems are a core part of surface water drainage around UK homes, yet many homeowners only notice them when something goes wrong. Whether you are planning a patio, driveway, extension, or fixing persistent standing water, understanding how these systems work will save time, money and disruption.
This article explains what gullies and linear drain channels do, where each is best used, how they differ, and how they should be installed to meet UK standards. It also covers realistic costs, common pitfalls, and the regulations that apply.
What Are Gully Systems and How Do They Work
A gully is a point drainage fitting designed to collect water at a specific location and direct it into the underground drainage system. You will usually find them near downpipes, external taps, or at the base of patios and paths.
Most domestic gullies in the UK include a trapped chamber that prevents foul odours from rising back up from the drainage system. This water seal plays a similar role to a trap under a sink. In practice, this is essential if your property is connected to a combined sewer, which is still common in older terraces and semi detached homes.
There are two common types used in homes.
- Back inlet gully, receives water from a pipe such as a downpipe and discharges into a drain below ground.
- Bottle gully, collects surface water through a grid or grate and includes a removable trap for cleaning.
Gullies are usually connected to a surface water drain, not the foul sewer, unless dealing with combined drainage systems, which are still found in older properties. A common real world issue is where historical connections have mixed foul and surface flows. This can cause surcharge during storms, forcing water back up through gullies.
What Are Drain Channel Systems
Drain channels, often called linear drains, are long, narrow systems installed flush with the ground to collect water across a wider area. Instead of collecting water at a single point, they intercept flow along a line.
You commonly see them on driveways, patios, garage thresholds, and along the front of properties where runoff needs to be intercepted before reaching the building.
They consist of a channel body, often made from plastic, polymer concrete or metal, and a removable grate on top. Higher quality systems manufactured to BS EN 1433 standards are load tested and graded for different uses, such as pedestrian areas or driveways carrying vehicles.
In practice, channel systems are often the only reliable solution where large paved areas slope towards a building. Without them, water will always find the lowest point, which is often your threshold.
Choosing Between Gully and Drain Channel Systems
Choosing between gully and drain channel systems depends on how water behaves on your property, not just preference or cost.
| Factor | Gully System | Drain Channel System |
|---|---|---|
| Surface area | Small isolated areas | Large continuous surfaces |
| Water volume | Moderate flows | High or fast moving runoff |
| Property type | Older homes with defined drain points | Modern landscaping and driveways |
| Budget | Lower initial cost | Higher upfront cost |
| Maintenance | Trap cleaning required | Regular grate and channel cleaning |
In many cases, the correct setup is a combination of both. For example, a channel drain across a driveway feeding into a gully, which then connects to a soakaway.
Common Uses Around UK Homes
Both systems are widely used, often together, to manage surface water effectively.
Gullies
- Collecting roof runoff from downpipes
- Drainage at the base of external steps
- Wastewater from outdoor sinks or utility areas
- Overflow discharge points from soakaways
Drain Channels
- Across the front of garages
- Along the edge of patios or decking
- At thresholds of bifold or sliding doors
- Across sloped driveways to intercept runoff
If you are unsure how these systems tie into the wider drainage arrangement, this article explains the bigger picture clearly, Drainage Systems for UK Homes Explained Soil Pipes Gullies Soakaways and Common Faults, including how different components connect and where failures typically occur.
Understanding Where the Water Goes
Neither gullies nor channels work in isolation. They must discharge to a suitable outlet.
In the UK, surface water is typically directed to one of the following.
- Public surface water sewer
- Combined sewer system
- Soakaway within your property boundary
Building Regulations Part H sets out requirements for drainage and waste disposal. The hierarchy favours infiltration into the ground via soakaways where conditions permit. You can review official guidance here, Approved Document H.
Soakaway design is often misunderstood. A typical domestic soakaway might be 1 cubic metre to 2 cubic metres in volume, commonly formed using modular soakaway crates wrapped in geotextile membrane. However, the correct size depends on soil permeability and the area being drained.
Percolation tests are used to measure how quickly water drains into the ground. These are particularly important in clay heavy soils, which are common across parts of the Midlands and South East. Poor results may require a larger soakaway or an alternative discharge route.
Approved Document H recommends soakaways be located at least 5 metres from buildings and boundaries to reduce risks to foundations. Poorly positioned soakaways are a known cause of localised subsidence and damp.
If you are planning new drainage, it is worth understanding soakaways in more detail, What Is a Soakaway and When Does a Home Need One?, including when they are suitable and how they are installed correctly.
Installation Basics Step by Step
Correct installation matters more than the type you choose. Poor falls or weak bedding will cause failure.
For Gully Installation
- Excavate to required depth. Typically 300 to 600 mm depending on pipe invert levels.
- Prepare a concrete bed. Usually 100 mm thick C20 concrete.
- Position the gully and connect inlet and outlet pipes with correct fall, usually 1 in 40 to 1 in 80 for surface water.
- Ensure the trap is accessible for cleaning.
- Haunch around the gully with concrete to secure it.
- Finish with a grate set flush with surrounding ground level.
A straightforward gully install might take half a day. More complex installations involving deep connections or rerouting pipes can take a full day or longer. Clay soils slow progress significantly, as they are harder to excavate and prone to collapse if unsupported.
Common complications include hitting existing concrete, discovering unknown pipework, or needing permission to connect into shared drainage lines. These can easily extend a simple job into a multi day project.
For Drain Channel Installation
- Excavate a trench along the planned run.
- Lay a concrete bed to support the entire length.
- Install channel sections, ensuring consistent fall towards the outlet.
- Connect to a gully, soakaway, or drain outlet.
- Haunch both sides with concrete to prevent movement.
- Fit grates and check alignment with finished surface.
Channel installations typically take one to two days depending on length and ground conditions. Long driveway runs or decorative installations integrated into paving may take longer.
Signs of poor installation often appear within months.
- Standing water along sections of the channel
- Grates rocking or becoming loose
- Cracks forming in surrounding paving
- Water bypassing the system entirely
These issues usually point to poor levels, inadequate concrete support, or incorrect connections.
Typical Costs in the UK
Costs vary depending on ground conditions, access, and whether you are connecting to existing drainage.
Cost Breakdown
| Cost Element | Typical Range |
|---|---|
| Labour | £150 to £300 per day per tradesperson |
| Materials | £30 to £150 per unit or £10 to £150 per metre |
| Equipment and waste removal | £50 to £200 depending on spoil volume |
| Drain connections | £100 to £500 depending on complexity |
| Soakaway installation | £500 to £1,500+ |
Gully Installation Costs
- Materials only, £30 to £120 per gully depending on type
- Installed cost, £150 to £400 per unit in straightforward conditions
- With drainage connections and excavation, £400 to £800
Drain Channel Costs
- Basic plastic channels, £10 to £30 per metre
- Heavy duty or decorative metal grates, £40 to £150 per metre
- Installed cost, £100 to £250 per metre depending on groundworks
Costs in London and the South East are often 20 to 40 percent higher than the UK average due to labour rates and access constraints. Restricted access, such as terraced properties with no side entry, can significantly increase labour time due to manual excavation.
DIY installations can reduce costs by 30 to 50 percent, but mistakes often lead to higher long term expense. Replacing a failed channel system can cost more than installing it properly the first time.
Costs also rise where excavation is deeper, ground is heavily compacted, or existing concrete needs breaking out.
For larger garden drainage schemes that combine channels, gullies, and soakaways, this guide gives current pricing benchmarks, How Much Does It Cost to Install Garden Drainage in 2026? Soakaways, French Drains and Groundworks Explained, including typical project totals and what influences price.
Planning and Building Regulation Considerations
Most drainage work does not require planning permission if it is within your boundary and does not affect listed buildings or conservation areas.
However, there are key rules to follow.
- Surface water from driveways or patios must not discharge onto the public highway
- New impermeable surfaces over 5 square metres must drain to a permeable area or soakaway
- Connections to public sewers may require approval from your water authority
Approved Document H also sets out the drainage hierarchy. First choice is infiltration to ground. Second is discharge to a watercourse. Last option is connection to a sewer.
The Environment Agency may become relevant if your drainage affects groundwater protection zones or nearby watercourses. This is more common in rural or environmentally sensitive areas.
For deeper excavations, especially over 1.2 metres, HSE guidance recommends safe trench support to prevent collapse. This is particularly relevant in unstable or waterlogged soils.
Guidance on paving and drainage is available here, Planning Portal paving guidance, which explains legal requirements and acceptable drainage solutions.
SuDS and Modern Drainage Design
Sustainable Drainage Systems aim to manage rainfall close to where it falls. Gullies and channel drains can form part of a SuDS approach when they direct water into permeable areas, soakaways, or attenuation features.
This approach reduces pressure on public sewers and helps prevent local flooding, which has become a growing issue across many UK towns and cities.
Common Mistakes to Avoid
Drainage failures are rarely about the product. They are usually down to poor installation or design.
- No fall on channels, leads to standing water, algae growth, and slip hazards. Fix by relaying with correct gradient.
- Incorrect connections, can result in fines or enforced changes if surface water enters foul systems. Always verify connections.
- Undersized systems, leads to overflow during heavy rain, potentially causing internal flooding.
- Weak bedding, causes movement and cracking, which can damage surrounding paving and create trip hazards.
- No access for cleaning, results in blockages and long term system failure.
In severe cases, poor drainage contributes to damp ingress and even foundation issues where water consistently saturates soil near the property.
Maintenance and Lifespan
A well installed system should last decades, but only with basic upkeep.
Material choice affects lifespan.
- Plastic channels, 10 to 20 years typical lifespan
- Polymer concrete, 20 to 30 years or more
- Metal grates, varies depending on coating and exposure
Seasonal maintenance is essential.
- Autumn, clear leaves to prevent blockages
- Winter, check for ice build up and cracking
- Spring, flush systems and inspect for silt
- Summer, check for dry traps causing odours
Neglect leads to blockages, odours and overflow, which can damage paving and even foundations over time.
When to Call a Professional
Some situations require more than basic DIY.
- Excavation deeper than 600 mm
- Connections to existing drains or sewers
- Work near building foundations
- Poor draining clay soils requiring soakaway design
- Large driveways or complex layouts
Professional installers understand levels, regulations, and long term performance. This avoids costly rework.
Integrating Drainage into Renovation Projects
Drainage should be planned early in any renovation. Retrofitting is always more disruptive and costly.
Extensions, new patios, and landscaping all change how water moves across your property. Without proper drainage, you can create new problem areas.
This is covered in detail here, How to Plan a Home Renovation Wastewater and Drainage Strategy Before Work Starts, including how to coordinate drainage with builders and avoid common design errors.
FAQ
Do I need a gully or a channel drain for my driveway?
If water flows across the surface towards your house or garage, a channel drain is usually the better choice as it intercepts water along its length. If the issue is localised, such as water from a downpipe, a gully is usually sufficient. In many driveways, both are used together.
Can I install a gully or drain channel myself?
Small projects are possible for competent DIYers, but accuracy is critical. Errors in levels, connections, or bedding often lead to standing water or structural movement. DIY is best limited to simple, shallow installations away from buildings.
Do these systems need planning permission?
Usually no, provided water drains within your property and does not discharge onto the highway or public sewer without approval. Larger changes to levels or listed properties may require consent, and drainage connections may need water authority approval.
How deep should a gully be installed?
This depends on the invert level of the connecting drain. Most domestic gullies sit between 300 mm and 600 mm deep, but deeper installations are possible. Maintaining proper fall is more important than depth alone.
What causes bad smells from a gully?
This is often due to a dried out or blocked trap. Regular cleaning and ensuring the trap contains water will prevent odours. Persistent smells may indicate incorrect connections or ventilation issues.
Can a channel drain connect directly to a soakaway?
Yes, channel drains can discharge directly into a soakaway, provided the system is correctly designed and includes silt traps to prevent debris entering the soakaway. In many cases, a gully is installed between the channel and soakaway to improve maintenance access and capture debris before it reaches the soakaway.
Final Thoughts
Gullies and drain channels are simple in principle, but getting them right requires careful planning, correct installation and a clear understanding of how water behaves on your property.
Well designed gully and drain channel systems will protect your home from flooding, prevent long term structural issues, and reduce maintenance headaches. Poorly installed systems tend to fail quietly at first, then expensively.
