Water Softeners in Homes Explained Hard Water Signs System Types and What to Consider Before Installation
Many UK homeowners only start thinking about water softeners in homes after a costly surprise. A common example is a combi boiler breaking down years earlier than expected due to limescale build-up inside the heat exchanger, often resulting in repair bills of £300 to £600 or full replacements exceeding £2,000. Add repeated kettle replacements, blocked showerheads, and rising heating bills, and the hidden cost of hard water quickly becomes clear. If you have ever dealt with limescale clogging your kettle, patchy dishes or poor shower pressure, you are already seeing the effects of hard water firsthand. This guide sets out what hard water actually is, how to tell if you have it, the different types of water softeners available, and what you need to consider before installing one in a UK property.
What is hard water and why it matters
Hard water contains higher levels of dissolved minerals, primarily calcium and magnesium. These minerals are picked up as rainwater passes through chalk and limestone before entering the mains supply. The harder the water, the more mineral content it carries.
In practical terms, this mineral content leaves deposits behind in your plumbing system and appliances. Over time, this build-up restricts flow, reduces heating efficiency and shortens the lifespan of boilers, washing machines and dishwashers.
In areas classed as very hard, scale can start forming within months. Heating elements in kettles and cylinders are usually the first to show it. In sealed heating systems, scale acts as an insulating layer, meaning boilers must work harder to deliver the same output.
Clear signs your home has hard water
Most homeowners notice the symptoms before they understand the cause. These are the typical indicators:
- Limescale build-up on taps, showerheads and kettles
- White streaks or spotting on glasses and cutlery
- Soap that does not lather properly
- Dry skin or dull hair after bathing
- Reduced water pressure due to internal pipe scaling
- Higher energy bills from inefficient heating systems
If you are unsure, you can check your postcode hardness level using your local water supplier or test using a simple home kit. The Drinking Water Inspectorate provides background on UK water quality standards at https://www.dwi.gov.uk.
How water softeners work
A water softener removes calcium and magnesium ions and replaces them with sodium or potassium. This process is known as ion exchange.
Inside the unit, resin beads carry a charge that attracts the hardness minerals. As water passes through, these minerals are captured and swapped out. Periodically, the system flushes itself with a brine solution to regenerate the resin.
This regeneration cycle is automatic in modern systems and typically runs overnight to avoid disruption. In metered systems, regeneration is triggered based on usage rather than a timer, which improves efficiency and reduces salt and water waste.
Types of water softener systems for water softeners in homes
There are several types of systems available. Not all are suitable for every home, and the right choice depends on water hardness, household size, and budget.
| Type | How it works | Typical UK cost | Best for |
|---|---|---|---|
| Salt based ion exchange | Removes minerals using resin and salt regeneration | £400 to £1,200 plus installation | Whole house softening |
| Salt free conditioners | Alters mineral structure to reduce scaling | £300 to £900 | Scale reduction without full softening |
| Magnetic or electronic | Uses electromagnetic field to affect scale formation | £100 to £400 | Supplementary protection, mixed results |
| Reverse osmosis systems | Filters water at a point of use | £150 to £600 | Drinking water treatment only |
Salt based systems are the most effective option for UK homes. They physically remove hardness minerals, delivering fully softened water across all outlets. These systems typically last 10 to 15 years with proper servicing. They suit medium to large households and areas with moderate to very hard water.
Salt free conditioners reduce scale adhesion rather than removing minerals. They are lower maintenance and do not require salt, but performance in very hard water areas is limited. Lifespan is often 5 to 10 years.
Magnetic systems are easy to install and low cost, but results vary significantly. They are best considered as an add on rather than a primary solution. Lifespan can exceed 10 years due to minimal components.
Reverse osmosis systems are not whole house systems. They are typically installed under a kitchen sink to improve drinking water quality. They require regular filter changes and are best paired with another system.
| System type | Maintenance level | Effectiveness | Typical lifespan | Running costs |
|---|---|---|---|---|
| Salt based ion exchange | Moderate, regular salt top ups | High, removes hardness minerals | 10 to 15 years | £80 to £200 per year |
| Salt free conditioners | Low | Moderate | 5 to 10 years | £30 to £80 per year |
| Magnetic systems | Very low | Low to variable | 10 plus years | Minimal |
| Reverse osmosis | High, filter changes | High for drinking water only | 5 to 10 years | £60 to £150 per year |

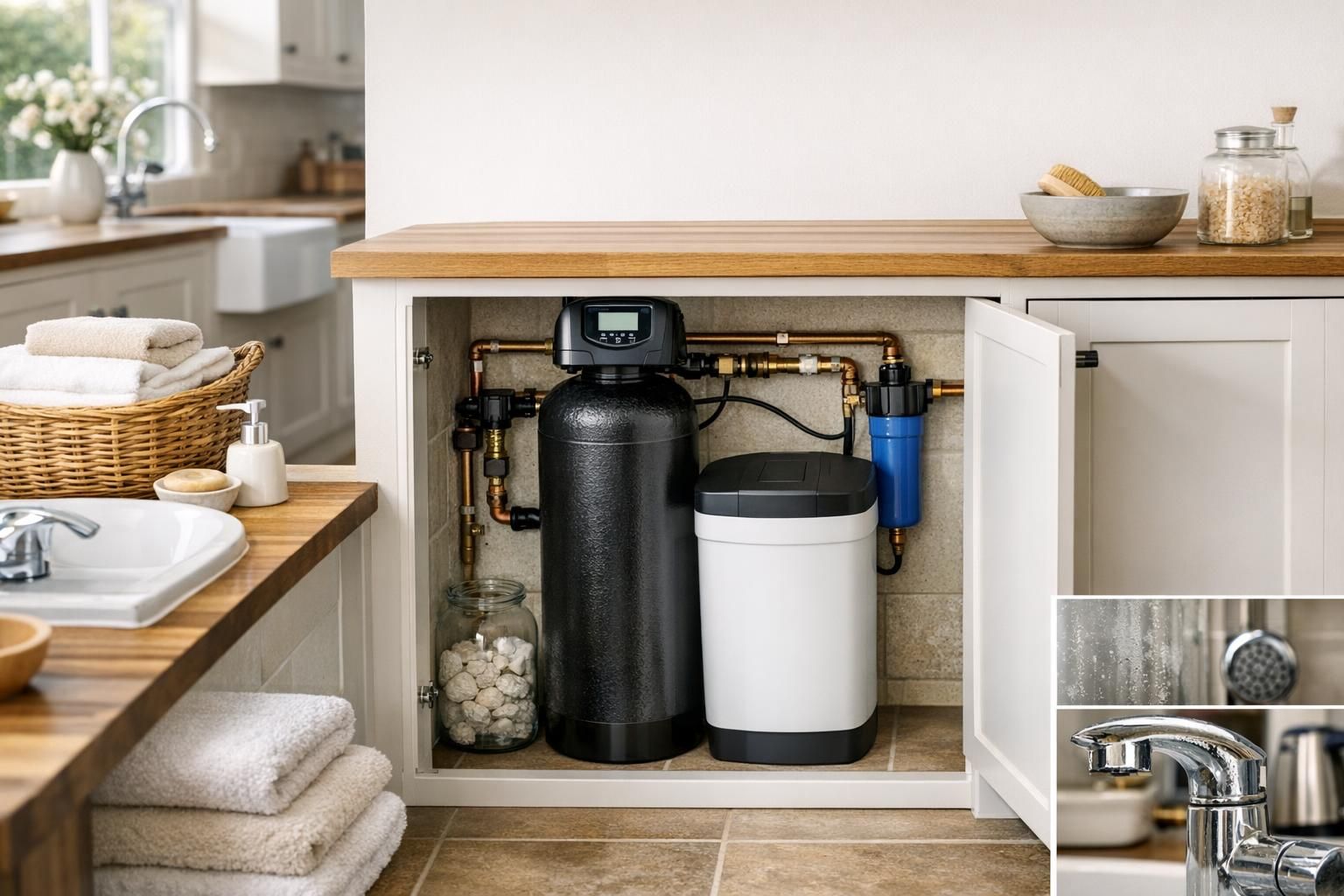

Where water softeners are installed in UK homes
The unit is typically installed where the mains water supply enters the property. Common locations include:
- Under the kitchen sink
- In a utility room
- In a garage or plant cupboard
A bypass valve is always fitted so the supply can be isolated for maintenance. Drinking taps are often left unsoftened to avoid taste issues.
Installation must comply with the Water Supply Regulations and should use WRAS approved components. The Water Regulations Advisory Scheme ensures fittings meet safety standards that prevent contamination of drinking water. More details are available at https://www.wras.co.uk.
Details are also available via https://www.gov.uk/government/publications/water-supply-water-fittings-regulations-1999.
Typical installation costs in the UK
Costs vary depending on access, pipework and system type. These are realistic ranges with more detailed breakdown:
| Cost element | Typical price range |
|---|---|
| Softener unit | £400 to £1,200 |
| Labour basic install | £300 to £600 |
| Labour complex install | £600 to £1,200 |
| Pipework and fittings | £100 to £300 |
| Bypass valve and isolation kit | £50 to £150 |
| Optional drinking tap | £80 to £200 |
| Annual running cost | £80 to £200 |
Typical plumber hourly rates vary by region. In London and the South East, rates often range from £70 to £100 per hour. In the North and Midlands, £40 to £70 per hour is more common.
A straightforward installation in Manchester might total £800 to £1,200. The same job in London could reach £1,200 to £2,000 due to labour costs and access constraints in smaller properties.
If additional plumbing upgrades are required, such as replacing ageing pipework or installing new isolation valves, costs will increase.
For minor pipework tasks or leak fixes you might encounter along the way, see How to Repair Minor Plumbing Leaks.
Running costs and maintenance
Ongoing costs are not excessive but should be planned properly.
Regeneration typically occurs every 3 to 7 days depending on water usage and system size. Larger households may trigger more frequent cycles.
- 1 to 2 people, 10 to 15 kg of salt per month
- 3 to 4 people, 15 to 25 kg per month
- 5 plus people, 25 to 40 kg per month
Salt costs usually range from £6 to £10 per 10 kg bag. Annual spend typically falls between £80 and £200.
Over a 5 year period, total ownership costs including servicing and salt often reach £600 to £1,200. Over 10 years, this can rise to £1,500 to £2,500 depending on usage.
Most systems only require topping up with salt every few weeks. Annual servicing checks valves, resin condition and control settings.
Interaction with boilers and heating systems
Water softeners directly benefit combi boilers, system boilers and hot water cylinders. By reducing scale, heat exchangers remain efficient, pumps experience less resistance, and thermostatic valves are less likely to seize.
In combi boilers, limescale is a common cause of reduced hot water output. Softened water helps maintain consistent flow rates and reduces repair frequency.
In vented and unvented cylinder systems, reduced scaling improves heat transfer and shortens recovery times after hot water use.
What to consider before installation
Available space
Softener units and salt storage require room. Compact models exist, but tight cupboards can still be restrictive.
Drainage access
The system needs a discharge point for regeneration cycles. This is often a standpipe or waste pipe connection with an air gap to comply with backflow prevention rules.
Water pressure and flow rate
Most systems require at least 1.5 bar pressure and a minimum flow rate of 10 to 15 litres per minute. High demand homes may need larger capacity units.
Backflow prevention
A compliant installation includes double check valves or an air gap arrangement to prevent contaminated water re entering the mains supply.
WRAS approved components
Using WRAS approved fittings reduces the risk of regulatory issues and ensures materials are safe for potable water.
Pipe material and condition
Older properties with galvanised or heavily scaled pipes may not benefit fully until pipework is upgraded.
Local water regulations
Some areas require a separate drinking water tap. Your installer should advise.
How to size a water softener correctly
Correct sizing is based on daily water usage and hardness level.
- Average UK usage is around 140 litres per person per day
- Multiply by household size to estimate daily demand
- Match this to system capacity in litres between regenerations
For example, a family of four in a hard water area would typically need a mid to high capacity unit to avoid constant regeneration cycles.
DIY installation vs hiring a professional
While some homeowners attempt installation themselves, this is one area where mistakes can be costly.
Risks include non compliance with Water Regulations, invalid manufacturer warranties, and incorrect backflow protection leading to contamination risks. Poor connections can also result in leaks and water damage.
HSE guidance highlights the need for safe installation of water systems to prevent contamination and cross connection risks. Details are available at https://www.hse.gov.uk.
If you are unsure of your ability to carry out plumbing work to standard, read When to Call a Professional Plumber vs. DIY before deciding.
Professional installation ensures compliance and protects your property.
What happens during professional installation
- Assessment of incoming mains location and pipework
- Shut off water supply and drain the system
- Cut into main supply and install bypass valve
- Connect softener unit and discharge pipe
- Install backflow prevention and isolation valves
- Test for leaks and restore water supply
- Program regeneration settings and commission system
- Demonstrate operation and maintenance to homeowner
Common mistakes and what can go wrong
These are issues seen regularly on site and their real impact:
- Incorrect pipe routing leading to untreated water, resulting in continued scale and wasted investment
- Failure to install a proper bypass system, making servicing difficult and increasing labour costs later
- Poor drainage connections causing backflow risks and potential contamination
- Installing undersized units, leading to constant regeneration and higher running costs
- Ignoring existing leaks, which can increase water bills and cause damage once pressure improves
Water damage from a poorly installed system can easily exceed £1,000 in repairs if leaks go unnoticed.
Faulty fixtures should be addressed before installation. For example, a constantly running toilet increases water usage unnecessarily. Guidance is available in How to Fix a Running Toilet in the UK Identify the Faulty Part, Replace It and Stop Wasting Water.
Similarly, leaking taps should be fixed to avoid wasting softened water. See How to Replace a Leaking Kitchen Tap in the UK Step by Step with Tool List and When to Call a Plumber.
Post installation maintenance checklist
- Check salt levels every 2 to 4 weeks
- Inspect for leaks around fittings and hoses
- Clean brine tank annually
- Schedule annual professional service
- Monitor water pressure and flow changes
- Ensure bypass valve operates correctly
- Keep discharge pipe free from blockages
How long installation takes
A straightforward installation usually takes between two and four hours. More complex jobs involving pipe alterations or limited access may take a full day.
Commissioning the system and setting regeneration cycles is usually done on the same day.
Do you need planning permission or approval?
In most cases, no planning permission is required. Water softeners are considered internal plumbing modifications.
However, all work must comply with the Water Supply Regulations. Some installations may require notification to your local water authority, particularly if there is a risk of backflow.
Using a qualified plumber who understands these requirements is the safest route.
Is a water softener worth it in the UK?
In hard water areas, the answer is usually yes. The combination of lower maintenance costs, improved appliance lifespan and day to day convenience makes a strong case.
In soft water regions such as Scotland, Wales or the North West, the benefits are minimal and installation is rarely justified.
Practical homeowner checklist
- Check your local water hardness level
- Assess available space near your mains entry point
- Confirm drainage access for discharge
- Get at least two quotes from qualified plumbers
- Choose the correct system size for your household usage
- Verify compliance with UK water regulations
- Plan ongoing salt and maintenance costs
FAQs
Do water softeners affect drinking water?
Yes, softened water contains slightly higher sodium levels due to the ion exchange process. Many systems bypass the kitchen tap to provide unsoftened drinking water. This is standard practice in UK installations.
Can a water softener damage pipes?
No, but it can expose existing weaknesses. If your pipework is already corroded or heavily scaled, improved flow and pressure may highlight leaks that were previously unnoticed.
How often do water softeners need maintenance?
Salt levels should be checked every few weeks. A professional service once a year is recommended to ensure valves, resin and controls are functioning correctly.
Will a water softener increase my water bill?
Slightly. Regeneration cycles use additional water, but the increase is usually modest. Efficiency gains in heating systems often balance this out.
Are magnetic water softeners effective?
Results are mixed. Some users report reduced scaling, but they do not remove hardness minerals in the same way as salt based systems. They are best treated as a supplementary option rather than a primary solution.
Final Thoughts
Installing a water softener is one of those upgrades that pays off quietly over time. Less scale, better performing appliances and fewer plumbing issues all add up. The key is choosing the right system, sizing it correctly, and ensuring it is installed in line with UK regulations using compliant components.
If you are dealing with persistent limescale or planning a wider plumbing upgrade, getting professional input early will save time and money. To get started, you can post a job on BookaBuilderUK and receive free quotes from vetted local tradespeople.
