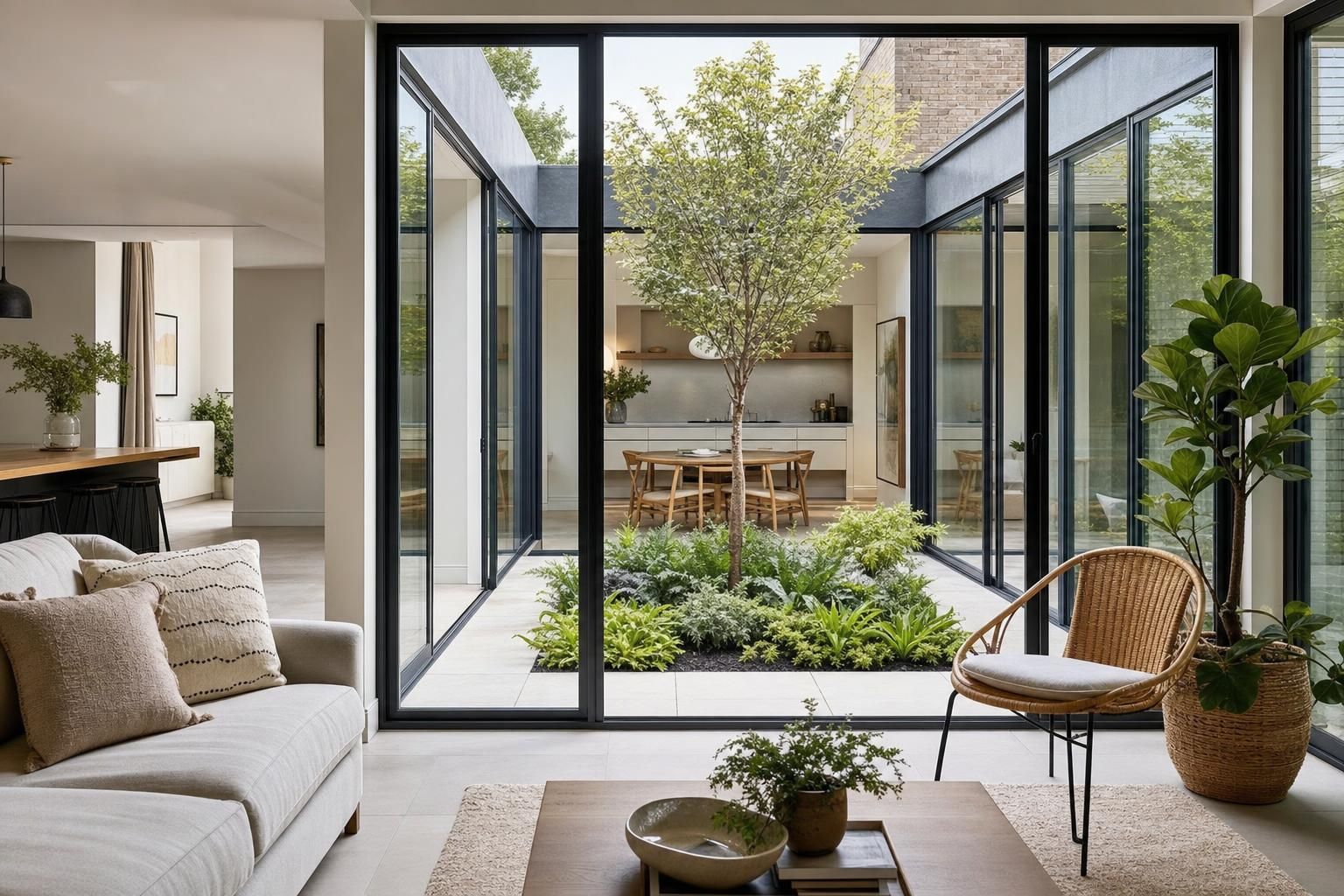

Indoor Courtyard Ideas for Homes That Bring Light and Calm to Modern Layouts

Indoor courtyard ideas are gaining traction across the UK as homeowners look for practical ways to brighten dark layouts, especially in Victorian terraces, 1930s semis and even modern new builds where central rooms often lack natural light. A well designed courtyard can increase daylight penetration by up to 30 percent in some layouts, while also improving ventilation and adding real resale appeal. Estate agents consistently flag natural light as a key value driver, particularly in urban areas where extensions can leave homes feeling enclosed.

Done properly, an internal courtyard is not just an architectural feature. It becomes a functional part of the home, improving daylight levels, boosting ventilation and adding value.

From a construction perspective, these projects range from relatively straightforward light wells to complex structural alterations involving steelwork, glazing systems and drainage. The difference between a successful courtyard and a costly headache comes down to planning, detailing and the quality of trades on site.

This guide breaks down the practical side. What works in typical UK housing stock, what it costs, the regulations involved and how to avoid the usual pitfalls.

What Is an Indoor Courtyard and Why Install One?

An indoor courtyard is an enclosed or semi enclosed open space within the footprint of a home. It can be open to the sky or covered with glazing. You will see them used in extensions, retrofits of older properties and increasingly in new build homes where light and privacy are both priorities.

In practical terms, homeowners tend to add courtyards for three main reasons.

• To bring natural light into the centre of deep floorplans where standard windows cannot reach.
• To create a visual focal point that improves the feel of open plan spaces.
• To introduce controlled ventilation and connection to greenery without sacrificing privacy.

If your current layout feels dark or boxed in, pairing a courtyard with strategies from Maximising Natural Light for a More Inviting Home can transform how the whole property feels.

Best Indoor Courtyard Ideas for UK Homes

Indoor Courtyard Ideas That Work in UK Homes

Central glazed courtyard

This is a popular option in larger renovations, particularly in side return extensions on Victorian terraces or full width rear extensions on semis. A section of the floor plan is opened up centrally, often between a kitchen and living space, with glazing on multiple sides.

Roof glazing or an open void allows daylight to filter in from above. In real projects, this often transforms previously windowless kitchens into bright, usable family spaces.

Expect structural alterations here. Load bearing walls often need to be removed and replaced with steel beams. Structural engineers will specify beam sizes and padstones, and calculations must be submitted to Building Control.

Pros: maximum light, strong visual impact, boosts property value.
Cons: higher cost, structural complexity, risk of overheating if poorly designed.

Typical cost range is between £25,000 and £60,000 depending on size, glazing spec and structural complexity.

Light well courtyard for terraced homes

This solution works well in Victorian and Edwardian terraces where rear extensions have created deep, dark layouts. A light well is formed by cutting out a section near the side return or rear, often at ground level with glazing and drainage.

These are smaller but extremely effective. A well positioned light well can transform a previously unusable dining area into a naturally lit space.

Pros: cost effective, minimal structural work compared to full courtyards.
Cons: limited usable space, drainage risks if detailing is poor.

Costs usually range from £10,000 to £25,000. Drainage is critical here. Poor detailing leads to standing water and damp ingress. Builders often underestimate the importance of falls and outlet positioning.

Covered courtyard with roof lantern or glass roof

If you want the courtyard feel without exposure to weather, a glazed roof system or lantern above a planted courtyard can work well. This is common in kitchen extensions and new builds.

In practice, this option is often chosen where year round usability is a priority. Families with children tend to prefer covered designs.

Pros: usable in all weather, reduced maintenance.
Cons: risk of overheating and condensation without proper ventilation.

High quality roof glazing systems, particularly those with aluminium frames and solar control glass, will cost between £5,000 and £15,000 depending on size and specification.

Internal garden rooms with sliding glass walls

Some homeowners opt for a flexible layout where the courtyard can be opened or closed using large sliding or bi fold doors. This blurs the boundary between indoor and outdoor space.

This works particularly well in newer homes with wider footprints. Installers often combine this with underfloor heating zones to maintain comfort.

Where privacy is an issue, materials like those discussed in Reeded Glass Ideas for Homes Room Dividers Doors and Cabinets That Add Light and Privacy can soften sightlines while still allowing light to pass through.

Crittall style courtyard enclosures

Steel framed glazing works particularly well around courtyards. It gives a defined structure, suits period properties and keeps sightlines slim.

Installers favour thermally broken steel systems to prevent condensation issues common with older style frames.

For layout inspiration, the ideas outlined in Crittall Style Internal Doors and Screens for UK Homes Room by Room Ideas, Best Colours and Where They Work Best translate well into courtyard glazing schemes.

Design Considerations That Affect Cost and Performance

Daylight and orientation

South facing courtyards bring the most light but also increase overheating risk. In UK homes with large glazed areas, internal temperatures can exceed comfortable levels without shading or ventilation.

North facing courtyards offer softer, more consistent light. Many designers prefer this for living areas as it avoids glare and overheating.

Real world tip from installers, always model daylight early. Retrofitting shading or solar glass after installation is costly.

Privacy in built up areas

Urban homes often overlook neighbouring properties. In terraced streets, overlooking is one of the main concerns raised during planning.

Solutions include frosted glazing, staggered wall heights, planting or fixed screens. Each has trade offs between light and privacy.

Drainage and waterproofing

This is a frequent failure point. Courtyards sit within the building envelope, so poor drainage leads directly to damp issues inside the home.

Builders should install proper falls, typically 1:60, and connect to drainage runs compliant with Part H of the Building Regulations. Backflow prevention may also be required where connecting to public sewers.

The UK government damp and condensation guidance provides useful context on managing moisture risks.

Ventilation and airflow

Open courtyards naturally support airflow. Covered courtyards require designed ventilation, either passive vents or mechanical extract systems.

Systems involving electrics should be installed by contractors certified under NICEIC. If heating elements such as gas patio heaters are used, Gas Safe registered engineers are required.

Part F of the Building Regulations governs ventilation. Details can be found via Approved Document F.

Heating and insulation

Glazing systems vary widely in performance. Double glazing is standard, but triple glazing may be needed in exposed sites.

NHBC standards for new builds highlight minimum thermal performance expectations. Poor specification results in condensation, especially during winter.

Open Courtyard vs Glazed Courtyard vs Light Well

Type	Cost	Maintenance	Light Levels	Privacy	Best For
Open courtyard	£20,000 to £60,000	Medium	Very high	Medium	Large extensions, family homes
Glazed courtyard	£25,000 to £70,000	Low to medium	High	High	Urban homes needing privacy
Light well	£10,000 to £25,000	Low	Moderate	High	Terraced houses, small layouts

Cost Breakdown for a Typical Indoor Courtyard Project

Element	Typical Cost Range
Structural alterations and steelwork	£5,000 to £20,000
Glazing systems	£3,000 to £30,000
Groundworks and drainage	£2,000 to £10,000
Floor finishes and landscaping	£1,500 to £8,000
Professional fees	£2,000 to £7,000

Labour vs materials

On most UK projects, labour accounts for 40 to 55 percent of total cost. London and the South East sit at the higher end due to demand and access constraints.

Regional cost variation

Expect costs in London to be 15 to 25 percent higher than the UK average. Northern regions and parts of Wales may come in lower, though material costs remain fairly consistent nationwide.

Hidden costs to factor in

• Skip hire, typically £300 to £800
• Scaffolding, £800 to £2,500
• Building Control fees, £300 to £1,000
• Drainage connections and inspections
• Temporary weather protection during works

Many homeowners underestimate these. For a clearer picture of budgeting, see house extension cost guidance which applies closely to courtyard builds.

Planning Permission and Building Regulations

When permitted development does not apply

Flats and maisonettes do not benefit from permitted development rights. Article 4 directions can also remove these rights in certain areas. Listed buildings and conservation areas often require full planning approval.

Party Wall considerations

If your courtyard involves excavation near a shared wall, the Party Wall etc. Act 1996 applies. Notices must be served to neighbours and agreements reached before work begins. Surveyors may be required.

Drainage regulations

Drainage must comply with Part H. Any connection to a public sewer may need approval from the local water authority. Backflow protection and access points for maintenance are often required.

Building Control vs approved inspectors

You can choose your local council Building Control or a private approved inspector. Both ensure compliance with regulations. Larger projects often use approved inspectors for faster turnaround.

Structural and safety standards

Structural work must comply with Part A. Excavation safety guidance from HSE should be followed, particularly for deeper light wells where collapse risks exist.

How Indoor Courtyards Fit Into Open Plan Layouts

Zoning without walls

Courtyards naturally divide spaces. Kitchens, dining areas and living zones can be separated visually while maintaining openness.

Circulation and access

Maintain at least 900 mm walkways. On tight sites, poor circulation is one of the most common layout mistakes.

Furniture planning around courtyards

Plan furniture early. Builders often see projects where doors or glazing restrict usable wall space.

The guidance in The Do’s and Don’ts of Open-Plan Living Spaces applies directly here.

Practical Checklist Before You Start

• Have you assessed structural implications with a qualified engineer
• Is drainage properly designed and connected to mains systems
• Are glazing specifications suited to orientation and insulation needs
• Do you need planning permission or is the project permitted development
• Is ventilation addressed in line with Building Regulations
• Have you allowed contingency budget of at least 10 percent
• Have Party Wall agreements been arranged if required
• Is access available for machinery and waste removal
• Have you secured waterproofing guarantees
• Is your ventilation strategy confirmed, natural or mechanical

Common Mistakes to Avoid

Underestimating structural work

Builders regularly see budgets overrun due to hidden structural complexity. Opening up walls often reveals additional support requirements.

Ignoring drainage levels

Incorrect drainage is one of the most expensive mistakes to fix. Retrofitting drainage after completion can require removing finished surfaces.

Choosing the wrong glazing

Low cost glazing leads to overheating and heat loss. Many homeowners end up replacing units within a few years.

Poor sequencing on site

Courtyard builds require coordination. Groundworks, drainage and steel installation must be properly sequenced. Poor planning leads to delays and added labour costs.

Lack of professional input

Experienced builders, structural engineers and glazing installers make a significant difference. Projects without proper oversight often fail Building Control inspections.

Timeframes You Should Expect

Design and planning stage

2 to 6 weeks depending on complexity and whether planning permission is required.

Approvals and structural calculations

2 to 4 weeks for Building Control approvals and engineering details.

Groundworks and structure

2 to 6 weeks depending on excavation depth and steel installation.

Glazing installation

1 to 3 weeks depending on system size and lead times.

Finishing and landscaping

1 to 3 weeks for flooring, planting and final detailing.

Weather delays are common, particularly during excavation and drainage stages.

Materials That Perform Well in UK Conditions

Hard landscaping materials

• Porcelain paving, low maintenance and slip resistant
• Resin bound surfaces for drainage friendly finishes
• Concrete slabs for cost effective solutions

Glazing and framing

• Powder coated aluminium, durable and corrosion resistant
• Thermally broken steel frames for slimmer sightlines

Wall and structure materials

• Engineering bricks for moisture resistance
• Rendered blockwork with waterproof coatings

Natural stone looks excellent but requires sealing and regular cleaning to prevent staining, moss and algae buildup in shaded areas.

Maintenance and durability

Glazing should be cleaned at least twice a year to maintain light levels. Drainage channels should be cleared regularly, particularly in autumn when leaves cause blockages.

Shaded courtyards are prone to moss. Anti slip treatments and routine cleaning help prevent hazards.

Seasonal checks are recommended, especially before winter, to ensure drainage and seals are performing correctly.

FAQ

Do indoor courtyards add value to a property

Yes, particularly in urban UK markets where natural light is limited. Well executed projects can increase appeal and saleability. However, if too much internal space is sacrificed or costs exceed local ceiling prices, returns may be limited.

Can I add an indoor courtyard to a small house

Yes. Light wells are particularly effective in smaller terraced homes. Expect costs from £10,000 upwards, and ensure space planning is carefully considered.

Will I need planning permission

Not always. Many fall under permitted development, but flats, conservation areas and Article 4 zones often require full approval. Always confirm with your local authority before starting.

How do you maintain an indoor courtyard

Routine cleaning, drainage checks and occasional resealing of materials are key. Aluminium glazing systems require minimal upkeep, but seals and joints should still be inspected annually.

Are indoor courtyards cold in winter

They can be if glazing is poorly specified. High performance glazing and proper detailing reduce heat loss. Heating systems must comply with relevant safety standards and installations.

What are the biggest structural risks

The main risks involve inadequate support for removed walls and poor excavation practices. Structural engineers and adherence to HSE safety guidance are essential to avoid collapse or settlement issues.

Final Thoughts

Indoor courtyards are one of the most effective ways to transform dark, enclosed homes into bright, calming living spaces. The difference between a standout result and a costly problem lies in design, detailing and the quality of the build team.

If you are considering adding a courtyard, get proper advice early, budget realistically and use experienced trades. If you are ready to move forward, the easiest way to get started is to post a job and receive quotes from vetted local professionals who understand these projects inside out.
