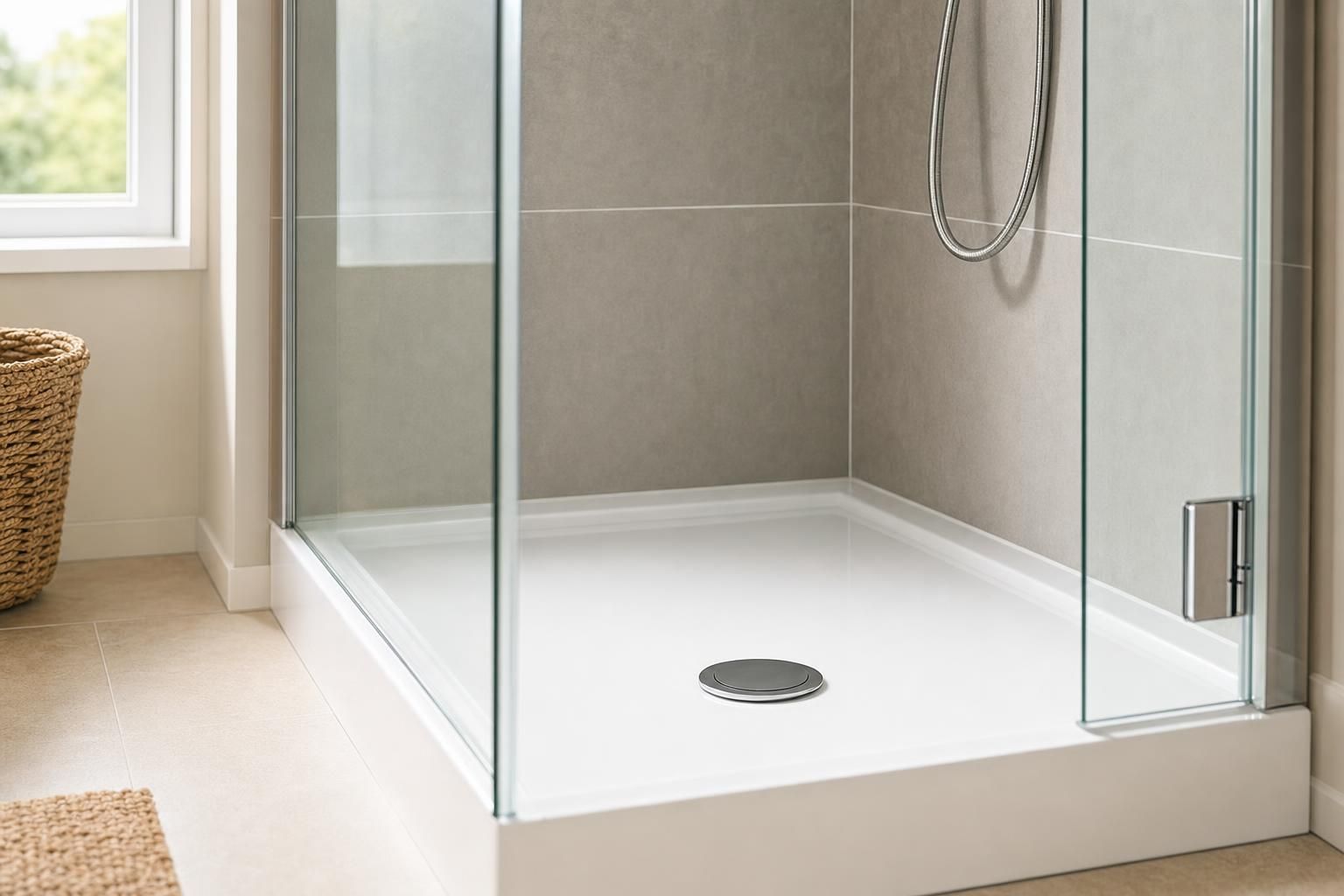

How to Fix a Leaking Shower Tray Waste in a UK Home Without Removing the Tray

A leaking shower tray waste is one of the most common plumbing issues in UK bathrooms. In many cases you can fix a leaking shower tray waste without removing the tray, saving hundreds of pounds and avoiding major disruption. A straightforward reseal or seal replacement often takes under two hours and costs less than £50 in parts, compared to a full tray removal which can run into several hundred pounds and require retiling.

This guide draws on real site experience from UK bathroom installs and repairs. You will learn how to identify the exact source of the leak, what tools and parts you will need, how to reseal or replace components, and what it is likely to cost. You will also see where things go wrong, which is often why leaks return after a quick fix.

Understanding Where Shower Tray Waste Leaks Come From

Before reaching for tools, you need to be certain that the leak is actually from the waste and not from surrounding areas like the tray seal, grout, or pipework further along the run.

Typical failure points include:

• The rubber compression seal beneath the waste flange degrading or being incorrectly fitted
• The threaded waste body loosening over time
• Hairline cracks in plastic waste fittings
• Poor alignment between trap and outlet pipe causing strain on the joint
• Failed silicone sealing around the waste flange inside the tray

In many UK homes, especially in older terraces, converted flats, or budget new builds, access to the underside of the tray is limited or non existent. Standard UK shower wastes are typically 40mm connections, and poor installation around this size is a frequent cause of slow leaks that only appear under load.

Confirming the Leak Source

Do not skip this step. A lot of homeowners assume the waste is leaking when the issue is actually the tray seal or tile grout.

Here is a quick method used on site:

• Dry the area fully
• Run a small amount of water directly into the waste
• Check beneath or adjacent rooms for signs of moisture
• Then run water across tray surfaces without using the waste immediately

Advanced Leak Detection Methods

For stubborn or unclear leaks, tradespeople use a few simple but effective techniques:

• Coloured dye test: Add a few drops of food colouring into water poured directly into the waste. If coloured water appears below, you have a confirmed waste leak rather than a surface issue.
• Tissue paper method: Place dry tissue around accessible joints or ceiling areas below. Even tiny drips show quickly as dark spots.
• Timed flow test: Run water continuously for 5 to 10 minutes. Some leaks only show under sustained flow due to pressure build up.

Slow Seepage vs Active Leaks

It is also useful to distinguish between leak types:

• Slow seepage: Often caused by worn seals or minor gaps. These may only show as damp patches over time.
• Active leaks: Usually due to failed joints or cracks. Water appears quickly and may drip steadily.

Understanding the difference helps target the repair. Slow seepage can often be resolved with resealing. Active leaks may indicate a failed component deeper in the system.

If leaking only occurs when water enters the waste, you have confirmed the source. If not, you may need to reseal the tray instead. See How to Seal Around a Shower Tray Properly and Stop Leaks Before They Start for that scenario.

Tools and Materials You Will Need

Most repairs can be completed using standard plumbing tools available from Screwfix or Toolstation.

• Screwdriver or waste removal tool: Used to safely remove the flange without damaging chrome. A dedicated tool gives better grip than a standard screwdriver.
• Adjustable spanner or grips: Helps loosen stubborn fittings. Professionals may use basin wrenches for better reach.
• Replacement shower waste or seals: Essential if components are worn. Most UK systems use 40mm fittings, so match sizes carefully.
• Plumber’s silicone sealant: Provides a watertight and flexible seal. Always use sanitary grade for mould resistance.
• Cleaning cloths and isopropyl alcohol: Ensures surfaces are free of grease and residue before sealing.
• Bucket or towels: Controls residual water during disassembly.
• Torch: Essential for seeing inside the waste and any limited access points.

DIY users can complete most of this with basic tools, while professionals may use inspection cameras or specialist waste keys for efficiency.

Expect to spend between £10 and £40 on parts depending on whether you are replacing seals or the full waste unit.

Step by Step Method to Fix a Leaking Shower Tray Waste Without Removing the Tray

1. Remove the Waste Cover

Start by lifting or unscrewing the top cover. Some UK waste fittings are push fit, while others require a screwdriver. Take care not to damage chrome finishes.

2. Unscrew the Waste Flange

The flange is the visible part inside the tray. Use a proper waste removal tool if available, as this prevents slipping and damaging the unit. Turn anticlockwise to remove.

Once removed, you will expose the waste body beneath.

3. Clean the Area Thoroughly

This is where many repairs fail. Old silicone, soap residue and limescale must be completely removed. Use a scraper and cleaning solution. Any contamination will prevent a watertight seal.

4. Inspect the Rubber Seal

The rubber gasket under the flange is often the main culprit. Look for:

• Cracking or deformation
• Flattening from over tightening
• Signs of perishing

If the seal is compromised, replace it. These typically cost £3 to £10.

5. Apply Fresh Sealant

Apply a thin, even bead of sanitary silicone around the underside of the flange. Avoid over applying. Excess silicone can distort the seal when tightened.

6. Refit and Tighten the Flange

Reinstall the flange and tighten firmly but not excessively. Over tightening can damage the tray or warp the seal.

7. Test the Repair

Run water for several minutes and check for leaks. If access below is impossible, monitor surrounding areas such as ceilings or floors for damp patches over the next 24 hours.

If the Leak Persists

If resealing does not work, the issue may be deeper within the waste assembly or trap.

Replacing the Waste Unit from Above

Some modern shower wastes can be removed and replaced entirely from above. This is common with high flow designs used in UK walk in showers. If threads are damaged or the plastic body is cracked, replacement is often the only reliable fix.

Accessing the Trap or Pipework

If you can reach the underside through a panel or ceiling below, inspect:

• Compression joints for leaks
• Trap seals and connections
• Alignment of pipework

In many UK installations, tight joist spaces or poorly cut floorboards cause stress on fittings, leading to leaks over time.

Identifying Hidden Pipe Defects

Leaks that appear away from the tray may be due to:

• Hairline cracks in 40mm waste pipes
• Poor solvent weld joints
• Trap seals that have been disturbed during installation

These issues usually require partial dismantling or access improvements. If needed, you can post a job or explore bathroom repair specialists via https://www.bookabuilderuk.com.

If the problem involves pipe connections or hidden components, it may be time to seek professional help. See When to Call a Professional Plumber vs. DIY for guidance.

Typical UK Costs for Repair

Item or Service	Typical Cost
Replacement rubber seal	£3 to £10
New shower waste unit	£15 to £50
Sealant and consumables	£5 to £15
Plumber call out	£60 to £120
Labour for repair	£80 to £180

Regional Price Differences

London and the South East typically command higher rates, often 20 to 40 percent above the UK average. Northern regions and smaller towns generally offer lower labour costs.

Emergency and Out of Hours Costs

Emergency callouts can range from £120 to £250 depending on timing. Weekend or evening work often carries a premium.

Hidden Costs to Consider

• Installing or enlarging an access panel, £50 to £150
• Ceiling repairs below, £100 to £300 depending on damage
• Replacing damaged flooring or joists in severe cases

Typical Timeframes

• Resealing a waste, 30 to 90 minutes plus curing time
• Replacing a waste unit, 1 to 2 hours
• Pipework repair, 2 to 4 hours depending on access

Repair vs Full Replacement

Factor	Repair	Full Replacement
Cost	£10 to £180	£300 to £1,000 plus
Time	Under 2 hours	1 to 3 days
Lifespan	1 to 5 years depending on condition	10 to 20 years
Risk	Higher if cause is misdiagnosed	Lower if fully rebuilt correctly

Relevant UK Regulations and Standards

While a simple waste repair does not usually require building control approval, the work must still comply with UK plumbing standards.

Part H of the Building Regulations covers drainage and waste disposal. It requires correct pipe gradients so water flows freely, proper trap seals to prevent smells, and secure watertight joints to avoid leaks. A poorly aligned shower waste often breaches these basic principles.

You can review it here: https://www.gov.uk/government/publications/drainage-and-waste-disposal-approved-document-h

Products that meet WRAS approval are tested for compliance with UK water supply regulations. Using WRAS approved wastes and fittings reduces the risk of failure and ensures compatibility with UK systems.

Good practice is also guided by the Chartered Institute of Plumbing and Heating Engineering: https://www.ciphe.org.uk

Leaks can contribute to structural damage and mould growth, which falls under housing health standards enforced by local authorities.

Common Mistakes to Avoid

These are issues seen repeatedly on UK jobs where a leak returns within weeks:

• Applying new silicone over old residue, this prevents bonding and leads to rapid failure
• Over tightening the flange, this warps seals and creates gaps rather than fixing them
• Using the wrong size waste fitting, this leads to poor compression and persistent leaks
• Ignoring pipe alignment issues, this causes long term stress and joint failure
• Failing to test thoroughly, this allows small leaks to go unnoticed until damage occurs

Another common issue is confusing a waste leak with a blockage problem. If water is backing up or draining slowly, check out How to Unblock a Shower Drain in a UK Home Remove Hair, Clear the Trap and Prevent Bad Smells.

Before You Start Checklist

• Confirm leak source using basic or advanced methods
• Check for visible cracks or movement in the waste
• Ensure you have the correct 40mm replacement parts if needed
• Clear the workspace and protect surrounding surfaces
• Locate any access panels or identify inspection points below

Practical Repair Checklist

• Confirm the leak originates from the waste
• Remove waste cover and flange carefully
• Clean all surfaces thoroughly
• Inspect and replace seals if needed
• Apply fresh sanitary silicone sparingly
• Refit and tighten correctly
• Test with sustained water flow
• Monitor for 24 hours

When a Full Replacement Is the Better Option

Sometimes a repair is not enough. Replace the waste if:

• The plastic body is cracked
• The threads are damaged
• The design is poor and prone to leaks

In older UK bathrooms, especially where acrylic trays have flexed over time or chipboard flooring has moved, the connection between the waste and pipework can become unreliable. In these cases, replacing the waste alone may not solve the issue.

Full replacement is often the better option where:

• The tray is poorly supported and flexing under weight
• Pipework alignment cannot be corrected without lifting the tray
• There is repeated leakage over several repair attempts

Modern McAlpine and Wirquin wastes tend to offer better seals and longer lifespan compared to cheaper alternatives.

Health and Safety Considerations

Working in wet environments carries risk. Keep these points in mind:

• Turn off nearby electrical circuits if working near wiring, especially in bathrooms with downlights below
• Ensure good ventilation when using sealants to avoid inhaling fumes
• Use gloves when handling old components, which may carry bacteria or sharp edges
• Be cautious of slip risks from wet floors
• Take care in confined spaces such as under floors or in ceiling voids

The Health and Safety Executive offers guidance on safe working practices: https://www.hse.gov.uk

FAQ

Can I fix a leaking shower waste from above without access underneath?

Yes, in many cases. If the leak is at the flange or upper seal, you can remove and reseal the waste from inside the tray. If the leak is further down in the trap or pipework, access will be required. Some high quality wastes are designed for top access replacement.

How long does this repair usually take?

A straightforward reseal takes around 30 to 90 minutes. Allow additional time for sealant curing, usually 12 to 24 hours before full use. Replacement or pipe repairs can extend to several hours depending on access.

Why does my shower waste keep leaking after repair?

Recurring leaks are often due to poor cleaning, over tightening, or underlying pipe misalignment. In some cases, hidden pipework faults such as cracked solvent weld joints or stressed fittings are the real cause. These require deeper inspection and possible access from below.

Is it better to use plumber’s putty or silicone?

In UK bathrooms, sanitary silicone is generally preferred as it provides flexibility and mould resistance. Plumber’s putty is rarely used with modern acrylic or stone resin trays.

Can a leaking shower waste cause structural damage?

Yes. Ongoing leaks can saturate timber joists, weaken ceilings, and lead to plasterboard collapse if left untreated. Even slow leaks can cause rot and mould over time, so early repair is essential.

How do I access the waste if there is no visible access panel?

Options include lifting floorboards in adjacent rooms, cutting a small inspection hatch in the ceiling below, or creating a discreet access panel in boxing or cabinetry. Careful planning is needed to avoid damaging services.

Should I attempt this myself or call a plumber?

If you are confident with basic plumbing and the issue is clearly at the waste flange, it is a reasonable DIY task. If there is any doubt about pipework or hidden leaks, professional help is advisable. For related minor fixes, see How to Repair Minor Plumbing Leaks.

Final Thoughts

Fixing a leaking shower tray waste without removing the tray is entirely achievable in many UK homes, provided you diagnose the problem correctly and take care with preparation and sealing. Most failures come down to rushed work or skipping cleaning steps. Done properly, this repair should last for years.

If the leak proves stubborn or access is too limited, do not hesitate to bring in a professional. You can post a job on BookaBuilderUK to receive free quotes from vetted local tradespeople who deal with these issues every day.
