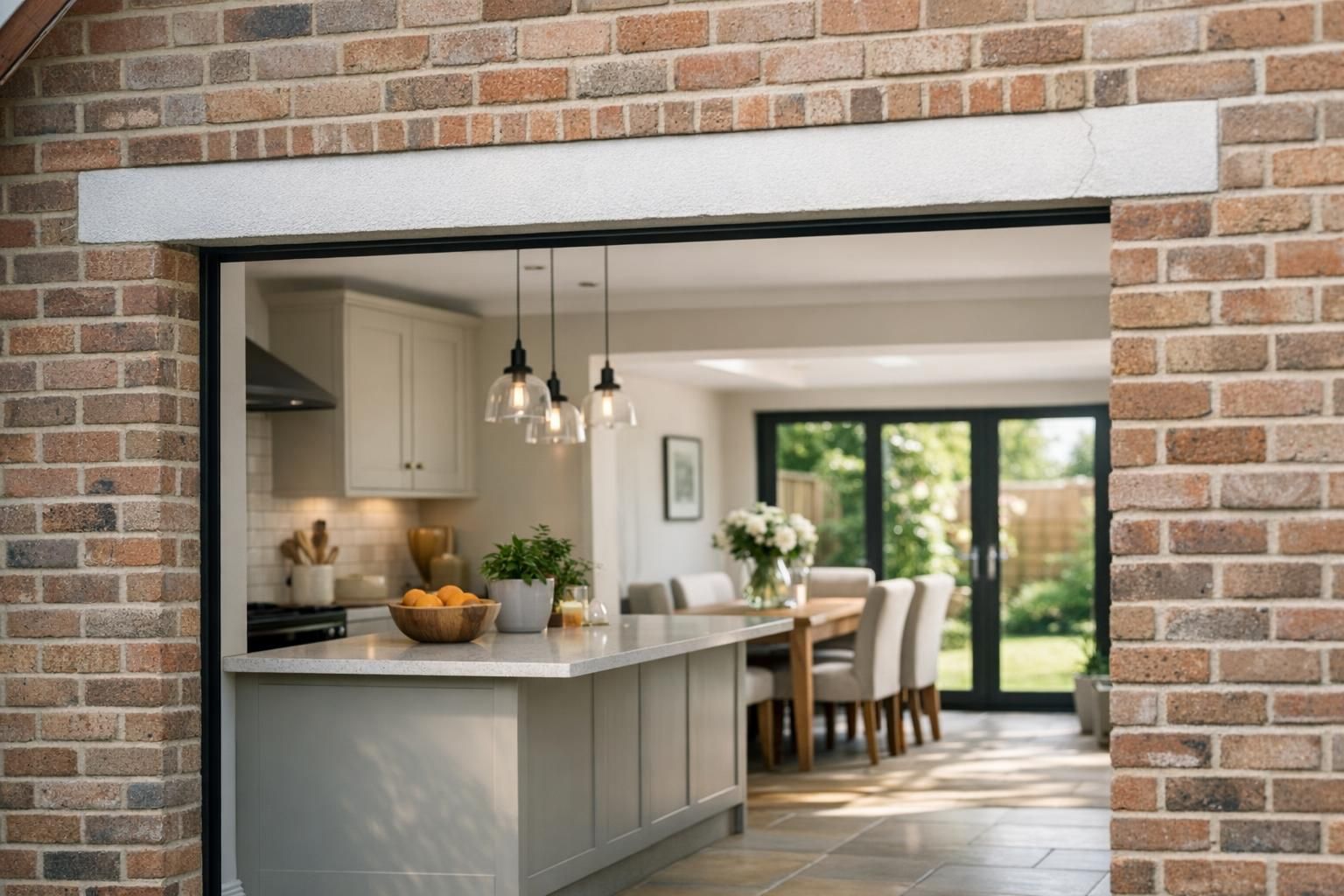

Lintels in Home Renovations Explained When You Need One Common Types and Warning Signs of Failure
Lintels in home renovations are one of those elements that quietly do a huge amount of structural work, yet many homeowners only hear about them once something has already gone wrong. A failed or missing lintel can lead to cracked brickwork, sticking windows, and in more serious cases structural movement that costs £1,000 to £5,000 or more to put right. Whether you are knocking through for an open plan layout, replacing windows, or altering a doorway, understanding lintels early can prevent expensive repairs, delays with building control, and safety risks.
In simple terms, a lintel is a horizontal support that sits above an opening such as a door or window. Its job is to carry the load from the wall or structure above and transfer that load safely to the sides. Without a properly specified and installed lintel, masonry can crack, sag, or even collapse.
This guide explains exactly when you need a lintel, the common types used in UK homes, how much they cost, and what warning signs indicate failure. It also covers how lintels fit into wider structural work, including steel beams and building control requirements.
What Does a Lintel Actually Do
Brick and block walls are strong in compression but weak when spanning open gaps. The moment you introduce an opening, for a window or doorway, the load above needs to be redistributed. That is where the lintel comes in.
A lintel bridges the opening and supports:
- The weight of masonry above
- Roof loads bearing onto the wall
- Floor loads in multi storey properties
- Point loads from beams or joists in some cases
In most domestic settings, lintels are relatively short spans, typically between 600 mm and 2400 mm. Even so, the loading can be significant, particularly in older solid wall homes or where upper floors bear into the same wall.
For example, in a typical 1930s semi detached house, the external walls often support both first floor joists and roof loads. Installing a wider window without upgrading the lintel can quickly lead to stepped cracking within months.
When You Need a Lintel in a Renovation
Many homeowners assume lintels are only required for new windows or extensions. In reality, they are involved in a wide range of renovation work.
Creating or Enlarging Openings
If you are adding a new doorway, widening an existing one, or installing larger windows or bifold doors, a lintel is almost always required. The size and type depend on span, load, and wall construction.
This ties closely to whether a wall is structural. If you are unsure, read Structural vs Non Structural Walls in UK Homes How to Tell Before You Knock Through and When You Need Building Control before starting.
Real example, a homeowner in Leeds widened a kitchen doorway from 800 mm to 1.8 m to create a kitchen diner. The original timber lintel was not upgraded, leading to visible cracking within weeks. Retrofitting a steel lintel later cost over £2,000 once making good was included.
Knocking Through Internal Walls
Opening up two rooms often involves replacing a section of load bearing wall with a steel beam such as an RSJ. However, smaller openings within internal walls may use concrete or steel lintels instead.
For costs and what is involved in wall removal, see How Much Does It Cost to Knock Down an Internal Wall in 2026? Structural Checks, RSJ Costs and Making Good Explained.
Edge case, partial chimney breast removals often require a combination of steel support and short lintels to carry remaining masonry. These situations almost always need structural calculations.
Replacing Old Windows or Doors
Many older UK properties have timber lintels hidden within the wall. These can decay over time. When replacing windows, builders often upgrade to modern concrete or steel lintels to meet current standards.
This is especially common in Victorian terraces where timber has been exposed to decades of moisture. Replacing windows without addressing the lintel can lead to sagging brick arches above bay windows.
Fixing Structural Defects
If cracking appears above openings or masonry begins to sag, the existing lintel may have failed or been undersized. Remedial lintel installation is a common structural repair.
A typical case involves rusted steel lintels in cavity walls. As steel expands with corrosion, it pushes surrounding brickwork outward, creating horizontal cracking.
Supporting Brickwork When Installing Steel Beams
Even when installing a full steel beam, smaller lintels may still be needed for adjacent openings or to support outer leaf brickwork in cavity walls. More detail on steel beams can be found here: Understanding RSJs in UK Home Renovations When You Need One, Typical Sizes, Installation Steps and Building Control Sign Off.
Garage Conversions and Bay Windows
Garage conversions often involve replacing the garage door with a wall and window. This requires a correctly sized cavity lintel spanning the new opening. Similarly, bay windows often use multiple short lintels or curved support systems that must be carefully matched during refurbishment.
Common Types of Lintels Used in UK Homes
Choosing the correct lintel depends on wall type, cavity width, loading, and exposure. A structural engineer or experienced builder will specify the right product based on calculations.
| Type | Typical Use | Advantages | Limitations |
|---|---|---|---|
| Precast concrete | Solid walls, internal openings | Cost effective, durable, fire resistant | Heavy, limited span capability |
| Steel lintel | Cavity walls, external openings | High strength, longer spans | Requires corrosion protection |
| Cavity lintel | External cavity walls | Supports both leaves, includes insulation | More expensive than basic lintels |
| Timber lintel | Older properties | Easy to work with | Prone to rot, not used in modern builds |
| Catnic or similar proprietary lintels | Modern construction | Engineered systems with load tables | Must be correctly specified |
Load calculations are critical. A typical 1.2 m window opening in a two storey cavity wall might carry several tonnes once masonry, floor, and roof loads are included. Manufacturers provide load span tables to match lintels to these conditions.
As a rough guide:
- 900 mm span in a single storey wall may suit a standard concrete lintel
- 1500 mm to 2400 mm spans in cavity walls often require steel cavity lintels
- Openings above 2400 mm or carrying heavy loads may require structural steel rather than a lintel
Modern builds almost always use galvanised steel cavity lintels from manufacturers such as Catnic or IG. These are designed to meet current load requirements and thermal performance standards.
Lintels in Home Renovations vs RSJs
A common point of confusion is whether you need a lintel or an RSJ.
| Feature | Lintel | RSJ Steel Beam |
|---|---|---|
| Typical span | Up to around 2.4 m | 2.4 m to 6 m or more |
| Load capacity | Moderate | High structural loads |
| Typical use | Windows and doors | Removing load bearing walls |
| Installation complexity | Lower | Higher, often requires multiple installers |
In short, lintels are for smaller openings. RSJs are used where large sections of wall are removed or where loads are significant.
Typical Lintel Costs in the UK
Costs vary depending on size, span, and complexity of installation. Below is a more detailed breakdown based on 2026 UK rates.
| Cost Element | Low | Mid | High |
|---|---|---|---|
| Lintel material | £40 | £150 | £800+ |
| Labour | £250 | £500 | £900+ |
| Structural engineer | £150 | £300 | £500+ |
| Building control fees | £100 | £250 | £400+ |
| Making good | £150 | £400 | £1,000+ |
A straightforward window lintel replacement might cost £500 to £1200 all in. A larger opening in a load bearing wall could reach £1500 to £3000 including making good.
Costs vary by location. London and the South East are typically 20 to 40 percent higher than the North. Access also matters. Tight working conditions, scaffold requirements, or working above ground floor level will increase labour costs.
Other cost variables include:
- Wall thickness, solid walls are slower and heavier to work on
- Property age, older buildings often require more care and remedial work
- Need for scaffolding on external walls
- Parking and access restrictions in urban areas
For comparison with steel beam installations, see How Much Does It Cost to Install a Steel Beam in the UK in 2026? Engineer Fees, Labour and Making Good Explained.
Building Regulations and Lintel Installation
Lintel work often falls under building regulations, especially if it affects structural stability. In England, this is covered under Approved Document A.
You can view the official guidance here: Approved Document A Structure.
Additional guidance may come from the NHBC for new builds and warranty work, which sets standards for structural openings and load bearing elements. See NHBC guidance.
Key requirements include:
- Lintels must be sized to safely carry loads
- Adequate bearing at each end, typically at least 150 mm
- Protection against corrosion for steel elements
- Thermal bridging considerations in external walls
Planning permission may be required if the work affects the external appearance of the property, particularly in conservation areas or listed buildings. Enlarging windows or altering фасades often triggers this.
Building control approval is usually required if:
- You are altering a load bearing wall
- You are changing the size of structural openings
- The work affects overall building stability
Health and safety on site is also critical, especially when temporarily supporting walls during installation. The HSE provides guidance here: HSE construction safety guidance.
How Lintels Are Installed
A proper installation follows a clear sequence. Cutting corners here is where problems start.
Temporary works are critical. Acrow props are typically spaced at around 900 mm centres with strongboys inserted into mortar joints to support masonry above. In heavier load situations, additional rows of support may be required.
- Assess load and span, often with structural engineer input
- Insert temporary supports such as acrow props and strongboys
- Cut out masonry carefully to form the opening
- Install the lintel with correct bearing each side
- Pack with mortar or slate to ensure full contact
- Allow curing before removing supports
- Make good plaster, brickwork, and finishes
Sequencing matters. Removing too much masonry before the lintel is fully supported can cause cracking. Similarly, removing props too early before mortar gains strength is a frequent mistake.
For example, during a garage conversion in Manchester, early removal of props led to slight settlement above a new window opening. The result was hairline cracking that required redecoration and localised repair.
Typical timeframe is one to three days for most domestic lintel installations, assuming no complications.
Thermal Performance and Damp Proofing
For external walls, lintels must also manage moisture and heat loss. Cavity lintels are designed to prevent cold bridging by incorporating insulation.
Best practice includes:
- Installing cavity trays above lintels to direct water outwards
- Providing weep vents at regular intervals
- Maintaining continuity of insulation
Poor detailing here can lead to damp patches above windows, a common issue in poorly executed extensions.
Warning Signs of Lintel Failure
Lintels rarely fail without leaving clues. Spotting early signs can prevent bigger structural issues.
Cracking Above Windows or Doors
Stepped cracks following mortar joints often indicate structural movement. Fine hairline plaster cracks may be cosmetic, but wider cracks in brickwork usually point to load issues.
Sagging Masonry
If the brickwork above an opening appears to bow or dip, the lintel may be undersized or deteriorating.
Sticking Doors or Windows
Movement in the opening can distort frames, causing doors and windows to jam.
Visible Rust Staining
Steel lintels that corrode can expand, cracking surrounding masonry and leaving rust stains.
Gaps Above Frames
If gaps appear between frames and masonry, structural movement may be occurring.
As a rule, diagonal cracks wider than 3 mm or ongoing movement should be assessed by a structural engineer rather than ignored.
Common Mistakes to Avoid
Lintel related issues are often the result of basic errors rather than material failure.
- Using the wrong lintel size or type for the load
- Insufficient bearing on either end
- Skipping structural calculations for larger openings
- Poor installation, including uneven seating
- Removing supports too early before mortar cures
- Ignoring cavity tray and damp proofing in external walls
Additional real world issues include installing lintels upside down, failing to account for point loads from joists, or cutting pockets too wide which reduces bearing strength.
Another frequent mistake is assuming a lintel is not needed at all. Even seemingly small openings can carry significant loads.
Practical Checklist Before Starting Work
- Confirm whether the wall is load bearing
- Arrange a structural engineer visit if needed
- Obtain calculations and lintel specification
- Check if planning permission applies for external changes
- Submit building control notice where required
- Get at least two quotes from experienced builders
- Allow one to three days for installation plus making good
- Plan for inspections during and after work
- Confirm insulation and damp proofing details
- Budget a contingency of 10 to 20 percent
You can also review broader renovation planning advice here: Home Renovation Costs in the UK Guide.
FAQ
Do I always need a lintel for a doorway?
Yes, in almost all cases. Even if the wall appears non structural, the masonry above the opening still needs support. Lightweight stud walls may use timber headers instead, but the principle remains the same.
How much bearing does a lintel need?
Standard practice in the UK is a minimum of 150 mm bearing at each end. Heavier loads or wider spans may require more. Older properties with weaker masonry may also need extended bearing pads.
Can I install a lintel myself?
It is technically possible for experienced DIYers, but risky. You are dealing with structural loads and temporary supports. Mistakes with propping or sequencing can cause collapse. Most homeowners should use a qualified builder and, where needed, a structural engineer.
How long does a lintel last?
Concrete and galvanised steel lintels can last decades if properly installed and protected. Failures usually stem from water ingress, corrosion, or poor initial specification rather than age alone.
Do lintels need building control approval?
If the lintel affects structural stability, then yes. This includes enlarging openings or working on load bearing walls. Like for like replacements may not always require approval, but checking with your local authority avoids issues when selling the property later.
Final Thoughts
Lintels might be hidden once the plaster and brickwork are finished, but they play a critical role in keeping your home structurally sound. Getting the right type, size, and installation method matters just as much as choosing visible finishes.
If you are planning a renovation that involves openings, do not treat lintels as an afterthought. Proper planning, realistic budgeting, and experienced trades make all the difference between a smooth project and a costly repair job later on.
