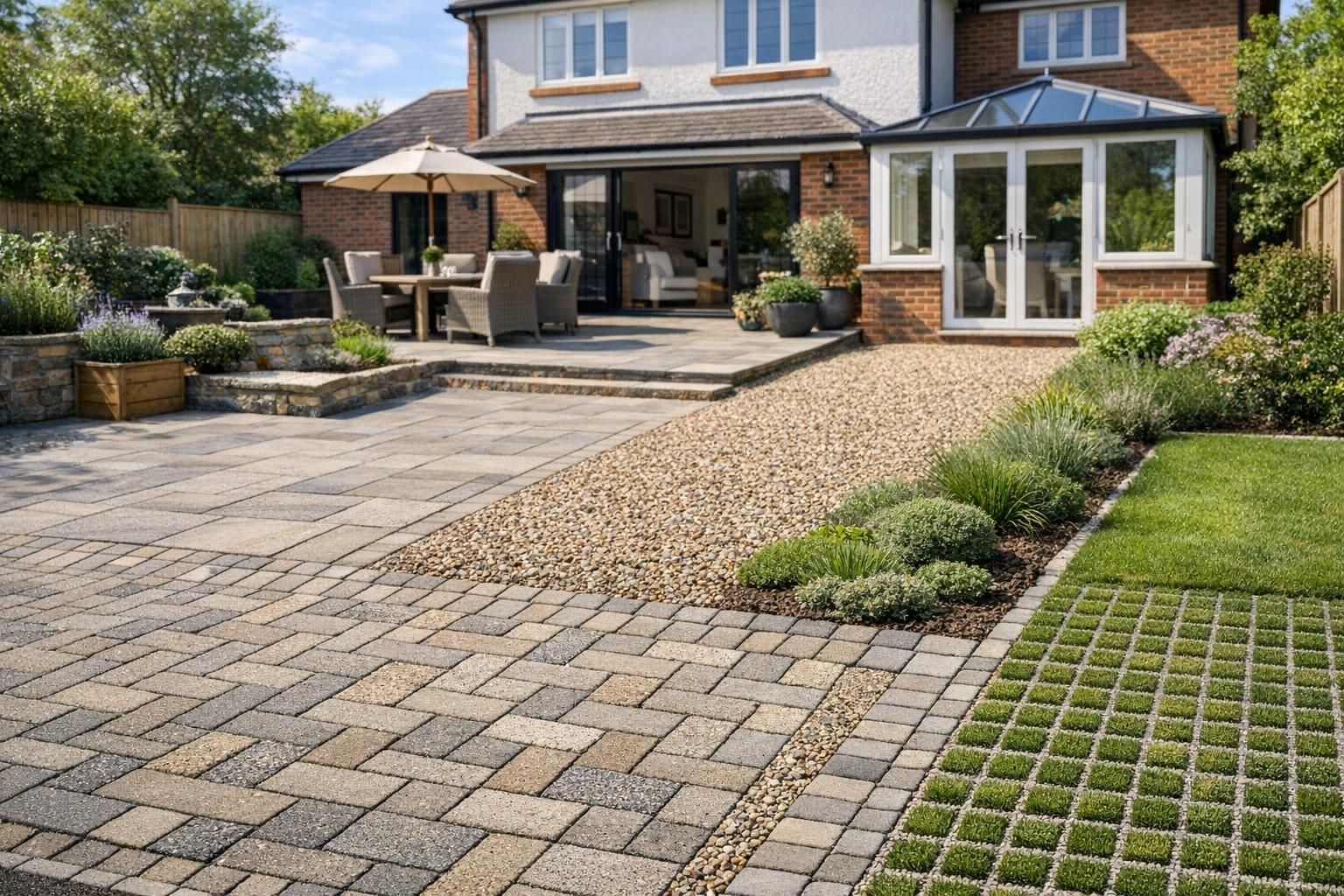

Permeable Paving Explained for Homeowners Drainage Rules Materials and Best Uses

If you have ever come home to a flooded driveway, standing water pooling against your house, or been told by your local council that your new front garden project needs planning permission, you are not alone. Many UK homeowners face unexpected costs running into hundreds or even thousands of pounds due to poor drainage design or non compliant surfaces. Permeable paving has become a go to solution for dealing with these issues before they escalate.

Permeable paving has become a go to solution for UK homeowners dealing with surface water, driveway regulations and increasingly unpredictable weather. Unlike traditional impermeable surfaces, permeable paving allows water to drain through the surface and into the ground below, reducing runoff and helping to prevent flooding. If you are planning a new driveway, patio or parking area, understanding how permeable systems work, and where they are required, will save you time, money and potential planning issues.

This guide draws on practical installation experience and current UK standards to explain how permeable paving works, what it costs, when you need it, and how to get it right first time.

What Is Permeable Paving and How Does It Work

Permeable paving is designed to let rainwater pass through the surface into a specially prepared sub base below. That water either soaks naturally into the ground or is slowly discharged into a drainage system.

There are two main approaches used in UK domestic projects.

• Permeable surfaces. Water passes directly through the material itself, such as porous asphalt or permeable concrete blocks.
• Permeable construction. Water drains through joints or gaps between blocks into an open graded sub base.

The underlying structure is the key. Instead of compacted MOT Type 1, which is almost impermeable, installers use an open graded aggregate such as Type 3 or 4/20 clean stone. This creates voids that temporarily store and disperse water.

In most residential installations, the system is designed to handle rainfall from a typical UK storm event. For heavier loads or clay soils, additional drainage layers or soakaways may be required.

Permeable Paving and UK Planning Rules

One of the biggest drivers behind permeable paving is planning legislation. Since 2008, UK rules have restricted the use of non permeable surfaces in front gardens.

According to the UK Government guidance, planning permission is not usually required if:

• The driveway is under 5 square metres, or
• The surface is permeable and allows water to drain naturally

If you install an impermeable surface over 5 square metres without proper drainage, you will normally need planning permission.

You can read the official guidance here: Permeable surfacing of front gardens guidance

Permeable paving systems are therefore often the easiest route to compliance. They remove the need for planning consent in most front garden conversions.

For a broader overview of permission rules, see Planning Permissions Explained: What You Need to Know and additional guidance via the Planning Portal.

Types of Permeable Paving Materials

Different materials suit different budgets, ground conditions and visual preferences. These are the most commonly used options across the UK.

Permeable Block Paving

This is one of the most popular choices for domestic driveways. The blocks are either porous or laid with wider joints filled with angular grit instead of sand.

Pros

• Attractive and widely available
• Easy to repair section by section
• Good load bearing for vehicles

Cons

• Higher labour cost due to excavation and sub base requirements
• Needs correct jointing material to remain permeable

Resin Bound Gravel

Resin bound systems combine aggregate with a permeable resin that creates a smooth, porous finish.

Pros

• Modern appearance
• Fully permeable if installed correctly
• Low maintenance

Cons

• Higher material cost
• Requires skilled installation
• Susceptible to poor workmanship

A detailed cost comparison is covered here: How Much Does It Cost to Install a New Driveway in the UK in 2026? Block Paving vs Resin vs Tarmac Prices Compared.

Porous Asphalt and Concrete

These are specialist systems mainly used in commercial settings but occasionally in domestic driveways.

Pros

• Clean, uniform finish
• Good performance in heavy rain

Cons

• Limited choice of appearance
• Requires experienced contractors

Gravel with Stabilisation Grids

Loose gravel becomes permeable by default, but grids improve stability and prevent rutting.

Pros

• Lower cost option
• Simple installation
• Excellent drainage

Cons

• Movement and migration if not contained properly
• Not ideal for steep slopes

Typical Costs for Permeable Paving in the UK

Costs vary depending on material, access, excavation depth and ground conditions. Below is a realistic overview based on current UK pricing.

Material	Average Cost per m²	Typical Lifespan
Permeable block paving	£80 to £130	20 to 30 years
Resin bound gravel	£90 to £150	15 to 25 years
Porous asphalt	£70 to £120	15 to 20 years
Gravel with grids	£50 to £90	Varies

Location has a major impact on cost. In London and the South East, labour rates are typically £250 to £350 per day for a two person groundworks team. In the Midlands or North, this often drops to £180 to £250 per day.

Groundworks often make up a large portion of the cost. Excavation, waste removal and sub base installation can range from £30 to £60 per m² depending on depth and access.

Skip hire for waste removal typically costs £250 to £400 for a standard builders skip, with higher rates in London. Difficult access, such as terraced properties with no driveway, can increase labour time significantly.

Optional extras to budget for include:

• Edging kerbs or setts at £20 to £50 per linear metre
• Drainage channels at £100 to £200 per unit installed
• Excavation in rocky or made ground which increases time and disposal costs

If additional drainage such as soakaways is needed, costs can increase significantly. A typical domestic soakaway installation might range between £1,000 and £3,000 depending on size and soil conditions. See How Much Does It Cost to Install Garden Drainage in 2026? Soakaways, French Drains and Groundworks Explained for a detailed breakdown.

Drainage Design and Building Regulations

Permeable paving must be designed in line with UK drainage principles. The goal is to manage water at source rather than sending it into overstretched public sewers.

Understanding Part H of Building Regulations

Building Regulations Part H covers drainage and waste disposal. For permeable paving, this becomes relevant if water is directed into drainage systems, soakaways or existing pipework. Systems must ensure that water is safely dispersed without risk to buildings or neighbouring properties.

SuDS Principles and Approval Bodies

The system should follow SuDS principles, known as Sustainable Drainage Systems. These are encouraged by local authorities and supported by the Environment Agency.

In Wales and some developments in England, SuDS Approval Bodies may need to sign off drainage designs for larger or new build projects. For typical domestic driveways, this is less common but still relevant in new housing estates.

Key guidance can be found here: CIRIA SuDS Manual

Role of Local Planning Authorities

Local councils will assess whether your project complies with surface water rules. If water runs onto the highway or neighbouring land, enforcement action can follow. This often results in homeowners having to retrofit drainage at significant cost.

Sub Base Design and Water Storage

The sub base acts as a temporary water storage layer. On sandy soils, 150mm to 250mm may be sufficient. On clay, depths of 300mm or more are common to allow water to slowly disperse or connect to an overflow.

Soil Types and Their Impact

• Clay soils drain slowly. Require deeper sub bases and often a soakaway
• Sandy soils drain quickly. Allow for simpler designs
• Chalk soils can drain well but may need stabilisation

Basic requirements include:

• Water should drain to a natural soakaway where possible
• Systems must avoid directing water onto neighbouring properties
• Sub base depth must suit expected loads and rainfall

In some cases, Building Regulations Part H may apply, particularly if drainage connects to existing systems. More detail on household drainage components is explained in Drainage Systems for UK Homes Explained Soil Pipes Gullies Soakaways and Common Faults.

Best Uses for Permeable Paving in UK Homes

Permeable paving is not just for driveways. It has several practical applications around UK homes.

• Front garden parking areas where planning rules apply
• Patios prone to pooling or standing water
• Paths and access routes in low lying gardens
• Driveways on slight slopes
• Areas with existing drainage issues

It performs particularly well in sandy or loamy soils where water can soak away naturally. Clay soils require more careful design, often with larger sub bases or overflow drainage.

Permeable vs Non Permeable Paving Comparison

Factor	Permeable Paving	Non Permeable Paving
Cost	Higher upfront	Lower upfront
Planning permission	Usually not required	Often required over 5m²
Drainage performance	Excellent	Poor without added drainage
Maintenance	Moderate	Low but risk of pooling
Lifespan	15 to 30 years	15 to 25 years

Installation Process and Timeframes

A typical domestic permeable driveway installation takes between three and seven days depending on size and conditions.

Step by Step Installation Breakdown

• Day 1, excavation and waste removal. Typically 150mm to 350mm depth
• Day 2, sub base installation in layers with compaction
• Day 3, edge restraints and geotextile membranes
• Day 4 to 5, laying surface material and finishing
• Final stage, clean up and inspection

Factors That Affect Timeframes

Weather is a major factor. Heavy rain can halt work or affect compaction. Clay soils slow excavation. Poor access increases labour time. Resin systems also require dry conditions to cure properly.

Curing and Settling Time

Block paving can usually be used within 24 to 48 hours. Resin bound surfaces may need up to 48 hours curing time depending on temperature.

Real World Scenario

A typical London driveway with restricted access and clay soil can take up to 10 days due to manual excavation and deeper sub base requirements. The same size job in sandy soil with machine access may be completed in under a week.

Common Mistakes to Avoid

Permeable systems fail more often due to poor installation than material choice. These are the issues seen most frequently on UK jobs.

• Using the wrong sub base. MOT Type 1 blocks drainage and defeats the purpose
• Poor edge restraint leading to movement and gaps
• Incorrect jointing materials in block paving
• No consideration of soil type and soakaway capacity
• Connecting runoff to drains without proper approval
• Insufficient excavation depth for vehicle traffic

Signs of Poor Installation

• Standing water after rainfall
• Sinking or uneven areas
• Loose blocks or spreading edges
• Weeds growing quickly through joints
• Water flowing towards the house

Rectifying these issues later can cost more than the original installation. In some cases, the entire driveway has to be removed and rebuilt.

Maintenance Requirements

Permeable paving is relatively low maintenance but not maintenance free.

Routine Maintenance Schedule

• Sweeping monthly to prevent debris buildup
• Pressure washing once or twice per year
• Jointing top up every 1 to 2 years

Typical Maintenance Costs

Professional cleaning services range from £150 to £300 depending on size. Re sanding or re jointing can add £100 to £200.

Consequences of Neglect

If joints clog, permeability reduces and water begins to pool. Over time this can lead to frost damage, staining and eventual failure of the system.

Warranties and Installer Guarantees

A reputable UK installer will usually provide a workmanship guarantee of 5 to 10 years. Material warranties may extend longer depending on manufacturer.

Always confirm:

• What the guarantee covers
• Whether drainage performance is included
• If maintenance conditions apply

Practical Checklist Before You Start

• Confirm whether your project falls under permitted development
• Check soil type and drainage capacity
• Decide on material based on budget and usage
• Get at least three quotes from experienced installers
• Ask about sub base specification and drainage design
• Ensure waste disposal is included in the quote
• Confirm guarantees or warranties

FAQ

Do I always need permeable paving for a new driveway?

No, but if your driveway exceeds 5 square metres and does not drain to a permeable area, you will likely need planning permission. Using permeable paving avoids this in most cases. For example, homeowners installing standard block paving without drainage channels are often required to resubmit plans or retrofit drainage.

Will permeable paving stop flooding completely?

It reduces surface water significantly but cannot solve wider drainage problems such as high water tables or overloaded public drains. In flood prone areas, additional measures such as soakaways or channel drains may still be needed.

Is permeable paving more expensive than standard paving?

Yes, typically by 10 to 30 percent. However, avoiding planning applications and future drainage repairs often offsets the initial cost.

Can permeable paving be installed on clay soil?

Yes, but expect deeper excavation and possibly a soakaway system. Costs can increase by £20 to £40 per m² due to additional materials and labour.

How long does permeable paving last?

With proper installation and maintenance, most systems last between 15 and 30 years. Block paving can last longer if individual units are replaced as needed.

Do rules differ for listed buildings or conservation areas?

Yes. In conservation areas or for listed properties, stricter controls may apply. Even permeable paving may require approval if it alters the appearance of the property. Always check with your local planning authority before starting work.

Final Thoughts

Permeable paving offers a practical solution to modern drainage challenges while helping homeowners stay compliant with UK planning rules. The key is in the design and installation. Cutting corners with sub base materials or drainage planning often leads to costly failures.

If you are considering a new driveway or addressing drainage problems, getting expert advice early makes a significant difference. You can post a job on BookaBuilderUK to receive free quotes from vetted local tradespeople who understand permeable systems and UK regulations.
