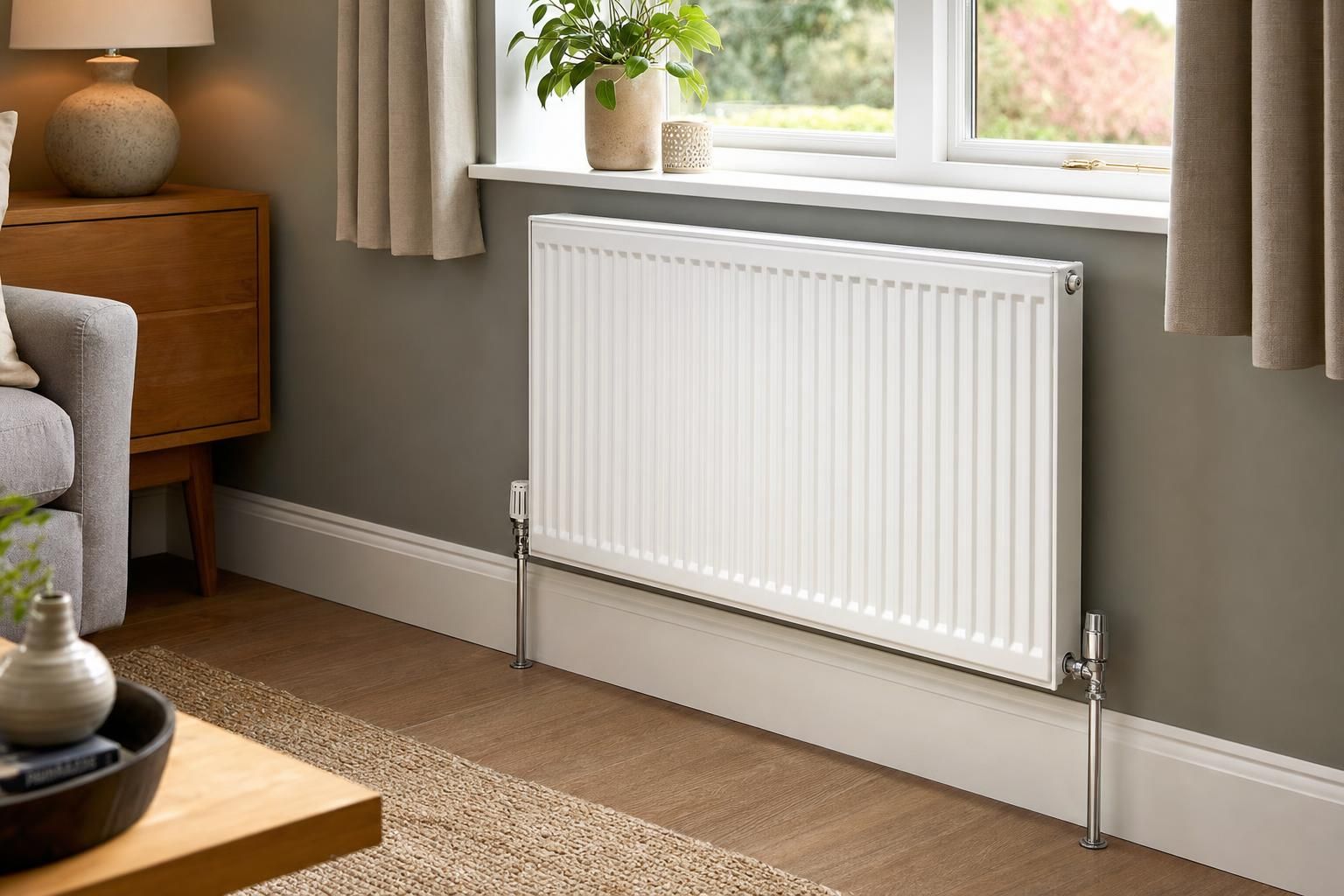

How to Rehang a Radiator and Reconnect Valves Without Causing Leaks

Rehanging a radiator and reconnecting valves without causing leaks is a job many UK homeowners face after decorating, plastering or replacing brackets. The biggest and most expensive mistake is missing a small hidden leak. A joint that looks dry can slowly weep under pressure, soak into floors or ceilings, and lead to repairs that cost far more than the original job. Done right, the refit is clean, quick and reliable. Done poorly, it results in repeated callouts, damaged finishes and ongoing pressure loss. This guide sets out a practical, trade level approach so you can rehang a radiator with confidence, pressurise the system correctly and avoid those costly pitfalls.

This advice is based on standard UK wet central heating systems with copper or plastic pipework and either manual or thermostatic radiator valves. If you are dealing with sealed systems, combi boilers or older gravity fed setups, the core steps remain similar, but care around pressure control, water treatment and balancing becomes more significant.

When Should You Rehang a Radiator?

Most radiators are removed temporarily for decorating, skirting replacement or plastering. You may also rehang after replacing wall brackets or switching to a different radiator style.

Practical reasons include:

• Access for painting or wallpapering behind the radiator
• Fixing loose or poorly aligned brackets
• Upgrading to a more efficient or larger radiator
• Sorting out noisy or poorly balanced heating systems

If you have existing valve issues such as drips or seized spindles, deal with them before rehanging. You can refer to How to Fix a Leaking Radiator Valve in a UK Home Tighten the Nut Replace the Olive and Stop Drips Fast for a focused repair approach.

Tools and Materials You Will Need

Having the right kit prevents rushed fixes that lead to leaks later. A basic setup includes:

• Adjustable spanners or open ended spanners
• Radiator bleed key
• PTFE tape
• New olives if reconnecting compression joints
• Pipe grips or mole grips
• Spirit level
• Wall plugs and suitable screws for brackets
• Cloth or tray to catch residual water
• Inhibitor if topping up the system

Trade tip, always carry spare olives and valve tails. Reusing old compression rings is one of the main causes of slow leaks after refitting.

Step by Step, How to Rehang a Radiator and Reconnect Valves Without Leaks

1. Turn Off the Heating and Isolate the Radiator

Switch off the boiler and allow the system to cool fully. This usually takes 30 to 60 minutes. Close both radiator valves fully. On a thermostatic radiator valve, turn it to zero. On the lockshield side, remove the cap and use a spanner to close it clockwise.

Check that the valves actually shut off properly. Older valves can fail internally. A simple test is to slightly loosen the union nut. If water continues to flow steadily, the valve is not isolating. At that point you either need to drain down more of the system or freeze the pipe.

If you are unsure about prior leaks, see How to Stop a Radiator Leak at the Valve Before It Damages Floors before proceeding.

2. Drain Down Just Enough Water

You do not always need to drain the full system. For many installations you can isolate and drain just the radiator by loosening a union nut and catching the water. This step usually takes 10 to 20 minutes.

In sealed systems, reduce pressure first using a drain off point. Aim to bring pressure down to zero before opening any joints.

If a valve will not fully isolate, do not force it. Either drain further back in the system to a lower level, or use pipe freezing equipment if you are experienced. Attempting to rush this step is a common cause of uncontrolled leaks.

The Health and Safety Executive provides general safety guidance on domestic hot water systems at https://www.hse.gov.uk.

If you want to avoid draining entirely when replacing parts, this guide is useful How to Replace a Radiator Valve in a UK Home Without Draining the Whole System.

3. Remove the Radiator Safely

Undo the union nuts connecting the radiator to the valves. Keep a tray and towels ready. Lift the radiator off its brackets, tipping it slightly to drain remaining water into a container.

Radiators can be heavier than expected, especially older steel panel types. Larger double radiators may need two people. Allow 10 minutes for removal, but take your time to avoid damage.

4. Check and Fix Wall Brackets

Before rehanging, ensure brackets are level and firmly fixed into suitable wall anchors. Plasterboard alone rarely holds long term without heavy duty fixings.

Use a spirit level. A slight fall towards the bleed valve side helps air removal, but keep it minimal. Excessive tilt can restrict flow and reduce output.

Replacing brackets and refixing correctly can take 20 to 40 minutes depending on wall type.

5. Inspect Valve Connections and Pipe Alignment

This is where many leaks start. Take time here.

• Check valve tail threads. Look for worn threads, flattened ridges or signs of cross threading. If the tail spins loosely or will not tighten cleanly, replace it.
• Inspect compression joints for scoring or deformation.
• Check pipe alignment. Pipes should naturally line up with the valve centres. If you have to pull or push the pipe more than a few millimetres, stress will remain in the joint.

For microbore systems, usually 8mm or 10mm pipe, alignment is even more critical. These smaller pipes deform easily and are less forgiving. Standard 15mm systems allow slightly more tolerance.

If working with plastic pipe, ensure inserts are fitted inside the pipe ends before reconnecting compression fittings. Without inserts, the pipe can collapse under compression and leak.

6. Replace Olives if Needed

If you have disconnected a compression joint, replacing the olive is best practice. Old olives often develop flat spots or slight oval shapes.

Clean the pipe with fine wire wool. Slide on a new olive and ensure it sits squarely. This step takes a few minutes but prevents hours of troubleshooting later.

7. Rehang the Radiator

Lift the radiator back onto the brackets, ensuring it is fully seated. Check alignment visually and with a level. This step usually takes 5 to 10 minutes.

8. Reconnect the Valves Carefully

Bring the valves to meet the radiator tails rather than forcing the radiator to meet the pipes.

Apply PTFE tape to valve tail threads only. Do not use it on compression joints.

Tighten union nuts by hand first, then with a spanner. Typical tightening is hand tight plus a quarter turn. Avoid overtightening. Excess force can cause hairline cracks in fittings or deform olives.

On plastic pipe fittings, tighten slightly less than with copper. Check manufacturer guidance, as overtightening plastic compression joints is a frequent cause of delayed leaks.

9. Refill and Pressurise the System

Open both valves slowly. Refill the system using the filling loop to around 1 to 1.5 bar when cold.

Refilling takes around 5 to 10 minutes. Do this gradually to avoid trapping air.

10. Bleed the Radiator

Bleed the radiator until water flows steadily. Repeat after initial heat up, as more air may collect.

If you need a refresher, see How to Bleed a Radiator Properly in a UK Home Step by Step Guide to Tools Safety and Fixing Cold Spots.

11. Check for Leaks Thoroughly

Run the heating and inspect every joint. Initial checks should be done within 15 minutes of heating up, then again after 30 to 60 minutes.

Use dry tissue around fittings. Even slight moisture needs addressing. Leave the system running through several heating cycles and recheck after 24 hours.

12. Balance the System

After you rehang a radiator, system balance can be affected. Balance by adjusting lockshield valves so each radiator heats evenly. Radiators closer to the boiler should be more restricted, while those further away are opened more.

This helps achieve consistent heat distribution and improves efficiency. You can also refer to How to Balance Radiators in a UK Home for Even Heating.

Typical Costs in the UK

If you hire a professional, costs depend on access, condition of pipework and whether parts need replacing. Plumbers typically charge £40 to £90 per hour depending on region. In London and the South East, rates of £70 to £110 per hour are common.

Job Type	Typical Cost Range
Rehang existing radiator only	£80 to £150
Rehang with minor valve adjustment	£120 to £200
Rehang with new valves and fittings	£150 to £300
Repair leaks after poor refit	£100 to £250

Costs in the North of England and parts of Wales are often 10 to 20 percent lower than London. Emergency callouts, especially evenings or weekends, can add £80 to £150 on top.

Costs escalate in scenarios such as seized valves that snap during adjustment, pipe misalignment requiring alteration, or hidden leaks that have damaged flooring.

Detailed Cost Breakdown

Cost Element	Typical Range	Notes
Labour	£80 to £200	1 to 3 hours depending on complexity
New valves	£15 to £60 each	Thermostatic valves cost more
Olives and small fittings	£5 to £15	Usually minor but essential
Pipe adjustments	£50 to £150	Required if alignment is poor
Inhibitor	£10 to £25	Recommended after draining
Callout fee	£50 to £120	Varies by region and urgency

DIY vs Hiring a Professional

Factor	DIY	Professional
Cost	Lower upfront	Higher but predictable
Risk	Medium to high if inexperienced	Low with proper workmanship
Time	2 to 4 hours typical	1 to 2 hours typical
Tools required	Must supply your own	All included
Outcome reliability	Varies	Consistent and guaranteed

Common Mistakes to Avoid

Even confident DIYers make avoidable errors. Understanding the consequences helps avoid them.

• Overtightening compression joints. This can create hairline cracks in nuts or deform olives. These faults often do not leak immediately but develop into slow weeps over multiple heating cycles.
• Reusing old olives. A reused olive can look fine but fail to reseal, leading to micro leaks that leave staining or corrosion.
• Misaligned pipework. Stress in the joint causes movement as pipes expand and contract, gradually loosening seals.
• Forgetting PTFE on valve tail threads. This results in slow leaks that track along threads.
• Not checking brackets. A loose radiator places strain on connections over time.
• Refilling too quickly. Air pockets reduce efficiency and can cause noise or cold spots.
• Skipping hot checks. Many leaks only appear once the system reaches temperature.

Troubleshooting Persistent Leaks

If issues appear after refitting, act quickly.

• If a joint still weeps after tightening, drain down slightly and replace the olive. Do not keep tightening.
• If a valve continues to drip from the spindle, the internal seal has failed and the valve needs replacing.
• If pressure drops after repressurising, check all joints and inspect the boiler pressure relief pipe outside for discharge.

Relevant UK Standards and Good Practice

While rehanging a radiator is not notifiable work, it should follow recognised standards.

• Part L of the Building Regulations covers energy efficiency and system performance, see https://www.gov.uk/government/publications/conservation-of-fuel-and-power-approved-document-l
• BS 7593 sets out best practice for treatment of water in domestic heating systems, including cleaning and inhibitor use
• Guidance from CIPHE is available at https://www.ciphe.org.uk
• Gas work related to boilers must be carried out by a Gas Safe registered engineer, details at https://www.gassaferegister.co.uk

Inhibitor should be added or topped up whenever water is drained from the system. This protects against corrosion and sludge, which can reduce efficiency and damage components. In practical terms, following Part L means ensuring radiators heat evenly and the system operates efficiently after work is completed.

When to Call a Professional

Some situations are not suited to DIY:

• Corroded or pitted pipework
• Valves that will not isolate at all
• Repeated pressure loss with no visible leaks
• Microbore systems with multiple issues
• Signs of previous water damage beneath floors

In these cases, attempting a refit can make problems worse.

Expanded Pre and Post Installation Checklist

Before starting:

• System fully cooled
• Valves tested for isolation
• Correct tools and spare parts ready

During installation:

• Pipes aligned without force
• New olives fitted where needed
• Valve tails sealed with PTFE

After installation:

• System refilled slowly to correct pressure
• Radiator bled at least twice
• Initial leak check completed within 30 minutes
• Second check after full heat cycle
• Final check after 24 hours
• Monitor over several days for pressure drops or damp patches

FAQ

Do I need to drain the whole central heating system to rehang a radiator?

No. In many homes you can isolate the radiator using the valves and only drain that unit. Full system draining is usually only required if valves fail to shut off or you are replacing multiple components.

Why is my radiator leaking after I reconnected it?

The usual causes are misaligned pipework, reused olives or overtightened compression fittings. Small leaks often appear after the system heats up and expands.

How tight should radiator valve connections be?

Firm but controlled. Hand tight plus a small additional turn with a spanner is standard practice. Excess force damages seals rather than improving them.

Can I use PTFE tape on compression fittings?

PTFE is used on threaded connections such as radiator tails. Compression fittings rely on the olive and do not require tape on the compression joint itself.

How long does it take to rehang a radiator properly?

A straightforward refit usually takes one to two hours. Allow longer if brackets need replacing or valves require repair. Including checks after heating cycles, expect the full process to span a day.

Final Thoughts

Rehanging a radiator and reconnecting valves is a manageable job if approached methodically. The key is careful alignment, fresh sealing components and patience during refilling and testing. Most leaks stem from rushing or trying to reuse worn parts.

Taking the time to recheck joints after several heating cycles is what separates a reliable job from one that causes problems weeks later.

If you are unsure at any stage or dealing with older pipework, it is often quicker and cheaper to get a professional involved rather than risk water damage.
