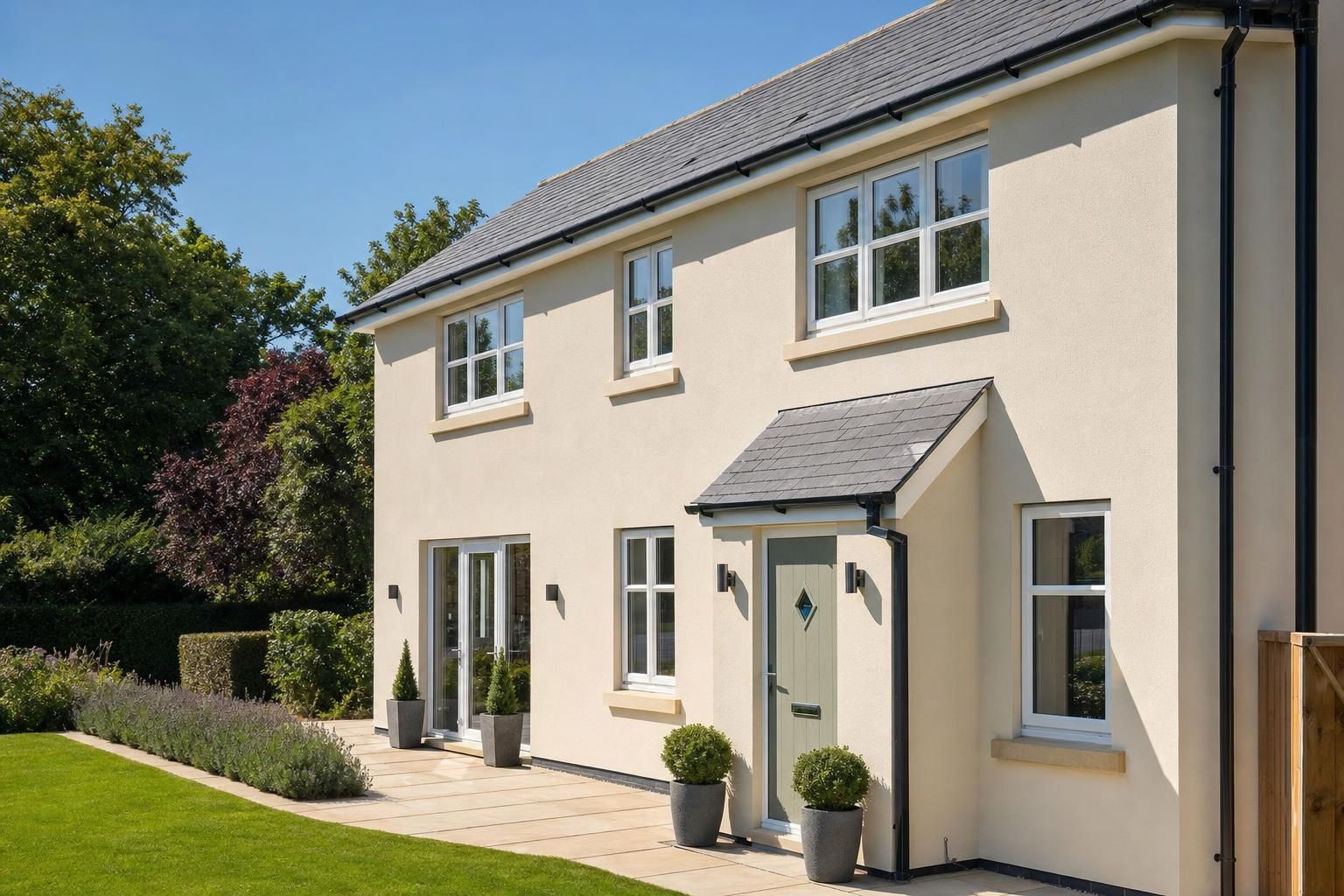

Render Mesh Explained Why It Matters for Crack Resistance and Long Lasting External Walls

A typical render repair on a UK home can easily cost £2,000 to £6,000 once scaffolding, labour and redecoration are factored in. In many cases, those failures trace back to one issue, missing or poorly installed render mesh. Hairline cracks that appear within the first winter, blown panels around windows, or entire elevations needing replacement are often the result of incorrect reinforcement within the system.

Render mesh is one of the most overlooked components in modern rendering systems, yet it plays a central role in crack resistance and the long term performance of external walls. Whether you are refurbishing a tired façade or installing a full external wall insulation system, getting the mesh specification and installation right will often determine whether your render lasts decades or starts failing within a few winters.

On site, failures linked to poor mesh work are common. Hairline cracks around windows, blown render panels and movement lines that telegraph through the finish are often traced back to missing, poorly embedded, or incorrect mesh. This is not about cutting corners on materials cost. It is about understanding how render behaves in real UK conditions, from freeze thaw cycles to substrate movement.

What Is Render Mesh and Why It Matters for Crack Resistance

Render mesh is a reinforcing material, usually made from alkali resistant glass fibre, that is embedded within the basecoat layer of a render system. Its job is to distribute stress across the surface, preventing localised cracks from forming and spreading.

Walls move. That includes new builds, older solid walls, and insulated systems. Temperature changes, moisture levels and minor structural settlement all introduce stress. Render on its own is brittle. Without reinforcement, it cannot accommodate this movement effectively.

The mesh acts as a tensile layer within the render. It spreads loads, bridges weak points and prevents cracks from opening up. This becomes especially important around openings like windows and doors where stress concentrations occur.

In the UK, render systems that comply with manufacturer specifications and British standards almost always include mesh reinforcement as a core component. Skipping it or installing it poorly is a false economy.

Types of Render Mesh Used in UK Projects

Not all mesh is created equal. The type used should match the system and the exposure conditions of the building.

Alkali Resistant Glass Fibre Mesh

This is the most common type used across thin coat systems and external wall insulation. Cement based renders are highly alkaline, so the mesh must be specifically designed to resist degradation.

• Typical weight ranges from 145gsm to 160gsm for standard applications
• Heavier meshes around 200gsm are used in high impact zones
• Supplied in rolls typically 1 metre wide

For most domestic properties, a 160gsm alkali resistant mesh is standard. Cheaper non certified mesh can break down over time, leading to premature cracking.

High Impact or Reinforced Mesh

Used at ground level or areas prone to knocks such as near driveways, paths or public facing walls.

• Heavier weave and higher tensile strength
• Often installed as an additional layer over standard mesh

Expect this in systems designed to meet higher durability classifications under manufacturer guidelines.

Metal Lath or Expanded Metal Mesh

Less common in modern insulated systems but still used on difficult substrates like timber frame or uneven masonry.

These are mechanically fixed and provide a key for render where adhesion alone is not sufficient.

Mesh Certification and Standards in the UK

Professional installers do not rely on appearance alone. Mesh used in UK render systems should comply with recognised standards and certification.

• BBA certification confirms that a full render system, including mesh, has been independently assessed for durability and performance in UK conditions
• BS EN 13496 covers the requirements for glass fibre meshes used in reinforced render systems, including tensile strength and alkali resistance
• CE marking indicates compliance with European product standards, still widely referenced across UK construction products

On site, compliant mesh is usually supplied as part of a complete system from recognised manufacturers. Packaging should clearly state weight, alkali resistance and compliance details. If a contractor is using unbranded mesh with no traceable certification, that is a clear warning sign.

Further guidance on certified products can be found via the British Board of Agrément at https://www.bbacerts.co.uk.

Where Render Mesh Is Used in a System

Mesh is not applied randomly. There is a specific build up to follow.

In most modern systems, particularly those described in Thin Coat Render vs Full Render in UK Renovations Systems, Basecoats, Mesh and Crack Prevention Explained, the sequence is as follows:

• Substrate preparation
• Primer or bonding layer if required
• Basecoat render applied
• Mesh embedded into wet basecoat
• Additional basecoat to fully cover mesh
• Topcoat or decorative finish

The key detail is that the mesh must sit within the upper third of the basecoat, not directly on the substrate and not exposed at the surface.

Mesh in External Wall Insulation Systems

Render mesh becomes even more critical in insulated systems. External wall insulation boards introduce another layer that can move independently from the structure.

As explained in External Wall Insulation for UK Homes Explained Systems, U Values, Render Finishes and Common Pitfalls to Avoid, the reinforced basecoat is what provides the impact resistance and crack control over the insulation boards.

In practice, insulation boards are fixed using adhesive and mechanical fixings. Even when installed correctly, slight differential movement can occur between boards and the underlying substrate. Without mesh reinforcement, these joints often show through within months as straight hairline cracks, particularly visible in low angle sunlight.

Mesh also plays a role in wind loading. On exposed elevations such as coastal properties or homes in upland areas, the render system must resist suction forces. The reinforced basecoat acts as a continuous skin that distributes these loads across the surface rather than allowing stress to concentrate at fixings or board joints.

Additional reinforcement details are standard:

• Diagonal mesh patches at window and door corners to prevent stress cracking
• Double mesh layers at ground level for impact resistance
• Extra reinforcement around movement joints and interfaces

Without properly installed mesh:

• Cracks can form along board joints
• Wind load can cause surface stress
• Impact resistance is significantly reduced

Most system manufacturers specify full surface mesh plus additional diagonal reinforcement patches at openings.

How Render Mesh Prevents Cracking

Cracking in render generally comes from stress exceeding the tensile capacity of the material. That stress may come from thermal expansion, shrinkage during curing, or movement in the substrate.

On UK sites, a common scenario is rapid drying followed by sudden rainfall. The outer surface of the basecoat can dry too quickly, creating internal tension. Without mesh, this often results in fine surface cracking that later develops into visible defects.

Mesh works by providing tensile strength within an otherwise brittle system. When stress builds, the fibres within the mesh carry part of that load, preventing it from concentrating in one point.

• Stress distribution. It spreads point loads across a wider area, particularly around openings and structural junctions
• Crack bridging. It holds material together if micro cracks begin to form, preventing them from widening
• Impact resistance. It adds toughness, reducing damage from everyday knocks such as ladders, bins or debris

Freeze thaw cycles are a major factor in the UK. Water enters microscopic pores in the render. When temperatures drop, it freezes and expands. This creates internal pressure. Mesh reinforcement limits the ability of these micro cracks to develop into larger failures.

Another key factor is long term creep and building movement. Even minor seasonal expansion and contraction can open up weak areas over time. Mesh ensures that these movements are absorbed across the surface rather than expressed as visible cracks.

Typical Costs of Render Mesh in the UK

Material cost is relatively small compared to the overall rendering job, but installation quality affects labour time.

Item	Typical UK Cost
Standard mesh roll 160gsm 50m2	£50 to £90
Heavy duty mesh	£80 to £140 per roll
Labour for embedding mesh	£10 to £20 per m2 within full system
Full render system with mesh	£60 to £120 per m2 depending on type

Regional labour rates vary. In London and the South East, installation can reach £20 to £30 per m2 for skilled rendering teams. In the North or Wales, rates often sit closer to £10 to £18 per m2.

Scaffolding is another major cost. For a typical semi detached property, expect £800 to £1,800 depending on access and duration. Extended hire due to delays can quickly increase this figure.

Where mesh fails prematurely, repair costs are significantly higher than initial installation:

• Localised crack repairs, £300 to £800
• Partial elevation replacement, £1,500 to £4,000
• Full re render including removal, £5,000 to £15,000 depending on size

These costs often include disruption such as scaffold re erection, waste removal, and redecoration. Most failures cannot be patched invisibly, particularly on modern thin coat finishes.

Mesh Type	Best Use Case	Durability	Typical Price
145gsm glass fibre	Light duty domestic areas	Moderate	£45 to £70 per roll
160gsm glass fibre	Standard full elevations	High	£50 to £90 per roll
200gsm heavy duty	Ground level and impact zones	Very high	£80 to £140 per roll
Metal lath	Difficult substrates	Very high if installed correctly	£10 to £20 per m2

Render Mesh Installation Best Practices

• Use alkali resistant mesh certified for render systems
• Ensure consistent basecoat thickness before embedding
• Embed mesh while basecoat is wet, never onto a dry layer
• Overlap joints by at least 100mm
• Avoid wrinkles or folds which create weak points
• Fully cover mesh with basecoat, no exposure
• Install extra diagonal mesh patches at corners of openings
• Add reinforced mesh at ground level zones

Correct Mesh Positioning and On Site Checks

Correct positioning is critical. On most systems, the basecoat is applied at around 4mm to 6mm thickness. The mesh should sit approximately 1mm to 2mm below the surface, in the upper third of the basecoat.

Installers confirm this visually during application. A faint outline of the mesh should be visible immediately after embedding, followed by full coverage with a final pass of basecoat. If the mesh disappears completely without a second pass, it is likely too deep. If it remains visible after finishing, it is too close to the surface.

Professional teams will regularly check embedment by scraping back small areas before curing to confirm consistent positioning across the elevation.

These are not optional details. They are standard practice for competent renderers.

Step by Step How Professionals Install Render Mesh

1. Prepare the substrate, ensuring it is stable, clean and suitably keyed
2. Apply primer or bonding agent if required by the system
3. Lay on the first pass of basecoat to the specified thickness
4. Press mesh into the wet basecoat using a steel trowel, working from top to bottom
5. Ensure overlaps of at least 100mm at all joints
6. Add diagonal reinforcement patches at all openings
7. Apply a second pass of basecoat to fully encapsulate the mesh
8. Rule off and smooth to achieve an even surface ready for topcoat
9. Allow curing time in line with manufacturer guidance before applying the finish

Common Mistakes That Lead to Cracks

Most rendering failures linked to mesh are avoidable. Here are the issues seen regularly on UK sites.

Mesh Too Close to the Surface

If mesh is visible or just beneath the surface, it is not doing its job. It will also degrade faster due to UV and moisture exposure. This often results in a grid pattern becoming visible across the wall within a year.

Insufficient Overlap

Gaps or minimal overlaps create stress lines that often lead to cracking exactly along those joints. This is particularly noticeable on large flat elevations.

Wrong Mesh Type

Using non alkali resistant mesh in cement based render leads to chemical degradation. On site, this often appears after two to three winters as random cracking and soft spots in the render where the mesh has broken down.

Missing Reinforcement at Openings

Corners of windows and doors are high stress points. Without diagonal mesh strips, cracks often form in a classic 45 degree pattern. These are among the most common defects reported by homeowners.

Poor Substrate Preparation

Even the best mesh cannot compensate for a moving or poorly prepared substrate. Loose masonry, damp issues or lack of key will still cause failure.

Real world examples include render applied over painted brick without proper preparation, or insulation boards fixed unevenly. In both cases, movement beneath the surface leads to cracking that mesh alone cannot prevent.

How to Spot Poor Mesh Installation on Your Property

• Visible grid pattern in certain light conditions
• Cracks following straight lines across the wall, often at mesh joints
• Diagonal cracks from window and door corners
• Uneven or rippled surface indicating poorly embedded mesh
• Cracks appearing within the first year after installation
• Hollow sounding areas when tapped, suggesting delamination

If any of these signs are present, it is worth getting an experienced renderer to inspect the work before issues worsen.

How Mesh Works with Beads and Movement Joints

Render systems rely on several components working together. Mesh is only one part.

Beads define edges and protect corners. Movement joints control where cracks can occur without damaging the finish. More detail on beads can be found here: Render Beads Explained for Homeowners Corner Beads Stop Beads and Best Practice Installation.

Mesh should integrate neatly with bead installation. Poor alignment or gaps between mesh and beads create weak zones.

Mesh and Different Render Finishes

The type of topcoat also influences how critical mesh becomes.

Silicone renders are highly flexible and breathable, making them well suited to UK weather. However, they are applied in very thin layers, often 1.5mm to 3mm. This means the reinforced basecoat with mesh carries most of the structural performance.

Acrylic renders offer similar flexibility but are less breathable. On properties with higher moisture exposure, proper mesh reinforcement helps reduce the risk of trapped moisture leading to cracking.

Monocouche renders are thicker, typically 15mm to 20mm in a single coat. While some systems can be applied without full mesh coverage on very stable substrates, many installers still incorporate reinforcement in stress areas to improve long term performance.

Traditional sand and cement render is more rigid and prone to cracking. In UK conditions, adding mesh, even if only in critical areas, significantly improves durability.

You can compare systems in more detail here: Render Systems Explained Silicone Acrylic Monocouche and Mineral Finishes Compared.

Even with flexible finishes, skipping mesh is not acceptable practice.

Regulations and Standards in the UK

Rendering work may fall under Building Regulations depending on the scope of the project. External wall insulation systems must meet thermal performance targets under Part L of the Building Regulations. This includes achieving required U values, which is only possible when the full system, including reinforced basecoat with mesh, is installed correctly.

Changes to the external appearance of a property may require planning permission, particularly in conservation areas or on listed buildings. Altering façade materials or significantly changing the finish can trigger this requirement.

Guidance can be found via the UK Government planning portal at https://www.planningportal.co.uk/permission/common-projects/external-walls.

Health and safety during installation, especially when working at height, is governed by the Health and Safety Executive. See https://www.hse.gov.uk/construction/.

Many render systems are also covered by BBA certification, which sets out approved installation methods including mesh requirements. Using a BBA approved system is often necessary to obtain manufacturer backed warranties and insurance guarantees. Deviating from these specifications can void cover.

Timeframes for Installation

Mesh installation is part of the basecoat stage. For a typical semi detached house:

• Scaffolding setup. 1 to 2 days
• Preparation and insulation boards if applicable. 2 to 5 days
• Basecoat and mesh embedding. 2 to 3 days
• Curing period before topcoat. 2 to 5 days depending on weather
• Finish coat application. 1 to 2 days

UK weather has a direct impact on each stage. Rain can wash out fresh basecoat or delay application entirely. Frost can prevent curing and damage uncured render, often requiring removal and reapplication. High humidity slows drying times, extending curing periods by several days.

Normal delays include short weather related pauses of one to three days. Problematic delays occur when basecoat is left exposed for extended periods without protection, increasing the risk of contamination or uneven curing.

Professional installers monitor forecasts closely and may use protective sheeting to control conditions on site.

What Can Go Wrong If Mesh Is Skipped or Poorly Installed

The consequences are not just cosmetic.

• Visible cracking within months, often requiring early intervention
• Water ingress through cracks leading to damp issues internally
• Delamination of render layers, where sections detach from the wall
• Reduced lifespan of the entire system, often cut from 25 years to under 10

In practical terms, this can mean scaffold going back up within a few years, disruption to occupants, and significant cost. Many UK homeowners face repair bills of several thousand pounds, often exceeding the original saving made by cutting corners.

FAQ

Do all render systems require mesh?

Most modern systems do. Traditional sand and cement render on very stable masonry might not always include full mesh coverage, but even then, reinforcement at weak points is standard. External wall insulation systems always require mesh as part of manufacturer specifications.

Can I add mesh to an existing cracked render?

Not effectively. Mesh needs to be embedded within the basecoat. Surface fixes will not address underlying issues. In most cases, the cracked render needs to be removed and replaced properly.

How thick should the basecoat be when embedding mesh?

Typically around 4mm to 6mm depending on the system. The mesh should sit within the upper third of that thickness, fully covered by the basecoat.

Is thicker mesh always better?

No. Heavier mesh is useful in high impact areas but not necessary across the whole wall. Using the correct specification for each area is more effective than over engineering everything.

How do I know if my contractor is installing mesh correctly?

Ask to see the mesh before it is covered. Check overlaps, positioning and that it is fully embedded. A reputable contractor will have no issue showing this stage and explaining their process.

How long should render with mesh last in the UK climate?

A properly installed system using certified materials should last 20 to 30 years in typical UK conditions. Coastal or highly exposed properties may see slightly reduced lifespans, but good installation and maintenance make a significant difference.

Does render mesh affect insurance or warranties?

Yes. Many manufacturer warranties rely on full system compliance, including correct mesh type and installation. If issues arise and specifications were not followed, warranties can be void. Some insurers may also reject claims linked to poor workmanship.

Final Thoughts

Render mesh might not be visible once the job is complete, but it is one of the most critical elements in achieving a durable, crack resistant finish. It supports the integrity of the entire system, whether you are applying a thin coat silicone render or a full insulated façade.

Cutting corners on mesh or its installation leads to predictable failures. Investing in proper materials and experienced tradespeople pays off in both appearance and longevity.
