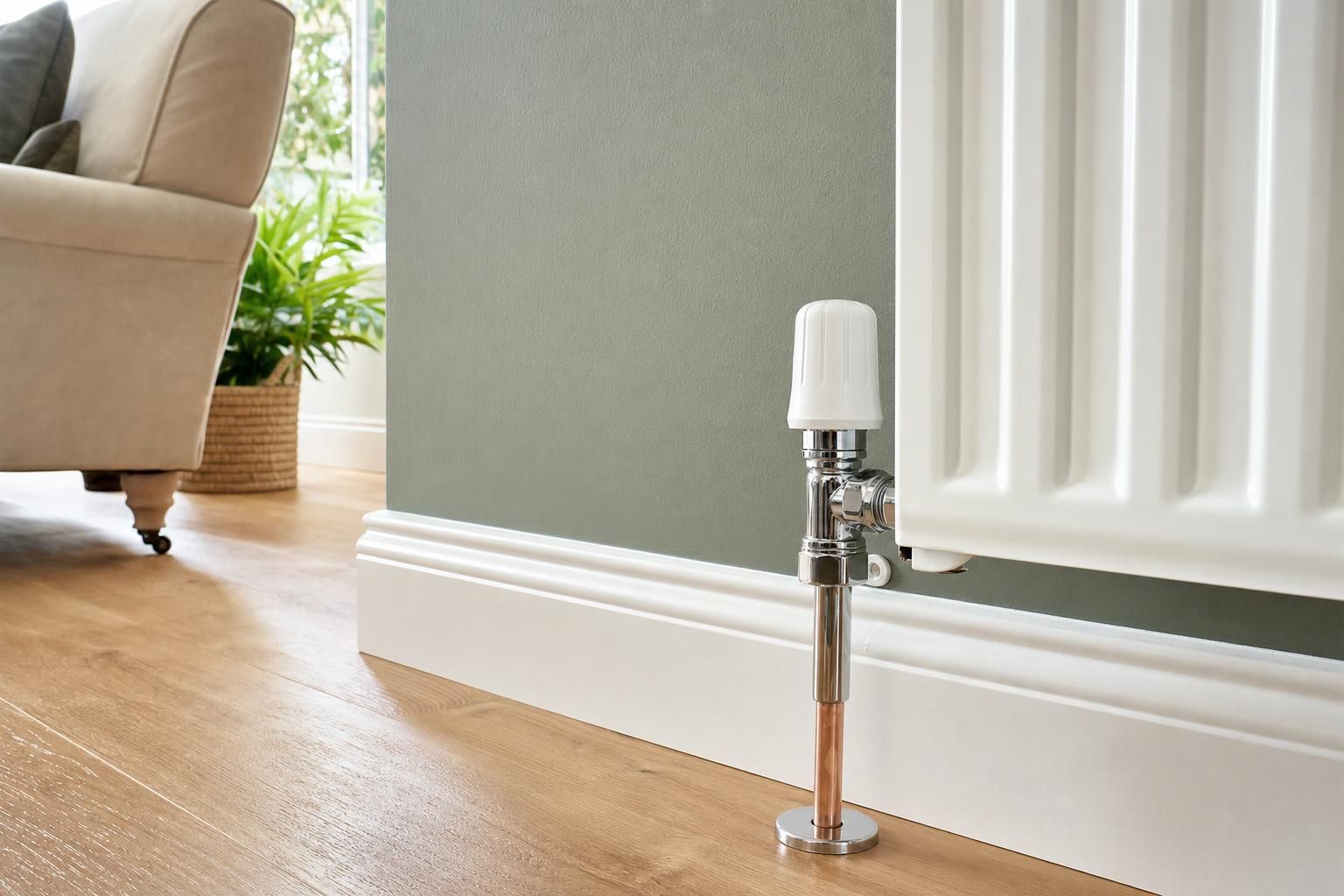

How to Replace a Radiator Valve in a UK Home Without Draining the Whole System
A leaking radiator valve rarely happens at a convenient time. You might notice a slow drip soaking into the carpet, or a stubborn valve that no longer controls heat properly in the middle of winter. Draining the entire heating system to fix it feels like overkill, especially when most of the system is working fine. The good news is you can replace a radiator valve without draining the whole system, saving hours of work and avoiding unnecessary disruption.
Replacing a radiator valve without draining the whole system is a practical job many UK homeowners can tackle with care and the right approach. This method, often called “freezing” or “local isolation”, saves time, avoids unnecessary mess, and keeps most of your heating system undisturbed.
That said, it is not risk free. Water damage, air locks, and incorrect valve installation are all common issues if the job is rushed or misunderstood. Drawing on real site experience, this guide explains exactly how to do it properly, what it costs, and where things can go wrong.
Understanding Radiator Valves in UK Heating Systems
Before you reach for the spanners, it helps to know what you are dealing with. Most UK radiators have two valves:
- Thermostatic Radiator Valve, TRV, which controls temperature
- Lockshield valve, which balances the system
You might be replacing a faulty TRV head, a leaking valve body, or upgrading to a more efficient model. If the issue is minor, you may not need a full replacement. In that case, see How to Fix a Leaking Radiator Valve in a UK Home Tighten the Nut Replace the Olive and Stop Drips Fast.
Valve sizes in UK homes are typically 15mm pipe connections with ½ inch radiator tails. Always double check before buying replacements.
There are also key variations in valve design that affect installation:
- Straight valves, used when pipework comes up from the floor directly into the radiator
- Angled valves, used where pipes come from the wall
- Corner valves, a neater option for tight spaces or modern installs
TRVs themselves can be uni directional or bi directional. Older models must be installed with the flow direction matching the arrow on the body. Modern bi directional TRVs are more flexible and reduce installation errors.
Compatibility also matters. Some modern heating systems operate at higher pressures or include smart controls. Smart TRVs connect to home heating systems and may require specific valve bodies. Mixing incompatible parts can lead to incorrect readings or poor temperature control.
Can You Replace a Radiator Valve Without Draining the Whole System?
Yes, in many cases you can replace a radiator valve without draining the whole system. There are two established methods used across UK plumbing trades:
- Freezing the pipe using a pipe freezing kit
- Closing both valves and quickly swapping the valve body, minimising water loss
The freezing method is more controlled and widely used by professionals. Kits create an ice plug inside the pipe, stopping water flow long enough to swap the valve.
For combi boiler systems, isolation can sometimes be easier than on older vented systems with tanks. If you are unsure about your system, you may find How to Isolate Water Supply in a Home Before Plumbing Repairs or Emergencies useful.
Tools and Materials You Will Need
Turning up unprepared is where most DIY attempts fall apart. A proper setup makes the difference between a clean swap and a flooded carpet.
- Adjustable spanners, two required
- Radiator valve replacement kit
- PTFE tape
- Pipe freezing kit or freeze spray
- Dust sheets or absorbent towels
- Bucket or tray
- Bleed key
- Radiator inhibitor, optional but recommended
A decent pipe freezing kit in the UK costs between £30 and £80. Freeze sprays are cheaper at around £10 to £20 but less reliable for larger pipes.
Step by Step: Replace a Radiator Valve Without Draining the Whole System
1. Turn Off the Heating
Switch off the boiler and allow the system to cool fully. Working on hot pressurised water is dangerous and can cause scalding. Give it at least 45 minutes after the heating stops.
2. Isolate the Radiator
Close both the TRV and lockshield valve fully. Count how many turns it takes to close the lockshield so you can reset it later for system balance. This small step prevents uneven heating later.
3. Freeze the Pipe
Apply the freeze kit on the pipe feeding the valve you plan to replace. Position the freezing jacket about 50 to 100mm away from the valve body for best results. Too close and the heat from your hands can weaken the freeze.
Most kits require around 5 to 10 minutes to form a solid ice plug. You will often see frost forming around the pipe and hear a change in sound if you lightly tap it.
A successful freeze usually shows:
- Visible frost build up on the pipe
- No movement or vibration when tapping the pipe
- No water flow when slightly loosening the nut
If water continues to seep, stop immediately and allow more freezing time.
Check the product instructions closely. The Health and Safety Executive guidance on plumbing work emphasises correct use of tools and safe working practices.
4. Loosen the Valve Nut
Place a tray underneath and carefully loosen the compression nut connecting the valve to the pipe. Expect a small amount of water. If water flows steadily, the freeze has not held and you should retighten immediately.
5. Remove the Old Valve
Disconnect the valve from both the pipe and radiator tail. Use two spanners, one to hold the valve and one to turn the nut. This prevents twisting the pipework, which can cause hidden leaks under floors.
6. Fit the New Valve
Wrap PTFE tape around threaded connections and fit the new valve in place. Ensure it aligns correctly with the radiator. Misalignment now will cause stress on joints later.
If the old olive is damaged or stuck, remove it using an olive puller or carefully cut it off. Reusing old olives is a common cause of leaks.
7. Tighten and Check Alignment
Secure all connections firmly but avoid overtightening. Compression fittings should feel tight but not forced. Over tightening can deform the olive and create a slow leak that appears hours later.
8. Release the Freeze
Once installed, allow the frozen section to thaw naturally. Do not apply heat as this can shock the pipe and damage joints.
If the freeze fails mid job, immediately refit the old valve or tighten the connection to stop water flow. Always keep old parts within reach for this reason.
9. Open Valves and Bleed Radiator
Reopen both valves and bleed the radiator to remove trapped air. If needed, follow How to Bleed a Radiator Properly in a UK Home Step by Step Guide to Tools Safety and Fixing Cold Spots.
10. Repressurise the System
For combi systems, top up pressure via the filling loop to around 1 to 1.5 bar. Monitor pressure for the next hour to ensure stability.
System Differences: Combi, Sealed and Open Vented
The process varies slightly depending on your system:
- Combi boilers, usually easier to manage, with direct pressure control via filling loop
- Sealed systems, similar to combi, but may require expansion vessel checks
- Open vented systems, more risk of water movement from header tank, sometimes requiring additional isolation
On vented systems, professionals often temporarily tie up the float valve in the loft tank to prevent refilling during the job.
Troubleshooting During Installation
- Freeze not holding, apply more freeze or reposition jacket further along pipe
- Seized nuts, apply penetrating oil and allow time before retrying
- Rounded nuts, use grip tools or replace section of pipe if necessary
- Persistent leaks, remake joint and replace olive
Aftercare and Monitoring
Once the valve is installed, monitor it over the next 48 hours. Check for slow drips, especially after the heating system cycles on and off.
You may also need to rebalance the system if heat distribution changes. Small adjustments to lockshield valves can restore even heating.
Post Installation Checklist
- No visible leaks after 24 hours
- System pressure stable
- Radiator heats evenly
- No unusual noises in pipes
- All valves operating smoothly
Typical Costs in the UK
Costs vary depending on whether you DIY or hire a plumber. Here is a realistic breakdown based on current UK rates.
| Item | Typical Cost |
|---|---|
| Standard TRV valve | £10 to £35 |
| Designer or angled valve | £30 to £90 |
| Pipe freezing kit | £30 to £80 |
| Professional plumber labour | £80 to £150 |
Labour varies across the UK. In London and the South East, rates can reach £150 to £200 for a short visit. In northern regions and Wales, typical costs range from £70 to £120.
Additional costs can include:
- Call out fees, £50 to £100
- Emergency same day rates, up to £250
- New radiator tail, £5 to £15
- Minor pipework adjustments, £40 to £120
| DIY vs Professional | DIY | Professional |
|---|---|---|
| Cost | £40 to £120 | £120 to £300 |
| Risk level | Medium to high | Low |
| Time required | 1 to 2 hours | 30 to 60 minutes |
| Likelihood of errors | Moderate | Low |
If you are weighing up whether to attempt it yourself, read When to Call a Professional Plumber vs. DIY for a realistic perspective.
Types of Radiator Valves Compared
| Valve Type | Typical Cost | Pros | Best Use |
|---|---|---|---|
| Manual valve | £5 to £20 | Simple, reliable | Low use areas |
| TRV | £10 to £40 | Automatic temperature control | Most homes |
| Smart TRV | £40 to £100 | App control, energy savings | Modern smart systems |
Common Mistakes to Avoid
Even experienced DIYers can slip up on this job. These are the issues I see most often on callouts:
- Not achieving a proper freeze. This can lead to sudden water release. If this happens, refit the old valve quickly and reattempt with better positioning.
- Forgetting to count lockshield turns. This leads to poor system balance. Fix by rebalancing radiators manually.
- Overtightening compression fittings. This damages olives and causes slow leaks. The fix usually involves replacing the olive and remaking the joint.
- Misaligned valves. Stress on pipework can cause future leaks. Loosen and realign before tightening.
- Skipping inhibitor. Over time this leads to sludge and corrosion. Add inhibitor via radiator or system filter.
One of the biggest problems is assuming the freeze will hold indefinitely. Most freeze kits give you a working window of around 30 to 45 minutes.
Regulations and Safety Considerations
Replacing a radiator valve is generally considered minor plumbing work and does not require building regulations approval. However, any work involving the heating system should still comply with Part G of the Building Regulations.
You can review official guidance here: Approved Document G.
WRAS guidance also applies, especially regarding preventing contamination of water systems and correct use of materials. Only use fittings and sealants suitable for potable water systems.
Inhibitor use should follow manufacturer guidance and industry best practice. This helps prevent corrosion and extends system life.
Safety on site matters:
- Avoid working on pressurised hot systems
- Protect against scalding water
- Support pipework to prevent strain
- Keep electrics away from potential leaks
If your system involves a boiler or gas appliances, any work beyond simple valve replacement must be carried out by a Gas Safe registered engineer.
When Replacing the Valve Is Not Enough
Sometimes the valve is not the root issue. Common alternatives include:
- Sludge buildup inside the radiator restricting flow
- System imbalance causing uneven heating
- Worn radiator tails that no longer seal properly
- Pipework corrosion leading to reduced performance
If the radiator remains cold at the bottom, sludge is likely. Powerflushing or chemical cleaning may be required. If multiple valves are failing, the system may be reaching the end of its serviceable life.
Repeated leaks from valve connections often point to worn pipe ends or poorly cut pipework. In these cases, a simple valve swap will not solve the issue long term.
Practical Checklist Before You Start
- Confirm valve type and size
- Check heating system type, combi or vented
- Ensure boiler is off and system cooled
- Have freeze kit ready and tested
- Protect flooring with towels or sheeting
- Know location of isolation valves
- Keep a bucket within reach
FAQ
Can I replace a TRV head without draining or freezing?
Yes, if you are only replacing the thermostatic head and not the valve body. Most TRV heads screw off without releasing water. Check the valve pin moves freely before fitting a new head, as a stuck pin will prevent proper operation.
How long does a pipe freeze last?
Typically between 30 and 45 minutes depending on pipe size, system pressure and room temperature. Microbore pipes freeze faster and hold longer than 15mm pipes. Always assume less time and work efficiently.
Will replacing a valve improve heating efficiency?
Yes, especially if the old valve was sticking or inaccurate. Modern TRVs improve room level control and can reduce energy use. Smart valves can further reduce costs by scheduling heating per room.
What if water keeps leaking after installation?
This usually indicates a compression issue. Tighten slightly first. If the leak continues, drain that section and replace the olive. Persistent leaks should not be ignored as they often worsen.
Is it worth upgrading all valves at once?
If several valves are ageing, replacing them together improves system balance and avoids repeated work. It also allows you to upgrade to more efficient controls in one go.
Final Thoughts
Replacing a radiator valve without draining the whole system is a useful skill and can save both time and money. Done properly, it is a clean and efficient job. Done poorly, it can quickly turn into a mess with costly consequences.
If you are confident with tools and understand your heating system, it is a manageable task. If not, it is often smarter to bring in a professional and avoid the risk altogether.
