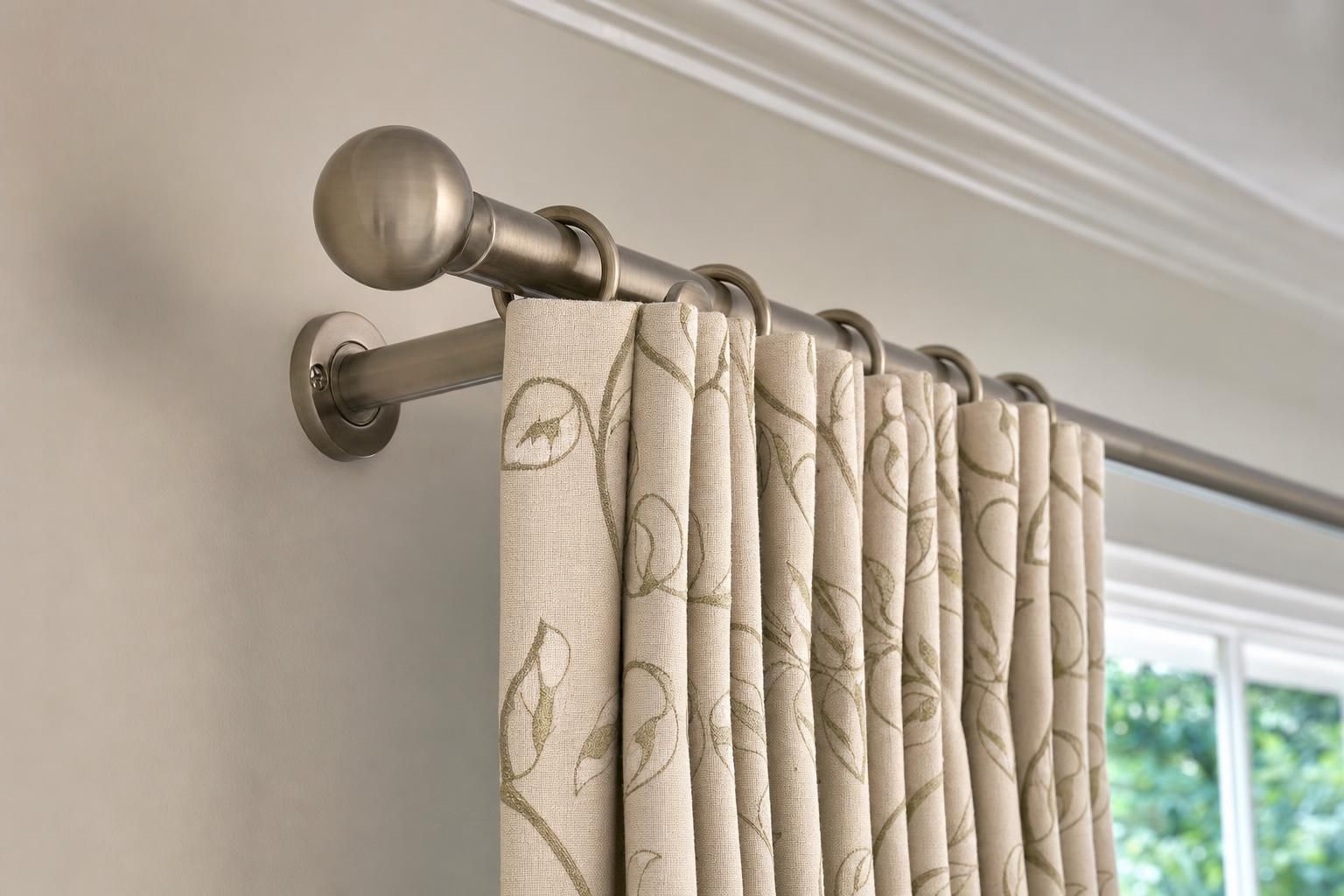

How to Fit a Curtain Pole Bracket Securely in a UK Home Without Pulling Out of Plasterboard

Nothing is more frustrating than fitting a curtain pole, stepping back thinking the job is done, then hearing that telltale crunch a few weeks later as the bracket tears out of the wall. It is a common call out. A failed bracket can leave you with damaged plasterboard, repainting, and a repair bill of £80 to £200 depending on the extent. The good news is it is completely avoidable. If you want to fit a curtain pole bracket securely in a UK home without pulling out of plasterboard, the fix comes down to using the right fixings, placing them properly, and understanding exactly what sits behind your wall.

This guide is written from hands on experience across domestic properties, new builds, Victorian terraces, and everything in between. It focuses on practical techniques that actually hold up under load, not theoretical advice.

Understanding Plasterboard Walls in UK Homes

Before picking up a drill, you need to know what you are fixing into. Plasterboard alone is not designed to carry heavy loads. In most UK homes it is either fixed to timber studs or metal framing, or dot and dab bonded onto masonry.

There are three common scenarios:

• Plasterboard on timber studs, typical in modern houses. Studs are usually spaced at 400mm or 600mm centres.
• Dot and dab plasterboard on masonry, common in newer brick homes. There may be a void behind the board.
• Solid wall with plaster finish, often mistaken for plasterboard, but far stronger for fixings.

There are also edge cases worth noting. Older lath and plaster walls found in period properties behave very differently. They can feel solid at first but crumble around fixings if disturbed. Insulated plasterboard, often used in renovations or new builds, is thicker and softer, which reduces holding strength unless you reach the structure behind.

If you fix directly into plasterboard without the right anchor, the weight of curtains will eventually cause the screws to pull loose. Even lightweight curtains can exert surprising force due to daily opening and closing.

If you are unsure what surface you are dealing with, tap the wall and drill a small pilot hole. A hollow sound and minimal resistance suggests plasterboard. A more solid feel and masonry dust indicates brick or block behind.

For related heavier wall fixings, see How to Hang Heavy Décor Items Securely.

Choosing the Right Fixings for Plasterboard Curtain Pole Brackets

The biggest factor in preventing brackets from pulling out is the choice of fixing. Standard red wall plugs are not suitable for plasterboard on their own.

On site, the difference between a job that lasts years and one that fails in weeks is almost always down to selecting the right anchor and screw combination for the wall type.

Fixing Type	Best For	Typical Cost UK	Strength Level
Self drill plasterboard fixings	Light to medium loads	£5 to £10 per pack	Moderate
Metal hollow wall anchors	Medium to heavy loads	£8 to £15 per pack	High
Toggle bolts	Heavy loads and wide load distribution	£10 to £20 per pack	Very high
Fixing into studs	All loads	No additional cost	Excellent

Screw sizes and practical choices

Most curtain brackets in the UK are supplied with basic screws that are not always suitable. On site, I typically replace them with:

• M4 or M5 screws for metal hollow wall anchors
• 4.0mm to 5.0mm wood screws when going into timber studs
• Length ranges of 30mm to 75mm depending on wall type and bracket thickness

For plasterboard anchors, longer is not always better. What matters is how the fixing spreads load behind the board.

Typical load ratings

• Plastic self drill fixings, around 5kg to 10kg each in ideal conditions
• Metal hollow wall anchors, around 15kg to 25kg per fixing
• Toggle bolts, often 20kg to 50kg depending on size
• Stud fixings, effectively limited by timber strength, usually well above curtain loads

These are guideline figures. Always check manufacturer ratings.

Popular UK brands

• Fischer DuoPower and Fischer HM anchors
• Rawlplug hollow wall fixings and UNO plugs
• GripIt fixings for heavier loads
• Corefix for dot and dab walls

When NOT to use certain fixings

• Do not use standard red plugs in plasterboard alone
• Avoid plastic self drill fixings for heavy blackout curtains
• Do not use short screws in dot and dab walls with gaps behind
• Avoid toggles in very shallow cavities where they cannot fully open

If you can locate a timber stud, always prioritise fixing into it. This gives you a solid mechanical fixing and eliminates most risk of failure.

Fixing Performance by Wall Type

Wall Type	Recommended Fixing	Expected Load Capacity
Plasterboard only	Metal hollow wall anchors or toggle bolts	15kg to 40kg combined per bracket
Dot and dab	Corefix or long masonry screws into brick	25kg to 50kg depending on depth
Stud wall	Wood screws into stud	High, typically 40kg plus
Solid masonry	Standard wall plugs and screws	Very high, dependent on substrate

How to Fit a Curtain Pole Bracket Securely in Plasterboard

This is the method I use on site for consistent results. Allow around 30 to 60 minutes per window for straightforward walls. More complex setups such as dot and dab or uneven surfaces can take longer.

Tools You Will Need

• Cordless drill or combi drill
• Drill bits, typically 5mm to 10mm depending on fixing
• Stud detector with cable detection
• Spirit level
• Screwdriver or impact driver with clutch control
• Tape measure and pencil

Step 1. Mark the Bracket Position, 10 minutes

Measure carefully. Brackets should generally sit 10 to 15cm above the window frame and extend 15 to 20cm beyond each side of the opening.

Use a spirit level to ensure both brackets align perfectly. Even minor misalignment is noticeable once the curtain is hung.

Step 2. Check for Studs and Services, 5 to 10 minutes

Use a stud detector to locate any timber framing. Also check for electrical cables or pipes.

Safe drilling zones in UK homes follow predictable patterns. Cables typically run vertically or horizontally from sockets and switches. Under Part P, these zones must be respected. If you are drilling above a socket, assume a cable runs straight up unless proven otherwise.

The Health and Safety Executive guidance is clear on avoiding hidden cables in walls.

Step 3. Drill Pilot Holes, 5 minutes

Use the correct drill bit size. Apply steady pressure. Let the drill do the work. If you push too hard, you risk widening the hole.

You should feel a clean bite into the plasterboard. If the drill suddenly drops through, you likely have a cavity behind.

Step 4. Install the Fixings, 10 to 15 minutes

Each fixing type behaves differently.

• Self drill fixings should screw in firmly with resistance
• Hollow wall anchors should expand tightly behind the board
• Toggle bolts should clamp securely once tightened

Correct installation feels solid. There should be no spinning or wobble.

Do not overtighten. Use moderate torque. If using an impact driver, set a low clutch setting. You are aiming for firm contact, not crushing the plasterboard.

Step 5. Attach the Bracket, 5 to 10 minutes

Secure the bracket and tighten until snug. You should feel resistance increase as the bracket pulls tight to the wall.

Test by applying downward pressure. It should feel completely rigid.

If you need a broader overview of the full installation process, refer to How to Fit a Curtain Pole in a UK Home Measure Brackets Fixings and Finishing Touches.

Troubleshooting During Installation

Fixing spinning in the wall
This usually means the hole is too large or the fixing has not expanded properly. Remove it and switch to a larger anchor or a toggle type.

Oversized holes
Do not reuse. Fill with a proper plasterboard repair compound or use a larger fixing designed for damaged holes.

Misaligned brackets
Never force alignment. Redrill correctly. Forcing creates uneven load and early failure.

Repairing failed holes
Cut back loose plasterboard, fill, sand, and repaint. Then refix using better anchors. Trying to fix into the same weakened area rarely works.

Weight Considerations and Load Distribution

Many failures occur because the load is underestimated. Curtains can be heavier than expected once combined with the pole.

Examples from real installs:

• Light sheer curtains and pole, around 3kg total
• Standard lined curtains with metal pole, 8kg to 12kg total
• Heavy blackout curtains with thick pole, easily 15kg to 25kg

That weight is not static. Opening and closing adds repeated pulling force.

For wide spans:

• Up to 1.8m, two brackets may suffice
• 1.8m to 2.4m, always use a centre bracket
• Over 2.4m or bay windows, consider additional intermediate brackets

Bay windows add complexity. Each angle changes load direction. More brackets reduce stress on each fixing.

Spreading load across multiple fixings is key. Two or three strong anchors per bracket is far better than relying on one oversized fixing.

Dot and Dab Walls Explained

Dot and dab is one of the most common causes of fixing failure.

The plasterboard is bonded to masonry with adhesive dabs, leaving gaps of 10mm to 30mm behind. Standard fixings grip the board but not the wall behind, leading to flex and eventual failure.

Solutions include:

• Corefix type fixings that bridge the gap and anchor into masonry
• Extra long screws with rigid spacers
• Drilling through into brick and using proper wall plugs

Standard hollow wall anchors often fail here because they expand into empty space rather than solid backing.

Typical Costs in the UK

Item	Cost Range UK
Fixings and consumables	£10 to £40
Quality brackets	£20 to £70
Labour per window, outside London	£60 to £120
Labour per window, London	£100 to £180
Plasterboard repair if failed	£80 to £200

DIY might take 30 to 60 minutes per window. A professional will often complete multiple windows in a couple of hours with consistent results.

DIY vs Hiring a Professional

DIY is perfectly achievable for someone comfortable with drilling and measuring. The risk is usually in misjudging the wall type or using the wrong fixing.

A professional brings speed and reliability. They will identify wall construction quickly and carry the correct fixings for each scenario. This reduces the chance of failure and avoids repeat repairs.

If you are dealing with heavy curtains, expensive finishes, or tricky walls, hiring a tradesperson is usually worth it.

Common Mistakes to Avoid

These are the issues I see most often on call outs.

• Using standard wall plugs in plasterboard. They will loosen over time.
• Skipping stud detection. Missing a stud is a missed opportunity for a strong fixing.
• Overtightening screws. This weakens the fixing rather than securing it.
• Poor bracket spacing. Too wide apart increases leverage on the fixings.
• Ignoring curtain weight. Heavier fabrics need stronger anchors.

For similar challenges with wall mounted items, see How to Hang a Heavy Mirror Securely on a Plasterboard Wall in a UK Home.

What Can Go Wrong

Understanding failure points helps you avoid them.

Plasterboard can crumble if drilled incorrectly or overloaded. This is common in older boards or where previous fixings have weakened the area.

Fixings can spin if not properly seated. Once spinning starts, the hole enlarges quickly.

In lath and plaster walls, vibration can break the key between plaster and laths, causing large sections to loosen.

In insulated plasterboard, the softer core compresses under load, leading to gradual loosening.

Repeated curtain movement applies cyclical loading. Even a slightly loose fixing will worsen over time.

Worst case, the bracket pulls out suddenly, tearing the board and sometimes bringing a section of wall with it.

On site, the fix is usually to move position slightly and refit with stronger anchors, rather than trying to salvage the original holes.

Post Installation Checklist

• Apply firm downward pressure to test strength
• Open and close curtains several times
• Check bracket alignment after 24 to 48 hours
• Look for any gaps forming between bracket and wall
• Retighten gently if needed, without overtightening

Early signs of failure are slight movement and fine cracking around fixings.

Relevant UK Standards and Guidance

While curtain pole installation is not governed by strict building regulations, general safety principles still apply.

BS EN 520 covers plasterboard performance and classifications. Understanding board type and thickness helps determine safe load limits.

NHBC guidance for new builds highlights the importance of fixing into appropriate structural elements where possible.

Manufacturer load ratings should always be followed. Brands such as Fischer publish detailed guidance on safe loads and installation methods, see Fischer fixing guidance.

The UK government guidance on plasterboard systems highlights load limitations and proper fixing techniques for dry lined walls.

Electrical safety is covered by Part P of the Building Regulations. Avoid drilling near cable zones unless you are certain of their location.

When to Call a Professional

DIY is perfectly reasonable for this job, but there are situations where a tradesperson is the better option.

• Very heavy or wide curtain poles
• Uncertain wall construction
• Repeated fixing failure
• High value finishes where mistakes are costly

A skilled handyman or carpenter will complete the job quickly and ensure a long lasting result.

You might also find it helpful to read How to Fit a Toilet Roll Holder Securely on Tile or Plasterboard Walls, as the fixing principles are very similar.

FAQs

Can I use normal wall plugs in plasterboard for curtain brackets?

No. Standard wall plugs are designed for masonry. In plasterboard they do not grip properly and will loosen over time. In real situations, I often see these fail within weeks, especially with lined curtains.

How do I know if I have a stud behind the plasterboard?

A stud detector is the easiest method. You can also drill a small pilot hole. If you hit timber, you will feel resistance and see wood dust. Studs are usually spaced at 400mm or 600mm centres.

What is the strongest fixing for plasterboard?

Toggle bolts and metal hollow wall anchors are among the strongest options. For maximum strength, fixing into a stud is always best.

Do I need a centre bracket for my curtain pole?

Yes for longer spans. Without it, the outer brackets take all the load, which often leads to failure in plasterboard.

Can I fix through plasterboard into brick behind?

Yes, but only if you deal with any cavity properly. In dot and dab walls, use specialist fixings like Corefix to bridge the gap.

How do I fix a curtain bracket that has already pulled out of plasterboard?

Start by removing all loose material. If the hole is small, you can fill it with a strong filler and redrill once cured. For larger damage, cut out a neat section and patch with new plasterboard or a repair kit.

Do not reuse the same fixing position unless fully repaired. It is often better to move the bracket slightly and use stronger anchors such as hollow wall fixings or toggles.

Final Thoughts

Getting a curtain pole bracket to stay firmly in plasterboard is less about force and more about using the correct method. The right fixing, properly installed, will hold for years.

If you are unsure or want a guaranteed result, it is worth bringing in a professional. You can post a job on BookaBuilderUK to get free quotes from vetted local tradespeople who deal with this type of work every day.
