How to Fit a Sprung Door Stop in a UK Home Without Cracking Skirting Boards

Fitting a sprung door stop in a UK home without cracking skirting boards is a straightforward job if you approach it properly, but it is also one of those small tasks where poor technique can leave visible damage. A common and costly mistake is splitting MDF skirting, which then needs filling, sanding and repainting to hide the damage. What should be a quick ten minute job can turn into a decorating repair. Get it right first time and you protect your walls, your paintwork and your time.

This guide explains how to fit a sprung door stop in a UK home without cracking skirting boards using the same approach a tradesperson would take on site. You will see where DIY jobs typically go wrong, how to choose the right fittings, and how to deal with the different wall types found in British homes.

Whether you are working with MDF skirting in a new build or older softwood boards in a Victorian property, the principles are the same. Measure carefully, drill correctly, and use the right fixings for the material behind the surface.

What Is a Sprung Door Stop and Why Fit One

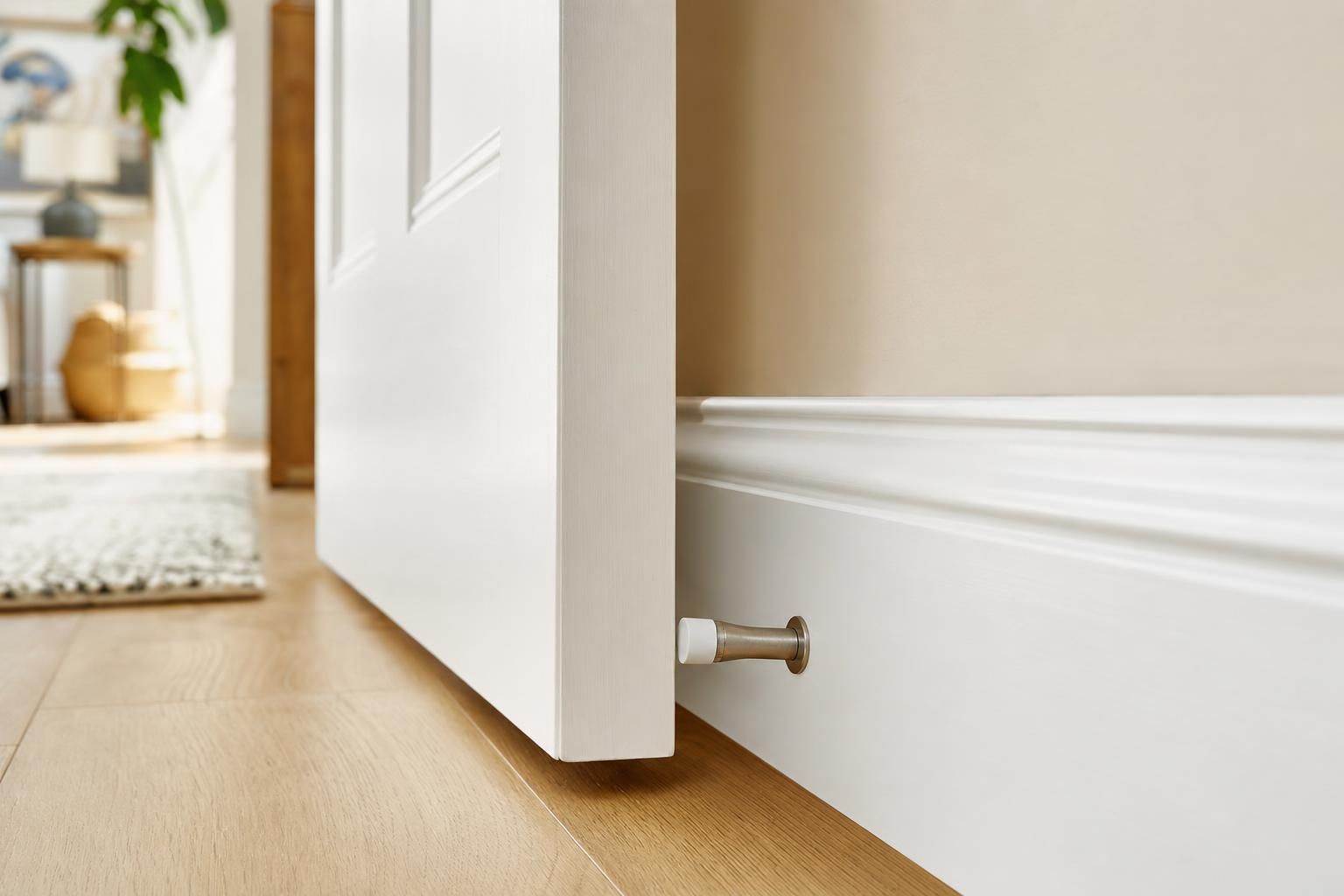

A sprung door stop is a compact fitting, usually fixed to a skirting board, with a metal spring or flexible stem and a rubber tip. It prevents a door handle from striking the wall or damaging nearby fittings.

In UK homes, especially where space is tight, doors often swing close to walls. Without a stop, repeated contact can leave dents in plaster or mark painted finishes. If you have recently undertaken decorating or fitted new joinery, protecting those surfaces is worth the small effort.

Sprung door stops are popular because they are forgiving. If kicked or knocked, they flex rather than snap. Compared with rigid wall mounted stops, they tend to cause less secondary damage.

Choosing the Right Sprung Door Stop for UK Homes

You will find a wide range in most DIY merchants and trade counters. Expect to pay between £2 and £8 per stop for standard models, and up to £15 for higher end finishes such as brushed brass or satin nickel.

Fixing Type and Build Quality

The most reliable option is a separate screw-in base with a threaded stop. This allows you to fix the base solidly, then attach the spring. Integrated screw designs are quicker but often less robust.

Tradespeople commonly swap out the supplied screws for branded woodscrews such as Spax or Reisser. A 4.0 mm diameter screw, 30 mm to 40 mm long, is standard for skirting installations.

Length and Projection

Most stops range from 75 mm to 100 mm. In homes with deep profile skirting boards or wide architraves, a longer stop prevents the handle from reaching the wall.

Shorter stops are fine for flush doors or modern minimal trim.

Spring Strength and Tip Quality

Cheaper models use thinner springs that bend permanently over time. Look for firm resistance and a durable rubber tip. In busy homes, low quality tips wear quickly and stop absorbing impact.

Finishes for UK Interiors

Match finishes with hinges, handles and other ironmongery. Satin stainless and chrome are common in newer homes, while brass suits period properties.

If you are fitting new ironmongery, read How to Fit a Door Handle and Latch in a UK Home Measure Backset, Drill Holes and Fix Common Alignment Problems for consistency across fittings.

Where Cheaper Products Fall Short

Low cost door stops often come with soft screws that shear under load or strip easily. This is one of the main causes of damaged skirting. Spending an extra couple of pounds or upgrading fixings avoids this issue completely.

Understanding Skirting Board Materials Before You Drill

One of the main causes of cracked skirting boards is misunderstanding what you are fixing into. In UK homes, you are most likely dealing with:

MDF Skirting in New Builds

MDF is widely used due to its smooth finish and affordability. It drills cleanly but is prone to swelling if exposed to moisture and cracking if over tightened. Always use a pilot hole and avoid aggressive driving.

Many new build properties also use thinner skirting fixed with adhesive rather than nails, which affects how well screws hold.

Softwood Skirting in Older Properties

Common in Victorian and Edwardian homes, softwood is easier to work with but can split along the grain. Knots are a typical weak point.

Pre drilling is essential. Trades will often angle slightly away from the grain if working close to edges.

Hardwood Skirting

Less common but found in higher end homes. Hardwood requires accurate drilling and slightly larger pilot holes. Forcing screws will almost always cause splitting.

What Is Behind the Skirting

The substrate matters just as much as the skirting itself:

• Solid brick or block walls, require wall plugs for secure fixing
• Dot and dab plasterboard, common in newer homes, has hollow voids behind boards
• Timber stud walls, provide solid fixing if you hit a stud, otherwise require plasterboard fixings

If you are unsure how your skirting was installed, it is worth reviewing basic fitting methods before starting. This guide on How to Fit Skirting Boards in a UK Home Measure Mitre and Fix for a Neat Finish explains what you are likely to find behind the surface.

How to Identify What Is Behind the Skirting

Tradespeople use a few quick checks:

• Tap the wall above the skirting, a hollow sound suggests plasterboard
• Use a detector to locate studs, pipes or cables
• Check nearby sockets, shallow boxes often indicate dot and dab walls
• Drill a very shallow pilot and observe dust, fine grey dust suggests plasterboard, gritty material points to masonry

Taking 30 seconds to assess this can prevent failed fixings.

Where to Position a Sprung Door Stop

Positioning is where many DIY attempts go wrong. Fix it too low and the door handle can still hit the wall. Fix it too high and you risk weakening the top edge of the skirting.

A reliable method used on site is:

• Open the door fully until it sits at the natural stopping point
• Mark the spot where the handle approaches the wall
• Transfer that line down to the skirting
• Set the door stop slightly ahead of that point, around 10 mm, so the rubber tip contacts first

The vertical position is typically mid height of the skirting board. On standard 120 mm skirting, around 60 mm from the floor is a safe working point.

Avoid fixing within 15 mm of the top edge. That is the most common place for splits to occur.

Best Way to Fit a Sprung Door Stop Without Damaging Skirting Boards

The best way to fit a sprung door stop without damaging skirting boards is to treat it like any other fixing job, with proper drilling, correct screws, and awareness of what sits behind the surface.

In practice, most damage comes from rushing. Driving a screw straight into MDF without a pilot hole or using the drill at full torque is enough to crack even new skirting.

Use low speed, steady pressure, and stop tightening as soon as resistance increases. If the stop feels loose, the issue is usually with the substrate rather than needing more force.

Tools and Materials Checklist

Having the right tools is the difference between a clean install and a repair job.

• Cordless drill driver
• Sharp wood drill bits, 2 mm to 3 mm for pilot holes
• Countersink bit if needed
• Pozidriv or Phillips screwdriver bit matched to screw
• Tape measure or rule
• Pencil
• Stud detector or cable finder
• Quality woodscrews if replacing supplied fixings
• Rawl plugs if fixing into masonry behind

A basic setup will cost between £30 and £80 if you need to buy tools. Most homeowners will already have the essentials.

Quick Installation Checklist

• Check for cables and pipes using a detector
• Open door fully and mark correct contact point
• Measure and mark fixing location on skirting
• Drill pilot hole using 2 mm to 2.5 mm bit
• Insert wall plug if drilling into masonry
• Screw base in gently, keeping it straight
• Attach spring and tighten by hand
• Test door swing and adjust if needed

Step by Step Guide to Fitting Without Cracking Skirting

1. Check for Pipes and Cables

Before drilling, scan the area using a cable detector. While skirtings are usually clear, services can run low in walls. Guidance from the Health and Safety Executive on avoiding buried services is worth reviewing here https://www.hse.gov.uk/pubns/books/hsg47.htm.

2. Mark the Fixing Point

Use a pencil and measure accurately. Do not guess the position. Ensure the stop will catch the door before the handle makes contact.

3. Drill a Pilot Hole

This is the step most often skipped. A pilot hole reduces splitting and gives a clean entry point.

Use a drill bit slightly smaller than the screw core. For typical 4 mm screws, a 2 mm to 2.5 mm pilot hole works well.

Drill slowly and keep the bit straight. On MDF, avoid pushing too hard as this can cause the material to bulge or crack.

4. Consider the Substrate

If the screw will pass into masonry, expand the hole and use a wall plug. Red plugs are standard for 4 mm to 5 mm screws.

If you are dealing with a thin skirting fixed on adhesive, try to keep the fixing within the timber itself rather than relying on the wall behind.

5. Fit the Door Stop

Screw in the base by hand first to ensure it aligns correctly. Then tighten with a drill or screwdriver. Stop as soon as the fitting is secure. Over tightening is what leads to cracks, especially in MDF.

6. Test the Door Movement

Open and close the door several times to confirm the stop engages correctly. Adjust if needed before final tightening.

Door Stop Types Compared for UK Homes

Type	Pros	Cons	Typical Cost	Best Use Case
Skirting mounted	Discreet, easy install, flexible spring	Can crack skirting if fitted poorly	£2 to £10	Standard internal doors
Wall mounted	Strong fixing, good for fragile skirting	Requires drilling wall	£5 to £15	Solid masonry walls
Floor mounted	Very robust, ideal for heavy doors	Visible on floor, trip risk if misplaced	£8 to £20	High traffic or commercial style spaces

Typical Costs for Fitting a Sprung Door Stop in the UK

Item	Typical Cost
Basic sprung door stop	£2 to £8 each
Premium finish stop	£8 to £15 each
Trade labour, small job call out	£60 to £120
Additional materials	£5 to £15

Costs vary by region. In London and the South East, minimum charges are often higher, ranging from £80 to £150. In the North or Midlands, you may find rates closer to £50 to £90.

If bundled with other work such as hanging doors or fitting skirting, the cost per stop drops significantly. Trades may charge £5 to £10 per stop as part of a larger job.

Larger properties with multiple doors benefit from bulk installation, reducing both time and cost per unit.

Common Mistakes That Lead to Cracked Skirting Boards

Cracked skirting is almost always avoidable. These are the issues seen most often on site:

Skipping Pilot Holes

This is the main cause of splits, especially in hardwood and MDF. Even experienced trades will not skip this step.

Fixing Too Close to Edges

Edges are structurally weaker. Always aim for the centre of the board height.

Using the Wrong Screws

Cheap screws bind, overheat and snap. This often damages the surrounding material when removed.

Over Tightening with Power Tools

High torque settings are a common issue. Use a lower clutch setting on your drill.

Ignoring Wall Type

Fixing into dot and dab without proper support leads to loose stops. These quickly fail and damage the skirting over time.

If your skirting has detailed joints, such as mitres or scribes, added care is needed around corners. This article on How to Fit Skirting Board Corners Neatly with Mitres and Scribes explains why these areas are more fragile.

What Can Go Wrong and How to Fix It

Even careful work can occasionally go off track. Here is how to deal with common issues.

Cracked MDF After Installation

This often appears hours later as the material relaxes. Remove the fixing, glue the crack, clamp if possible, then refit slightly offset with a wider pilot hole.

Fixing Pulling Out of Wall

Common in plasterboard. Use a proper plasterboard fixing or reposition into a stud.

Door Still Hitting the Wall

This is usually poor positioning. Reassess the swing path and move the stop forward.

Loose or Wobbly Stop

Indicates poor grip behind the board. Upgrade to a longer screw or use a wall plug.

Hidden Pipes or Cables Hit

Rare but serious. Stop work immediately. Isolate services if needed and consult a professional.

Alternatives to Skirting Mounted Door Stops

In some situations, fixing into skirting is not ideal. For example, very thin boards or decorative mouldings can be difficult to work with.

Alternatives include:

• Wall mounted stops, fixed into masonry, often more robust
• Floor mounted stops, useful for heavy doors
• Magnetic stops, hold the door open as well as stopping it

If your concern is protecting walls for heavy or valuable items, similar fixing principles apply. You can read more in How to Hang Heavy Décor Items Securely.

Timeframes and Skill Level

For a single door, the job takes around 10 to 20 minutes if everything goes smoothly. This includes marking, drilling and testing.

For multiple doors, allow around 5 to 10 minutes per additional stop once set up. A standard three bedroom house with 6 to 8 doors can usually be completed within 60 to 90 minutes.

Time increases depending on wall type. Solid masonry requires drilling and plugging, which adds several minutes per fixing. Plasterboard walls can slow things down if special fixings are needed.

Obstacles such as hidden pipes, uneven skirting, or previously damaged boards also add time. Careful preparation reduces delays.

The skill level required is basic DIY, but attention to detail is what separates a clean job from visible damage.

Do Building Regulations Apply

There are no direct UK Building Regulations governing the installation of door stops in standard domestic settings. However, general safety principles still apply.

If working in flats or properties with fire doors, avoid interfering with door operation. Fire doors must close properly to meet requirements under Approved Document B. Guidance can be found here https://www.gov.uk/government/publications/fire-safety-approved-document-b.

In practical terms, this means positioning the stop so it protects the wall without preventing full closure. Do not fit magnetic or fixed stops on fire doors unless they are part of an approved system.

Frequently Asked Questions

Can I fit a sprung door stop without drilling

Adhesive solutions exist, but they are not recommended for long term use. Temperature changes and repeated impact will cause them to fail. A drilled fixing is far more reliable.

What size screw should I use for a door stop

Most sprung door stops use a 4 mm screw around 30 mm to 40 mm long. If fixing into masonry, use an appropriate wall plug and slightly longer screw.

Why does my skirting split even with a pilot hole

This usually happens when the pilot hole is too small or too close to the edge. It can also be caused by knots in softwood or low density MDF. Adjust the position and size of the pilot hole.

Should a door stop be fitted to the wall instead

If your skirting is fragile or decorative, wall mounting is often the better choice. It provides a stronger fixing point and reduces the risk of visible damage.

Can I reuse an existing hole

Only if the fixing is still secure. If the screw spins or feels loose, fill the hole and move slightly along the board for a fresh fixing.

Can I fit a door stop into plasterboard skirting or hollow walls

Yes, but standard screws are not enough. Use plasterboard fixings or locate a stud for a solid fixing. Without this, the stop will loosen and cause damage over time.

What is the best position for a door stop on tall or oversized skirting

On taller skirting, aim slightly below the midpoint rather than dead centre. This keeps the fixing in a stronger part of the board while still aligning with the door handle height.

Final Thoughts

Fitting a sprung door stop is a small task, but doing it properly protects your walls, your joinery and the overall finish of your home. The key is simple. Position it correctly, drill a proper pilot hole, and avoid over tightening. Those three steps prevent most issues seen on site.

If you would rather leave it to a professional or bundle it in with other jobs, you can post a job on BookaBuilderUK to get free quotes from vetted local tradespeople.
