UFH Manifolds and Controls Explained Balancing Zones Flow Rates and Common Setup Mistakes
If your underfloor heating is costing more than expected to run, struggling to warm certain rooms, or constantly cycling on and off, the issue almost always comes back to UFH manifolds and controls. Get the setup right and many UK homeowners see noticeably lower running costs compared to traditional radiators, especially with flow temperatures under 45 degrees. Get it wrong and you could be facing expensive callouts, uneven heating and wasted energy.
UFH manifolds and controls are the heart of any underfloor heating system. Get them right and you have an efficient, evenly heated home with low running costs. Get them wrong and you end up with cold spots, noisy pumps and a system that never quite performs as promised. This guide breaks down how manifolds work, how to balance zones, how to set flow rates correctly and the mistakes I see on UK jobs time and again.
If you are still weighing up systems, start with Choosing the Right Heating System for Your Home. For a broader overview of how underfloor heating works, see Complete Guide to Underfloor Heating.
What Is a UFH Manifold and Why Does It Matter
A manifold is a distribution hub. It takes heated water from your boiler or heat pump and sends it around multiple underfloor circuits. Each circuit feeds a different zone or room. The manifold also collects cooler return water and sends it back for reheating.

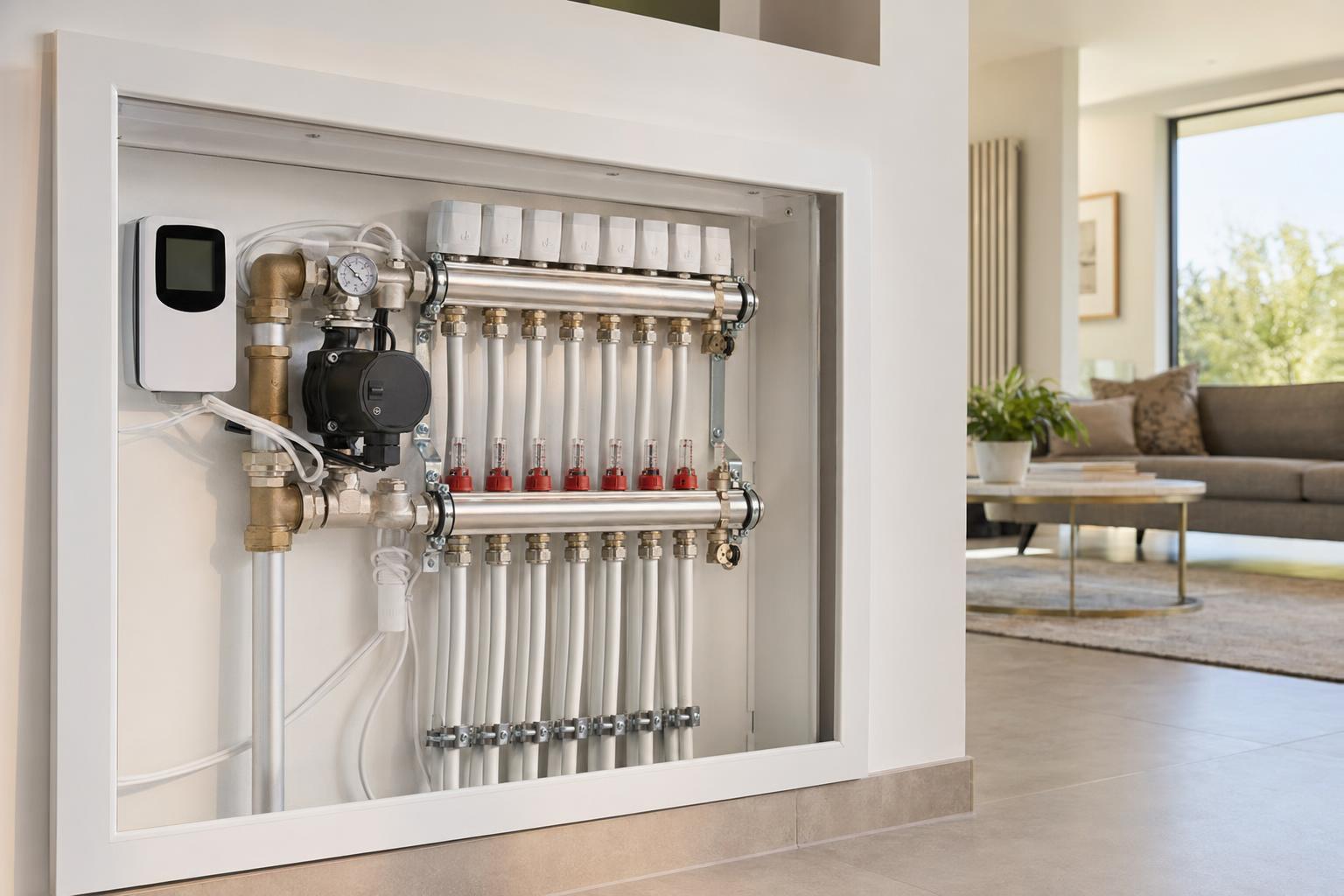

On most UK wet UFH systems you will see a stainless steel or brass manifold with two horizontal bars. The flow bar delivers warm water. The return bar collects it. Each loop connects into both bars, normally using pipe tails and compression fittings.
Key components typically include:
- Flow meters, for setting litres per minute per loop
- Thermostatic mixing valve, to control water temperature into the floor
- Circulating pump, to move water through the loops
- Isolation valves, for servicing
- Air vents and drain points
- Actuators, which open and close individual zones based on thermostat demand
In most installations, manifolds are located in cupboards, utility rooms or under stairs. Accessibility matters. I often see them hidden behind boxing with no provision for servicing, which is asking for trouble.
How UFH Manifolds and Controls Actually Work in a UK Home
Underfloor heating is typically controlled by room thermostats. Each thermostat sends a signal to an actuator on the manifold. When heat is required, the actuator opens that loop, allowing flow. The pump then circulates warm water through that circuit.
Modern systems often use a wiring centre linking thermostats, actuators and the heat source. On systems connected to a gas boiler, a demand signal will fire the boiler. On heat pump systems, controls are usually set up for continuous low temperature operation, with zoning handled carefully to avoid short cycling.
Wiring Centres and Zone Connections Explained
The wiring centre is effectively the control hub. In a typical UK underfloor heating manifold setup, each room thermostat connects back to the wiring centre. From there, outputs go to the actuators on the manifold and also send a call for heat to the boiler or heat pump.
A standard setup works like this:
- Thermostat calls for heat
- Signal sent to wiring centre
- Wiring centre opens the relevant actuator
- End switch inside actuator or wiring centre triggers boiler or pump
Many wiring centres also include pump delay functions and boiler interlock connections to comply with Part L. On larger systems, you may have multiple centres linked together.
Actuator Types and Voltage Differences
Most UK systems use either 230V or 24V actuators. Both do the same job, but the choice affects wiring and safety.
- 230V actuators are common in domestic installs. Simpler wiring, fewer components
- 24V actuators are often used on larger or more advanced systems. Safer low voltage control but requires a transformer
Thermal actuators take a few minutes to open fully. This delay is normal. If a room feels slow to respond, that is often part of the design rather than a fault.
Boiler vs Heat Pump Control Strategies
Controls behave very differently depending on the heat source.
With boilers, the system is typically demand led. Thermostats call for heat, the boiler fires, and the manifold distributes hot water.
With heat pumps, particularly air source under MCS design standards, systems are designed to run at steady low temperatures for long periods. Aggressive zoning can cause inefficiency and cycling.
| Feature | Boiler UFH System | Heat Pump UFH System |
|---|---|---|
| Typical flow temperature | 45 to 55 degrees | 30 to 45 degrees |
| Control style | On demand start stop | Continuous modulation |
| Zoning approach | More flexible | Limited zoning preferred |
| Efficiency sensitivity | Moderate | Very high |
| Common mistake | Overshooting temps | Short cycling due to over zoning |
Electrical work must comply with Part P of the Building Regulations. If you are wiring controls, use a qualified electrician, ideally NICEIC registered.
Understanding Zones and Why They Matter
Zoning is where UFH really shines. Each area of the house can be controlled independently. That means you are not heating unused rooms and you can match comfort levels to how spaces are used.
Typical zoning strategies on UK projects:
- Ground floor open plan area as one or two zones
- Kitchen and living separating if glazing levels differ
- Bathrooms as individual zones for higher temperatures
- Bedrooms grouped or separated depending on occupancy
Each zone corresponds to one or more loops on the manifold. Larger rooms may require multiple loops due to maximum pipe lengths, usually 80 to 120 metres per loop depending on pipe size and design.
Over zoning is a common issue. Too many small zones can lead to system instability, especially with heat pumps. It can also increase cost, since each zone requires actuators, thermostats and wiring.
Flow Rates Explained, Setting Them Correctly
Flow rate is one of the most misunderstood parts of UFH commissioning. Each loop needs a specific flow rate to deliver the heat output calculated in the design.
On a manifold, flow meters are usually calibrated in litres per minute. A typical range might be 1 to 3 litres per minute per loop depending on pipe spacing, insulation levels and room heat loss.
Too low a flow rate and the room will not reach temperature. Too high and you can get noise, poor efficiency and uneven heat distribution.
Balancing is about setting those flow rates correctly so each loop shares heat evenly.
How UFH Flow Rates Are Calculated
Proper UFH flow rates come from heat loss calculations, not guesswork. Each room has a heat demand measured in watts. That heat must be delivered by warm water flowing through the pipe.
The basic relationship uses delta T, the temperature drop between flow and return water. In most UK UFH systems, delta T is around 5 to 10 degrees.
A simplified calculation is:
Flow rate in litres per minute equals heat output in watts divided by 4.18 multiplied by delta T, then divided by 60.
For example, a room needing 1500 watts with a delta T of 7 degrees requires roughly 3 litres per minute across its loops. If that room has two loops, each would be set to around 1.5 litres per minute.
This is why UFH balancing must follow design data. Without it, you are adjusting blindly.
Real World UK Scenario
On a recent retrofit in a 1930s semi, one living room consistently lagged behind. The installer had set all loops to roughly the same flow rate. The issue was higher heat loss due to bay windows and suspended timber floor.
Once recalculated, the room required nearly 30 percent more flow than adjacent areas. Adjusting the manifold resolved the issue within a day without increasing overall running costs.
Typical Flow Rate Guide
| Room Type | Typical Flow Rate Per Loop | Notes |
|---|---|---|
| Bedroom | 1.0 to 1.5 L per minute | Lower heat demand |
| Living Room | 1.5 to 2.5 L per minute | Depends on glazing and size |
| Bathroom | 2.0 to 3.0 L per minute | Higher comfort temperature |
| Open Plan Space | 2.0 to 3.0 L per minute | May use multiple loops |
These are typical figures. Proper systems are designed using heat loss calculations. BS EN 1264 is the relevant standard for water based surface embedded heating systems in Europe.
Balancing a UFH Manifold Step by Step
Balancing is not guesswork. It should follow a structured approach.
- Start with all loops fully open
- Turn on the system and allow it to reach operating temperature
- Check design flow rates if available
- Adjust each flow meter to match its target
- Close loops slightly where flow is too high
- Allow time for stabilisation between adjustments
- Check room temperatures after several hours
A properly balanced system should deliver consistent heat across all zones. You should not feel noticeable variations when walking between rooms at the same setting.
Water Temperature and Mixing Valves
Underfloor heating typically runs at lower temperatures than radiators. Flow temperatures are usually between 35 and 50 degrees Celsius.
The mixing valve blends hot water from the boiler with cooler return water to achieve the correct temperature. If this is set too high, you risk damaging floor finishes or causing uneven heating. Too low and the system struggles to keep up.
Setting Mixing Valves Correctly
In a typical UK home with a gas boiler, the mixing valve is often set between 40 and 45 degrees. For heat pumps, it may be lower or even unnecessary if the system is designed correctly.
Installers often leave valves too high during commissioning to mask poor flow rates or insulation. This leads to surface overheating and inefficiency.
Heat Pump Considerations for UFH Temperatures
Under MCS guidelines, heat pumps should operate at the lowest possible flow temperature. UFH systems are ideal for this, but only if designed properly.
Running a heat pump at 50 degrees instead of 35 degrees can significantly increase running costs. Correct manifold setup and UFH balancing are critical here.
For reference, timber floors often require lower surface temperatures, generally not exceeding 27 degrees Celsius. Always check manufacturer guidance.
The Health and Safety Executive provides useful guidance on safe hot water temperatures here https://www.hse.gov.uk/healthservices/scalding-hot-water.htm.
Cost Breakdown for UFH Manifolds and Controls in the UK
Costs vary depending on system size, brand and level of control sophistication.
| Item | Typical Cost Range | Notes |
|---|---|---|
| Manifold with pump and mixing valve | £250 to £600 | Based on 4 to 12 ports |
| Actuators per loop | £15 to £30 each | One per zone loop |
| Room thermostats | £40 to £120 each | Smart controls cost more |
| Wiring centre | £50 to £150 | Depends on zones |
| Labour for installation | £300 to £800 | Varies with complexity |
Typical installed costs for full systems in the UK:
- New build, £80 to £120 per m²
- Retrofit, £120 to £180 per m² due to floor build up changes
Annual maintenance is relatively low, but allow:
- £80 to £150 for system check or service
- £50 to £120 for pump or actuator replacement if required
If you need a professional, you can find a qualified specialist here https://www.bookabuilderuk.com/services/heating-engineer.
For full system costs including pipework and screed, see How Much Does Underfloor Heating Cost in the UK? Install, Running Costs and What Affects the Price.
Troubleshooting UFH Manifolds and Controls
If your system is not performing, start with a structured check. Most issues can be narrowed down quickly.
| Problem | Likely Cause | Fix |
|---|---|---|
| Cold room | Low flow rate or stuck actuator | Check flow meter and actuator operation |
| Noisy pump | Air in system or incorrect speed | Bleed system and adjust pump setting |
| Uneven heating | Poor balancing | Reset flow rates based on design |
| System not responding | Thermostat or wiring fault | Check wiring centre connections |
| Overheating floors | Mixing valve too high | Reduce flow temperature |
Always start with the basics. Check power, thermostats and visible flow rates before assuming major faults.
Integration with Screed and Floor Build Up
Manifold performance is closely tied to how the floor is built. Poor screed depth or curing can seriously affect heat transfer and can lead to cracking.
A standard sand and cement screed typically needs 65 to 75 mm over pipes. Liquid screeds can be thinner, often around 50 mm. Drying times vary but you are usually looking at one day per millimetre up to 40 mm for traditional screed under ideal conditions.
More detail can be found here UFH Screed Depth and Drying Times Explained for UK Renovations How to Avoid Cracks and Delays.
Controls Options, From Basic to Smart Systems
You can keep things simple with dial thermostats or go fully zoned with app based control.
Basic systems:
- Manual or digital thermostats
- Simple on off control
- Lower upfront cost
Advanced systems:
- Smart thermostats with scheduling
- App control and remote access
- Weather compensation features
- Integration with heat pumps
Expect to pay more upfront for smart systems, but they can improve efficiency if set up correctly. Poorly configured smart controls can actually increase running costs.
Common Mistakes to Avoid
This is where many installations fall short. These are real issues seen on UK sites.
- Manifold installed in an inaccessible location
- No proper system design or heat loss calculations
- Incorrect flow rates set during commissioning
- Over zoning leading to unstable system performance
- Mixing valve set too high
- Air left in the system
- Incorrect pump selection
- Poor insulation below pipes
- Thermostats placed in poor locations
Inaccessible manifolds often lead to systems never being serviced properly. Fix involves relocating or improving access panels.
No design calculations usually result in underperforming rooms. The only real fix is recalculating heat loss and rebalancing the UFH flow rates.
Incorrect flow rates are the most common issue. This leads to cold zones and overheating elsewhere. Correction involves full UFH balancing using design data.
Over zoning causes constant on off cycling, especially with heat pumps. In existing systems, zones can sometimes be grouped or actuators locked open to stabilise flow.
Mixing valves left too high can damage timber floors and increase energy use. Reducing temperature and rebalancing usually resolves it.
Air in the system causes noise and poor circulation. A full flush and bleed is required.
Incorrect pump sizing leads to poor distribution. Upgrading to a variable speed pump often resolves pressure issues.
Poor insulation means heat is lost downward. In retrofit cases, this can only be partially improved unless floors are lifted.
Bad thermostat placement leads to inaccurate readings. Relocating them fixes control issues.
Practical Checklist Before Handover
- All loops labelled clearly on the manifold
- Flow rates set and recorded
- System flushed and air removed
- Thermostats tested in each zone
- Mixing valve set to correct temperature
- Customer shown how to use controls
- Documentation provided including layout drawings
What Happens on Installation and Commissioning Day
On a typical UK install, the final day involves filling, pressure testing, flushing and balancing the system.
The installer will run each loop individually to remove air, set initial UFH flow rates, and check actuator operation. The system is then brought up to temperature gradually, especially with new screed.
Final balancing and fine tuning often continues over several days as the building stabilises.
Regulations and Standards to Be Aware Of
Underfloor heating systems must align with UK Building Regulations.
- Part L, energy efficiency requirements, including low temperature heating design
- Part P, electrical safety for control wiring
- Water regulations, including WRAS approved components where applicable
BS EN 1264 sets out design methods, output calculations and installation requirements for embedded water systems.
Heat pump systems should follow MCS design standards, particularly around flow temperatures, emitter sizing and zoning strategy.
If connected to a boiler, Gas Safe registration is required for that part of the system.
Government guidance on building regulations can be found here https://www.gov.uk/building-regulations-approval.
FAQ
How many loops can one manifold handle
Most domestic manifolds handle between 4 and 12 loops. Larger properties may use multiple manifolds. Each loop should stay within recommended pipe length limits to maintain efficient UFH flow rates and avoid excessive pressure loss.
Do I need a separate thermostat for every room
Not always. You can group rooms with similar heat demand into one zone. However, bathrooms and areas with different usage patterns usually benefit from independent control, especially where higher temperatures are required.
Why is one room colder than others
This is often a UFH balancing issue or incorrect flow rate. It could also be due to poor insulation, air in the system or a faulty actuator. Start by checking flow meters, actuators and thermostat signals at the wiring centre.
Can I adjust flow rates myself
Yes, but only if you understand the system design. Adjusting UFH flow rates without targets can create bigger imbalances. For best results, use the original heat loss calculations or call a heating engineer.
How long does commissioning and balancing take
Initial setup usually takes a few hours on installation day. Fine tuning can take several days as the building warms up and stabilises. In larger homes, proper UFH balancing may require return visits to achieve consistent temperatures across all zones.
Are smart controls worth it for UFH
They can be, especially for larger homes or variable occupancy. The benefits depend on correct setup. Poor programming will cancel out any efficiency gains, especially on heat pump systems.
Final Thoughts
UFH manifolds and controls are not just add ons. They define how well your system performs day to day. Correct zoning, accurate flow rates and proper commissioning make the difference between a system that ticks along quietly in the background and one that causes constant frustration.
If you are planning a new installation or fixing an underperforming system, getting the right tradesperson matters. You can post a job on BookaBuilderUK to receive free quotes from vetted local professionals who understand underfloor heating systems inside out.
