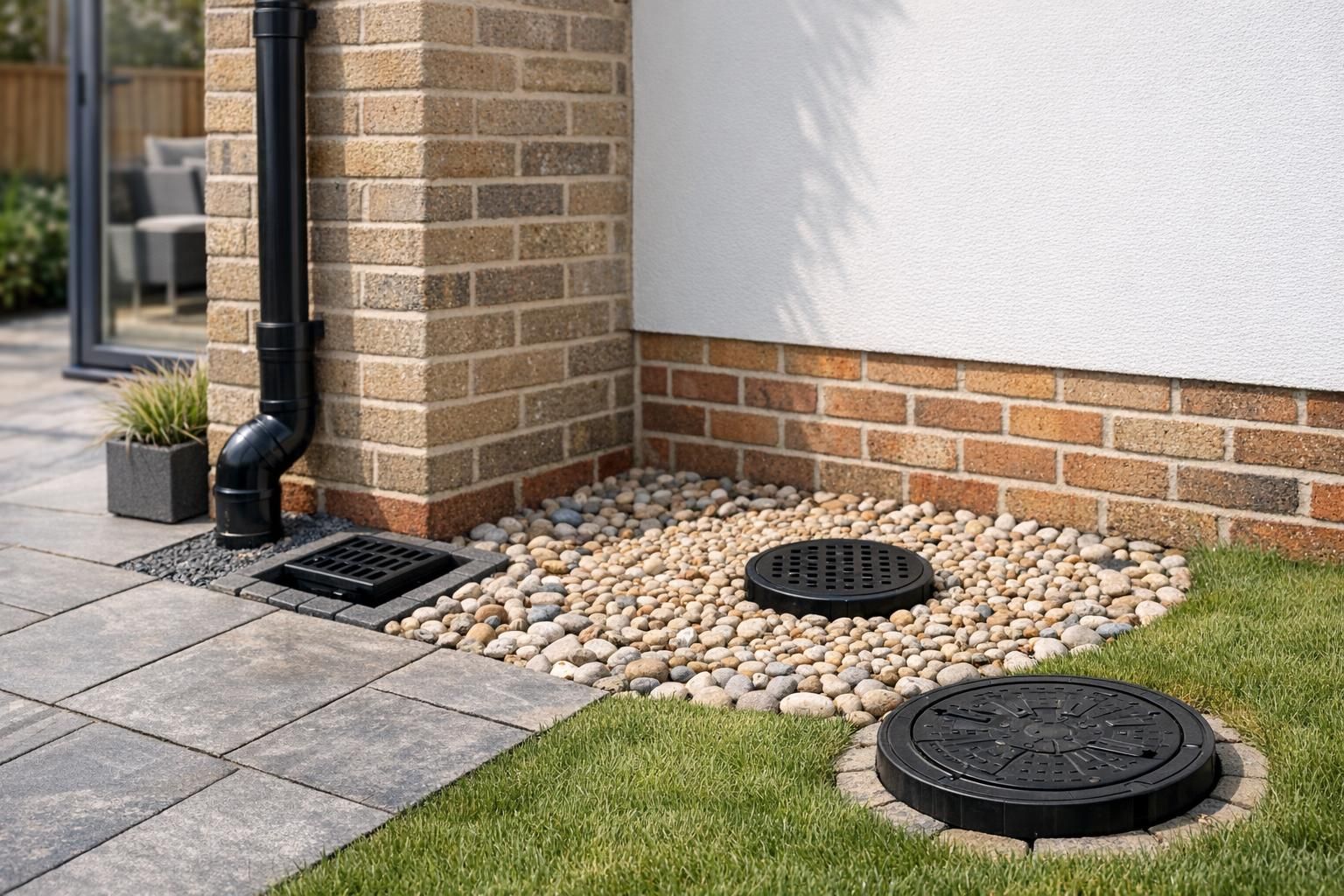

Drainage Systems for UK Homes Explained Soil Pipes Gullies Soakaways and Common Faults

Drainage systems for UK homes are easy to ignore until something goes wrong, and when they do, the disruption can be significant. A blocked drain can flood a kitchen in minutes, a failed soakaway can leave gardens waterlogged for weeks, and a collapsed pipe can cost anywhere from £1,000 to well over £3,000 once excavation and reinstatement are factored in. This article breaks down how a typical domestic drainage setup works, from soil pipes through to soakaways, and highlights the faults that tradespeople see week in, week out on site.

If you understand how the system fits together, you can spot early warning signs, avoid costly damage and know when a job is realistic DIY or needs a professional.

How UK Domestic Drainage Systems Are Set Up

A standard UK home drainage system splits into two parts, foul water and surface water.

• Foul water carries waste from toilets, sinks, baths and appliances into the sewer.
• Surface water deals with rainwater from roofs, driveways and patios.

In older properties, particularly pre 1970 builds, these systems are often combined. Modern regulations favour separate systems to reduce pressure on sewage treatment works.

The system usually includes soil pipes, waste pipes, gullies, underground drains, inspection chambers and sometimes soakaways. Each component has a specific role and a fault in one can affect the whole network.

Understanding Drainage Systems for UK Homes in Practice

On site, no two drainage layouts are identical. Extensions, kitchen relocations and loft conversions often alter original routes, sometimes creating long pipe runs or awkward connections. These changes can introduce issues such as poor flow or increased risk of blockages if not designed properly.

A key distinction homeowners should understand is whether their property uses a combined or separate system. You can often tell by inspecting inspection chambers. If both rainwater and foul pipes feed into the same chamber, it is likely combined. If downpipes run to a separate line or soakaway, it is a separate system. This matters because misconnecting surface water into foul sewers can lead to enforcement action from water authorities.

Soil Pipes Explained

The soil pipe is the vertical pipe that carries waste directly from your toilet into the underground drainage system. You will usually see it on the outside wall of a property, although in newer homes it is often boxed in internally.

Modern soil pipes are typically uPVC, replacing older cast iron stacks. They are vented at the top to allow air into the system, which prevents vacuum pressure and helps waste flow smoothly.

Key installation points

• Minimum diameter is usually 110mm for domestic systems
• Must be vented above roof level unless fitted with an air admittance valve
• Connections must be watertight and correctly aligned

In practice, installation errors are common. Misaligned joints, insufficient bracket spacing, or poor sealing around connections can all lead to long term issues. A frequent problem is inadequate support, particularly on taller stacks, which causes joints to strain and eventually fail.

Material lifespan is also worth understanding. Cast iron stacks, still found in many Victorian and Edwardian homes, can last 50 to 100 years but are prone to internal corrosion and cracking. uPVC systems typically last 30 to 50 years, but exposure to UV and temperature changes can cause brittleness over time.

Access is another key factor. Replacing an external soil pipe on a two or three storey property often requires scaffolding or a powered access platform. This can add £300 to £800 to the job, especially in London where permits and pavement access may be required.

Building Regulations Part H governs drainage and waste disposal in England. You can review the official guidance here Approved Document H.

Common soil pipe faults

• Cracked joints causing leaks and smells
• Improper venting leading to slow drainage or gurgling
• Blockages from wipes and sanitary products
• Poorly installed branches causing recurring clogs

Repair costs vary depending on access. Replacing a full external soil stack typically costs between £500 and £1,200 outside London, rising to £1,500 or more in the capital. Internal stacks can exceed £2,000 due to labour, boxing removal and reinstatement.

Waste Pipes and Internal Drainage

Waste pipes carry water from sinks, showers, baths and appliances into the drainage system. These are smaller than soil pipes, usually 32mm or 40mm in diameter.

Each appliance should have a trap, which holds water to prevent foul smells rising back into the home.

Correct pipe gradient is essential. Typical fall ratios are 1:40 for 32mm pipes and 1:60 for 40mm pipes. Too steep and water outruns solids, leaving residue behind. Too shallow and water sits in the pipe, causing build up.

Minor issues such as leaking joints or loose connections are often simple fixes. For guidance on basic repairs, see How to Repair Minor Plumbing Leaks. In renovations, waste pipe rerouting is common, especially when moving kitchens or adding en suites. This often involves lifting floors or opening walls, which increases both labour time and reinstatement costs.

Common waste pipe problems

• Hair and grease build up causing slow drainage
• Poor fall on pipework leading to standing water
• Old plastic becoming brittle and leaking
• DIY alterations using incorrect fittings or pipe sizes

Clearing a minor blockage may cost nothing if tackled early. A plumber visit for more stubborn issues typically ranges from £80 to £180 depending on location and urgency. In London, emergency callouts can exceed £250.

Gullies and Their Role in Surface Water Drainage

A gully is the point where wastewater or rainwater enters the underground drainage system. External gullies are usually found below downpipes or outside kitchens.

They include a water trap to stop odours escaping and a grid cover to catch debris.

Types of gully

• Bottle gullies which are compact and common in modern builds
• Back inlet gullies for receiving waste pipes from the side
• Yard gullies often found in older properties

Typical issues with gullies

• Blocked grids from leaves and dirt
• Grease build up restricting flow
• Cracked gully pots causing leaks into surrounding ground

Maintenance should be carried out at least twice a year, more frequently in properties surrounded by trees. If you notice persistent damp patches near a gully or foul smells even after cleaning, it may indicate a cracked underground connection.

Simple cleaning takes minutes, but hidden failures can require excavation. Replacing a gully pot may involve digging to depths of 300mm to 600mm. Costs range from £150 to £400 for straightforward jobs, rising to £600 or more if pipe connections also need replacing.

Soakaways Explained

A soakaway is used to disperse surface water into the ground. It is usually a pit filled with rubble or modular plastic crates, allowing rainwater to slowly drain away.

Soakaways are common in areas without surface water sewers or where planning requires sustainable drainage systems.

Soil type plays a major role in effectiveness. Sandy and gravel soils drain well and are ideal. Clay soils retain water and often lead to soakaway failure unless the system is oversized.

Before installation, a percolation test should be carried out. This involves filling a trial pit with water and measuring how quickly it drains. Failure to do this is a common cause of poor performance.

The system should be positioned at least 5 metres from a building and away from boundaries to prevent structural issues.

Signs of soakaway problems

• Water pooling on driveways or lawns after rain
• Damp patches near foundations
• Overflowing gutters despite clear downpipes

Failures often occur due to saturation over time, undersized systems, or incorrect installation depth. In some cases, older rubble filled soakaways become clogged with silt and need full replacement.

Installing a new soakaway typically costs £1,000 to £3,000, but in clay ground or where access is limited, costs can exceed £4,000 due to deeper excavation and larger crate systems. Excavation alone can take one to two days, followed by installation and backfilling.

The NHBC guidance on drainage provides detailed standards on soakaway design and placement.

Underground Drainage and Inspection Chambers

Below ground, pipes connect all parts of the system and carry waste to the main sewer or septic system. These pipes usually run at a gradient to maintain flow, typically around 1:40 for 100mm pipes under Part H guidance.

Common materials include vitrified clay and plastic uPVC. Clay pipes are durable but brittle and prone to cracking under ground movement. Plastic systems are flexible and easier to install but can deform if not properly bedded.

Jointing methods vary. Modern plastic systems use rubber ring seals, while older clay systems often rely on mortar joints, which can fail over time and allow root ingress.

Inspection chambers, also called manholes, allow access for cleaning and inspection. In terraced housing, access can be restricted, making repairs more labour intensive. In some cases, interior floors may need to be broken out to reach damaged sections.

Common underground issues

• Tree root ingress cracking pipes
• Collapsed sections due to ground movement
• Fat and debris blockages

CCTV drain surveys are widely used to diagnose hidden faults. Expect to pay £100 to £300 for a standard residential survey, or £300 to £500 if detailed reports for property purchases are required.

Common Drainage Faults in UK Homes

Drainage faults tend to follow patterns. Some are age related, others come down to poor installation or misuse.

1. Blockages

One of the most frequent calls. Kitchen drains clog with grease, bathroom drains with hair and soap residue. A partial blockage typically causes slow drainage and occasional gurgling. A full blockage leads to water backing up quickly, sometimes across multiple fixtures.

Drain rods or high pressure jetting machines are often used by professionals to clear deeper obstructions. Misuse of rods can worsen damage if pipes are already weakened.

You can follow basic steps in How to Unblock a Shower Drain in a UK Home Remove Hair, Clear the Trap and Prevent Bad Smells.

2. Foul Odours

Usually caused by dry traps, damaged pipework or poor ventilation. If smells persist across multiple rooms, it may indicate a ventilation fault or broken underground pipe rather than a simple trap issue.

3. Slow Drainage

This often builds gradually. Partial blockages or incorrect pipe gradients are typical causes. If multiple fixtures are affected, the issue is likely further down the system.

4. Damp and Subsidence Risks

Leaking underground drains can saturate soil, potentially affecting foundations. Early signs include unexplained damp patches outside or cracking in nearby surfaces. Left unchecked, repair costs can escalate into several thousand pounds.

Drainage Maintenance Checklist for Homeowners

• Clear external gullies at least twice a year
• Check for slow draining sinks or baths
• Inspect visible pipework for leaks or staining
• Avoid disposing of fats, oils and wipes down drains
• Flush rarely used fixtures to maintain trap seals
• Monitor outdoor areas for standing water after rain
• Arrange a CCTV survey if recurring problems occur

DIY vs Professional Drainage Work

Task	DIY or Pro	Risk Level	Typical Cost
Clear sink trap	DIY	Low	Free to £20
Use drain rods	DIY or Pro	Medium	£20 to £100
Jet washing drains	Pro	Medium	£80 to £200
Replace gully	Pro	Medium	£150 to £600
Excavate and repair pipe	Pro	High	£800 to £3,000

Cost Breakdown for Typical Drainage Work

Job	Typical Cost Range	Timeframe
Unblock internal drain	£80 to £150	1 to 2 hours
CCTV drain survey	£100 to £300	1 to 2 hours
Replace soil pipe	£500 to £1,200	1 day
Repair collapsed drain	£800 to £2,500 plus	1 to 3 days
Install soakaway	£1,000 to £3,000	1 to 3 days

Costs vary based on location, access and whether excavation is needed. Labour often accounts for 60 to 70 percent of total cost. London and the South East generally sit at the higher end, sometimes 20 to 30 percent above national averages.

When to DIY and When to Call a Professional

Some drainage tasks are manageable with basic tools. Others require specialist equipment or knowledge of regulations.

Simple jobs such as clearing a trap or removing visible debris are suitable for homeowners. Anything involving underground pipes, structural work or repeated blockages should be left to professionals.

If you are unsure, this guide helps weigh up the risks When to Call a Professional Plumber vs. DIY, with practical examples of what can go wrong if work is carried out incorrectly.

Common Mistakes to Avoid

Drainage problems often start with small oversights. These are the issues tradespeople regularly encounter.

• Poor pipe gradients leading to standing waste and recurring blockages
• Using incorrect pipe sizes or incompatible fittings
• Connecting surface water into foul systems, which is often against local regulations
• Ignoring early warning signs such as slow drainage or minor smells
• Planting trees too close to drainage runs

Fixing these mistakes later is always more expensive than doing the job correctly first time.

Regulations and Compliance in the UK

Drainage work must comply with Building Regulations Part H. This covers pipe sizing, gradients, ventilation and connection to public sewers.

Minimum gradients are specified to ensure effective flow, typically 1:40 for 100mm foul drains. Ventilation is also required to prevent pressure build up, either via open vent pipes or approved air admittance valves.

Approval from Building Control is required for new systems, major alterations or connections to public sewers. Shared drainage is usually the responsibility of local water authorities, while internal drains fall to the homeowner.

Products used should comply with standards such as those recognised by the Water Regulations Advisory Scheme, ensuring fittings are safe and suitable for UK installations.

Health and safety guidance during excavation can be found via the Health and Safety Executive.

FAQ

How do I know if I have a drainage problem or just a blocked pipe?

A single slow draining fixture usually points to a local blockage. Multiple fixtures affected at once suggests a deeper issue in the system. Gurgling sounds, bad smells and rising water levels are strong indicators of a wider drainage problem. If external drains are also slow, the issue is likely underground.

Can I install a soakaway without planning permission?

Most soakaways fall under permitted development, but they must meet Building Regulations and be positioned correctly. If you are working near boundaries or in a conservation area, check with your local authority. A percolation test is often required before approval.

Who is responsible for drainage outside my property?

Homeowners are responsible for drains within their boundary. Shared drains and sewers are typically managed by water companies. If you are unsure, a drainage survey can clarify ownership and prevent disputes.

How often should drains be cleaned?

Routine cleaning is not always necessary for domestic systems. However, properties with recurring issues or heavy usage may benefit from annual jetting. Commercial premises often require more frequent servicing, as outlined in Signs Your Business Needs a Commercial Drainage Overhaul.

What causes repeated drain blockages?

Recurring blockages often indicate an underlying issue such as pipe damage, poor gradients or root ingress. Simply clearing the blockage will not fix the root cause. A CCTV survey is usually the next step, followed by repair or pipe relining if required.

How much does it cost to fix a collapsed drain in the UK?

Costs typically range from £800 for minor repairs to over £3,000 for deeper or hard to access sections. Factors affecting price include depth, location, reinstatement of surfaces and whether structural lining or full pipe replacement is required. Jobs usually take one to three days depending on complexity.

Final Thoughts

Drainage systems are one of those parts of a home that stay out of sight until they fail. Understanding how soil pipes, gullies and soakaways work together puts you in a stronger position to maintain your property and avoid expensive repairs.

If you are dealing with ongoing issues or planning drainage work, getting the right tradesperson makes all the difference. You can post a job on BookaBuilderUK to receive free quotes from vetted local professionals.
