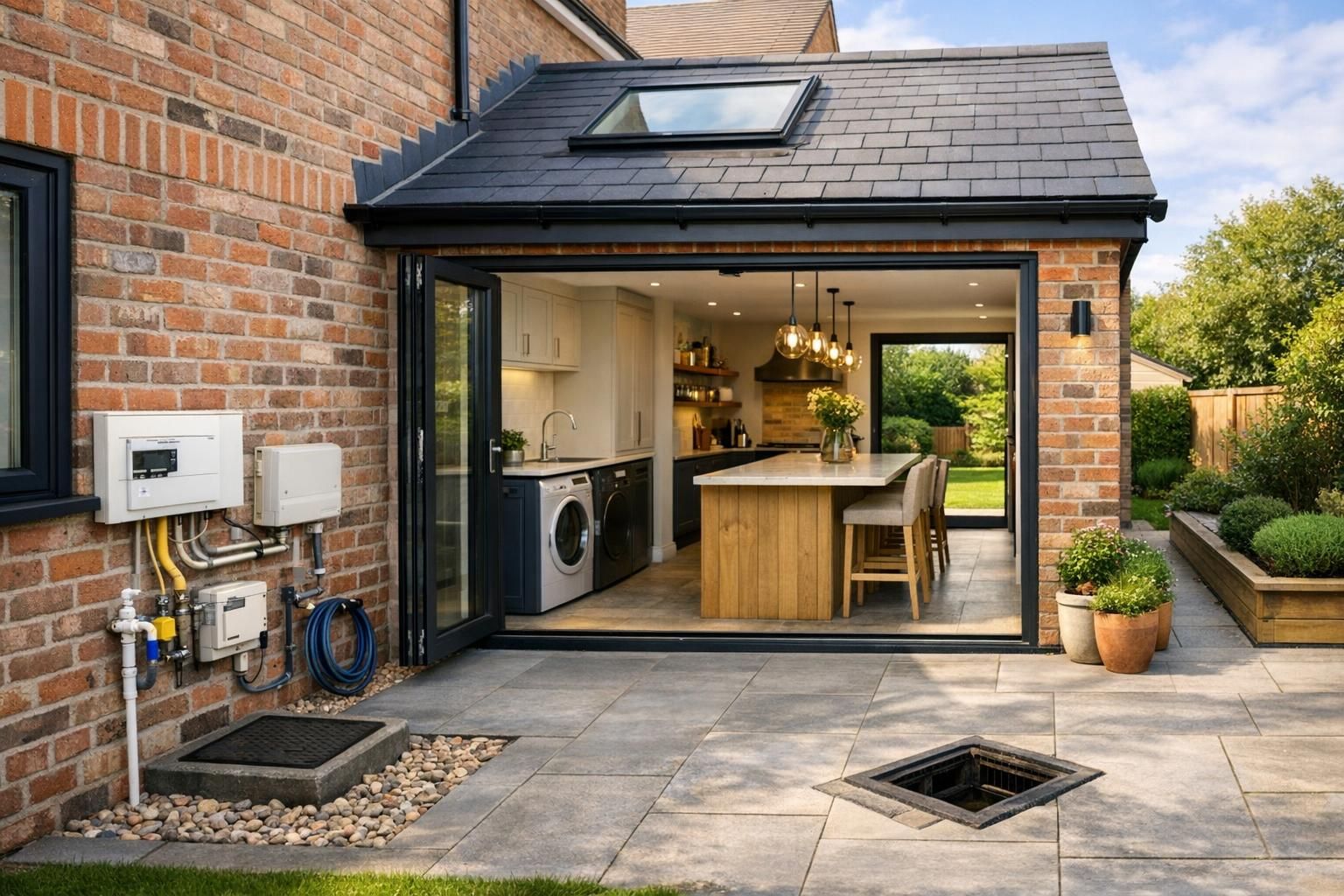

How to Plan Utility Connections for a Home Extension Without Costly Delays

One of the most common extension disasters starts with something as simple as a missed pipe or an overloaded fuse board. A homeowner in Surrey budgeted £2,500 for utility upgrades, only to end up spending over £11,000 after discovering their drainage ran directly under the planned foundation and their electrics could not support a modern kitchen. Work stopped for nearly three weeks while trenches were reopened and approvals were chased. Planning utility connections for a home extension without costly delays is not glamorous, but it is often the difference between a smooth build and a spiralling budget.

This guide is written from a practical, site led perspective. It covers how utilities are typically handled on UK extensions, what trades expect to see in place, realistic costs, timelines and the regulations that apply. Whether you are managing the job yourself or working with a builder, this will help you stay ahead of problems.

Why utility planning is critical to your extension

Every extension relies on existing services. Your new kitchen needs power, your extra bathroom needs drainage, and your heating system must cope with the increased load. Utilities are not standalone tasks. They link directly to foundations, slab pours, wall build ups and finishes.

Delays usually happen because services are not mapped early. A trench might be missed before concrete is poured, or a soil pipe route might clash with footings. Once structure is in place, changes become complex and expensive. Excavating under finished slabs often means breaking out concrete, installing new pipe runs in sections, and re inspecting with Building Control.

You also need to meet Building Regulations. Electrical work falls under Part P. Drainage and waste fall under Part H. Water efficiency and supply tie into Part G. If work is not designed and installed properly, you risk failing inspection and having to redo sections.

If you have not already reviewed regulatory requirements, this article gives a solid foundation: Understanding UK Building Regulations for Extensions.

Utility connections for a home extension, what you need to plan early

Utility connections for a home extension require coordination between multiple trades, regulatory bodies and design decisions. This is not just about connecting pipes and cables. It is about ensuring capacity, compliance, future access and long term performance.

At design stage, your architect and builder should already be considering:

• Where services enter and exit the building
• How they pass through foundations safely using ducting or sleeves
• Whether existing systems can handle increased demand
• How future upgrades such as EV chargers or solar panels will be accommodated

Ignoring this stage leads to reactive decisions on site, and reactive decisions are almost always more expensive.

Start with a full utility survey

Before designing routes or booking trades, establish exactly what is already there. Most issues arise from assumptions about existing services.

• Locate incoming mains water, stopcock and pipe size
• Identify the electrical consumer unit capacity and spare ways
• Check gas meter position and pipe routes
• Trace existing drainage runs including foul and surface water
• Confirm broadband entry point and cabling routes

Drainage surveys using CCTV typically cost between £150 and £350 depending on access and property size. This is money well spent if your extension involves new bathrooms or kitchens.

On site, drainage runs are usually uPVC pipes, commonly 110mm diameter for soil. Older properties may have clay pipes which are more prone to cracking. Identifying material early influences whether you repair, replace or reroute.

For older properties, electrical checks are essential. Many homes still run outdated wiring that cannot safely support modern loads. This guide explains typical issues: Common Electrical Faults in Older UK Homes and How to Address Them.

Plan service routes before foundations

This is where many builds go wrong. Service routes must be agreed before trenching and pouring foundations.

Key considerations include:

• Entry points through foundations using ducts or sleeves, typically 100mm ducts for multiple services
• Minimum depths for pipes and cables, usually 750mm for water and 450mm to 600mm for armoured electric cable
• Separation distances between services to avoid heat transfer or interference
• Access for maintenance or future upgrades

Typical trench widths for service runs range from 300mm to 600mm depending on the number of services. Trenches must follow HSE guidance for excavation safety, including shoring where required and safe access.

If you are running drainage under the slab, get levels right first time. Incorrect falls can mean constant blockages or a complete rework. Building Control will usually require a pre backfill inspection to check falls, joints and bedding before pipes are covered.

This stage links closely to wider project planning covered here: Pre Construction Checklist for UK Home Renovations Surveys Utilities Notifications and Site Setup to Avoid Costly Delays.

Electrical connections and capacity planning

Electrical work is often underestimated. Extensions add significant load through appliances, lighting and heating systems. Induction hobs, electric ovens and underfloor heating can quickly exceed spare capacity.

Your electrician should assess:

• Consumer unit capacity and compliance with BS 7671 wiring regulations
• Earthing and bonding, particularly in older properties
• Circuit design for new spaces
• Future proofing for EV charging or heat pumps

Typical first fix electrical work for an extension takes 2 to 5 days depending on size. Second fix usually takes 1 to 3 days. Delays often occur if plastering is not completed on time or if additional sockets are requested late.

Electrical cost drivers

• Distance from consumer unit to extension
• Need for a new consumer unit or complete rewire
• High load appliances requiring dedicated circuits
• Access difficulty, such as solid floors versus suspended timber

A new unit typically costs £400 to £800 installed. Full rewires range from £3,500 to £8,000 depending on property size.

All electrical work must comply with Part P and should be installed by a registered electrician, such as those on the NICEIC register: https://www.niceic.com.

Plumbing and water supply

Water supply upgrades are common in extensions, especially where additional bathrooms or utility rooms are added. MDPE pipe is commonly used for incoming water supplies, while internal pipework is often plastic push fit or copper.

Issues to consider:

• Incoming mains pressure and flow rate
• Pipe sizing for new demand
• Hot water system capacity
• Routing of pipework through floors and walls

First fix plumbing usually takes 2 to 4 days. Delays often come from changes to layout or kitchen designs arriving late.

Plumbing cost drivers

• Length of pipe runs and access difficulty
• Upgrading boilers or cylinders
• Floor construction, solid floors increase labour costs
• Water pressure requiring pumps or accumulators

If pressure is low, you may need a booster pump or upgraded supply. Upgrading from a combi boiler to a system with unvented cylinder can cost £2,500 to £5,500 depending on complexity.

All work must comply with Part G and relevant BS standards for pipework installation.

Drainage and waste systems

Drainage is where mistakes become expensive very quickly. Poor planning can lead to smells, slow drains, or structural changes after completion.

Main decisions include:

• Connection to existing soil stack or new stack installation
• Gravity drainage versus pumped systems
• Location of inspection chambers
• Compliance with minimum fall gradients

Drainage installation typically takes 1 to 3 days, but inspection scheduling can add delays. Building Control must inspect before backfilling. Failed inspections mean reopening trenches.

Drainage system comparison

Type	Cost	Maintenance	Best for
Gravity system	£800 to £3,000	Low	Extensions with natural fall to sewer
Pumped system	£1,500 to £5,000	Moderate to high	Basements or low level extensions

Drainage cost drivers

• Depth of excavation and soil type
• Distance to sewer connection
• Need for new manholes or chambers
• Groundwater conditions requiring additional protection

Typical fall for a 110mm soil pipe is around 1 in 40 to 1 in 80. Standards such as BS EN 12056 apply to gravity drainage design.

Installing a new inspection chamber can cost £800 to £1,800 depending on depth and access.

You can find official guidance here: https://www.gov.uk/guidance/sewer-connections-and-drain-adoptions.

Gas supply and heating integration

If your extension includes heating changes or new appliances, your gas system must be reviewed.

Consider:

• Boiler capacity for increased floor area
• Pipe sizing to maintain pressure
• Relocation of meters if extension covers external walls

Gas works usually take 1 to 2 days but delays occur if supplier approval is needed for meter relocation.

Gas cost drivers

• Length of pipe rerouting
• Meter relocation requirements
• Boiler upgrades or replacement

Gas pipe rerouting costs typically range from £300 to £1,200.

Only Gas Safe registered engineers can carry out gas work. You can verify engineers here: https://www.gassaferegister.co.uk.

Broadband and data cabling

This is often overlooked until late in the project. Running data cables during first fix is far cheaper than retrofitting later.

Consider installing:

• Cat6 or Cat6a Ethernet cabling to key rooms
• WiFi access points for larger extensions
• External conduit for future fibre upgrades

Professional installations usually cost £150 to £300 per point.

Timing and trade sequencing

Utility work must align with your build schedule. Poor sequencing causes delays more often than technical issues.

• Survey and design phase, 1 to 3 weeks depending on complexity
• Groundworks and duct installation, 3 to 7 days
• Drainage install, 1 to 3 days plus inspection wait
• First fix electrics and plumbing, 3 to 7 days
• Second fix, 2 to 5 days
• Testing and certification, 1 to 2 days

Common delays include bad weather affecting groundworks, late material deliveries, and changes to layouts mid project.

More sequencing guidance here: How to Plan a Garage Conversion in the UK Timeline, Building Regs, Utilities and Trade Sequencing Checklist.

Permissions and notifications

Not all utility works are internal decisions. Some require external approval.

You will typically choose between a Building Notice and Full Plans submission. A Building Notice is faster but offers less certainty. Full Plans approval provides detailed review before work starts, which reduces risk on complex utility layouts.

• Building Control inspections include drainage pre backfill and first fix electrics
• Water companies must approve sewer connections, often taking 2 to 6 weeks
• Distribution Network Operators handle electrical upgrades, timelines range from 4 to 12 weeks
• Gas meter relocations may require supplier approval and can trigger planning permission if external appearance changes

NHBC standards may apply where structural warranties are involved. HSE guidance applies to excavation and underground service safety.

Failure to notify can result in refused completion certificates or forced remedial work.

DIY project management vs using a builder

Approach	Cost	Risk	Time impact
DIY management	Lower upfront	Higher, coordination errors likely	Longer due to learning curve
Using a builder	Higher upfront	Lower, experienced sequencing	Faster overall completion

Future proofing utilities

Extensions are the best time to plan for future upgrades.

• Install spare electrical capacity for EV chargers
• Allow roof and wiring routes for solar PV
• Run conduits for battery storage systems
• Prepare smart home wiring and controls

These steps add minimal cost during construction but significantly increase long term value.

What to do if something goes wrong

Even well planned projects hit issues. The key is acting quickly and correctly.

• Failed drainage inspection, identify incorrect falls or joints, rectify and rebook inspection
• Blocked drains after install, jet clean and check gradients
• Insufficient electrical capacity, upgrade consumer unit or request supply upgrade
• Water pressure too low, install booster system

Delays of 2 to 10 days are common for these fixes, but ignoring them leads to bigger problems later.

Common mistakes to avoid

• Skipping surveys leads to unexpected pipe clashes, often costing £1,000 to £5,000 to fix mid build
• Missing ducts before concrete means breaking finished slabs, causing delays of up to two weeks
• Underestimating electrical load can result in full rewires
• Poor drainage falls lead to repeated blockages and eventual reinstallation
• No maintenance access means future repairs involve removing finishes
• Using unregistered trades risks failed inspections and compliance issues

Practical checklist before work starts

• Confirm all existing utility locations with drawings or surveys
• Agree service routes with your builder and engineer
• Install ducts through foundations for all services
• Book registered electricians and Gas Safe engineers early
• Submit any required notifications
• Check system capacities including boiler and electrics
• Allow for future upgrades

FAQ

How early should I plan utility connections for an extension?

Utility planning should start at design stage, before approvals are submitted.

Do I need Building Control approval for utility work?

Yes, most work requires inspection and certification.

Can my existing boiler handle an extension?

It depends on added demand. A heating engineer should confirm.

What happens if I hit a utility line during construction?

Stop work immediately and contact the relevant provider.

Is it worth upgrading utilities during an extension project?

Yes, it is usually far cheaper than doing it later.

Final Thoughts

Utility planning is not just a technical task. It is a coordination exercise that ties your entire extension together. Clear drawings, early engagement with trades and realistic budgeting will prevent most delays. Treat utilities as a core part of the build, not an afterthought.
