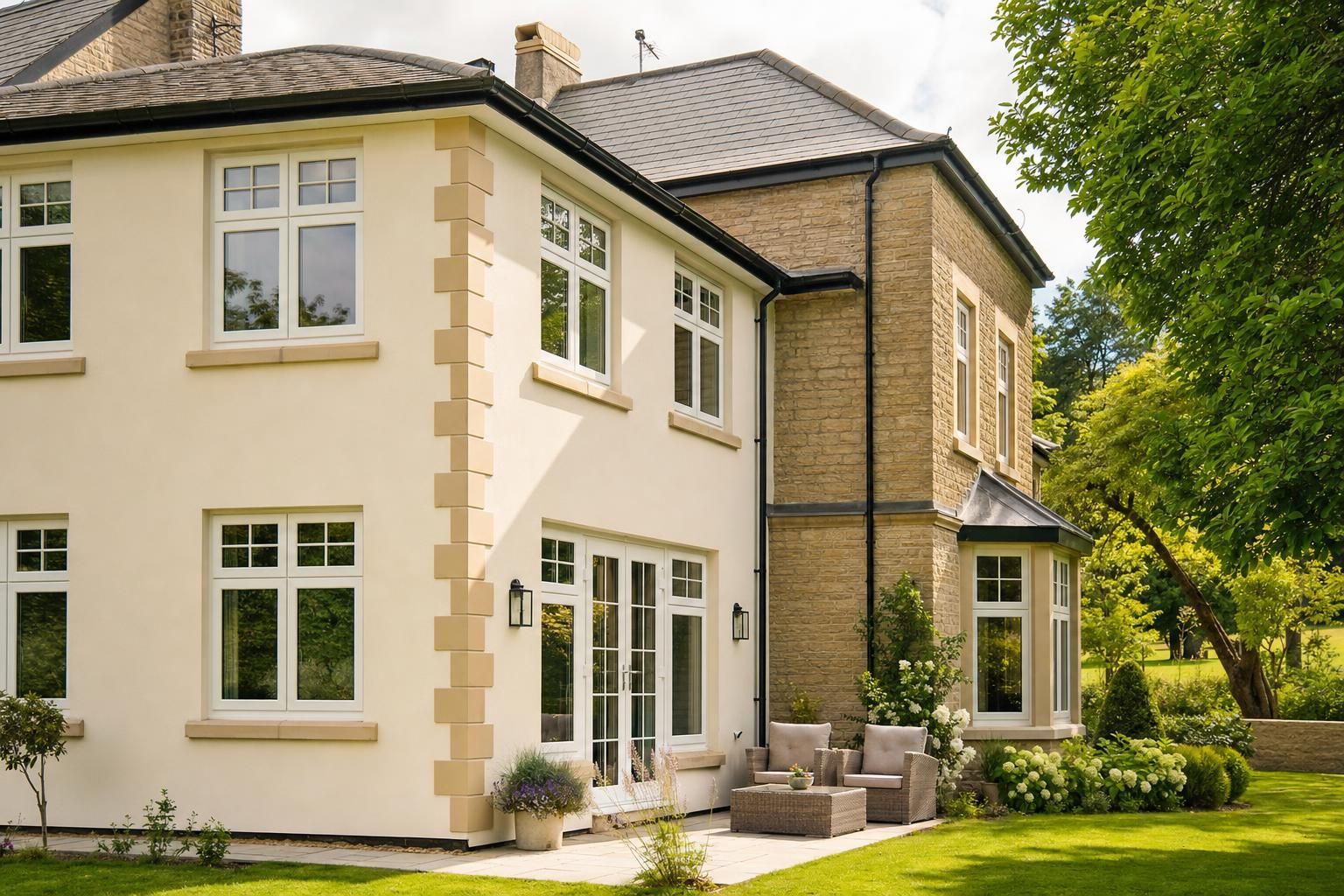

Wall Insulation Types Explained for Homeowners Internal External and Cavity Options Compared

Wall insulation types explained for homeowners is more than a technical topic. It directly affects how much you pay to heat your home and how comfortable it feels day to day. In many UK properties, up to 35 percent of heat loss occurs through uninsulated walls. That is the difference between a warm living room and one that never quite heats up, no matter how high the thermostat goes. With energy prices still unpredictable and EPC standards tightening, understanding the types of wall insulation in the UK is now a practical necessity for homeowners and landlords alike.

Internal, external and cavity wall insulation each suit different property types, budgets and constraints. Choosing the right system depends on your wall construction, condition, and long term plans for the building.

This guide draws on real site experience and current UK standards to help you compare approaches properly. You will find realistic costs, installation considerations, common pitfalls and practical advice that reflects how these jobs actually play out on site.

How to Identify Your Wall Type

Before choosing insulation, you need to know what you are working with. In the UK, most homes fall into three categories.

• Cavity wall properties built after the 1920s, with two layers of brick and a gap between them
• Solid wall properties, typical of pre 1920 homes, with no cavity
• Timber frame structures, often seen in modern developments

A quick check is to look at the brick pattern. Stretcher bond often indicates a cavity wall, while alternating long and short bricks in older homes usually means a solid wall. If in doubt, a qualified installer can carry out a borescope inspection.

Correct identification matters because installing the wrong system can trap moisture or fail to meet expected U values.

What Do U Values Mean in Practice

U value measures how quickly heat passes through a building element. The lower the number, the better the insulation.

Under Approved Document L, upgrades to existing walls typically target around 0.30 W per square metre kelvin, though many systems achieve considerably better. In practice:

• Uninsulated solid brick wall, around 2.0 W per m²K
• Cavity wall without insulation, around 1.5 W per m²K
• Insulated cavity wall, around 0.5 to 0.3 W per m²K
• Internal or external insulation upgrades, often 0.30 down to 0.18 W per m²K depending on thickness

The achieved figure depends on insulation type, thickness, and how well junctions are detailed. Poor installation can easily double the intended U value in real world conditions.

Each insulation method achieves these figures differently. You can read a deeper breakdown in Mineral Wool vs PIR Insulation in UK Homes U Values, Thickness, Fire Safety and Best Uses Explained.

Wall Insulation Types Explained for Homeowners in the UK

There are three main approaches used across UK housing stock. Understanding the difference between internal vs external wall insulation and cavity systems helps avoid costly mistakes. Each system deals with heat, moisture and structure in a different way.

Internal Wall Insulation Explained

Internal wall insulation, often called IWI, is installed on the inside face of external walls. It is widely used in solid wall properties where cavity insulation is not an option.

How It Is Installed

The most common methods involve either insulated plasterboard fixed directly to the wall or a metal or timber stud frame filled with insulation such as mineral wool or PIR boards. A vapour control layer is positioned on the warm side of the insulation, just behind the plasterboard, to limit moisture passing into the wall.

Good installers pay close attention to sealing this layer around sockets, switches and junctions. Even small gaps can allow moist air to enter and condense within the structure.

Technical Detail and Build Up

• Typical PIR insulated plasterboard thickness, 62.5mm to 100mm
• Mineral wool in studs, often 80mm to 120mm plus plasterboard
• Achievable U values, around 0.30 to 0.20 W per m²K depending on thickness

Thicker systems deliver better performance but reduce floor area. In smaller rooms this becomes noticeable.

Room by Room Disruption

IWI is one of the most disruptive types of wall insulation in the UK. Work is usually carried out room by room.

• Day 1 to 2, strip out radiators, skirting, sockets
• Day 2 to 4, install insulation system and vapour barrier
• Day 4 to 6, plastering and drying
• Following days, second fix electrics, redecoration and refitting

Each room can take around a week. Full house projects are often phased to allow continued occupation.

Typical Costs in the UK

• Insulated plasterboard systems, £80 to £120 per square metre
• Stud wall systems with insulation, £100 to £150 per square metre
• Full room strip out and refit can add £2,000 to £5,000 depending on size

Costs rise quickly if radiators, sockets and skirting boards need relocating. Any electrical work should comply with NICEIC standards.

Advantages

• Often cheaper than external systems
• No change to exterior appearance
• No planning permission in most cases

Drawbacks

• Reduces room size slightly
• Disruptive, especially in occupied homes
• Poor detailing can lead to condensation and mould

Careful thermal bridging control is critical around window reveals and floor junctions.

External Wall Insulation Explained

External wall insulation, or EWI, wraps the building in an insulating layer and protective finish. It is one of the most effective ways to improve energy performance in solid wall homes.

Step by Step Installation Process

• Preparation of substrate and repairs to existing wall
• Installation of base track at ground level to support boards
• Fixing insulation boards using adhesive and mechanical fixings
• Application of base coat with embedded reinforcing mesh
• Additional mesh around openings to prevent cracking
• Primer and finishing render or cladding system

Each stage must cure properly before the next begins. Rushing the process often leads to cracks or failure.

Thickness and Performance

• EPS systems, typically 90mm to 150mm thick
• Mineral wool systems, typically 100mm to 160mm
• Achievable U values, around 0.30 down to 0.18 W per m²K

Consistent coverage across the building envelope significantly reduces heat loss.

Preventing Thermal Bridging

Good detailing includes insulated window reveals, extended sills, and careful treatment at roof eaves and ground level. These junctions are where most heat loss occurs if ignored. Installers often use thinner high performance boards in tight areas to maintain continuity.

Typical UK Costs

• Rendered systems, £120 to £170 per square metre
• Premium finishes or cladding, up to £200 plus per square metre
• Scaffolding often adds £3,000 to £8,000 depending on property size

Total project costs for a typical semi detached house usually fall between £10,000 and £20,000.

Advantages

• Excellent thermal performance with minimal thermal bridging
• Improves external appearance
• No loss of internal space

Considerations

• Planning permission may be required in conservation areas
• Detailing must meet Building Regulations and manufacturer guidance
• Requires experienced installers to avoid cracking or water ingress

For a deeper technical breakdown, see External Wall Insulation for UK Homes Explained Systems, U Values, Render Finishes and Common Pitfalls to Avoid.

Cavity Wall Insulation Explained

Cavity wall insulation remains the most cost effective upgrade where suitable. It involves filling the gap between inner and outer brickwork.

Suitability Checks

Not every cavity wall should be insulated. Installers assess several factors.

• Exposure zone, properties in high wind driven rain areas face greater risk
• Cavity width, typically needs to be at least 50mm
• Wall condition, cracks or damaged pointing must be repaired first
• Presence of debris, which can cause cold bridging

Survey quality makes a major difference to long term performance.

Materials Used

• Polystyrene beads, widely used, good moisture resistance
• Mineral wool fibres, breathable but more sensitive to water ingress
• Foam insulation, expands to fill gaps but less common in modern installs

Beads are typically preferred for exposed properties due to their resistance to moisture travel.

Installation Process

Small holes are drilled into the mortar joints and insulation material is injected. The holes are then sealed to match the existing finish.

Installation usually takes one day for an average house.

Typical Costs

• Detached house, £900 to £1,500
• Semi detached, £700 to £1,000
• Terraced, £500 to £900

Grants may be available through schemes such as ECO depending on eligibility.

Remediation if It Fails

If cavity insulation causes damp, the usual fix involves removing the material. This can cost £1,500 to £4,000 depending on property size. Walls may then need to dry out over several months before alternative insulation is considered.

Advantages

• Quick installation
• Low cost compared to other methods
• Noticeable improvement in heat retention

Risks

• Not suitable for all properties, especially those exposed to driving rain
• Poor installation can lead to damp bridging
• Older cavities may contain debris which needs removal first

Detailed risk assessment is essential. For more depth, see Cavity Wall Insulation in UK Homes Explained Types, U Value Performance, Damp Risks and How to Choose a Reputable Installer.

Detailed Cost Breakdown by Insulation Type

Insulation Type	Labour	Materials	Additional Costs
Internal Wall Insulation	£40 to £70 per m²	£30 to £80 per m²	Plastering £20 to £40 per m², electrics, decoration, waste removal £500 to £2,000
External Wall Insulation	£60 to £90 per m²	£60 to £110 per m²	Scaffolding £3,000 to £8,000, trims and detailing £1,000 plus
Cavity Wall Insulation	Included	Included	Survey and prep work £100 to £300, possible repairs extra

Step by Step Project Timeline

Cavity wall insulation

• Survey and assessment, 1 to 2 hours
• Installation, 1 day
• Inspection and completion, same day

Internal wall insulation

• Preparation and strip out, 2 to 5 days
• Installation phase, 1 to 3 weeks depending on size
• Drying and finishing, 1 to 2 weeks

External wall insulation

• Scaffolding setup, 2 to 4 days
• Installation and base coats, 1 to 2 weeks
• Render curing and finishing, 1 to 2 weeks depending on weather

Delays are often caused by poor weather, especially rain and low temperatures affecting render curing, or by access issues and material lead times.

Building Regulations and Compliance

Wall insulation must comply with Approved Document L for energy efficiency. Retrofit work should follow PAS 2030 and PAS 2035 frameworks, which focus on whole house assessment and risk management.

The UK Government guidance on Approved Document L provides current requirements.

Installers should be TrustMark registered for compliance with government backed quality schemes. British Standards also apply for moisture control and installation methods.

Building Control notification is typically required where more than 25 percent of a wall is renovated. External insulation almost always falls under this requirement.

Ventilation must also be assessed under Part F. Improving insulation without upgrading ventilation can lead to condensation issues. Trickle vents or mechanical ventilation may be needed.

The Health and Safety Executive also provides guidance on working at height and construction safety, particularly for external insulation systems, see HSE construction safety guidance.

Further guidance can also be found via the Energy Saving Trust at https://www.energysavingtrust.org.uk/.

Practical Checklist Before Starting

• Confirm wall type through inspection
• Check for existing damp or structural issues
• Assess ventilation in the property
• Obtain at least three detailed quotes
• Confirm installer accreditation and insurance
• Ask about guarantees and warranties
• Check if planning permission is needed

Skipping any of these steps often leads to problems later.

How to Choose the Right Installer

• Check TrustMark registration and PAS compliance
• Ask for recent similar projects and references
• Confirm warranty providers such as CIGA for cavity systems
• Ensure detailed written quotes with specification
• Avoid large upfront payments
• Red flag, vague timelines or missing detail on materials
• Red flag, significantly lower quotes than others

Good installers will explain limitations as well as benefits.

What Can Go Wrong

Wall insulation can fail if poorly specified or installed. These are commonly seen issues on UK retrofit projects.

Damp and Condensation

A solid wall property in Manchester fitted with internal insulation without a vapour control layer developed black mould within 6 months. Repair required full removal and reinstallation at a cost of around £6,000.

Poor Detailing

A London flat with internal insulation left gaps around window reveals. Cold bridging led to condensation and plaster damage. Repairs cost around £1,500.

Using the Wrong System

A coastal property in Wales had cavity insulation installed despite high exposure. Wind driven rain penetrated the outer leaf and transferred moisture across the cavity. Extraction and drying cost over £3,000.

External System Failure

An external insulation system installed without correct mesh reinforcement developed cracks within two years. Water ingress followed, requiring partial removal and re rendering costing £8,000 plus.

Most issues are diagnosed through moisture testing, thermal imaging and visual inspection. Fixes often involve removing defective sections and correcting detailing.

Eco Friendly Insulation Options

There is growing interest in sustainable materials such as wood fibre, sheep wool and cellulose. These materials can perform well when correctly specified, particularly in breathable wall systems.

Performance and Cost Comparison

Material	Cost per m²	Typical U Value	Best Use
Wood fibre	£100 to £160	0.30 to 0.20	Solid walls needing breathability
Sheep wool	£90 to £140	0.35 to 0.25	Internal insulation in older homes
Cellulose	£80 to £130	0.35 to 0.25	Timber frame or stud walls

Pros and Cons

• Lower embodied carbon than PIR or EPS
• Better moisture regulation in breathable constructions
• Higher upfront cost
• Requires careful design to meet fire and moisture standards

These systems are often best suited to heritage properties where maintaining breathability is critical.

They often cost more upfront but can improve moisture management and reduce embodied carbon. See A Guide to Eco-Friendly Insulation Options for a closer look at sustainable alternatives.

Timeframes for Installation

• Cavity wall insulation, usually one day including survey and completion
• Internal wall insulation, 2 to 6 weeks depending on property size and drying time
• External wall insulation, 3 to 6 weeks including curing and weather delays

Factors that affect timelines include weather conditions, scaffold access, inspection stages, and material availability.

FAQ

Which wall insulation type is best for my home?

The best wall insulation for UK homes depends on construction and exposure. A 1930s semi with a clear cavity usually suits cavity insulation. A solid brick terrace may benefit more from external insulation for better thermal continuity. Internal insulation is often chosen where external appearance must be preserved.

Will I need planning permission for external wall insulation?

Most homes do not require permission, but properties in conservation areas or with listed status usually do. External insulation that changes appearance, such as render colour or thickness affecting boundary lines, may require approval.

How much could I save on energy bills?

Solid wall insulation can reduce heat loss by up to 45 percent. For a typical semi detached home, this can mean £200 to £500 annual savings, with higher savings in poorly insulated properties.

Can insulation cause damp problems?

Yes if installed incorrectly. Issues often arise where ventilation is not upgraded or where moisture paths are blocked. A proper survey and moisture assessment reduces risk significantly.

How do I choose a reliable installer?

Look for accreditation, insurance, and a proven track record. Check TrustMark registration, ask for past project examples, and ensure the quote includes full detailing of materials and thickness.

How long does wall insulation last and when does it need replacing?

Most systems last between 25 and 40 years if installed correctly. External systems can last longer with maintenance of render coatings. Replacement is usually only needed if performance drops, moisture problems occur, or structural changes are made. Cavity insulation may require earlier replacement if it becomes damp or unevenly distributed.

Final Thoughts

Choosing between internal vs external wall insulation or cavity systems is not just about cost. It is about understanding your property, managing moisture risks and ensuring proper installation. Done correctly, insulation improves comfort, reduces energy costs and adds long term value.
